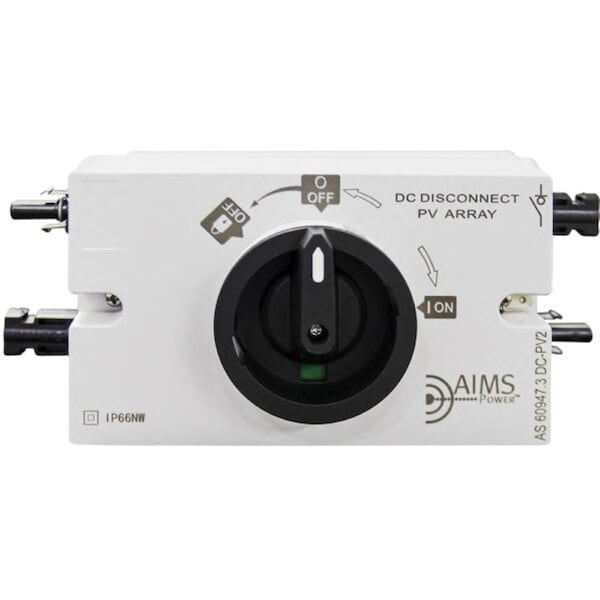

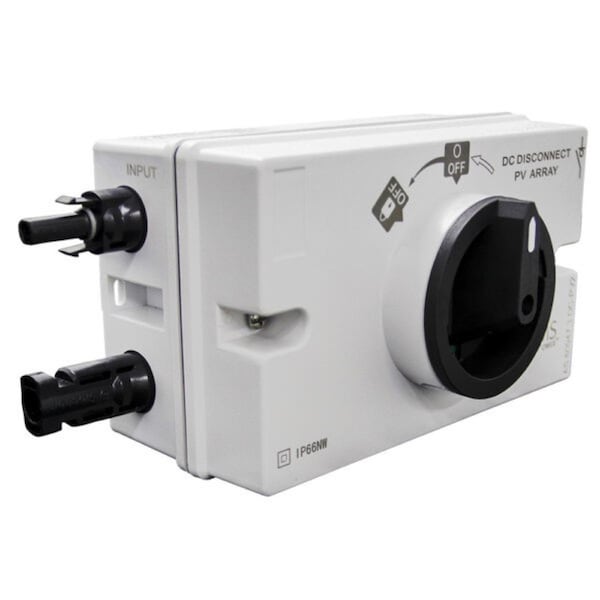

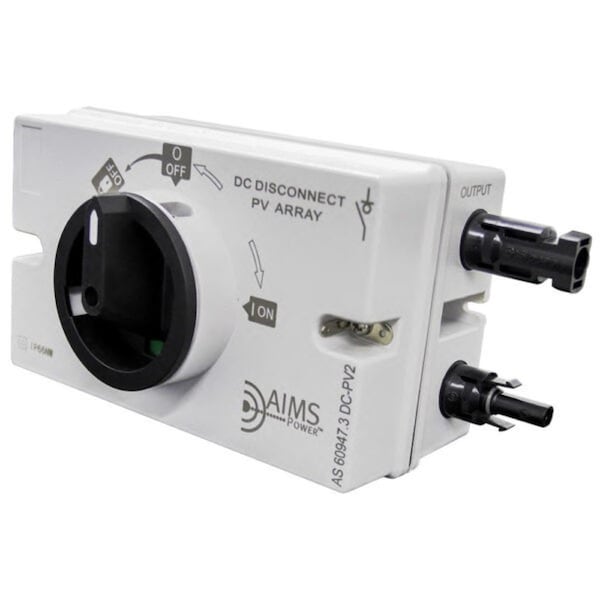

Solar Dc Disconnect Switch Single Input/Output At 32A Ip66Nw Rated Outdoor Use Ok
| Short Circuit Current | 1 - 32 amp circuit |
|---|---|
| Color | White |
| Amps | 32 |
| Depth | 4 in |
| Length | 10 in |
| For Use With | Pv Solar Arrays |
| Features | Quickly disconnect DC power from your solar array to the charge controller, batteries and/or inverter, Outdoor rated, Off and on grid applications, Isolated SAFE-LOCK with three rotational positions reducing the risk of tampering, Single pull double throw 2IO, Ensures the disconnection of load circuits and suppression of the arc in under 5 mil secs, Non-corrosive and waterproof, Lock out option, Max amperage – 32 amp, Output and input connections are MC4 compatible for easy set up and installation |
| Includes | Disconnect Switch |
| Standards | TUV, SAA, CE, IP certified & ROHS compliant |
| Voltage | 1200 V |
| Width | 4-1/2 in |
| Pole/String | 2 pole and 1 string |
| Arc Time | <2ms |
| Application | DC Power Disconnect; cabins or vacation homes that don’t require delivery of constant solar power |
| Package Quantity | 1 |
