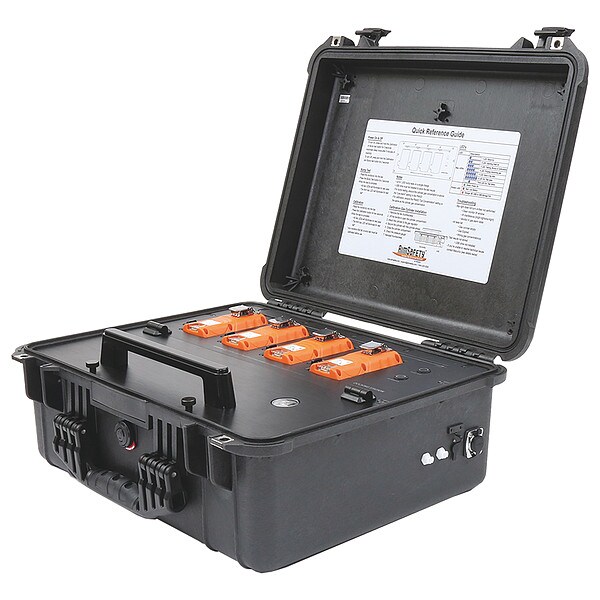

Calibration Station, CH4/CO/H2S Gas Type
| Item | Calibration Station |
|---|---|
| For Use With | Mfr. No. PM400-IR, PM400-P, PM400-IR2G, PM400-P2G |
| Flow Rate | 0.2 lpm |
| Material | Polypropylene |
| Includes | Charger, Regulator |
| Features | Automatic Update Pm400 Configuration and Firmware, Bump Testing upto Four Pm400 Multi-Gas Units at a Time, Calibrating upto Four Pm400 Multi-Gas Units at a Time, Event Logging Through PC or PM Link |
| Gas Type | CO, H2S, CH4 |
| Temp. Range | Degrees to 40 Degrees C |
| Status Indicator | LED |
| Length | 19 in |
| Height | 8-1/4 in |
| Cylinder Size | 34 L, 58 L, 103 L |
| Shut Off | Automatic |
| Voltage | 115/12V DC |
| Width | 17-1/4 in |
| Cylinder Capacity | 34 L/58 L/103 L |
| Product Type | Calibration Kit |
| Display | LED |
| Chemical Formula | CH4, CO, H2S, O2 |
| Sub-Brand | AimSafety |
| Test Stand Width | 17-1/4 in |
| Alert Type | Light, Internal Buzzer, Sound |
| Visual Alert Type | Multicolor LED |
| Compatible Detector Manufacturer Part Number | PM400-IR, PM400-IR2G, PM400-P, PM400-P2G |
| Flow Rate - Maximum | 0.2 lpm |
| Test Stand Material | Polypropylene |
| Data Logger | Yes |
| Test Stand Height | 8-1/4 in |
| Mount Type | Freestanding |
| Includes Regulator | Yes |
| Series | PM400 Series |
| Operating Temperature - Minimum | 41 deg F |
| Compatible Systems and Services | Windows 10, Windows 11, Windows 7, Windows 9 |
| Display Type | Analog |
| For Cylinder Volume | 34 L, 58 L, 103 L |
| Operating Temperature - Maximum | 104 deg F |
| Digital Memory Capacity | 8 GB |
| Power Source | Battery, Adapter |
| For Gas Type | Carbon Monoxide, Methane, Hydrogen Sulfide |
| Communication Protocol | PC-Compatible Interface, USB |
| Operating Voltage | 115/12V DC |
| Country of Origin (subject to change) | Korea, Republic of |
| Package Quantity | 1 |
