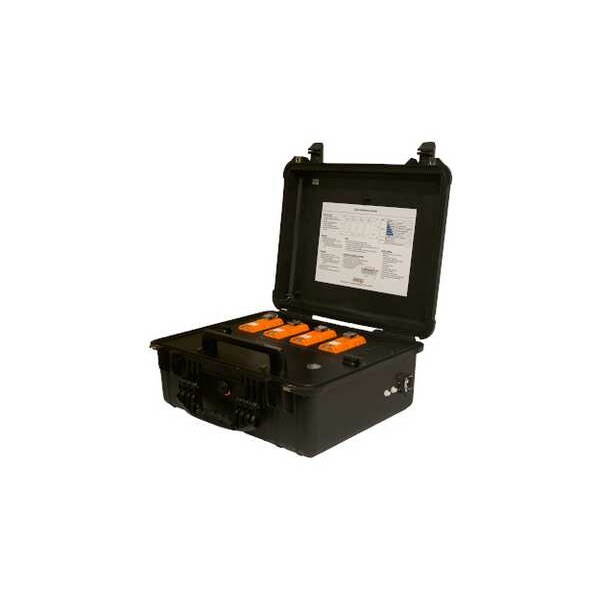

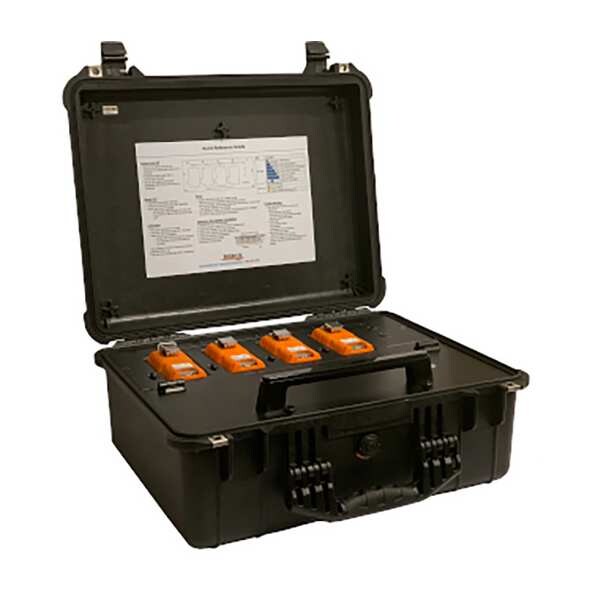

Single Gas Monitor Calibration Station
| Item | Bump Test Kit |
|---|---|
| Gas Type | CO, O2, H2S |
| Standards | Not Applicable |
| Features | Performs PM100 (CO, H2S, O2 only) Bump Tests, Calibrations, Configuration Changes and Firmware Updates |
| Height | 8-1/8 in |
| Width | 20-5/8 in |
| Test Time | Bump 20 sec, Calibration 90 sec |
| For Use With | AimSafety PM100-CO, AimSafety PM100-H2S, AimSafety PM100-O2 |
| Length | 16-7/8 in |
| Includes | AC Adapter, Inlet and Exhaust Adapters, Three Cylinder Straps, USB Drive |
| Shut Off | Manual |
| Cylinder Capacity | 58 L/103 L/105 L/116 L |
| Flow Rate | 3 lpm |
| Power Source | Battery, Adapter |
| Temp. Range | 41 Degrees to 104 Degrees F |
| Material | Aluminum, Polypropylene |
| Voltage | 110V AC |
| Cylinder Size | 58 L, 103 L, 105 L, 116 L |
| Status Indicator | LED |
| Product Type | Bump Test Kit |
| Data Logger | Yes |
| Mount Type | Freestanding |
| Test Stand Width | 20.62 in |
| Compatible Detector Manufacturer Part Number | PM100-CO, PM100-H2S, PM100-O2 |
| Digital Memory Capacity | 8 GB Standard |
| Display Type | Analog |
| For Cylinder Volume | 58 L, 103 L, 105 L, 116 L |
| Test Stand Height | 8.12 in |
| Chemical Formula | O2, CO, H2S |
| Visual Alert Type | Light, Sound |
| Sub-Brand | AimSafety |
| Alert Type | Light, Internal Buzzer |
| Communication Protocol | PC-Compatible Interface, USB, Infrared |
| Compatible Systems and Services | Windows |
| Flow Rate - Maximum | 3 lpm |
| Series | PM100 |
| Operating Temperature - Minimum | 41 deg F |
| For Gas Type | Carbon Monoxide, Dioxygen, Hydrogen Sulfide |
| Test Stand Material | Aluminum, Polypropylene |
| Operating Temperature - Maximum | 104 deg F |
| Operating Voltage | 12V DC |
| Includes Batteries | Yes |
| Test Stand Depth | 16.87 in |
| Battery Chemistry | Lithium Ion |
| Display Screen Type | Not Applicable |
| Includes Software | Yes |
| For Number of Units | 4 |
| Manufacturer Warranty Length | 2 yr |
| Country of Origin (subject to change) | Korea, Republic of |
| Package Quantity | 1 |
