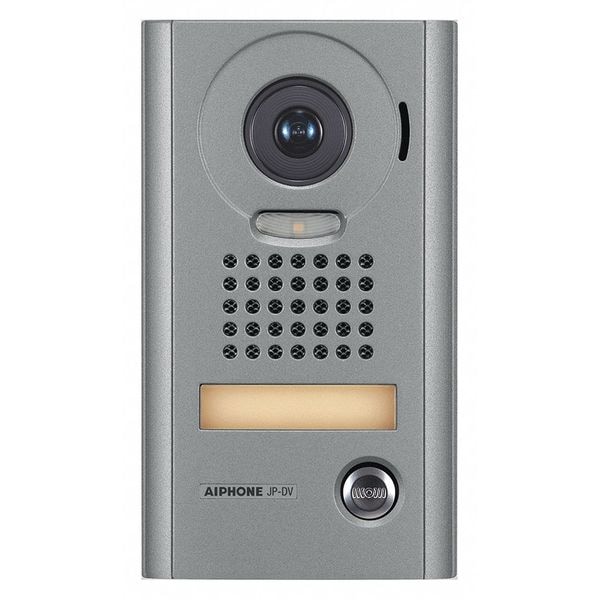

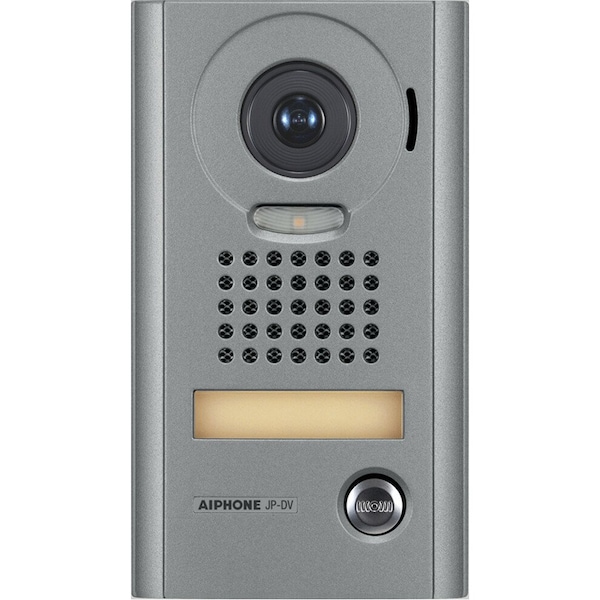

Door Station, 3-7/8" W x 6-51/64" H
| Item | Door Station |
|---|---|
| Height | 6.8 in |
| Height (In.) | 6-51/64 |
| Width | 3.8 in |
| Depth | 1 in |
| Width (In.) | 3-7/8 |
| Door Station Height (In.) | 1 |
| Door Station Width (In.) | 10 |
| Voltage | 24 V DC |
| Depth (In.) | 1 |
| Power Source | 24V DC |
| Door Station Depth (In.) | 1 |
| Wire Type | Non-Shielded |
| Includes | MKW-P Plate |
| Talk Channel Output (W) | 50 Watts Peak (25 Per Channel) |
| Type | Indoor, Outdoor, Surface Mount |
| Video Screen Size | Not Applicable |
| Master Width (In.) | 3-7/8 |
| Video Capable | Yes |
| For Use With | JP Series |
| Wiring Conductors | 2 Conductors |
| Listen Channel Output (W) | 50 Watts Peak (25 Per Channel) |
| Video Resolution | 1,080 |
| Master Height (In.) | 6-51/64 |
| Package Quantity | 1 |
| Master Depth (In.) | 1 |
| Product Type | Door Station |
| Minimum Illumination | 5 lux |
| Input Voltage | 24 V DC |
| Overall Width | 3-7/8 in |
| Overall Height | 6-13/16 in |
| Communication Style | Hands-Free |
| Wire Shielding | Unshielded |
| Mounting Style | Surface Mount |
| Communication Protocol | Wired |
| Number of Wiring Conductors | 2 |
| Door Station Interface | Call Buttons |
| Camera Features | Tilt, Pan, Zoom |
| Wire Standard | Cat 5e, Cat 6 |
| For Location | Indoor, Outdoor |
| Camera Horizontal Angle | 170 deg |
| Includes Mounting Hardware | Mounting Hardware Included |
| Compatible Series | JP Series |
| Speaker Power | 50 W |
| Operating Temperature - Minimum | -4 deg F |
| Camera Lens Diameter | 1/4 in |
| Overall Depth | 1 in |
| Video Resolution Width | 1,080 px |
| Control Rank | Primary |
| Camera Type | CMOS |
| Operating Temperature - Maximum | 140 deg F |
| Camera Vertical Angle | 100 deg |
