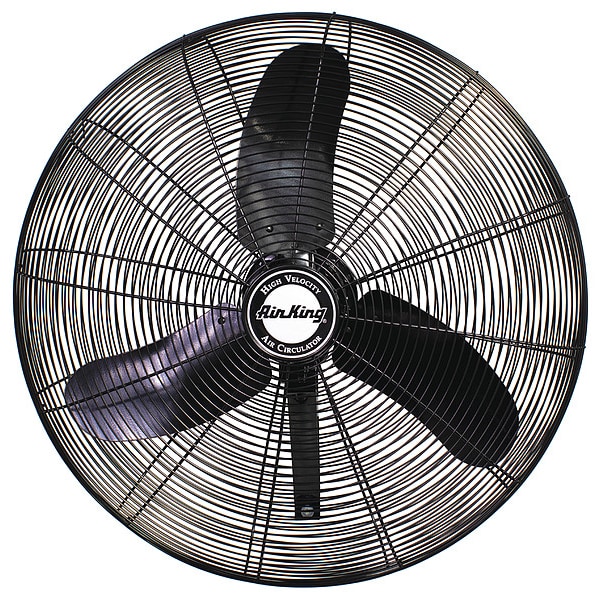

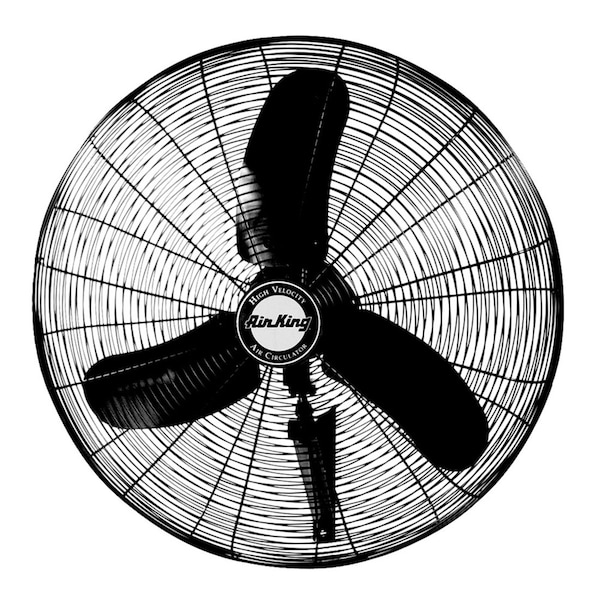

Standard Duty Industrial Fan, Wall Mount, 30 in Blade Dia, 120V, 5,570/7,480/8,780 cfm
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Blade Diameter | 30 in |
| Oscillation | Non-Oscillating |
| Number of Speeds | 3 |
| Voltage | 120V |
| Phase | 1 |
| Motor HP | 0.3333 HP |
| Air Flow | 5,570/7,480/8,780 cfm |
| Drive Type | Direct Drive |
| Blade Material | Steel |
| Fan Power Source | Plug In |
| Sound Level | 72 dBA |
| Item | Industrial Fan |
| CFM Medium | 7,480 |
| Thermal Protection | Automatic |
| Air Velocity @ 20 Ft. | 825/640/484 fpm |
| Wire Guard Finish | Powder Coated |
| Hz | 60 |
| Watts | 308 W |
| Height | 38-3/4 in |
| Max. Depth | 24 in |
| Guard Material | Steel |
| Fan Accessory Style | Standard |
| Fan Mounting Location | Wall |
| Fan Style | Standard Duty |
| Bearing Type | Ball |
| Assembled | No |
| Environmental Applications | Industrial |
| Includes | Assembly Hardware, Wall Mounting Bracket, Safety Cable |
| Motor Type | Permanent Split Capacitor |
| Shaft Dia. | 1/2 in |
| Standards | ETL, OSHA |
| Max. Ambient Temp. | 130 deg F |
| CFM Low | 5,570 |
| CFM High | 8,780 |
| Housing Material | Powder Coated Steel |
| CFM/Watt | 205 |
| Number of Blades | 3 |
| Application | Air Circulation |
| Motor Enclosure | Totally Enclosed Air Over |
| Mobile/Stationary | Stationary |
| Motor RPM | 1,075 RPM |
| Width | 25-3/4 in |
| Motor Insulation | Class A |
| Fan Accessory Material | Steel |
| Fan Accessory Finish | Powder Coated |
| For Use With | Not Applicable |
| Amps | 2.8 |
| Features | Permanent Split Capacitor Requires Little to no Maintenance, Permanently Lubricated |
| RPM | 1075/925/800 |
| Number of Conductors | 3 |
| Material | Powder Coated Steel |
| Length | 33.8 in |
| NEMA Plug Configuration | Grounded plug |
| Assembly Required | Yes |
| Fan Cord Length | 10 ft |
| Fan Housing Material | Steel |
| Depth | 25-3/4 in |
| Wheeled Base | Stationary |
| Color | Black |
| Battery Operated - Fans | No |
| Motor Design | Single-Phase |
| Housing Finish - Fans | Powder Coated |
| Fan Blade Finish | Powder Coated |
| Max. Mounting Height | 1 ft |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
