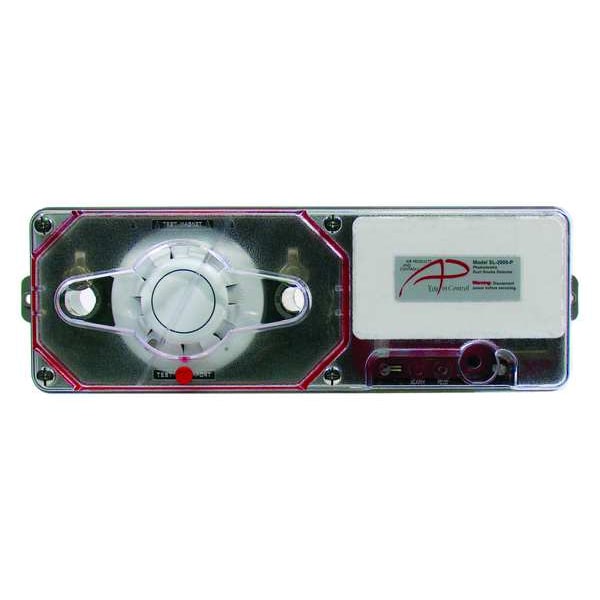

Duct Smoke Detector, Photoelectric, Universal, Air Velocity (FPM) 100 to 4000, 2 1/4 in Depth
| Item | Duct Smoke Detector |
|---|---|
| For Use With | All APC Remote Operation Accessories |
| Finish | Plastic |
| Includes | Magnet |
| Standards | CSFM, cUL, MEA, UL, UL 268A, ULC S52 |
| Voltage | 115V AC, 230V AC, 24V AC, 24V DC |
| Alarm Current | 18mA @ 230V AC, 190mA @ 24V AC, 32mA @ 115V AC, 68mA @ 24V DC |
| Type | Photoelectric |
| Amps AC | 10 A |
| Ambient Temp. Limits (F) | 32 to 140 deg F |
| Air Velocity (FPM) | 100 to 4,000 fpm |
| Compatible With | Building Automation and Fire Alarm Systems |
| Power Source | Hardwired |
| Color | Gray |
| Products By Industry | Electrical |
| Minimum Operating Temperature | 32 deg F |
| Maximum Operating Temperature | 140 deg F |
| Detects | Smoke |
| Humidity Operating Range | 10% to 85% RH |
| Housing Material | Polycarbonate |
| Alert Type | Light |
| Shape | Rectangular |
| AC Contact Rating | 18 mA @ 230V, 190 mA @ 24V, 32 mA @ 115V |
| DC Contact Rating | 68 mA @ 24V |
| Includes Mounting Hardware | Yes |
| Current Rating | 18 mA @ 230V AC, 190 mA @ 24V AC, 32 mA @ 115V AC, 68 mA @ 24V AC |
| Visual Alert Type | Alarm Red, LED Flashing |
| Detector Type | Smoke Detector |
| Voltage Rating | 115V AC, 230V AC, 24V AC, 24V DC |
| Outside Diameter | Not Applicable |
| Sensor Type | Photoelectric |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
