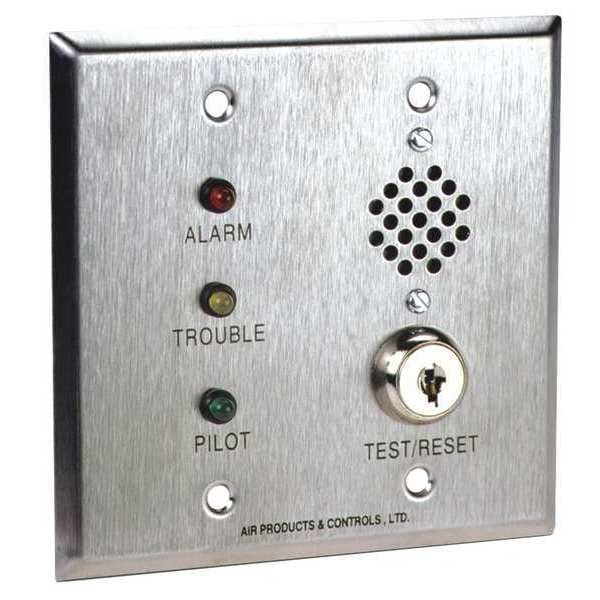

Remote Alarm Accessory, 4-1/2" L
| Item | Remote Alarm Accessory |
|---|---|
| For Use With | All APC Duct Smoke Detectors |
| Height (In.) | 4-1/2 |
| Length (In.) | 4-1/2 |
| Mounting | Wall |
| Finish | Steel |
| Includes | Alarm and Trouble LED, Key Test Station with Pilot, Remote Horn |
| Standards | UL 268 |
| Width (In.) | 1-1/2 |
| Depth (In.) | 1-1/2 |
| Voltage | 24V DC |
| Alarm Current | 50mA @ 24V DC |
| Features | Key-Operated Test/Reset |
| Body Material | Stainless Steel |
| Current Rating | 15 mA @ 24V DC (Alarm LED), 15 mA @ 24V DC (Pilot LED), 15 mA @ 24V DC (Trouble LED), 20 mA @ 24V DC (Alarm Horn) |
| Compatible with Series | MS |
| Overall Width | 4-1/2 in |
| Overall Depth | 1-1/2 in |
| Compatible with Brand | Air Products and Controls |
| Audible Indicators | Alarm, Pilot |
| Compatible Product Type | Duct Smoke Detectors |
| Body Color | Gray |
| Visual Indicators | Alarm, Pilot |
| Voltage Rating | 24V DC |
| Mounting Style | Double Gang Box |
| Overall Height | 4-1/2 in |
| Operating Temperature - Maximum | 120 deg F |
| Body Finish | Brushed |
| Operating Temperature - Minimum | 32 deg F |
| Includes Operator Key | Operator Key Included |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
