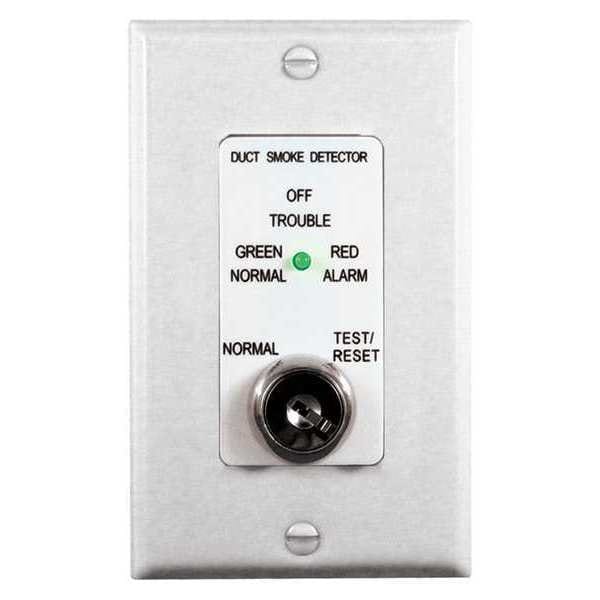

Remote Alarm Accessory, 5-1/2" Length
| Item | Remote Alarm Accessory |
|---|---|
| For Use With | All APC Duct Smoke Detectors |
| Height (In.) | 4-1/2 |
| Length (In.) | 2-3/4 |
| Mounting | Wall |
| Finish | Painted Enamel |
| Includes | Pilot and Trouble, Remote Key Test Station with LED indicating Alarm |
| Standards | UL 268 |
| Alarm Current | 37mA @ 24V DC |
| Depth (In.) | 1-1/2 |
| Voltage | 24V DC |
| Width (In.) | 1-1/2 |
| Features | Key-Operated Test/Reset, Lever Operated Quick-Connect "No Tools" Four Position Terminal Block, Port for Plugging in the Optional Strobe Assembly, Single Gang Remote Indicator/Control with Standard Decora Style Cover Plates (white), Tri-Color Visual Indication of Detector Pilot, Trouble and Alarm Conditions |
| Compatible with Series | MSR |
| Compatible with Brand | Air Products and Controls |
| Compatible Product Type | Duct Smoke Detectors |
| Body Color | White |
| Mounting Style | Single Gang Box |
| Body Material | Stainless Steel |
| Overall Height | 4-1/2 in |
| Operating Temperature - Maximum | 120 deg F |
| Overall Depth | 1-1/2 in |
| Overall Width | 3 in |
| Visual Indicators | Alarm, Pilot |
| Includes Operator Key | Operator Key Included |
| Current Rating | 107 mA |
| Body Finish | Painted |
| Operating Temperature - Minimum | 32 deg F |
| Audible Indicators | Alarm, Pilot |
| Voltage Rating | 24V DC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
