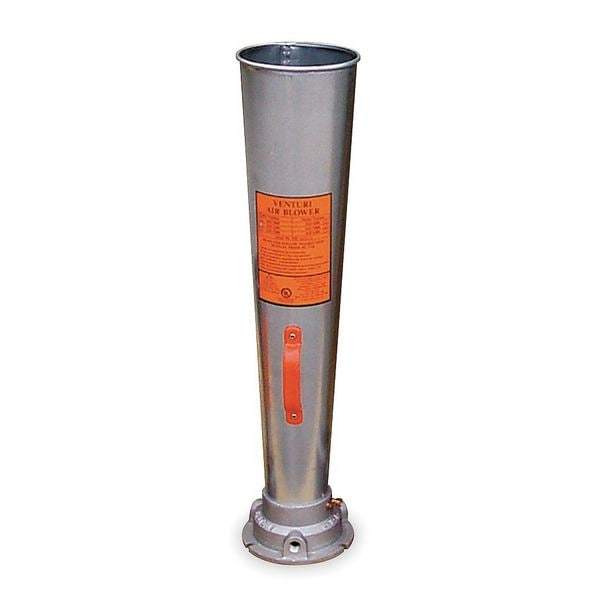

Pneumatic Blower, Venturi, Steel
| Item | Venturi Pneumatic Air Blower |
|---|---|
| Inlet Connection | 1/2 in NPT |
| Base Dia. | 7-5/16 in |
| Overall Length | 32-1/8 in |
| Air Consumed @ 90 PSIG | 64 cfm |
| Total Air Flow @ 50 PSIG | 1,211 cfm |
| Total Air Flow @ 70 PSIG | 1,429 cfm |
| Housing Material | Steel |
| Air Consumed @ 50 PSIG | 38 cfm |
| Total Air Flow @ 90 PSIG | 1,580 cfm |
| Application | Ventilation |
| Max. Inlet Pressure | 140 psi |
| Base Material | Cast Aluminum |
| Includes | Static Grounding Lug |
| Air Consumed @ 70 PSIG | 53 cfm |
| Air Inlet Connection Size | 1/2 in |
| Maximum Inlet Pressure | 140 psi |
| Base Diameter | 7-3/8 in |
| Air Inlet Type | NPT |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
