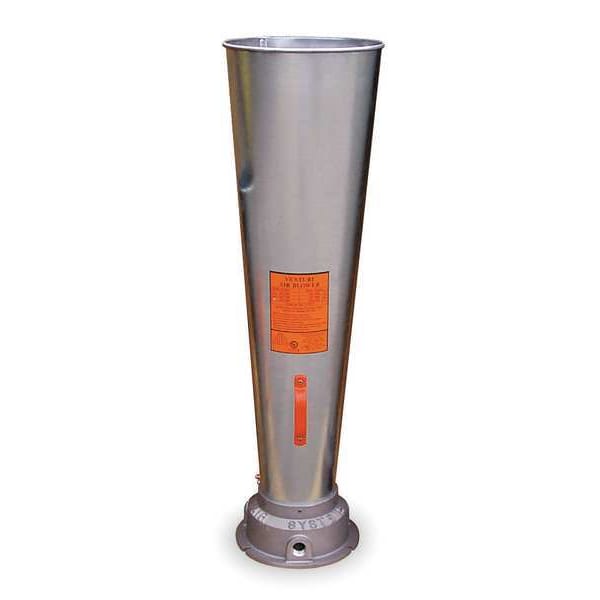

Pneumatic Blower, Venturi, Steel
| Item | Venturi Pneumatic Air Blower |
|---|---|
| Inlet Connection | 1 in NPT |
| Base Dia. | 11-1/4 in |
| Base Material | Cast Aluminum |
| Max. Inlet Pressure | 140 psi |
| Total Air Flow @ 70 PSIG | 3,340 cfm |
| Air Consumed @ 70 PSIG | 99 cfm |
| Housing Material | Steel |
| Air Consumed @ 90 PSIG | 127 cfm |
| Air Consumed @ 50 PSIG | 76 cfm |
| Total Air Flow @ 50 PSIG | 2,770 cfm |
| Overall Length | 3 ft 7-1/2 in |
| Application | Ventilation |
| Total Air Flow @ 90 PSIG | 3,752 cfm |
| Includes | Static Grounding Lug |
| Air Inlet Connection Size | 1 in |
| Air Inlet Type | NPT |
| Base Diameter | 11-1/8 in |
| Maximum Inlet Pressure | 140 psi |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
