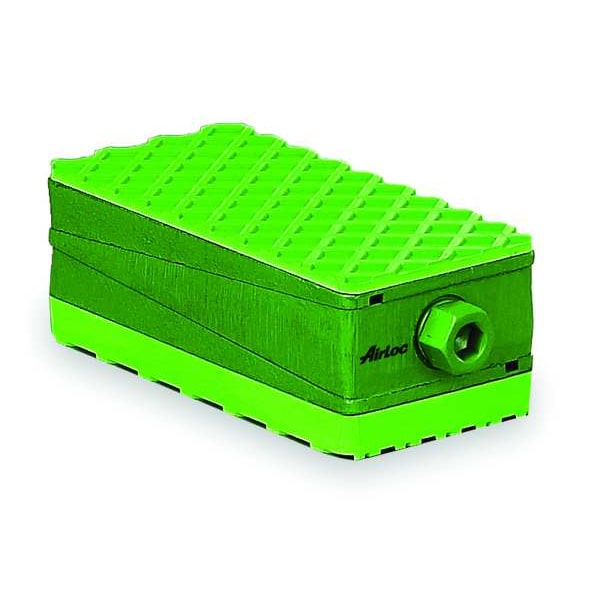

Leveling Mount, 18,000 Lb Cap, 3 11/32 In
| Item | Vibration Isolator Pad |
|---|---|
| Material | Nitrile |
| Max. Steady Load | 18,000 lb |
| Length | 9-13/16 in |
| Width | 7-7/8 in |
| Height | 3-11/32 in |
| Design | Free Standing |
| Thread Size | Not Applicable |
| Includes | Damping Pads Top and Bottom |
| Isolator Pad Bottom | Diamond |
| Overall Width | 7-7/8 in |
| Shape | Rectangular |
| Overall Length | 9-27/32 in |
| Diameter | Not Applicable |
| Isolator Pad Top | Diamond |
| Isolator Material | Buna-N |
| Isolator Pad Middle | Steel Wedge |
| Overall Height | 3-11/32 in |
| Leveling Bolt Length | Not Applicable |
| Load Downward Compression - Maximum | 22,000 lb |
| Package Quantity | 1 |
