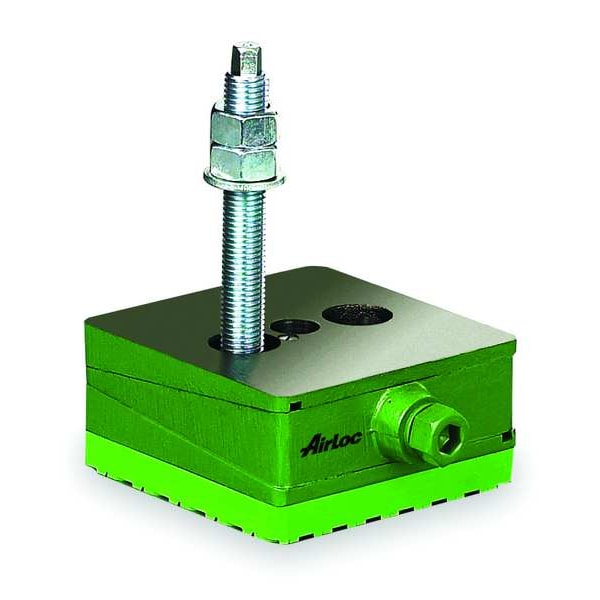

Leveling Mount, 90000 Lb Cap, 3 29/32 In
| Item | Vibration Isolator Pad |
|---|---|
| Material | Neoprene |
| Max. Steady Load | 90,000 lb |
| Length | 11-13/16 in |
| Width | 15-3/4 in |
| Height | 3-29/32 in |
| Design | Bolt-on |
| Bolt Length | 8 in |
| Thread Size | M24 |
| Includes | M24 Bolt, (1) Nut and (1) Washer |
| Isolator Pad Bottom | Smooth |
| Isolator Pad Top | Not Applicable |
| Overall Width | 15-3/4 in |
| Isolator Material | Neoprene |
| Overall Height | 3-57/64 in |
| Diameter | Not Applicable |
| Fastener Length | 8 in |
| Overall Length | 15-3/4 in |
| Shape | Rectangular |
| Isolator Pad Middle | Steel Wedge |
| Leveling Bolt Length | 8 in |
| Load Downward Compression - Maximum | 110,000 lb |
| Package Quantity | 1 |
