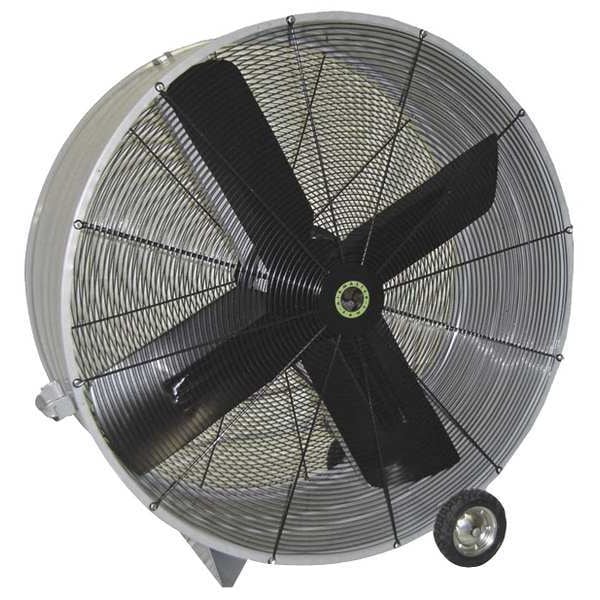

Air Cannon, Floor Mount, 48 in Blade Dia, 115V, 17,173 cfm
| Blade Diameter | 48 in |
|---|---|
| Number of Speeds | 1 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 1 HP |
| Air Flow | 17,173 cfm |
| Item | Air Cannon |
| Bearing Type | Ball |
| Fan Mounting Location | Floor |
| Dimension B | 51" |
| Air Velocity @ 20 Ft. | 500 fpm |
| Frame Material | Steel |
| Hz | 60 |
| Shaft Dia. | 5/8 in |
| CFM High | 17,173 |
| Width | 53 in |
| Air Velocity @ 60 Ft. | 200 fpm |
| Height | 53 in |
| Standards | Osha |
| Motor RPM | 1,510 RPM |
| Air Velocity @ 80 Ft. | 100 fpm |
| Inside Dia. | 27" |
| Frame Finish | Epoxy |
| Max. Depth | 27 in |
| Dimension A | 27" |
| Wire Guard Finish | Epoxy |
| Outside Dia. | 51 in |
| Housing Material | Steel |
| Motor Enclosure | Open Dripproof |
| Max. Ambient Temp. | 104 deg F |
| Motor Type | Permanent Split Capacitor |
| Dimension C | 53" |
| Green Certification or Other Recognition | UL Environment Claims Validated |
| Green Environmental Attribute | Product Contains a Minimum of 100% Post-Consumer Recycled Content |
| Number of Blades | 4 |
| Air Velocity @ 40 Ft. | 300 fpm |
| Guard Material | Steel |
| Thermal Protection | Automatic |
| Application | Air Circulation |
| Material | Steel |
| Amps | 11 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
