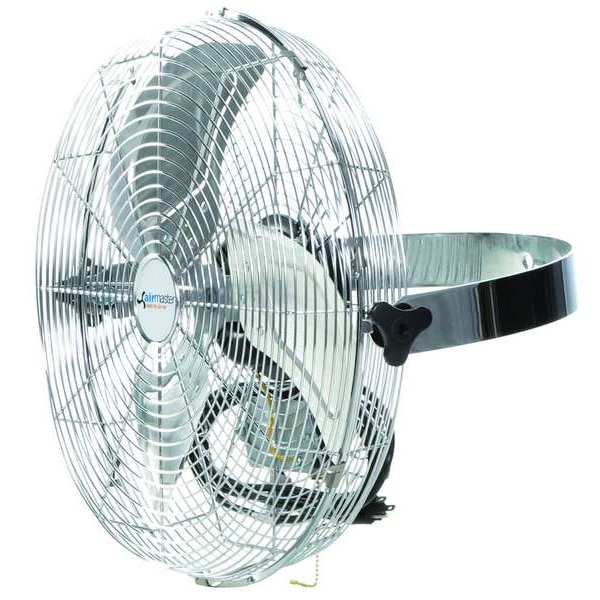

Light Duty Industrial Fan, Ceiling, Wall Mount, 18 in Blade Dia, 115V, 3,346/3,824/4,550 cfm
| Blade Diameter | 18 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 3 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.125 HP |
| Air Flow | 3,346/3,824/4,550 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 69/66/63 dBA |
| Item | Industrial Fan |
| Standards | cUL/OSHA, UL |
| Guard Material | Steel |
| Motor Enclosure | Open Dripproof |
| CFM High | 2,966 |
| Number of Blades | 3 |
| Max. Ambient Temp. | 105 deg F |
| NEMA Plug Configuration | 5-15p |
| Thermal Protection | Automatic |
| Fan Accessory Style | Standard |
| Assembled | No |
| Hz | 60 |
| Outside Dia. | 20-1/2 in |
| Motor Type | Shaded pole |
| Application | Spot Cooling and People Cooling |
| Requires | Assembly |
| Shaft Dia. | 3/8 in |
| CFM Medium | 2,437 |
| Width | 23 in |
| Includes | Wall Mounting Bracket, Pull Cord Speed Selection Switch |
| CFM Low | 2,013 |
| Max. Depth | 9 in |
| Fan Mounting Location | Wall, Ceiling |
| Fan Style | Light Duty |
| Number of Conductors | 3 |
| Mobile/Stationary | Stationary |
| Housing Material | Steel |
| Motor RPM | 1,600 RPM |
| Wire Guard Finish | Nickel Chrome |
| Height | 22 in |
| Environmental Applications | Industrial |
| Motor Insulation | Class B |
| Bearing Type | Ball |
| Fan Housing Material | Steel |
| Fan Cord Length | 8 ft |
| Depth | 9 in |
| Amps | 1.65 |
| RPM | 1600 |
| Wheeled Base | Stationary |
| Assembly Required | Yes |
| Material | Steel |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
