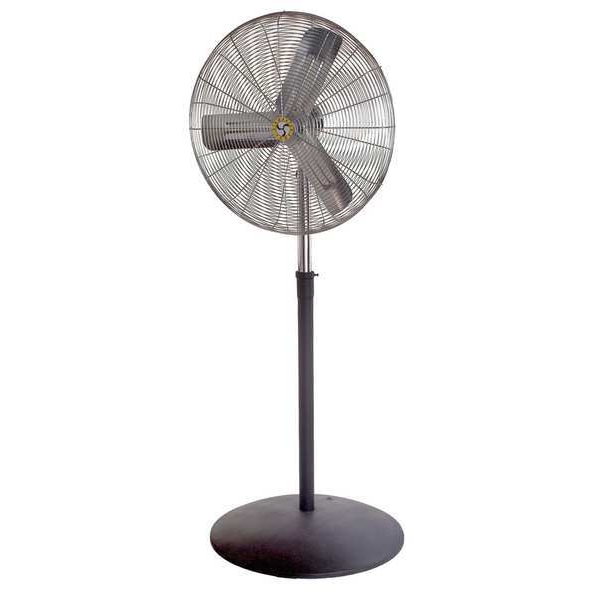

Light Duty Industrial Fan, Pedestal Mount, 24 in Blade Dia, 115V, 2,460/3,460/4,400 cfm
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Blade Diameter | 24 in |
| Oscillation | Non-Oscillating |
| Number of Speeds | 3 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.25 HP |
| Air Flow | 2,460/3,460/4,400 cfm |
| Drive Type | Direct Drive |
| Blade Material | Galvanized Steel |
| Sound Level | 74 dBA |
| Item | Industrial Fan |
| Hz | 60 |
| Air Velocity @ 10 Ft. | 700 fpm |
| Watts | 260 W |
| Air Velocity @ 80 Ft. | 200 fpm |
| Includes | Pedestal |
| Standards | Osha |
| CFM High | 4,400 |
| Shaft Dia. | 5/8 in |
| CFM/Watt | 18.2 |
| Fan Mounting Location | Pedestal |
| Height | 96 in |
| Air Velocity @ 20 Ft. | 400 fpm |
| Motor Enclosure | Totally Enclosed Air Over |
| Guard Material | Steel |
| Max. Depth | 14 in |
| Fan Accessory Style | Standard |
| Width | 27 in |
| Environmental Applications | Commercial |
| Assembled | No |
| Application | Spot Cooling |
| CFM Medium | 3,460 |
| Number of Blades | 3 |
| Outside Dia. | 27 in |
| Bearing Type | Ball |
| Max. Ambient Temp. | 104 deg F |
| Mobile/Stationary | Stationary |
| Motor RPM | 1,100 RPM |
| Motor Type | Permanent Split Capacitor |
| Fan Style | Light Duty |
| Thermal Protection | Automatic |
| CFM Low | 2,460 |
| Air Velocity @ 60 Ft. | 200 fpm |
| Housing Material | Steel |
| Motor Insulation | Class B |
| Wire Guard Finish | Nickel Chrome |
| Air Velocity @ 40 Ft. | 400 fpm |
| Wheeled Base | Stationary |
| Amps | 3.5 |
| Material | Steel |
| Fan Cord Length | 15 ft |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
