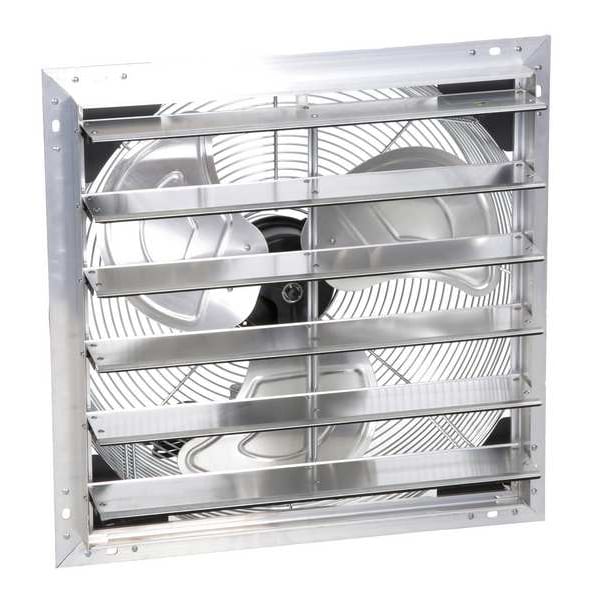

Shutter Mount Exhaust Fan, 12", 1 Speed, 815 cfm, 115V
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Blade Dia. | 12 in |
| Number of Speeds | 1 |
| Fan Voltage | 115 V |
| CFM @ 0.000-In. SP | 815 |
| Exhaust/Supply Fan Motor HP | 1/30 hp |
| Square Opening Required | 10-1/2 to 20 in |
| Width | 15-1/8 in |
| Height | 15 1/8 in |
| Item | Shutter Mount Exhaust Fan |
| Includes | 9 ft Cord, Shutter |
| Thermal Protection | Yes |
| Motor Enclosure | Open Dripproof |
| Full Load Amps | 1.2 |
| Motor Type | 3-Phase |
| Max. Depth | 8 in |
| Bearing Type | Ball |
| Max. Ambient Temp. | 104 deg F |
| Phase | 1 |
| Motor RPM | 1,050 |
| Motor Insulation | Class B |
| CFM @ 0.125-In. SP | 490 |
| Frame Material | Aluminum |
| Drive Package Included | No |
| Standards | C-UL Listed, OSHA Compliant, UL Listed |
| Hz | 60 |
| Number of Blades | 3 |
| Guard Material | Steel |
| Frame Finish | Aluminum |
| Blade Material | Aluminum |
| Sones @ 0.000-In. SP @ 5 Ft. | 7.6 |
| Voltage | 115 V |
| Maximum Noise Level | 7.6 sones |
| Temperature Thermostat Opens | 104 Degrees F |
| Motor Horsepower | 1/30 hp |
| Noise Level @ 0.000 in SP @ 5 ft | 7.6 sones |
| Blade Diameter | 12 in |
| Fan Style | Shutter-Mounted |
| Noise Level @ 0.100 in SP @ 5 ft | 7.6 sones |
| Exhaust Airflow @ 0.000 in SP | 815 cfm |
| Housing Material | Aluminum Steel |
| Housing Finish | Galvanized |
| Ventilation Type | Exhaust |
| Supply Airflow @ 0.000 in SP | 956 cfm |
| Drive Type | Direct Drive |
| For Cut-Out Width | 12-1/2 in |
| Control Type | Pull Chain |
| Wattage | 138 W |
| Maximum Airflow | 815 cfm |
| Maximum Ambient Operating Temperature | 104 deg F |
| Guard Finish | Chrome |
| Overall Depth | 8 in |
| Power Cord Length | 9 ft |
| Motor Speed | 1,050 rpm |
| Exhaust Airflow @ 0.100 in SP | 956 cfm |
| Number of Fans | 1 |
| Includes Motor | Yes |
| Overall Height | 15-1/8 in |
| Manufacturer Warranty Length | 1 yr |
| For Minimum Wall Thickness | 3 in |
| Electrical Connection | Plug-In |
| Profile Height Family | Medium |
| Includes Dehumidistat | No |
| Exhaust Airflow @ 0.125 in SP | 490 cfm |
| Duct Shape | Round |
| Full Load Current | 1.2 A |
| Guard Type | Exhaust |
| Duct Diameter | 12-3/8 in |
| Overall Width | 15-1/8 in |
| For Cut-Out Height | 12-1/2 in |
| Nameplate Voltage | 115V AC |
| For Maximum Wall Thickness | 5-1/2 in |
| For Cut-Out Length | 12-1/2 in |
| Assembled | Assembled |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
