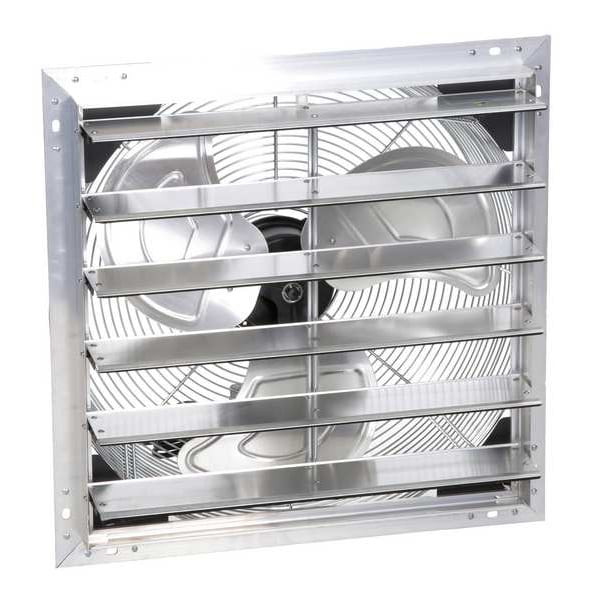

Shutter Mount Exhaust Fan, 16", 1 Speed, 1216 cfm, 115V
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Blade Dia. | 16 in |
| Number of Speeds | 1 |
| Fan Voltage | 115 V |
| CFM @ 0.000-In. SP | 1,216 |
| Exhaust/Supply Fan Motor HP | 1/30 hp |
| Square Opening Required | 10-1/2 to 20 in |
| Width | 19-1/8 in |
| Height | 19 1/8 in |
| Item | Shutter Mount Exhaust Fan |
| Frame Finish | Aluminum |
| Phase | 1 |
| Standards | C-UL Listed, OSHA Compliant, UL Listed |
| Number of Blades | 3 |
| Max. Ambient Temp. | 104 deg F |
| CFM @ 0.125-In. SP | 765 |
| Motor RPM | 1,050 |
| Max. Depth | 8 in |
| Includes | 9 ft Cord, Shutter |
| Motor Type | 3-Phase |
| Sones @ 0.000-In. SP @ 5 Ft. | 8 |
| Full Load Amps | 1.32 |
| Bearing Type | Ball |
| Motor Insulation | Class B |
| Drive Package Included | No |
| Thermal Protection | Yes |
| Guard Material | Steel |
| Blade Material | Aluminum |
| Frame Material | Aluminum |
| Hz | 60 |
| Motor Enclosure | Open Dripproof |
| Voltage | 115 V |
| Guard Finish | Chrome |
| Profile Height Family | Medium |
| Noise Level @ 0.000 in SP @ 5 ft | 8 sones |
| Overall Height | 19-1/8 in |
| Number of Fans | 1 |
| For Cut-Out Height | 16-1/2 in |
| Full Load Current | 1.32 A |
| Ventilation Type | Exhaust |
| For Cut-Out Length | 16-1/2 in |
| Includes Motor | Yes |
| Blade Diameter | 16 in |
| Exhaust Airflow @ 0.000 in SP | 1,502 cfm |
| Supply Airflow @ 0.000 in SP | 1,502 cfm |
| Motor Horsepower | 1/15 hp |
| For Maximum Wall Thickness | 5-1/2 in |
| Control Type | Pull Chain |
| Overall Width | 19-1/8 in |
| Duct Diameter | 16-3/8 in |
| Assembled | Assembled |
| Manufacturer Warranty Length | 1 yr |
| Guard Type | Exhaust |
| Temperature Thermostat Opens | 104 Degrees F |
| Noise Level @ 0.100 in SP @ 5 ft | 8 sones |
| Exhaust Airflow @ 0.100 in SP | 1,502 cfm |
| Exhaust Airflow @ 0.125 in SP | 1,151 cfm |
| Wattage | 142 W |
| Duct Shape | Round |
| Overall Depth | 8 in |
| Maximum Noise Level | 8 sones |
| Includes Dehumidistat | No |
| For Cut-Out Width | 16-1/2 in |
| Electrical Connection | Plug-In |
| Maximum Ambient Operating Temperature | 104 deg F |
| Nameplate Voltage | 115V AC |
| Housing Finish | Galvanized |
| Power Cord Length | 9 ft |
| Fan Style | Shutter-Mounted |
| For Minimum Wall Thickness | 3 in |
| Maximum Airflow | 1,216 cfm |
| Drive Type | Direct Drive |
| Motor Speed | 1,050 rpm |
| Housing Material | Aluminum Steel |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
