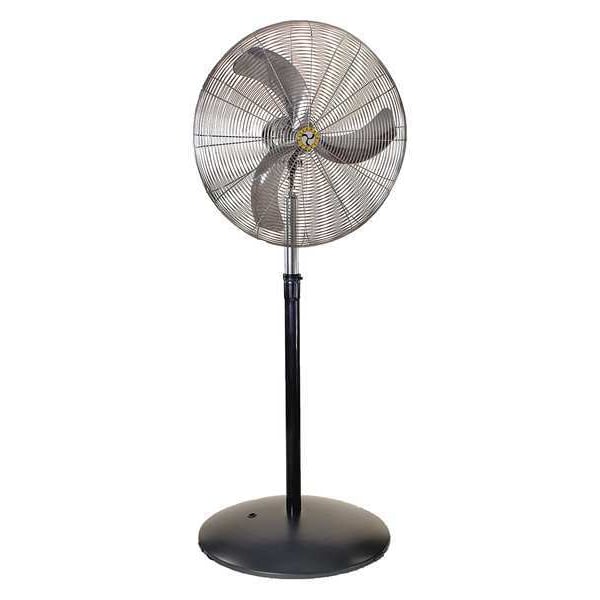

Standard Duty Air Circulator, Pedestal Mount, 20 in Blade Dia, 115V, 1,657/2,060/3,100 cfm
| Blade Diameter | 20 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 3 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.2 HP |
| Air Flow | 1,657/2,060/3,100 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 68 dBA |
| Item | Air Circulator |
| Guard Material | Steel |
| Shaft Dia. | 5/8 in |
| CFM Low | 1,657 |
| Fan Style | Standard Duty |
| Mobile/Stationary | Stationary |
| CFM Medium | 2,060 |
| Hz | 60 |
| Motor Type | Continuous Duty |
| Housing Material | Steel |
| Motor RPM | 1,120 RPM |
| Bearing Type | Ball |
| Thermal Protection | Yes |
| Standards | UL, AMCA |
| Fan Mounting Location | Pedestal |
| CFM High | 3,100 |
| Max. Ambient Temp. | 104 deg F |
| Number of Blades | 3 |
| Motor Enclosure | Totally Enclosed Air Over |
| Assembled | No |
| Environmental Applications | Industrial |
| Motor Insulation | Class B |
| Wire Guard Finish | Nickel Chrome |
| Application | Air Circulation |
| Amps | 1.65 |
| Material | Steel |
| Fan Cord Length | 15 ft |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
