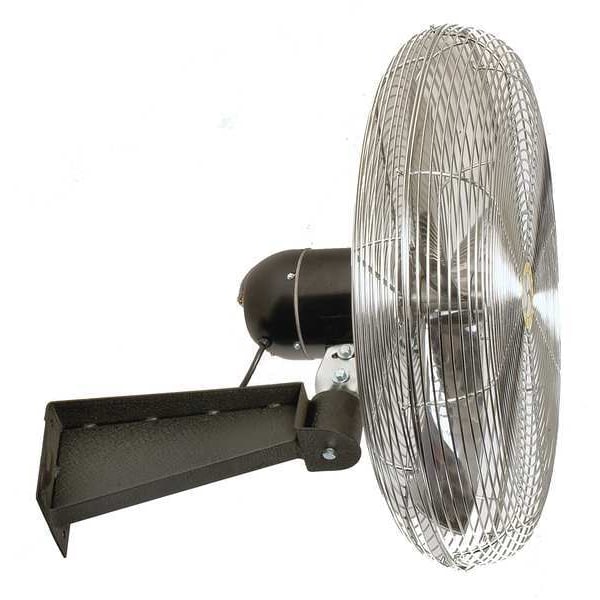

Standard Duty Air Circulator, Wall Mount, 24 in Blade Dia, 115V, 3,325/4,556/5,588 cfm
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Blade Diameter | 24 in |
| Oscillation | Non-Oscillating |
| Number of Speeds | 3 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.3333 HP |
| Air Flow | 3,325/4,556/5,588 cfm |
| Drive Type | Direct Drive |
| Blade Material | Galvanized Steel |
| Sound Level | 72 dBA |
| Item | Air Circulator |
| Mobile/Stationary | Stationary |
| CFM Medium | 4,556 |
| CFM High | 5,588 |
| Motor Insulation | Class B |
| Thermal Protection | Yes |
| Fan Style | Standard Duty |
| Shaft Dia. | 5/8 in |
| CFM/Watt | 19.2 |
| Bearing Type | Ball |
| Environmental Applications | Industrial |
| Fan Mounting Location | Wall |
| Max. Ambient Temp. | 104 deg F |
| Motor Enclosure | Totally Enclosed Air Over |
| Guard Material | Steel |
| Housing Material | Steel |
| Assembled | No |
| Number of Blades | 3 |
| Fan Accessory Style | Standard |
| CFM Low | 3,325 |
| Wire Guard Finish | Nickel Chrome |
| Hz | 60 |
| Standards | UL, AMCA |
| Motor RPM | 1,110 RPM |
| Motor Type | Continuous Duty |
| Application | Air Circulation |
| Material | Steel |
| Amps | 2.5 |
| Fan Cord Length | 15 ft |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
