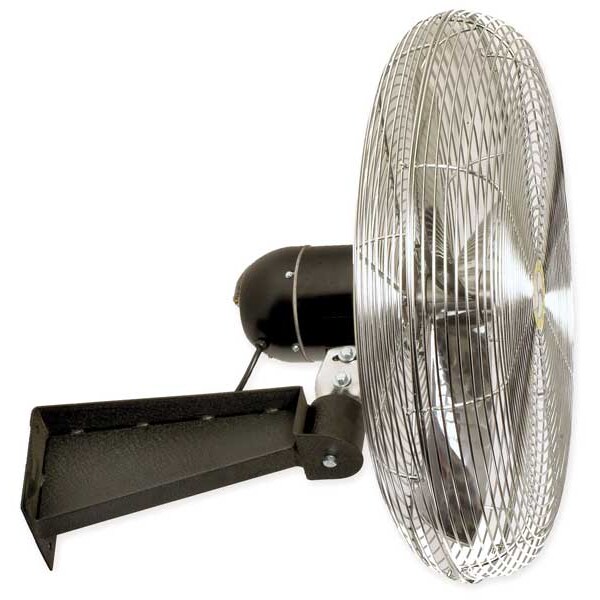

Standard Duty Hazardous Location Industrial Fan, Wall Mount, 30 in Blade Dia, 115/230V
| Blade Diameter | 30 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 115/230V |
| Phase | 1 |
| Motor HP | 0.25 HP |
| Air Flow | 4,463/8,402 cfm |
| Drive Type | Direct Drive |
| Blade Material | Cast Aluminum |
| Fan Power Source | Hardwired |
| Sound Level | 74 dBA |
| Item | Hazardous Location Industrial Fan |
| Mobile/Stationary | Stationary |
| Bearing Type | Ball |
| Motor RPM | 1,140 RPM |
| Standards | UL Listed for Class 1, Div 1 and 2, Group D, Class 2, Div 1 and 2, Groups E, F and G, OSHA Compliant |
| Guard Material | Steel |
| CFM Low | 4,463 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Assembled | Yes |
| Housing Material | Steel |
| Fan Accessory Style | Standard |
| Shaft Dia. | 5/8 in |
| Air Velocity @ 10 Ft. | 1,000 fpm |
| Watts | 410/415 W |
| Motor Insulation | Class B |
| Thermal Protection | Automatic |
| Number of Blades | 3 |
| Max. Depth | 21 in |
| CFM High | 8,402 |
| Height | 33 in |
| Fan Mounting Location | Wall |
| Air Velocity @ 20 Ft. | 700 fpm |
| Application | Spot Cooling and People Cooling |
| CFM Medium | 6,259 |
| Air Velocity @ 60 Ft. | 300 fpm |
| Environmental Applications | Hazardous Location |
| Includes | Wall Bracket |
| Hz | 60 |
| Max. Ambient Temp. | 104 deg F |
| Motor Type | Permanent Split Capacitor |
| Wire Guard Finish | Nickel Chrome |
| Air Velocity @ 80 Ft. | 200 fpm |
| Fan Style | Standard Duty |
| Air Velocity @ 40 Ft. | 400 fpm |
| Width | 33 in |
| Outside Dia. | 33 in |
| Fan Accessory Material | Aluminum |
| Wheeled Base | Stationary |
| Material | Steel |
| Amps | 6.9/3.5 |
| RPM | 1,140 RPM |
| Fan Cord Length | 12 ft |
| Motor Design | Single-Phase |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
