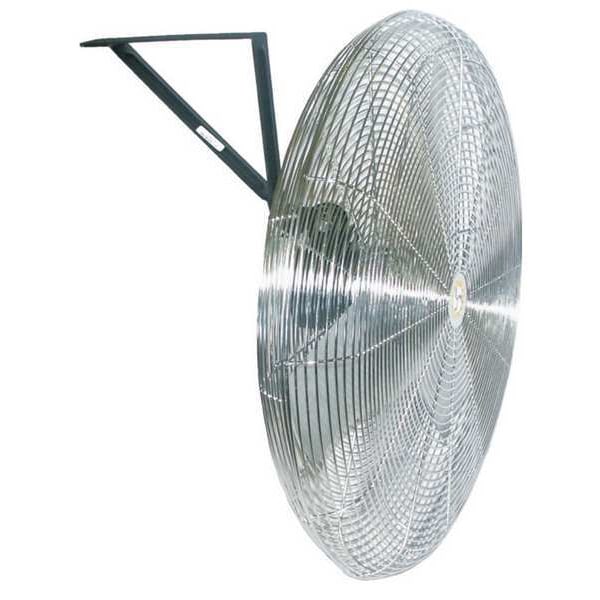

Standard Duty Industrial Fan, Ceiling, Wall Mount, 24 in Blade Dia, 115V, 2,820/4,020/5,520 cfm
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Blade Diameter | 24 in |
| Oscillation | Non-Oscillating |
| Number of Speeds | 3 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.3333 HP |
| Air Flow | 2,820/4,020/5,520 cfm |
| Drive Type | Direct Drive |
| Blade Material | Galvanized Steel |
| Sound Level | 71 dBA |
| Item | Industrial Fan |
| Max. Ambient Temp. | 104 deg F |
| Width | 27 in |
| CFM/Watt | 18.2 |
| Air Velocity @ 40 Ft. | 300 fpm |
| CFM Low | 2,820 |
| Air Velocity @ 80 Ft. | 100 fpm |
| Shaft Dia. | 5/8 in |
| NEMA Plug Configuration | 5-15p |
| Watts | 260 W |
| Motor Type | Permanent Split Capacitor |
| Air Velocity @ 60 Ft. | 200 fpm |
| Motor Enclosure | Totally Enclosed Air Over |
| Thermal Protection | Yes |
| Mobile/Stationary | Stationary |
| Fan Mounting Location | Wall, Ceiling |
| Fan Accessory Style | Standard |
| Number of Blades | 3 |
| Number of Conductors | 3 |
| Height | 27 in |
| Motor RPM | 1,080 RPM |
| Hz | 60 |
| Air Velocity @ 20 Ft. | 500 fpm |
| Outside Dia. | 27 in |
| Includes | Bracket |
| Housing Material | Steel |
| CFM High | 5,220 |
| Full Load Amps | 3 |
| Fan Style | Standard Duty |
| Bearing Type | Ball |
| Wire Guard Finish | Nickel Chrome |
| Application | Air Circulation |
| Environmental Applications | Industrial |
| Assembled | No |
| Motor Insulation | Class B |
| CFM Medium | 4,020 |
| Max. Depth | 21-1/4 in |
| Standards | cULus only |
| Guard Material | Steel |
| Air Velocity @ 10 Ft. | 900 fpm |
| Wheeled Base | Stationary |
| Amps | 3 |
| Material | Steel |
| Fan Cord Length | 15 ft |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
