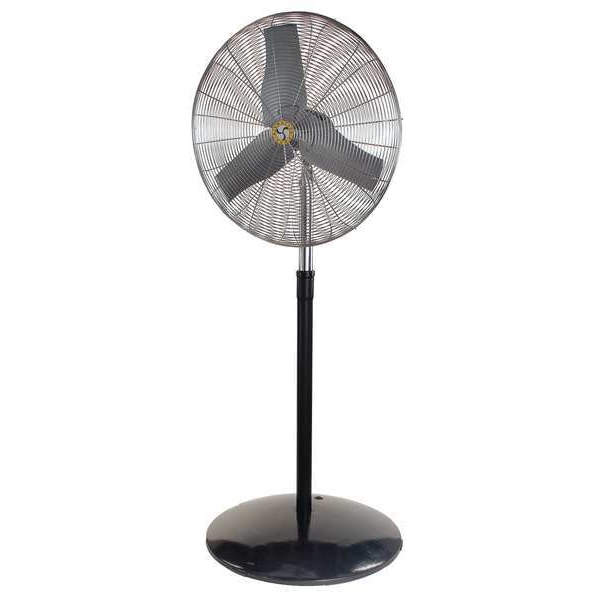

Standard Duty Industrial Fan, Pedestal Mount, 30 in Blade Dia, 115V, 3,415/5,300/7,185 cfm
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Blade Diameter | 30 in |
| Oscillation | Oscillating |
| Number of Speeds | 3 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.3333 HP |
| Air Flow | 3,415/5,300/7,185 cfm |
| Drive Type | Direct Drive |
| Blade Material | Galvanized Steel |
| Sound Level | 76 dBA |
| Item | Industrial Fan |
| Fan Mounting Location | Pedestal |
| Guard Material | Steel |
| CFM/Watt | 31.5 |
| Wire Guard Finish | Nickel Chrome |
| Max. Depth | 16 in |
| Motor RPM | 1,091 RPM |
| Number of Conductors | 3 |
| Air Velocity @ 80 Ft. | 160 fpm |
| Air Velocity @ 40 Ft. | 390 fpm |
| Outside Dia. | 33-1/2 in |
| Housing Material | Steel |
| Fan Accessory Style | Standard |
| Assembled | No |
| Hz | 60 |
| Motor Type | Permanent Split Capacitor |
| Fan Style | Standard Duty |
| Bearing Type | Ball |
| NEMA Plug Configuration | 5-15p |
| Standards | cULus only |
| Air Velocity @ 20 Ft. | 690 fpm |
| Height | 60 in to 96 in |
| Includes | Pedestal |
| Full Load Amps | 3.2 |
| Application | Air Circulation |
| Width | 33-1/2 in |
| Shaft Dia. | 5/8 in |
| Watts | 280 W |
| Thermal Protection | Yes |
| Motor Insulation | Class B |
| Max. Ambient Temp. | 104 deg F |
| Number of Blades | 3 |
| Air Velocity @ 10 Ft. | 950 fpm |
| Mobile/Stationary | Stationary |
| Environmental Applications | Industrial |
| CFM High | 7,794 |
| Air Velocity @ 60 Ft. | 310 fpm |
| Motor Enclosure | Totally Enclosed Air Over |
| CFM Low | 5,143 |
| CFM Medium | 5,943 |
| Wheeled Base | Stationary |
| Amps | 3.2 |
| Material | Steel |
| Height Adjustment | 60 to 96 in |
| Fan Cord Length | 15 ft |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
