Pistol Grip Air Excavation Tool
| Air Gun Body Style | Pistol Grip |
|---|---|
| Body Material | Aluminum, Fiberglass |
| Application | High Flow |

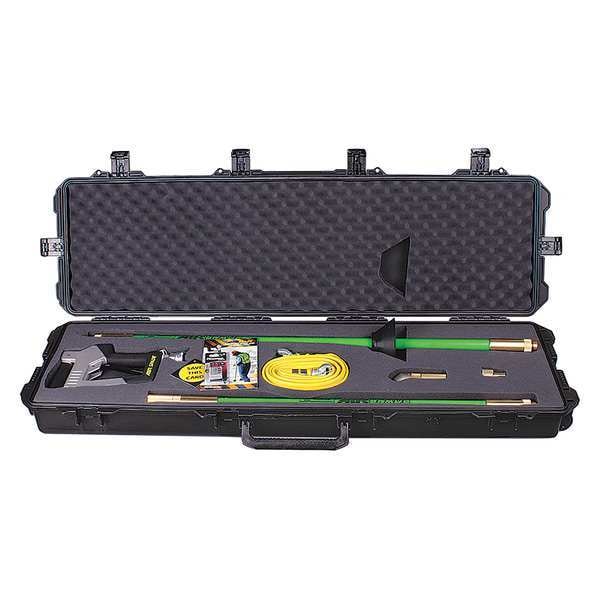

| Includes | 1 in ID x 10 ft Lightweight Air Hose With Chicago-Style Connectors, 105 cfm Non-Sparking Bronze Supersonic Nozzle, 3 ft Insulated Extension, 4 ft Insulated, Fiberglass Barrel With Dirt Shield, 45 Degree Non-Sparking Brass Angled Adapter, Locking Storage Case, Utility Airspade 4000 Handle |
| Overall Length | 54 in |
| Air Inlet | 3/4 in NPT Female |
| Color | Black, Green |
| Max. Inlet Pressure | 90 psi |
| Max. dBA | 120 |
| Nozzle | Supersonic |
| Standards | ASTM F711, SAE 100R7 |
| Trigger | Dead Man Lever |
| Air Gun Product Group | Air Excavation Tool |
| Item | Air Excavation Tool Kit |
| Extension Size | 48 in |
| Output | 105 psi |
| Air Gun Inlet Size | 3/4 in (F)NPT |
| Air Consumption | 105 cfm |
| Overall Width | 6 3/4 in |
| Soil Excavation Rate | 1.5 cfm |
| Barrel Conductivity | Non-Conductive |
| Barrel Length | 4 ft |
| Air Inlet Gender | Female |
| Min. Hose Size | 1 in |
| Kit Contents | (1) Bare Tool, (1) Barrel with Dirt Shield, (1) Insulated Extension, (1) Nozzle |
| Air Flow Pattern | Focused |
| Minimum Compressor HP | 23 HP |
| Number of Nozzles Included | 1 |
| Air Inlet Size | 3/4 in |
| Air Inlet Type | NPT |
| Output Thrust | 105 psi |
| Sound Level | 120 dBA |
| Dead-Man Trigger | Yes |
| Maximum Inlet Pressure | 90 psi |
| Spark Free Nozzle | Yes |
| Duty Rating | Heavy Duty |
| Package Quantity | 1 |
