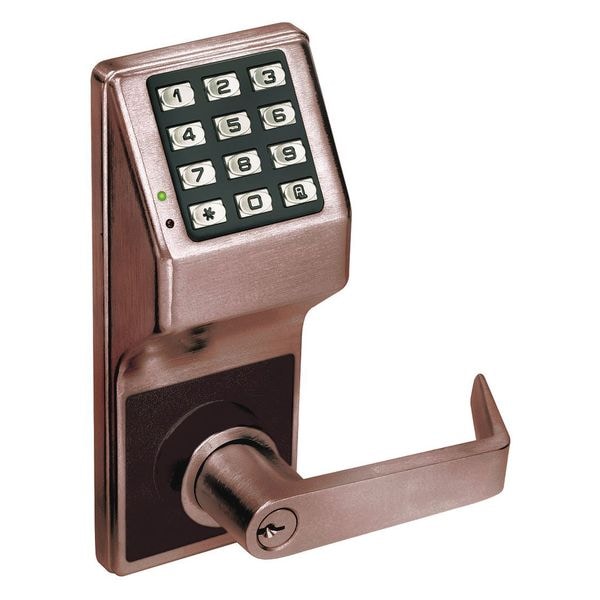

T2 CylPin Lock, DL2700Series, 100 User, SC1
| Item | Electronic Keyless Lock |
|---|---|
| Series | DL2700 |
| Handle Type | Lever |
| Max. User Codes | 100 |
| Door Thickness | 1-5/8 to 1-7/8 in |
| Function | Office with Key Override |
| Access Method | Keypad |
| Case Material | Brass |
| For Use With | Access Control Locks |
| Mounting Style | Cylindrical |
| Lock Material | Steel |
| Product Type | Electronic Keyless Lock |
| Includes | 1 1/4 in x 4 7/8 in ASA Strike Plate, 1 1/8 in x 2 3/4 in T-Strike |
| Outside Width | 3-1/4 in |
| ADA Compliant | Yes |
| Finish | Dark Bronze |
| Outside Height | 8-1/4 in |
| Keypad | 12 Button |
| Standards | BHMA Grade 1 |
| Event Audit Trail | No |
| Hand | Nonhanded |
| Electrical/Mechanical | Electrical |
| Weather Resistant | No |
| Key Override Options | Standard Core/Interchangeable Core |
| Outside Depth | 2-9/16 in |
| Battery Life | 5 yr |
| Voltage | (5) AA Batteries |
| Material | Steel |
| Inside Width | 3-1/4 in |
| Keypad Material | Metal |
| Timed Entry Allowance | 5 to 20 sec |
| Inside Height | 8-1/4 in |
| Inside Depth | 1-11/16 in |
| Fire Rating | 3 hr |
| Power Source | AA Batteries |
| Backset | 2 3/4 in |
| Type | Battery Powered |
| Overall Width | 3 1/4 in |
| Overall Depth | 2-9/16 in |
| Overall Height | 8 in |
| Lockset Function | Passage |
| Includes Hardware | Hardware Included |
| Includes Core | Core Not Included |
| Lockset Type | Electrical |
| Lockset Material | Brass, Stainless Steel |
| Lever Style | Clutch |
| Latch Front Length | 2-1/4 in |
| User Codes - Maximum | 100 |
| Cylinder Core Type | Conventional Core Cylinder |
| Lockset Handle Type | Lever |
| Door Thickness - Maximum | 1-7/8 in |
| Event Audit Trails | Not Applicable |
| Strike Type | ASA, T-Strike |
| Hand Orientation | Non-Handed |
| Latch Front Width | 1-1/8 in |
| Door Thickness - Minimum | 1 5/8 in |
| ANSI/BHMA Finish | Dark Oxidized Satin Bronze, Oil Rubbed |
| Country of Origin (subject to change) | Dominican Republic |
| Package Quantity | 1 |
