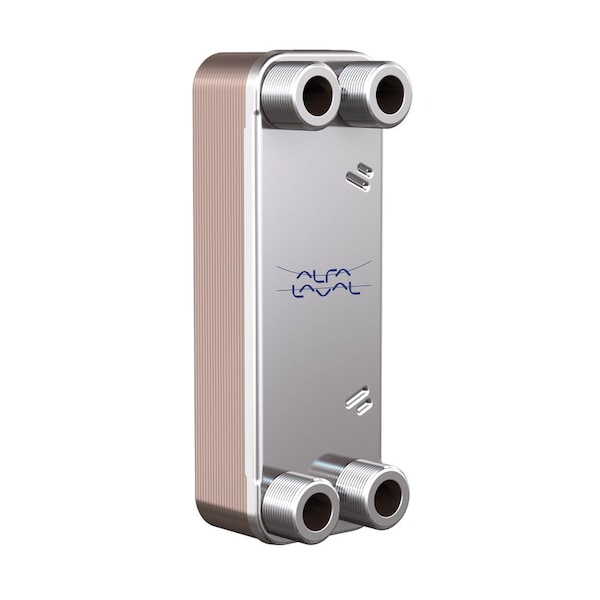

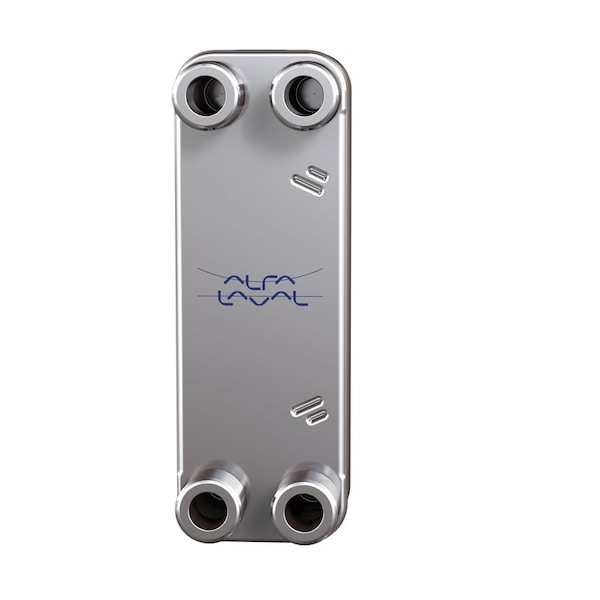

Brazed Plate Heat Exchanger, AISI 316L, Stainless Steel, 11 Plates -Domestic Heating 110k BTU
| Item | Heat Exchanger |
|---|---|
| Type | Brazed Plate heat exchanger |
| Standards | UL/CRN |
| Features | Compact Easy to install Self-cleaning Low level of service and maintenance is required All units are pressure and leak tested Gasket free |
| Application | Liquid to liquid heating & Cooling Oil Cooling Industrial heating & Cooling |
| Weight (Lbs.) | 8.2 |
| Height (In.) | 8.27 |
| Width (In.) | 1.97 |
| Agency Compliance | UL/CRN |
| Plates | 11 |
| Length (In.) | 2.92 |
| Remarks | • Compact • Easy to install • Self-cleaning • Low level of service and maintenance is required • All units are pressure and leak tested • Gasket free |
| Depth (in.) | 1.17 |
| Connection Type (Hot, Cold) | Threaded |
| Connection Size (Hot, Cold) | 3/4 in, 3/4 in |
| Country of Origin (subject to change) | Italy |
| Package Quantity | 1 |
