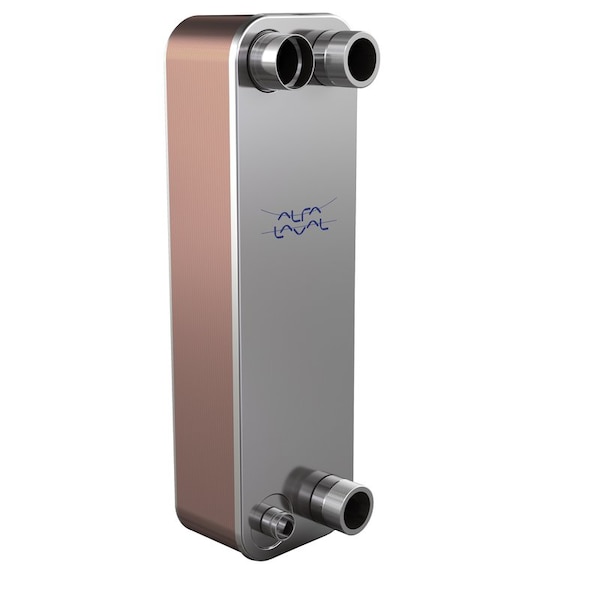

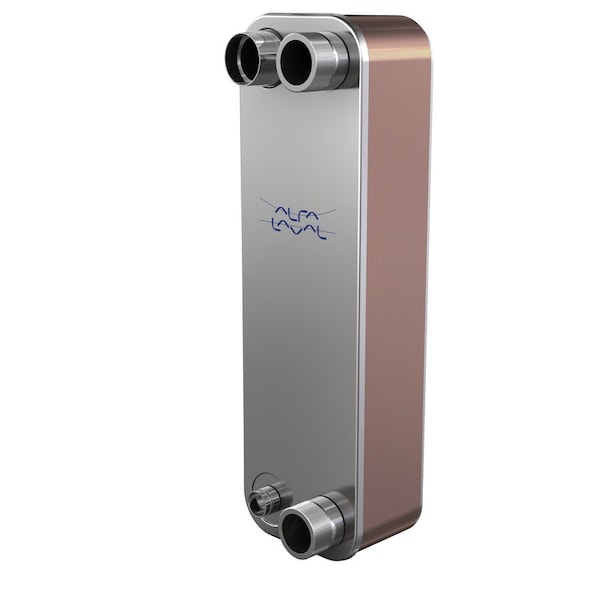

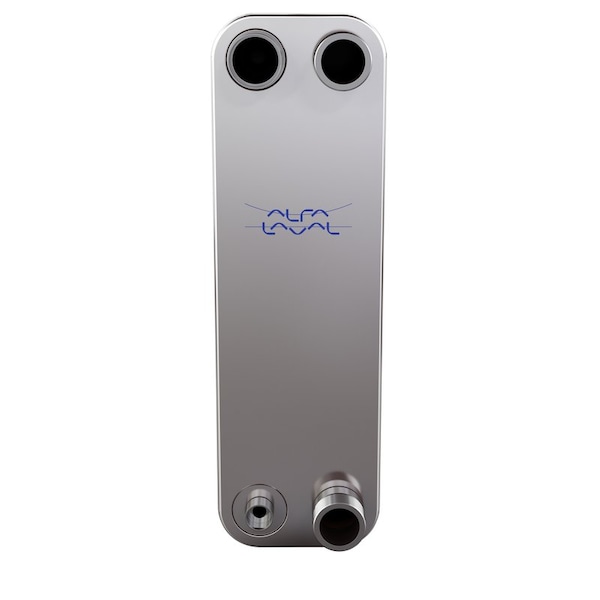

Brazed Plate Heat Exchanger, AISI 316L, Stainless Steel, 116 Plates-Single Circuit Evaporator 780k BTU
| Item | Heat Exchanger |
|---|---|
| Type | Brazed Plate heat exchanger |
| Application | Evaporator & Economizer |
| Features | Compact Easy to install Self-cleaning Low level of service and maintenance is required All units are pressure and leak tested Gasket free |
| Standards | UL/CRN |
| Agency Compliance | UL/CRN |
| Height (In.) | 24.26 |
| Length (In.) | 7.52 |
| Width (In.) | 11.62 |
| Remarks | • Compact • Easy to install • Self-cleaning • Low level of service and maintenance is required • All units are pressure and leak tested • Gasket free |
| Weight (Lbs.) | 127.6 |
| Plates | 116 |
| Depth (in.) | 10 |
| Connection Type (Hot, Cold) | Soldering |
| Connection Size (Hot, Cold) | 2-1/8 in, 2-1/8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
