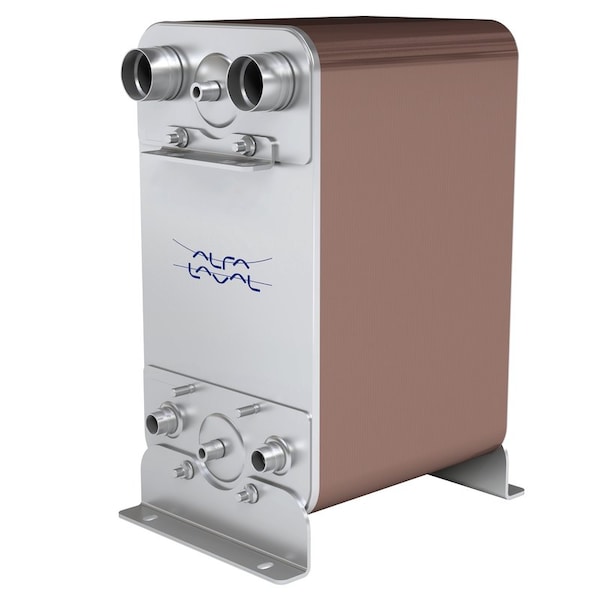

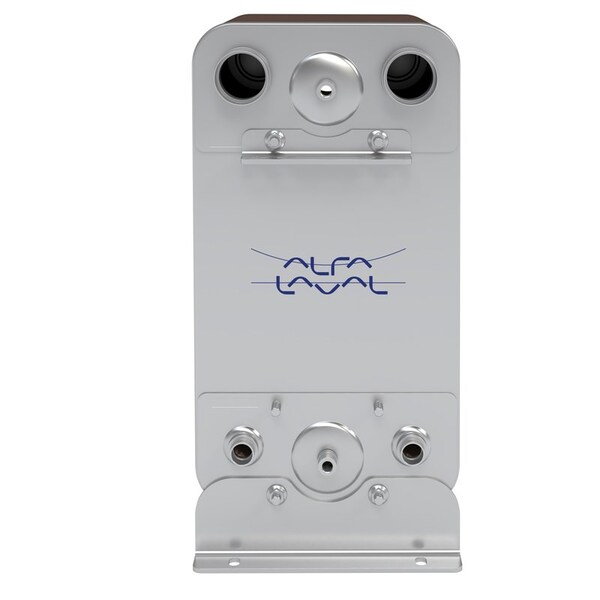

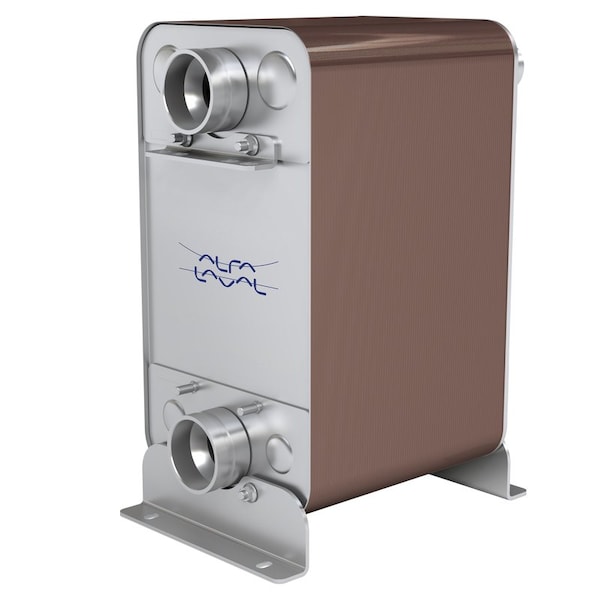

Brazed Plate Heat Exchanger, AISI 316L, Stainless Steel, 202 Plates -Dual CircuitEvaporator 1,020k BTU
| Item | Heat Exchanger |
|---|---|
| Type | Brazed Plate heat exchanger |
| Features | Compact Easy to install Self-cleaning Low level of service and maintenance is required All units are pressure and leak tested Gasket free |
| Application | Evaporator & Conderser |
| Standards | UL/CRN |
| Height (In.) | 20.67 |
| Remarks | • Compact • Easy to install • Self-cleaning • Low level of service and maintenance is required • All units are pressure and leak tested • Gasket free |
| Width (In.) | 20.83 |
| Plates | 202 |
| Weight (Lbs.) | 205.4 |
| Agency Compliance | UL/CRN |
| Length (In.) | 11.38 |
| Depth (in.) | 17.4 |
| Connection Size (Hot, Cold) | 1 5/8", 2"1/2 |
| Connection Type (Hot, Cold) | Soldering, Victualic |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
