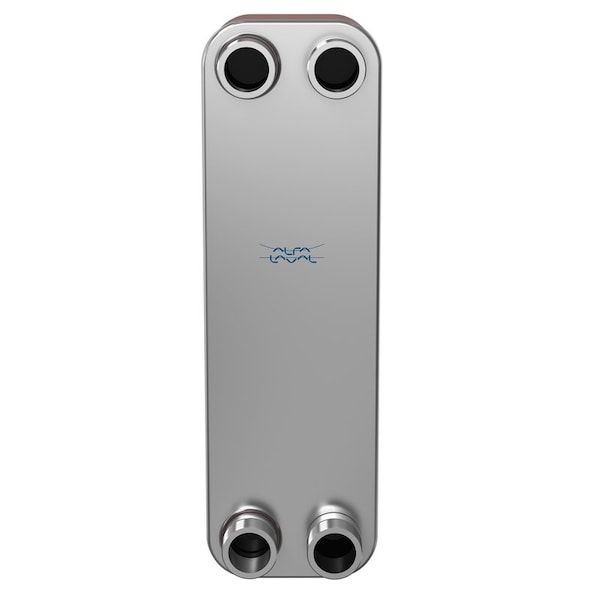

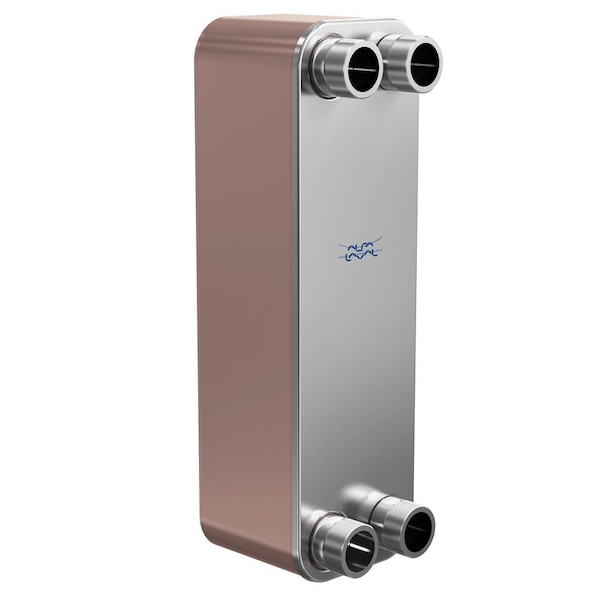

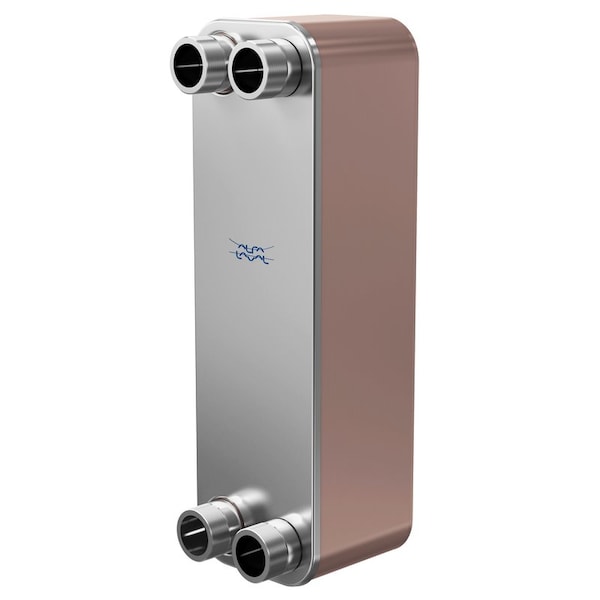

Brazed Plate Heat Exchanger, AISI 316L, Stainless Steel, 24 Plates -Domestic Heating 570k BTU
| Item | Heat Exchanger |
|---|---|
| Type | Brazed Plate heat exchanger |
| Features | Compact Easy to install Self-cleaning Low level of service and maintenance is required All units are pressure and leak tested Gasket free |
| Application | Liquid to liquid heating & Cooling Oil Cooling Industrial heating & Cooling |
| Standards | UL/CRN |
| Remarks | • Compact • Easy to install • Self-cleaning • Low level of service and maintenance is required • All units are pressure and leak tested • Gasket free |
| Width (In.) | 4.89 |
| Agency Compliance | UL/CRN |
| Weight (Lbs.) | 48.8 |
| Plates | 24 |
| Length (In.) | 7.52 |
| Height (In.) | 24.26 |
| Depth (in.) | 3.01 |
| Connection Size (Hot, Cold) | 2 in, 2 in |
| Connection Type (Hot, Cold) | Threaded |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
