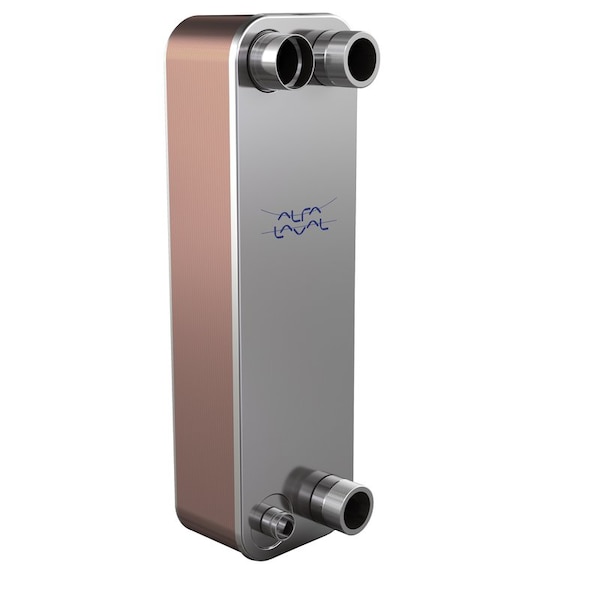

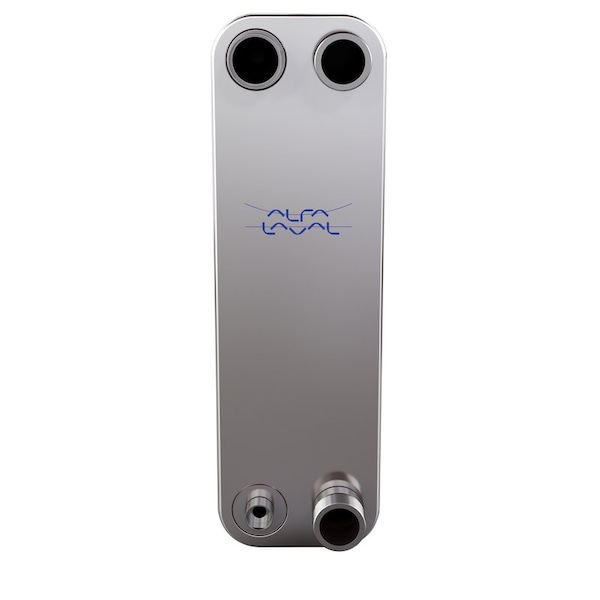

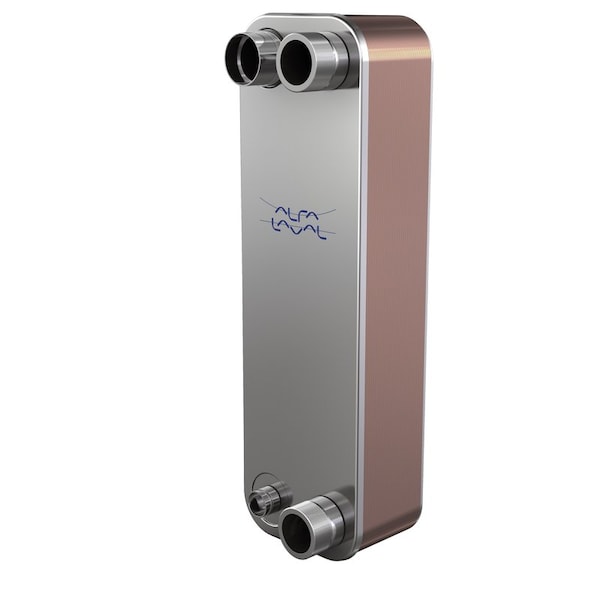

Brazed Plate Heat Exchanger, AISI 316L, Stainless Steel, 44 Plates -Single Circuit Evaporator 300k BTU
| Item | Heat Exchanger |
|---|---|
| Type | Brazed Plate heat exchanger |
| Features | Compact Easy to install Self-cleaning Low level of service and maintenance is required All units are pressure and leak tested Gasket free |
| Application | Evaporator & Economizer |
| Standards | UL/CRN |
| Product Dimensions (mm) | 52 X 74 X 316 |
| Depth (in.) | 4.2 |
| Connection Type Hot Side | Soldering |
| Connection Tyle Cold Side | Soldering |
| Connection Size - cold side | 2 1/8" |
| Connection Size - hot side | 2 1/8" |
| Agency Compliance | UL/CRN |
| Weight (Lbs.) | 65.5 |
| Remarks | • Compact • Easy to install • Self-cleaning • Low level of service and maintenance is required • All units are pressure and leak tested • Gasket free |
| Height (In.) | 24.26 |
| Width (In.) | 5.79 |
| Length (In.) | 7.52 |
| Plates | 44 |
| Connection Type (Hot, Cold) | Soldering |
| Connection Size (Hot, Cold) | 2-1/8 in, 2-1/8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
