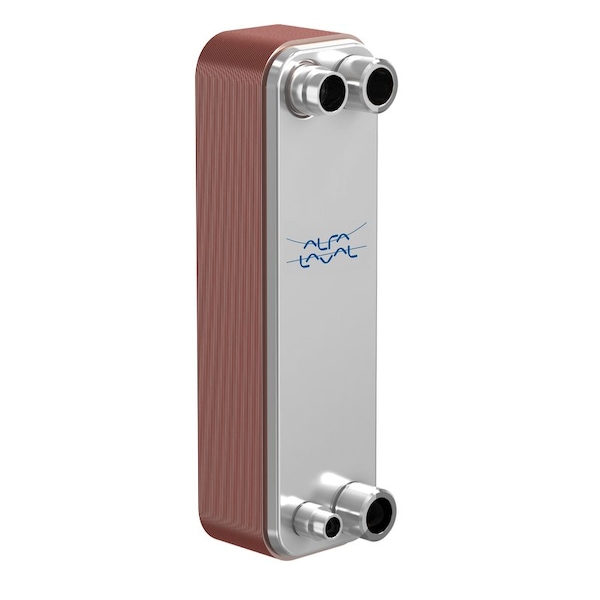

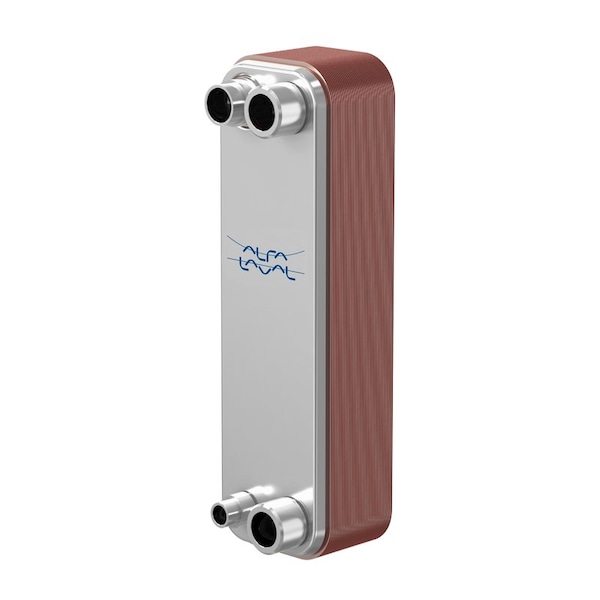

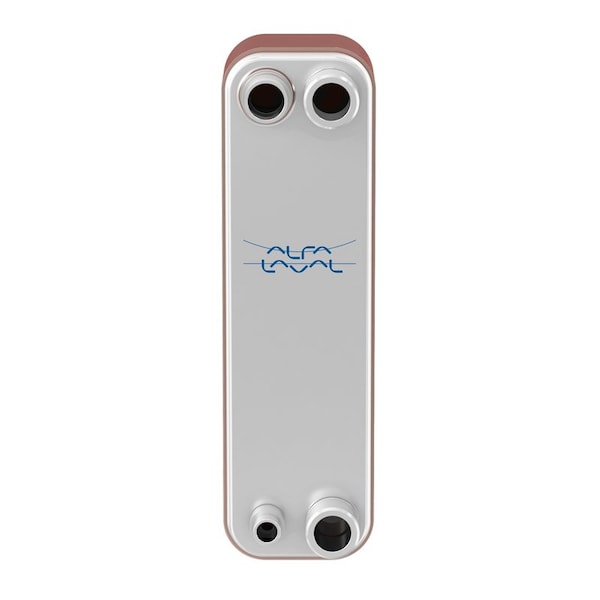

Brazed Plate Heat Exchanger, AISI 316L, Stainless Steel, Copper, 20 Plates - Subcooler - 24k BTU
| Item | Heat Exchanger |
|---|---|
| Type | Brazed Plate heat exchanger |
| Standards | UL/CRN |
| Features | Compact Easy to install Self-cleaning Low level of service and maintenance is required All units are pressure and leak tested Gasket free |
| Application | Evaporator & Economizer |
| Length (In.) | 3-3/4 |
| Height (In.) | 12.8 |
| Width (In.) | 2.56 |
| Plates | 20 |
| Remarks | • Compact • Easy to install • Self-cleaning • Low level of service and maintenance is required • All units are pressure and leak tested • Gasket free |
| Weight (Lbs.) | 6.9 |
| Agency Compliance | UL/CRN |
| Depth (in.) | 1.55 |
| Connection Type (Hot, Cold) | Soldering |
| Connection Size (Hot, Cold) | 7/8 in, 7/8 in |
| Country of Origin (subject to change) | Italy |
| Package Quantity | 1 |
