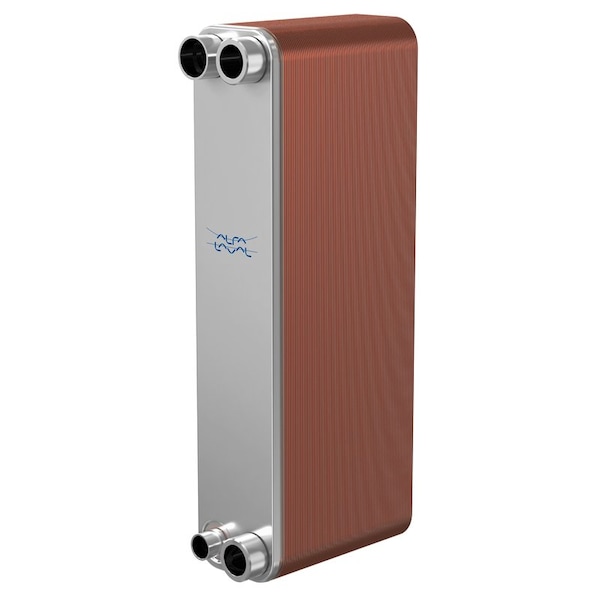

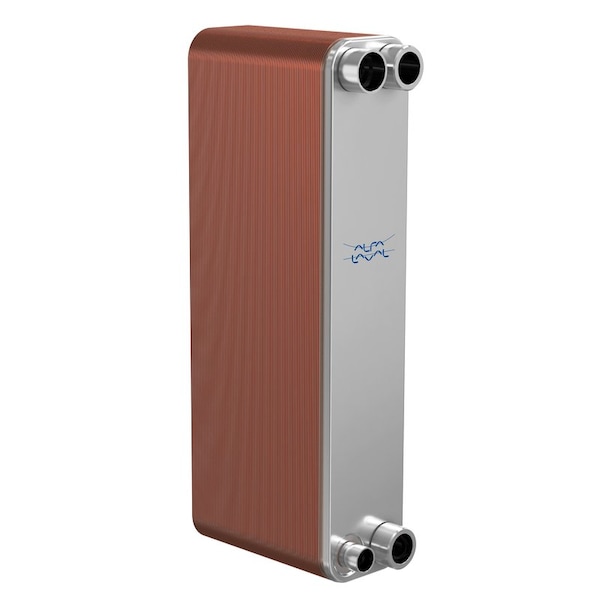

Brazed Plate Heat Exchanger, AISI 316L, Stainless Steel, Copper, 90 Plates - Subcooler - 312k BTU
| Item | Heat Exchanger |
|---|---|
| Type | Brazed Plate heat exchanger |
| Application | Evaporator & Economizer |
| Features | Compact Easy to install Self-cleaning Low level of service and maintenance is required All units are pressure and leak tested Gasket free |
| Standards | UL/CRN |
| Remarks | • Compact • Easy to install • Self-cleaning • Low level of service and maintenance is required • All units are pressure and leak tested • Gasket free |
| Length (In.) | 4.38 |
| Width (In.) | 9.61 |
| Height (In.) | 20.71 |
| Plates | 90 |
| Agency Compliance | UL/CRN |
| Weight (Lbs.) | 41.1 |
| Depth (in.) | 8.6 |
| Connection Type (Hot, Cold) | Soldering |
| Connection Size (Hot, Cold) | 7/8", 1"3/8 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
