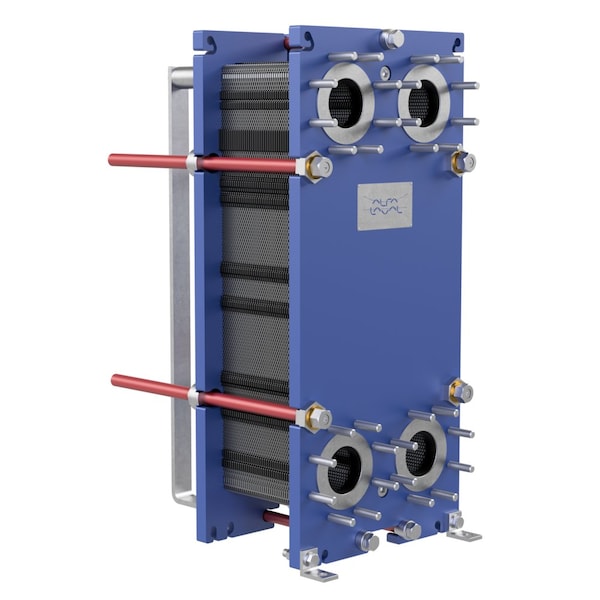

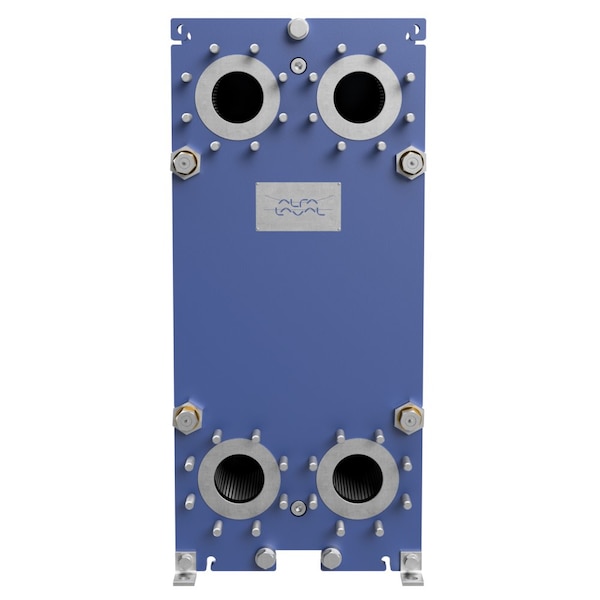

Gasketed Plate Heat Exchanger, 40 Plate, 5,770K BTU
| Item | Heat Exchanger |
|---|---|
| Type | Gasketed Plate Heat Exchanger |
| Max. BtuH (Oil to Water Application) | 660000 |
| Pressure | 150 |
| Temp. (F) | *-20 to 410 |
| Connection | 150# 4" Studded Port with Stainless Steel Liners |
| Application | Hydraulic Oil Cooling General Heating General Cooling NON AHRI APPLICATIONS |
| Standards | ASME Code Setion VIII Div. 1 |
| Features | Every detail is carefully designed to ensure optimal performance, maximum uptime, and easy maintenance. Selection of available features, depending on configuration some features may not be applicable: ¥ CurveFlowTM distribution area ¥ ClipGripTM gasket attachment ¥ Offset gasket groove ¥ OmegaPortTM noncircular port holes ¥ Leak chamber ¥ SteerLockTM plate alignment ¥ FlexFlowTM plate design ¥ Compact frame ¥ Fixed bolt head ¥ Key hole bolt opening ¥ Lifting lug ¥ Lining ¥ Lock washer ¥ Tightening bolt cover |
| Width (In.) | 18.9 |
| Gasket Material | NBRP ClipGripª |
| Length (In.) | 22.4 |
| Agency Compliance | ASME Code Setion VIII Div. 1 |
| Remarks | Every detail is carefully designed to ensure optimal performance, maximum uptime, and easy maintenance. Selection of available features, depending on configuration some features may not be applicable: • CurveFlowTM distribution area • ClipGripTM gasket attachment • Offset gasket groove • OmegaPortTM noncircular port holes • Leak chamber • SteerLockTM plate alignment • FlexFlowTM plate design • Compact frame • Fixed bolt head • Key hole bolt opening • Lifting lug • Lining • Lock washer • Tightening bolt cover |
| Plates | 40 |
| Weight (Lbs.) | 661 |
| Plate Thickness | 0.5 mm |
| Height (In.) | 41.3 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
