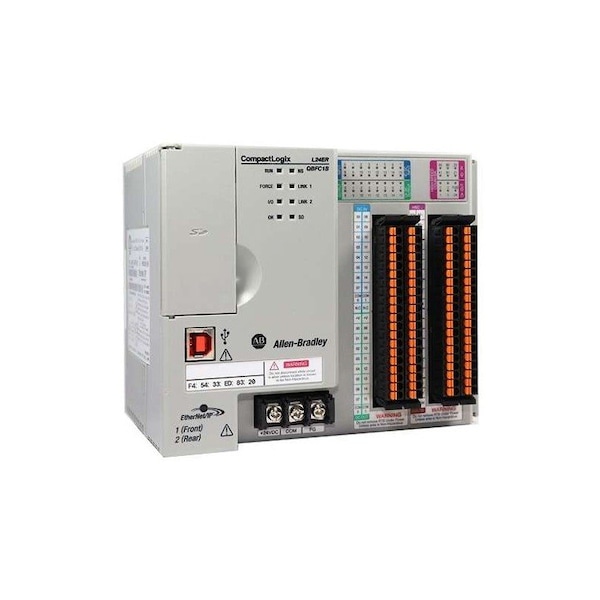

El PLC 1769L24ERQBFC1B es un controlador lógico programable.
| Mounting | DIN Rail / Panel mount |
|---|---|
| Display | Status LEDs |
| Memory | 0.5MB |
| Width | 140 mm, 5.51 in |
| Height | 118 mm, 4.65 in |
| Depth | 105 mm, 4.13 in |
| Type | Standard Controller |
| CompactLogix 5370 L2 Controllers | CompactLogix 5370 L2 Controller, 2 EtherNet/IP Ports With Device Level Ring Capability, 750KB Memory, 16 DC Inputs, 16 DC Outputs, 4 Universal Analog Inputs, 2 Analog Outputs, 4 High Speed Counters, Up To 4 1769 I/O Expansion Modules, 8 EtherNet/IP And 120 TCP Connections, 24V DC Input Embedded Power Supply, With 1GB SD card, Can Support Up To 2GB SD Card, 1 USB Port. |
| Input Signal | 10-30VDC, +/- 10V, 0-10.5V, 0-5.25V. 0-21mA, Thermocouple: J, K, T, E, R, S, B, N and C, RTD: Platinum 385, Platinum 3916, Copper 426, Nickel 672, Nickel 618, Nickel-Iron 518, Resistance |
| Power Supply | 24V DC input, Isolated,Class 2/SELV |
| Communication | Ethernet , USB |
| Isolation | 30V (continuous), Basic Insulation Type, USB to system, Ethernet to system and Ethernet to Ethernet. Type tested at 500V AC for 60 s |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Enclosure | None |
| Special Features | Universal Analog Input |
| Output Signal | 24VDC, +/- 10V, 0-10.5V, 0-5.25V. 0-21mA |
| Network Media | Male RJ45 to Male RJ45 Patchcord, Unshielded Twisted Pair, Teal TPE Cable, 1.9 m |
| Embedded Network Port | 2 Ethernet |
| Non Volatile Memory Option | Secure Digital |
| Local Programming Port | USB/Ethernet |
| Number Of Channels | 42 |
| Package Quantity | 1 |
