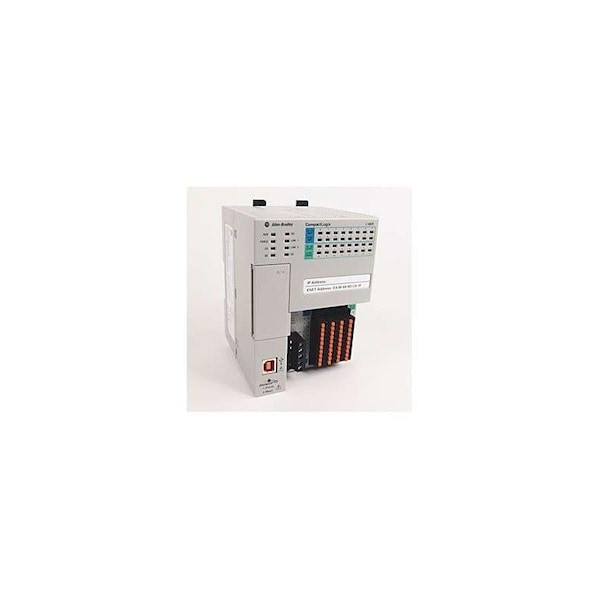

VPLB1003TPK12AA es un producto que consiste en 1769L18ERBB1B.
| Mounting | DIN Rail / Panel mount |
|---|---|
| Display | Status LEDs |
| Memory | 0.5MB |
| Depth | 105 mm, 4.13 in |
| Height | 131.6 mm, 5.18 in |
| Width | 100 mm, 3.94 in |
| Power Supply | 24V DC input, non-isolated, Class 3 |
| Number Of Channels | 32 |
| Enclosure | None |
| Operating Temperature | -20 to 60 °C (-4 to 140 °F) |
| Input Signal | 10-30 VDC |
| Output Signal | 10-30 VDC |
| Type | Standard Controller |
| CompactLogix 5370 L1 Controllers | CompactLogix 5370 L1 Controller, Dual Ethernet w/DLR capability, 512KB Memory, 8 I/O Expansion via 1734 POINT I/O, 8 Ethernet IP Nodes, 24VDC. This Controller uses POINT I/O (1734) backplane. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. |
| Communication | Ethernet , USB |
| Embedded Network Port | 2 Ethernet |
| Special Features | Standard |
| Network Media | Male RJ45 to Male RJ45 Patchcord, Unshielded Twisted Pair, Teal TPE Cable, 1.9 m |
| Local Programming Port | USB/Ethernet |
| Isolation | 50V (continuous), Basic Insulation Type, Tested at 500V AC for 60 s, System to Field |
| Non Volatile Memory Option | Secure Digital |
| Package Quantity | 1 |
