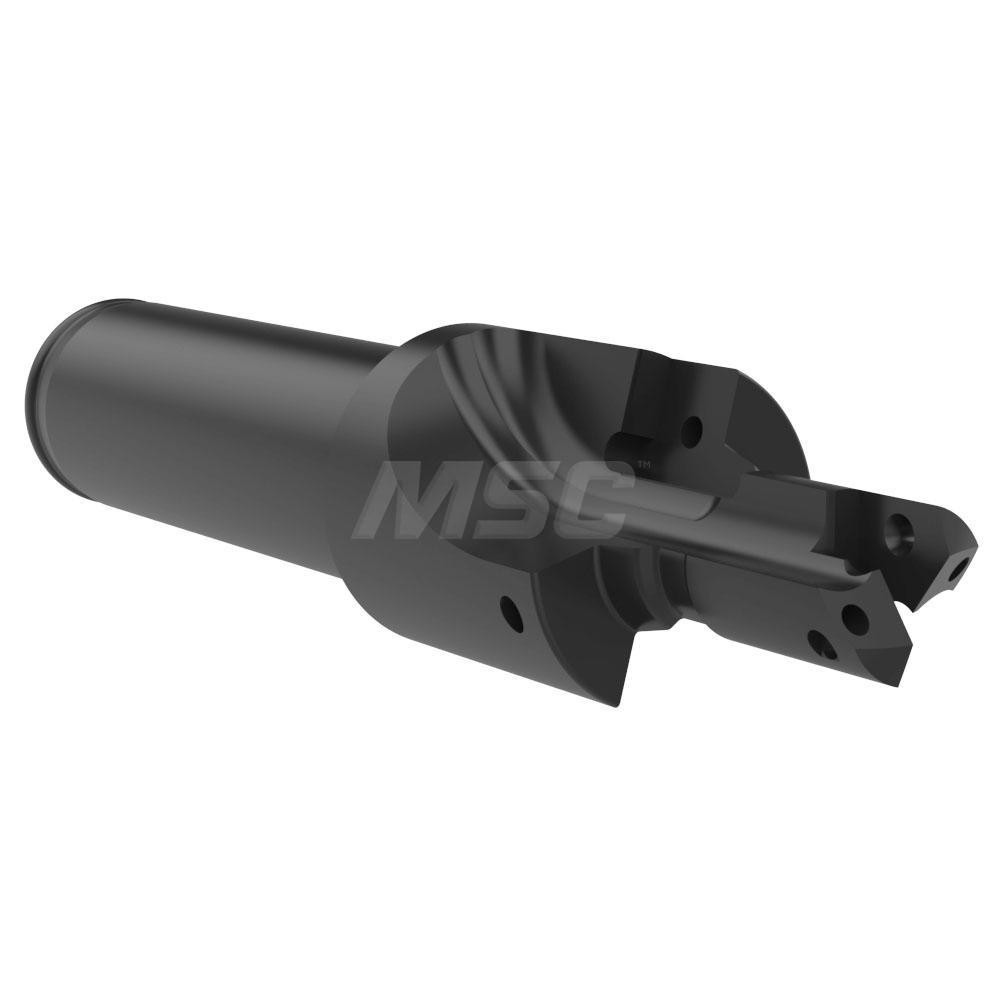

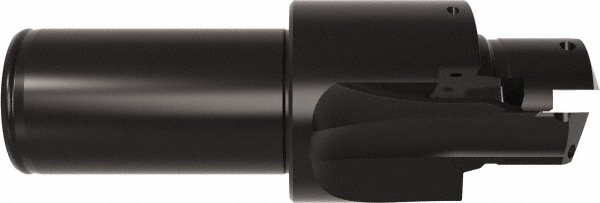

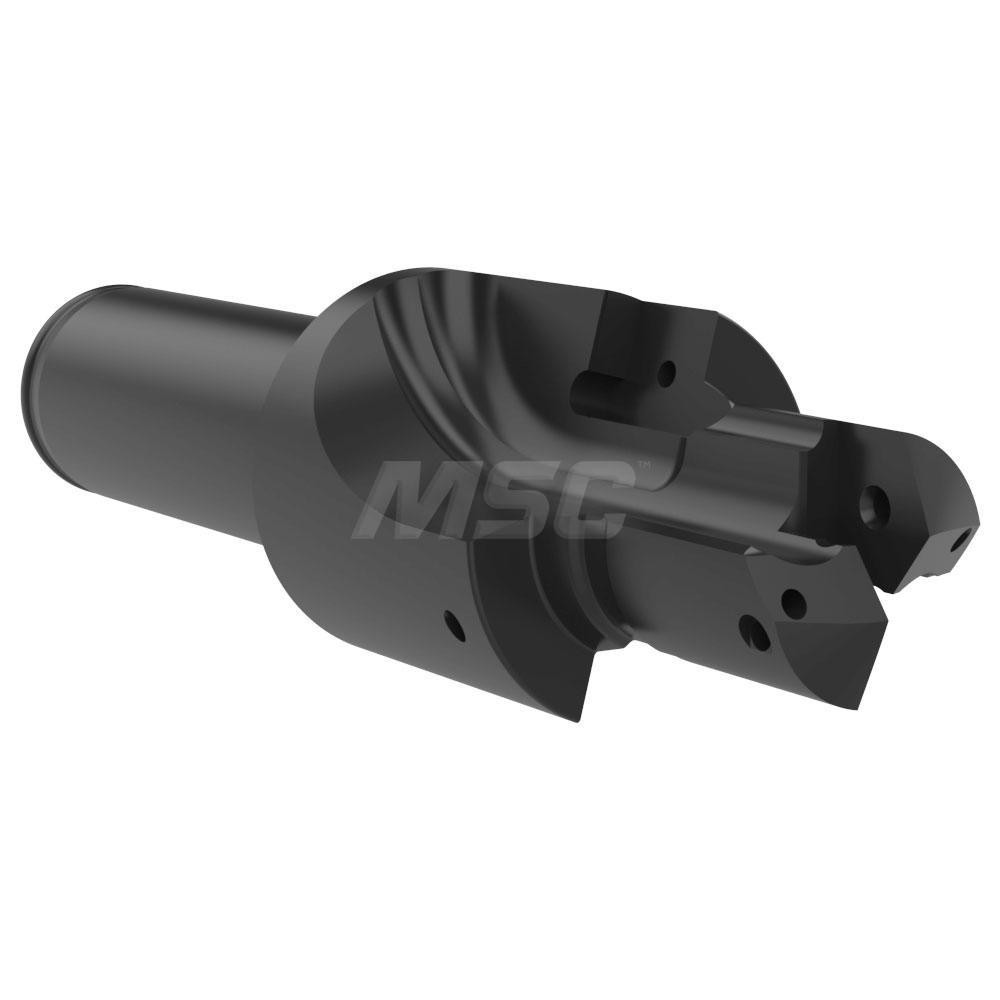

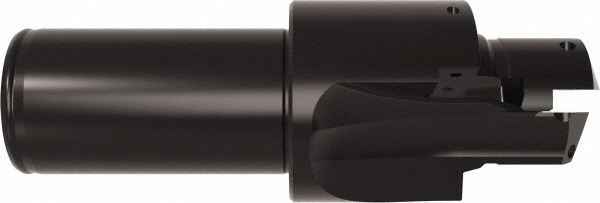

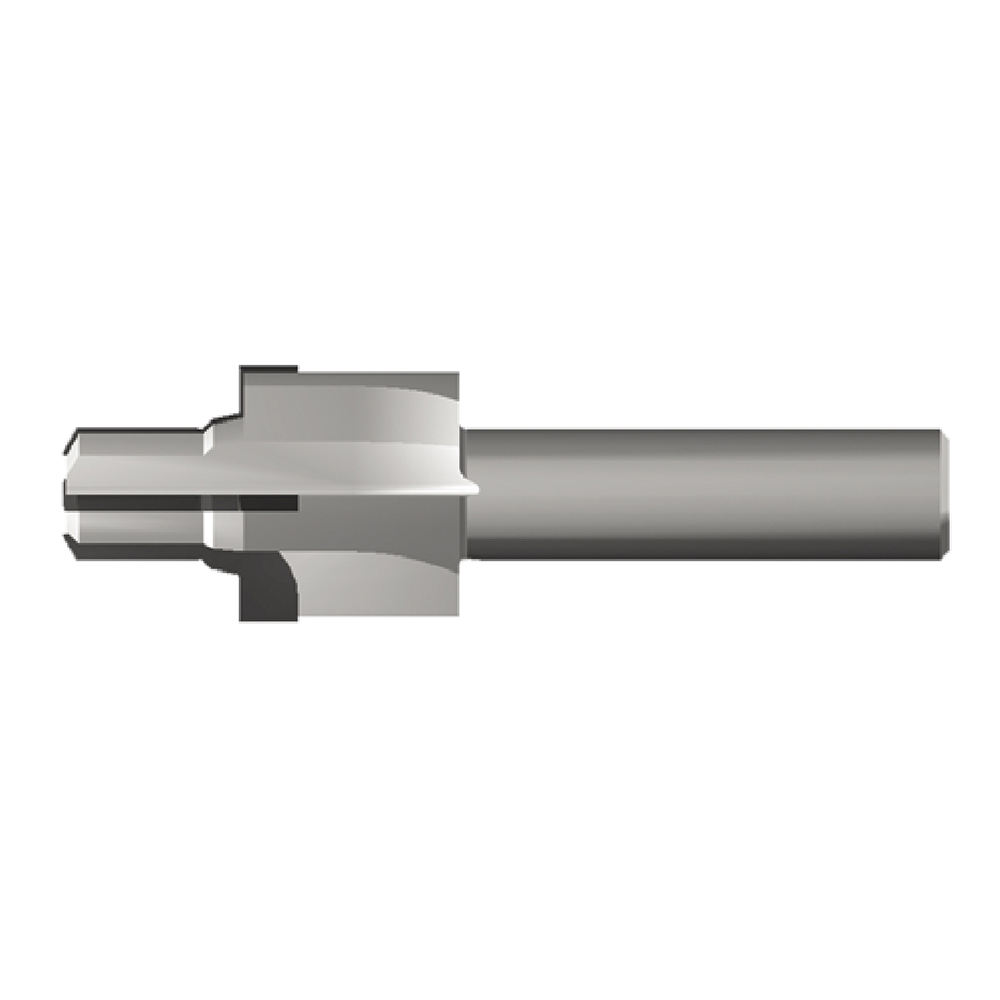

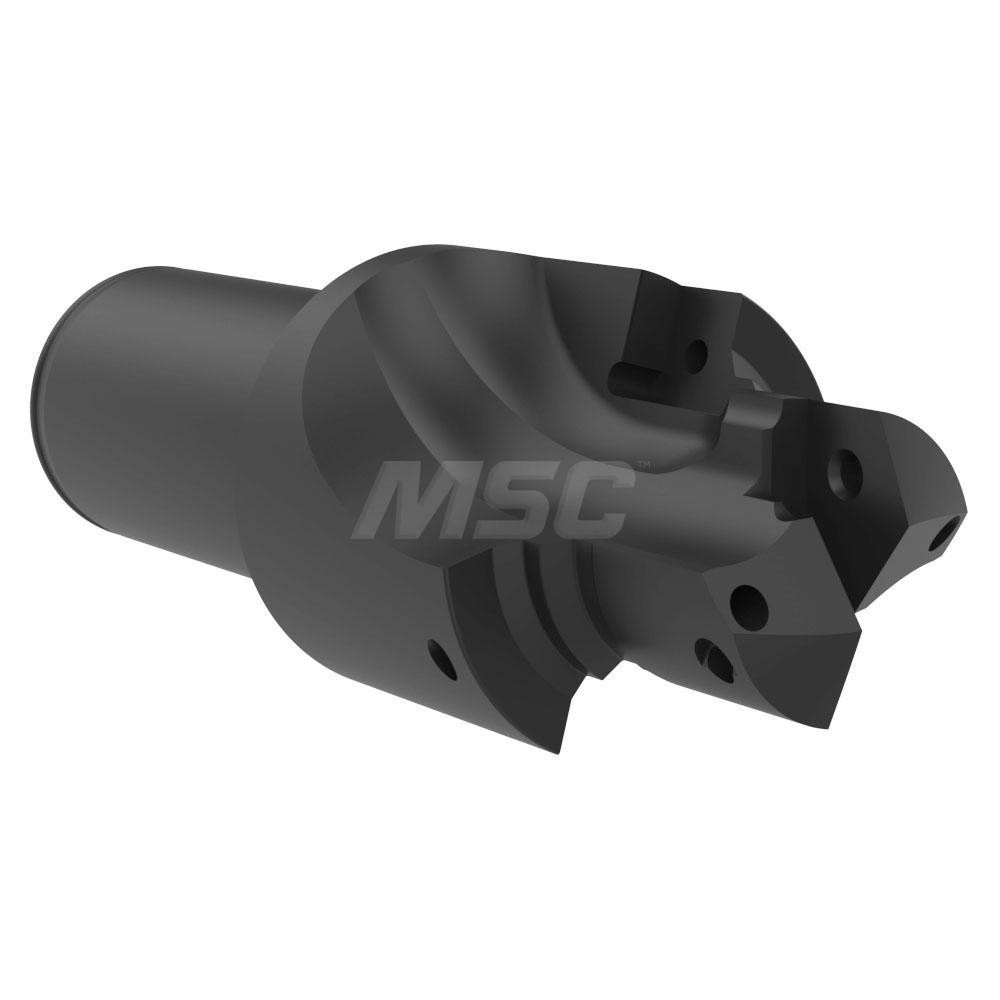

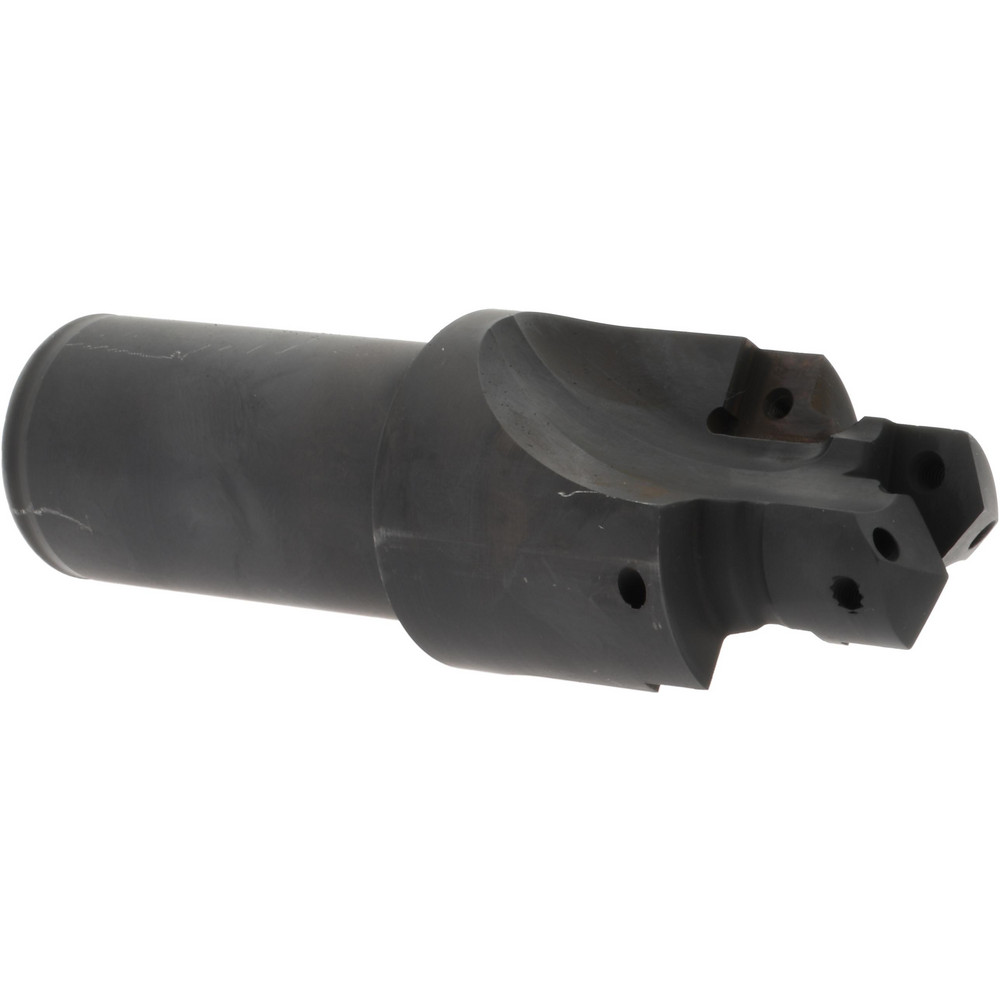

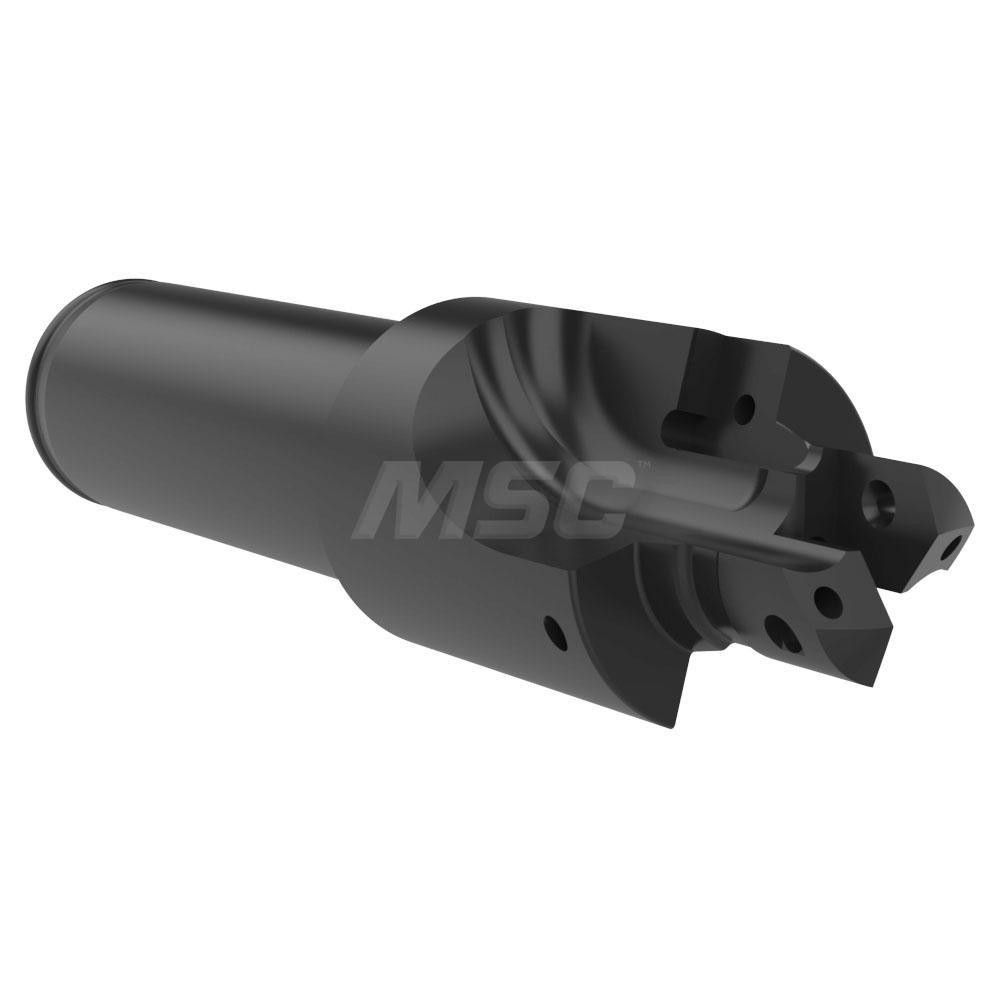

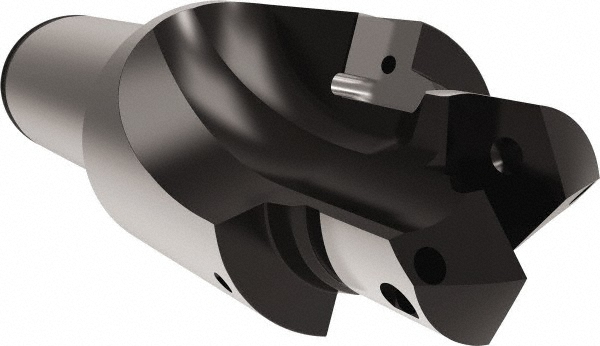

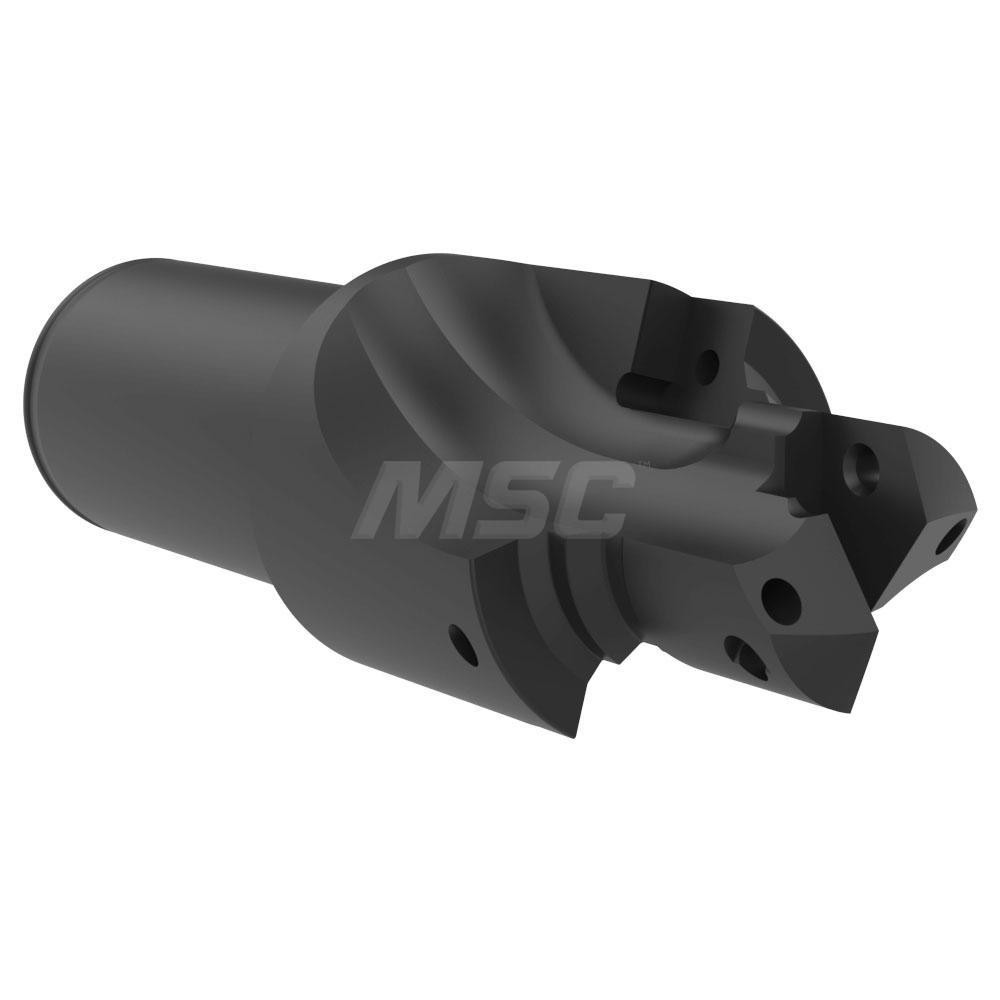

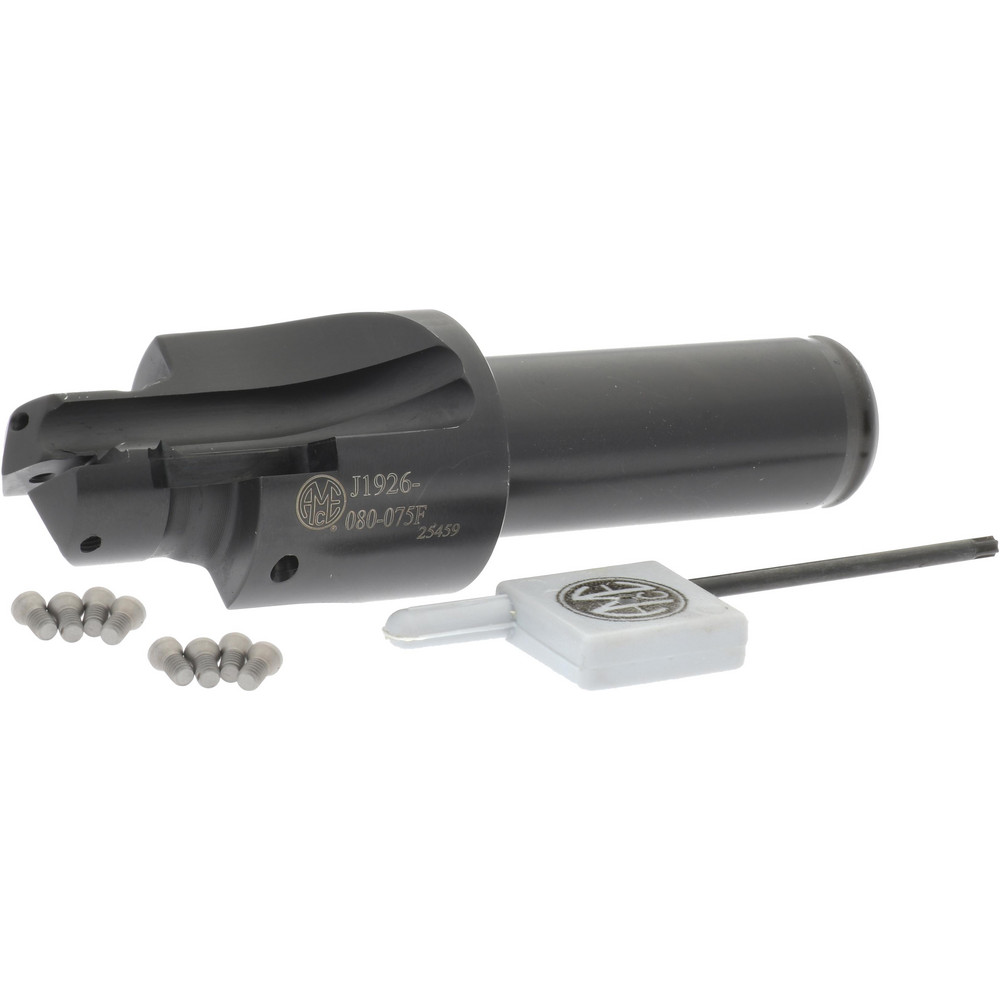

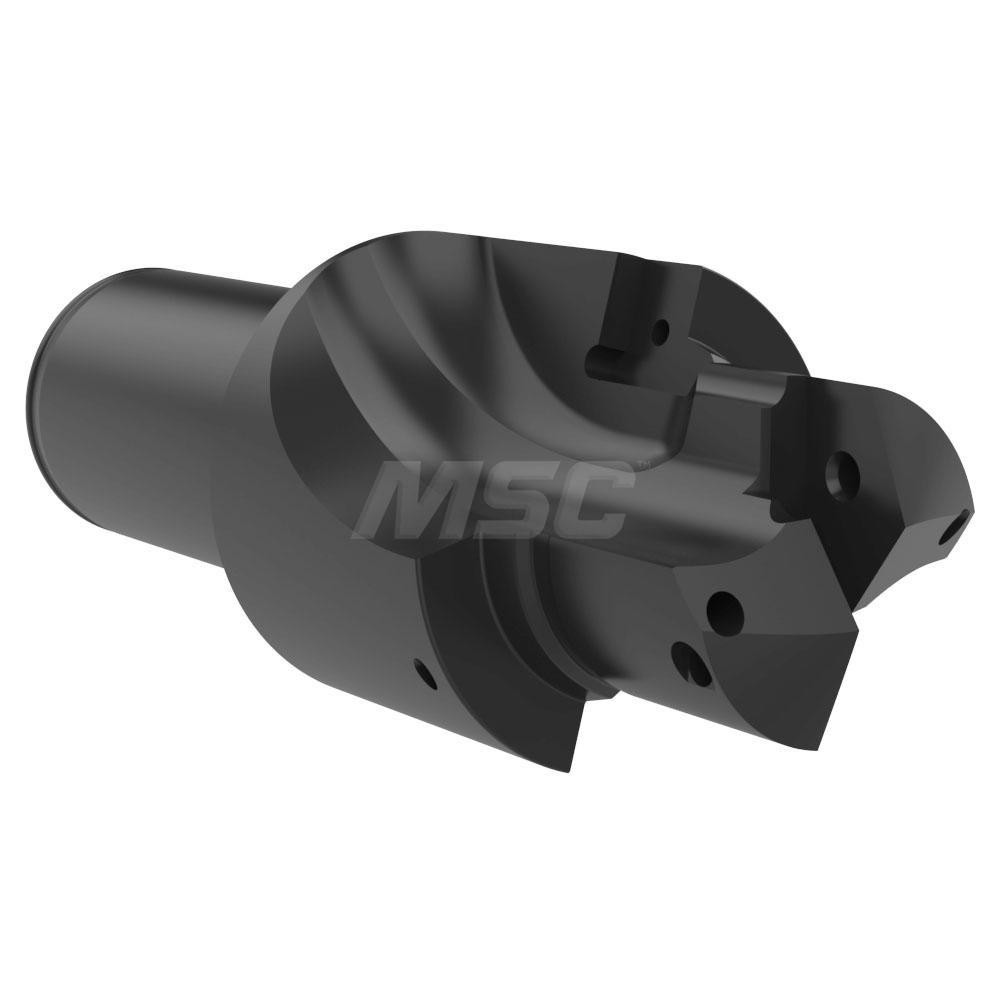

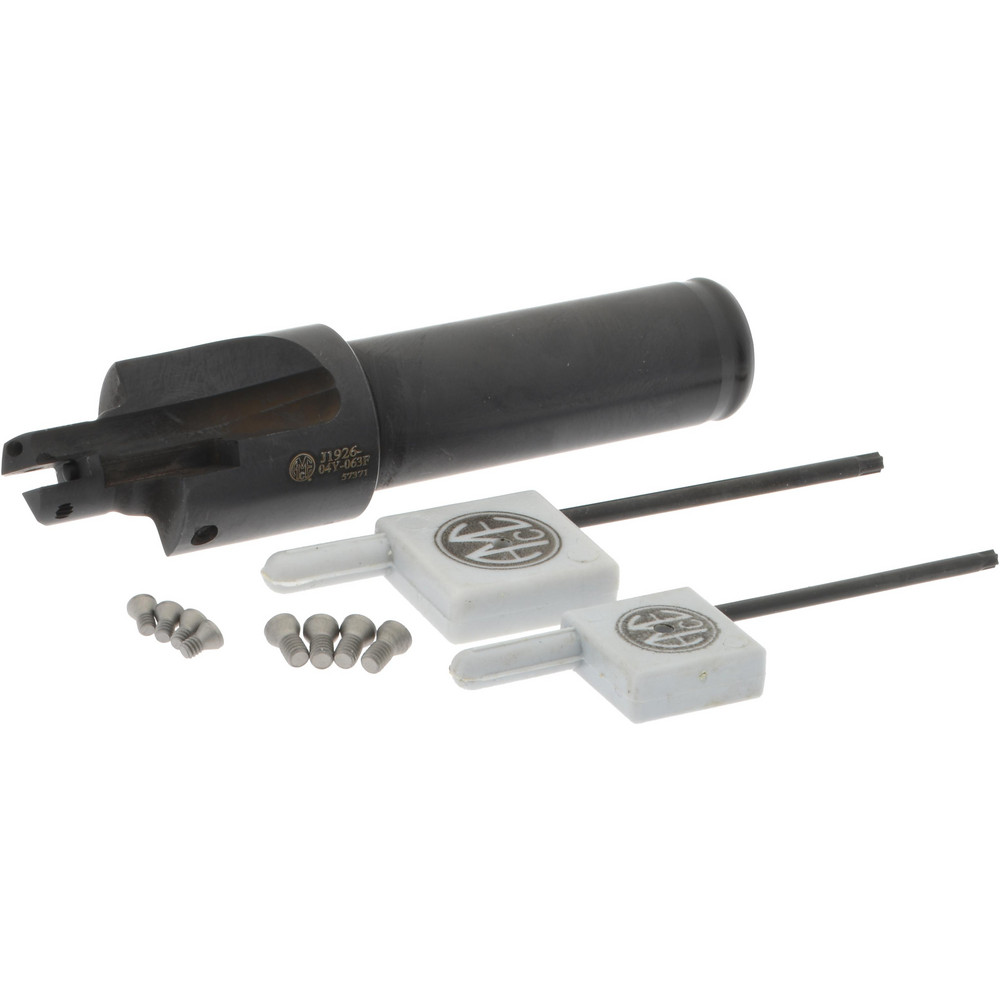

Takes 2 Inserts, ISO 11926-1, MS 16142, SAE J1926-1
| Port Standard Designation | ISO 11926-1; MS 16142; ISO 11926-1;MS 16142;SAE J1926-1; SAE J1926-1 |
|---|---|

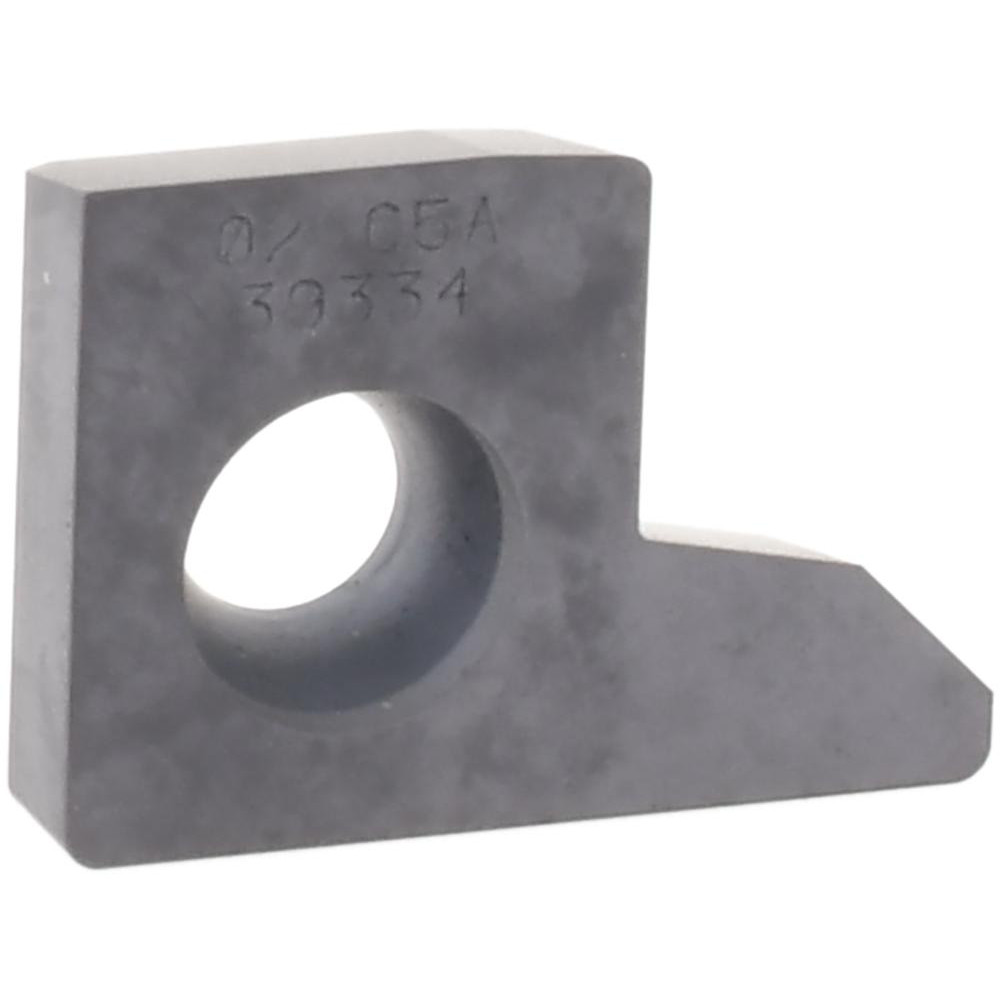

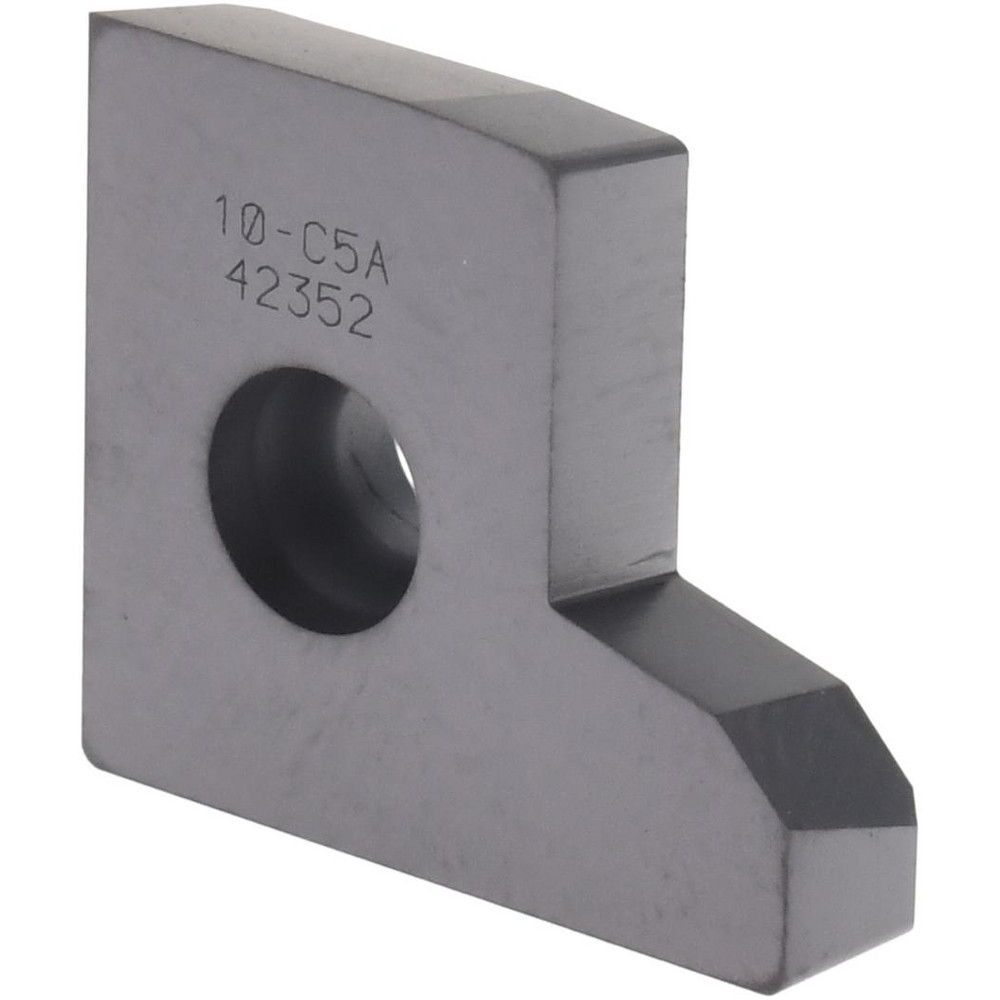

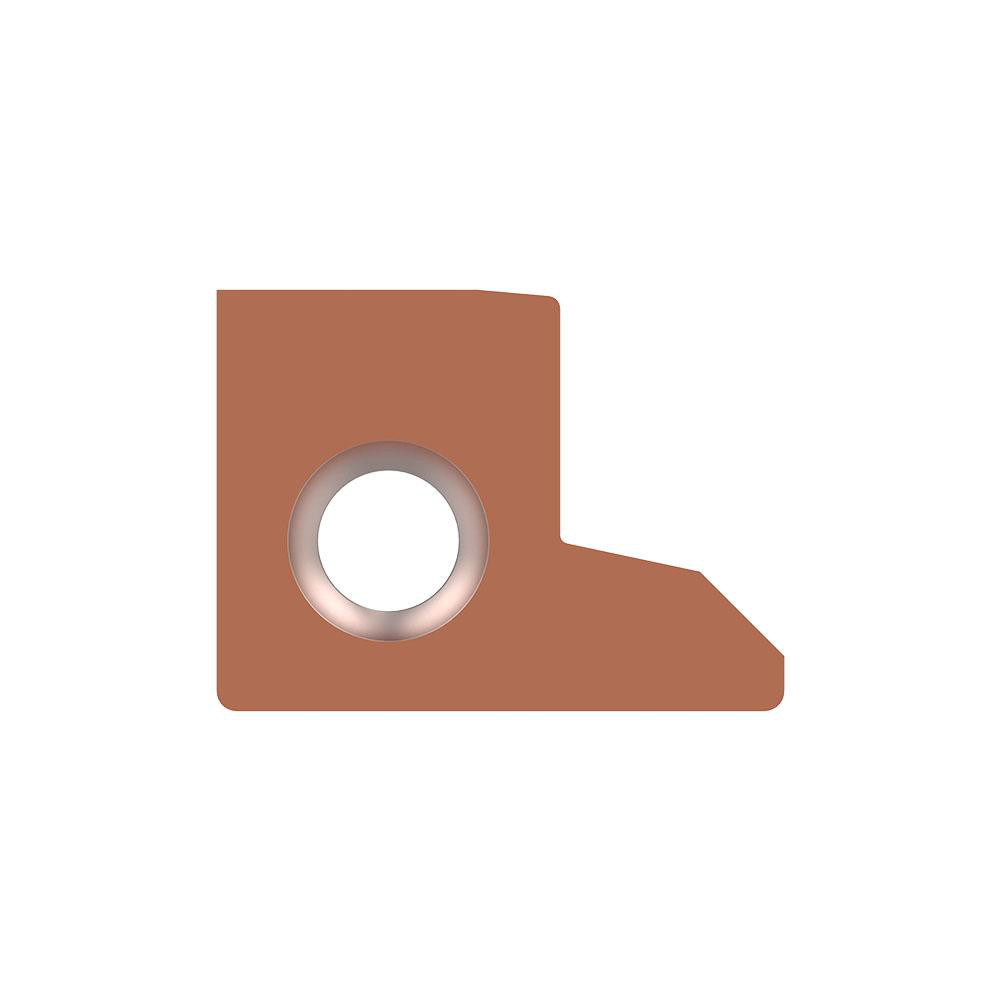

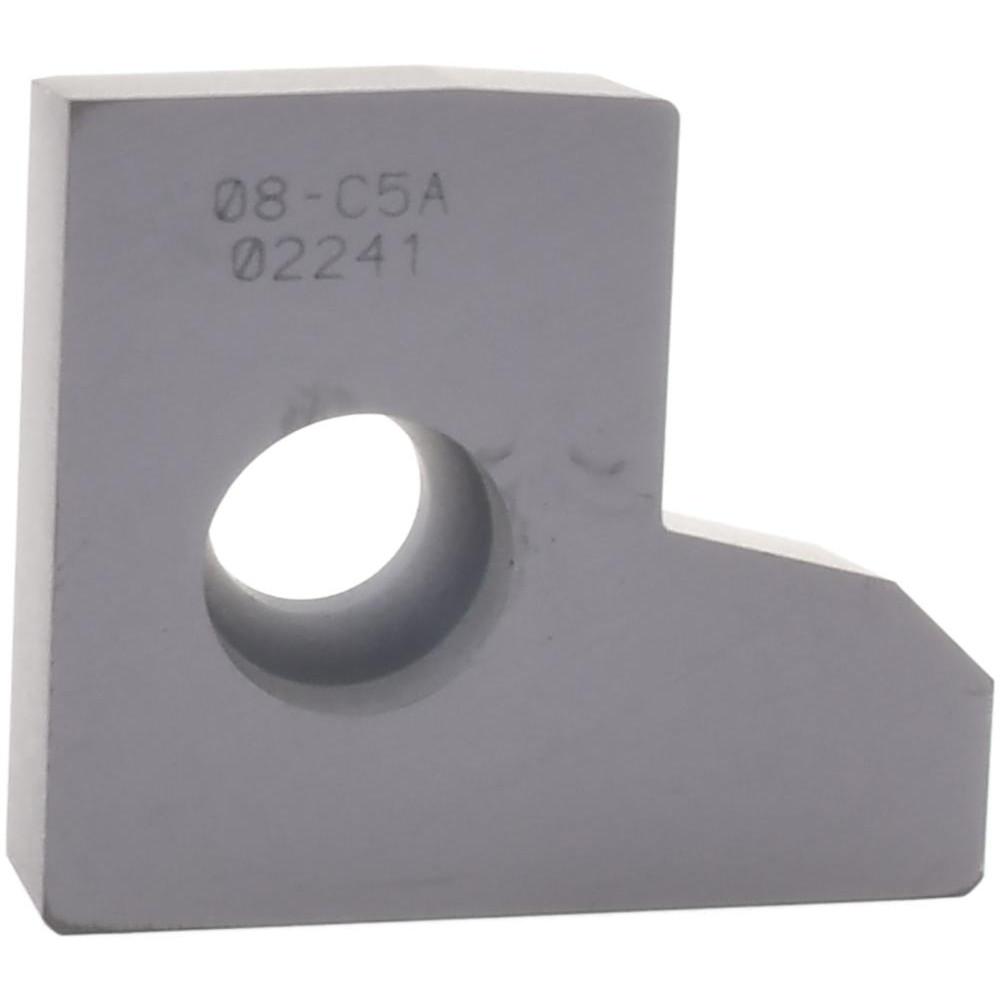

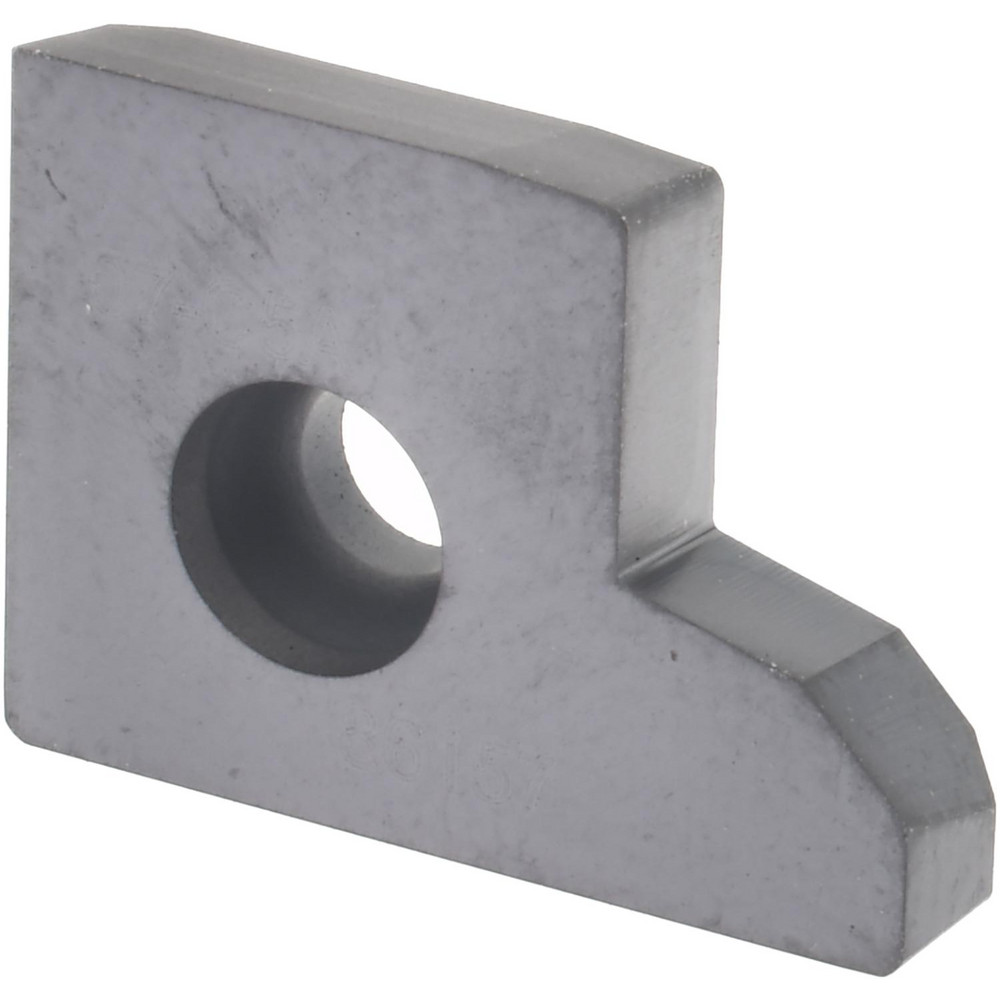

| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | 1-1/16-12 |
| Tube Dash Number | 12 |
| Pilot Diameter (Decimal Inch) | 0.9840 |
| Spotface Diameter (Decimal Inch) | 1.6570 |
| Shank Diameter (Inch) | 1.2500 |
| Number of Porting Inserts | 2 |
| Porting Diameter (Decimal Inch) | 1.1500 |
| Overall Length (Decimal Inch) | 5.1710 |
| Through Coolant | No |
| Porting Angle | 15 |
| Porting Angle Length (Decimal Inch) | 0.1380 |
| Head Length (Decimal Inch) | 2.8900 |
| Shank Length (Decimal Inch) | 2.2810 |
| Series | AccuPort 432 |
| UNSPSC Code | 23241603 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 82889841 |
