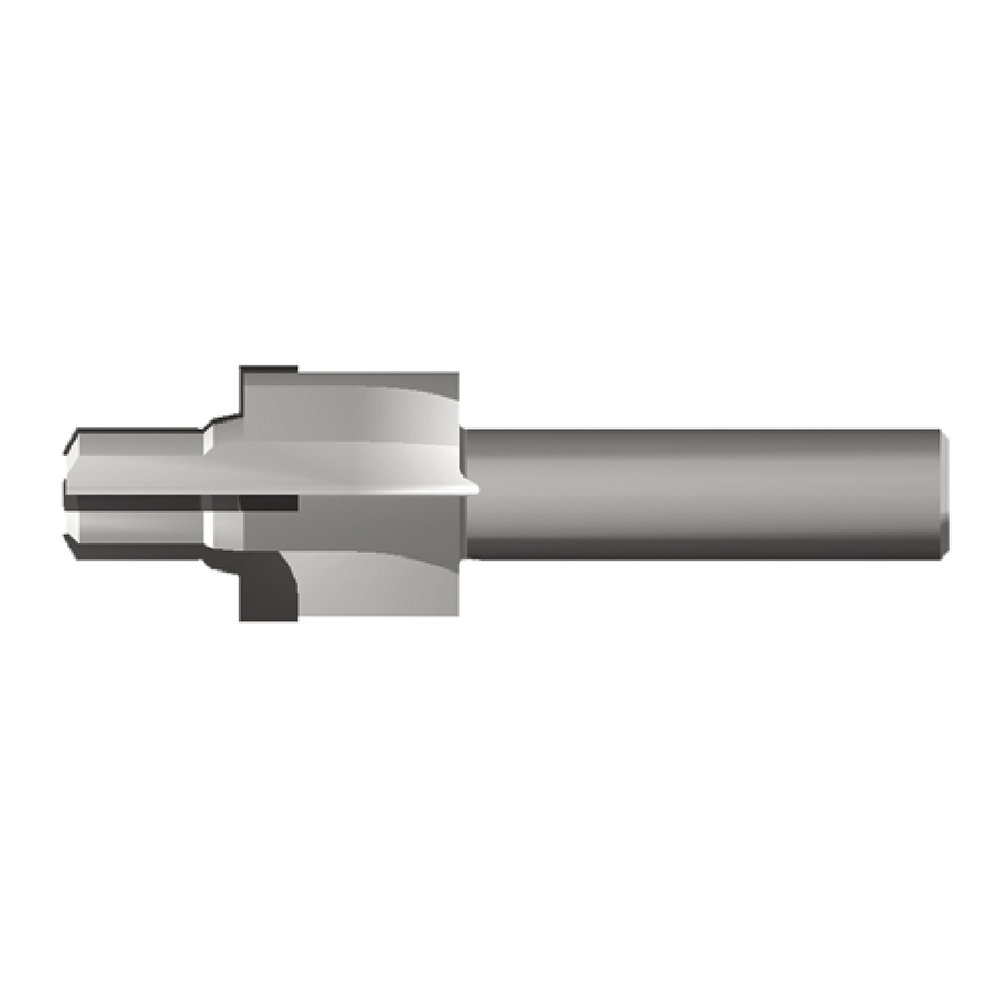

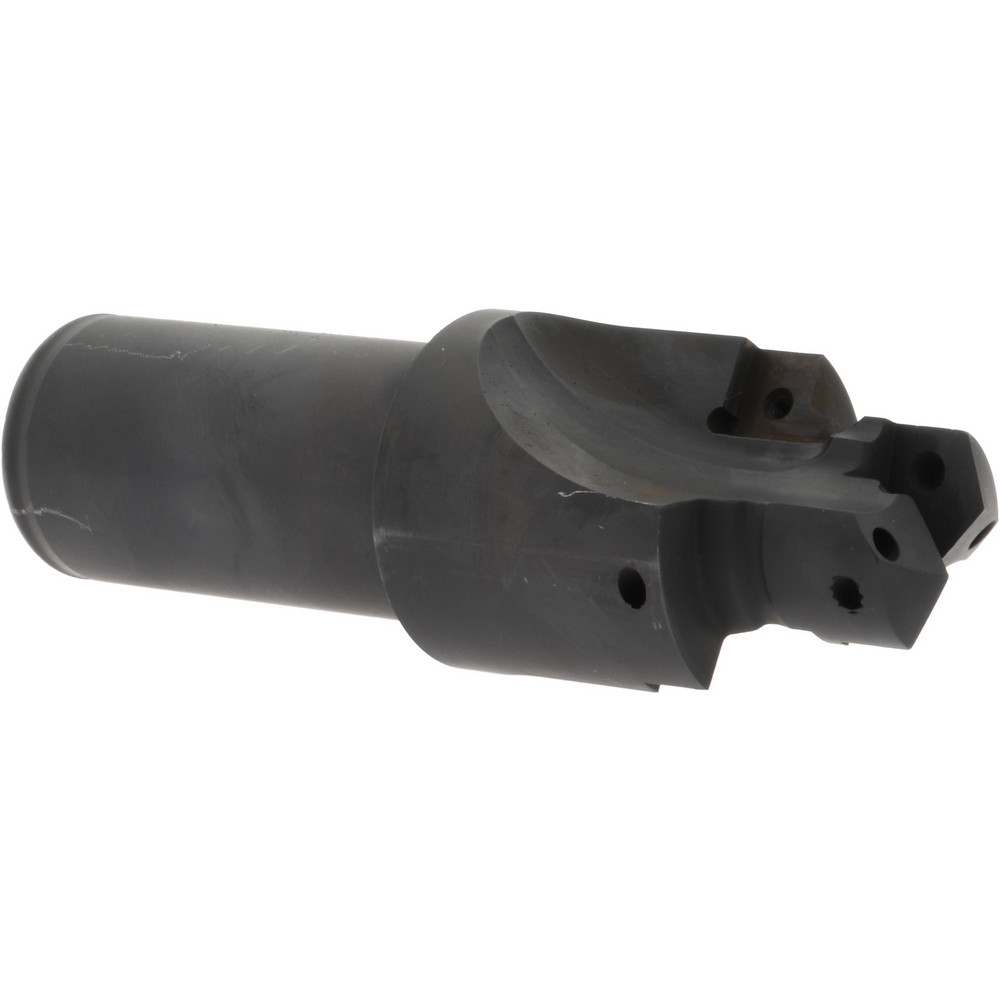

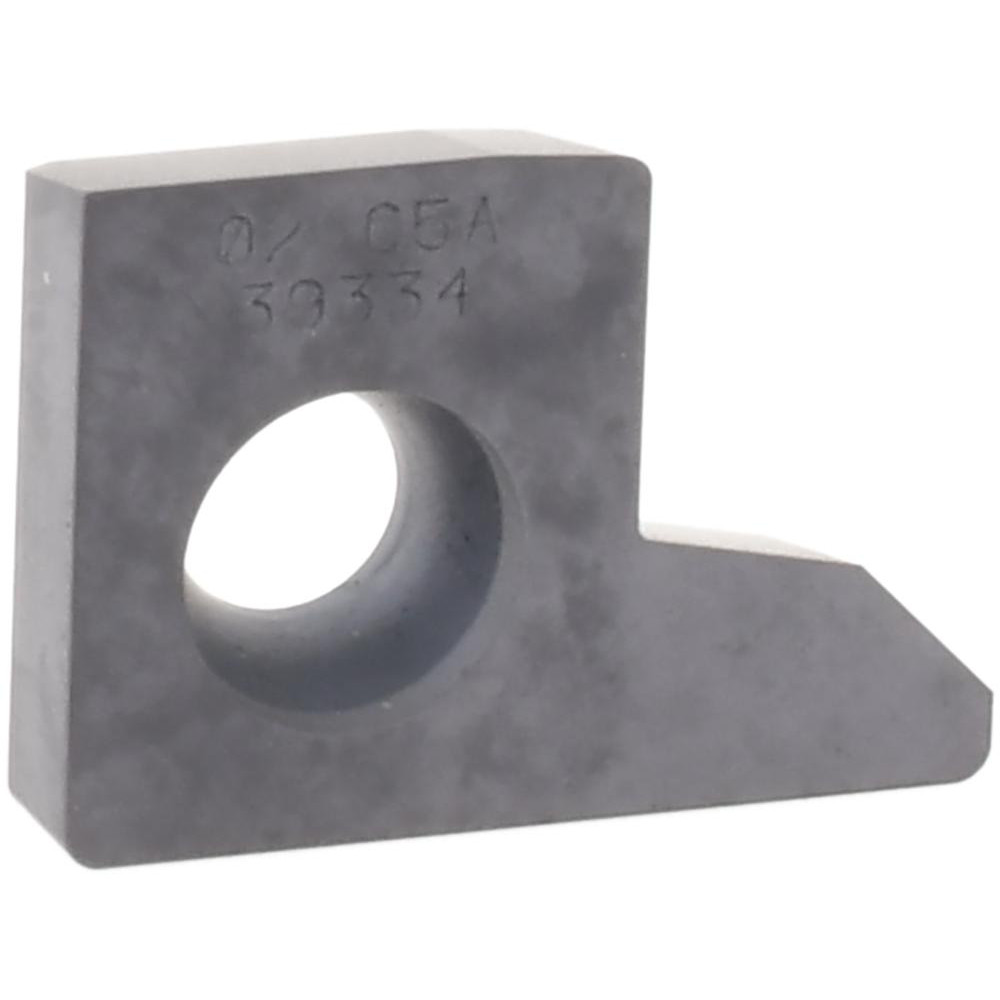

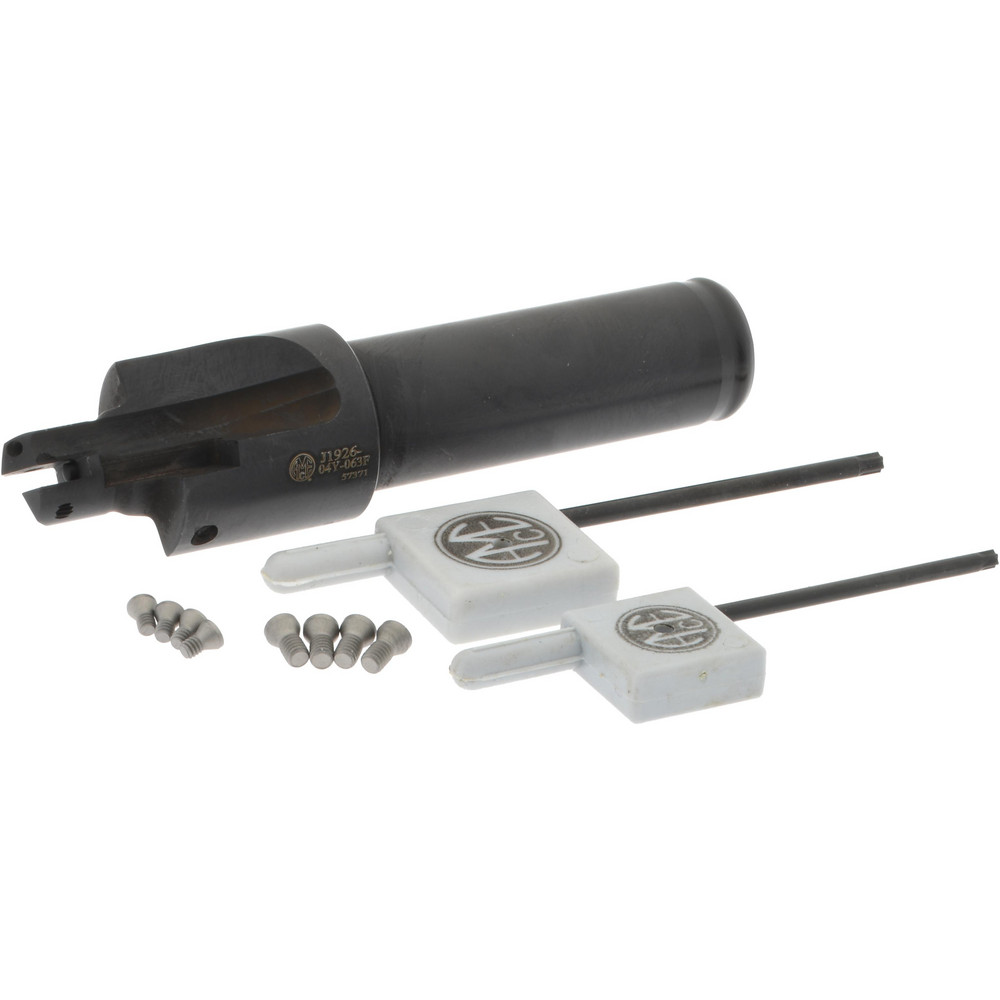

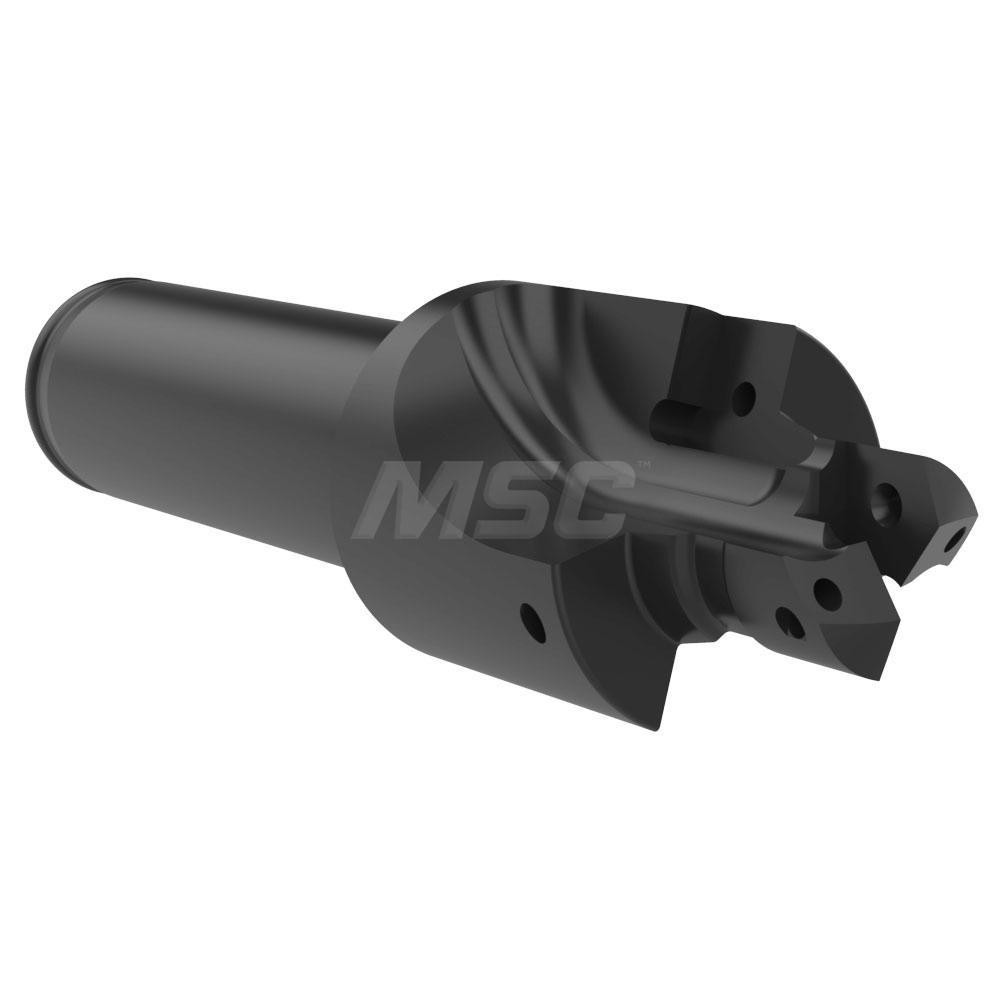

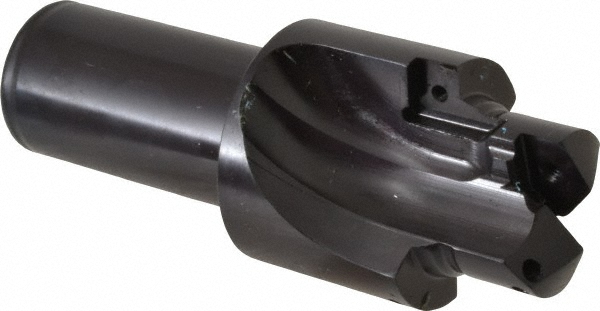

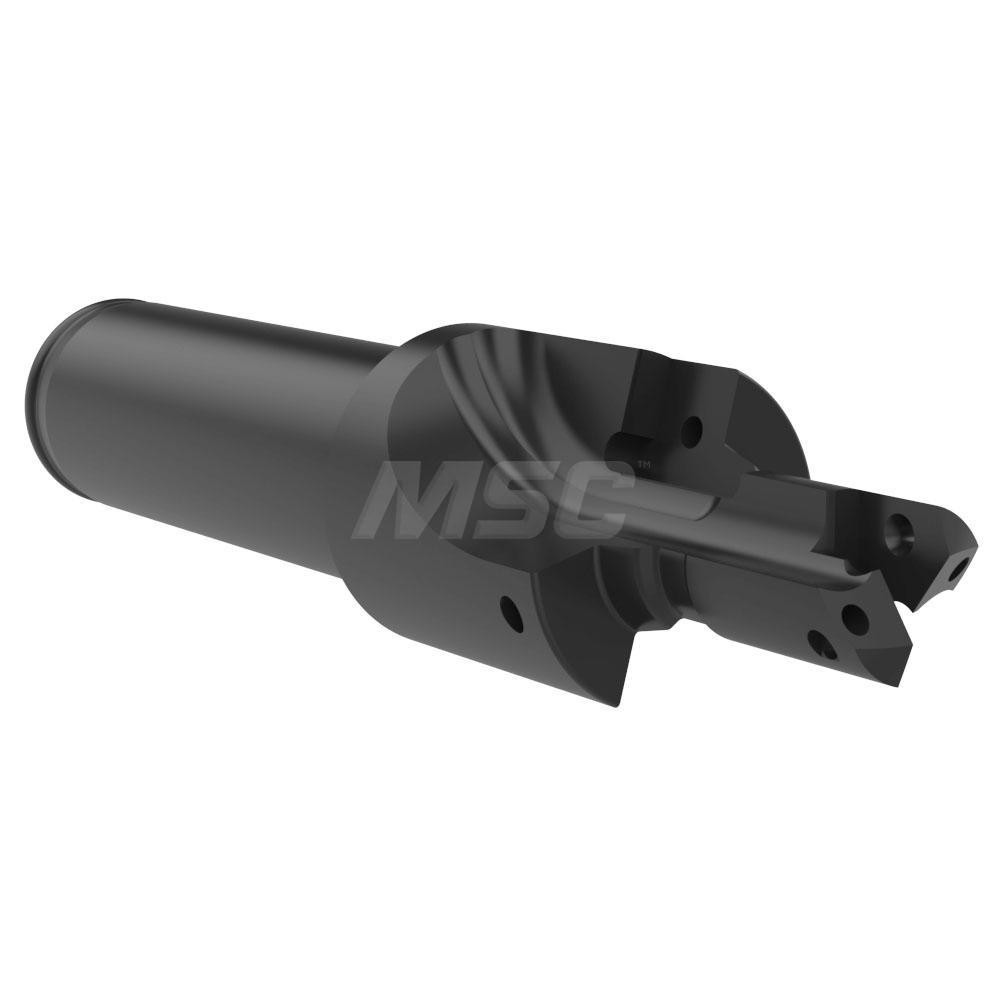

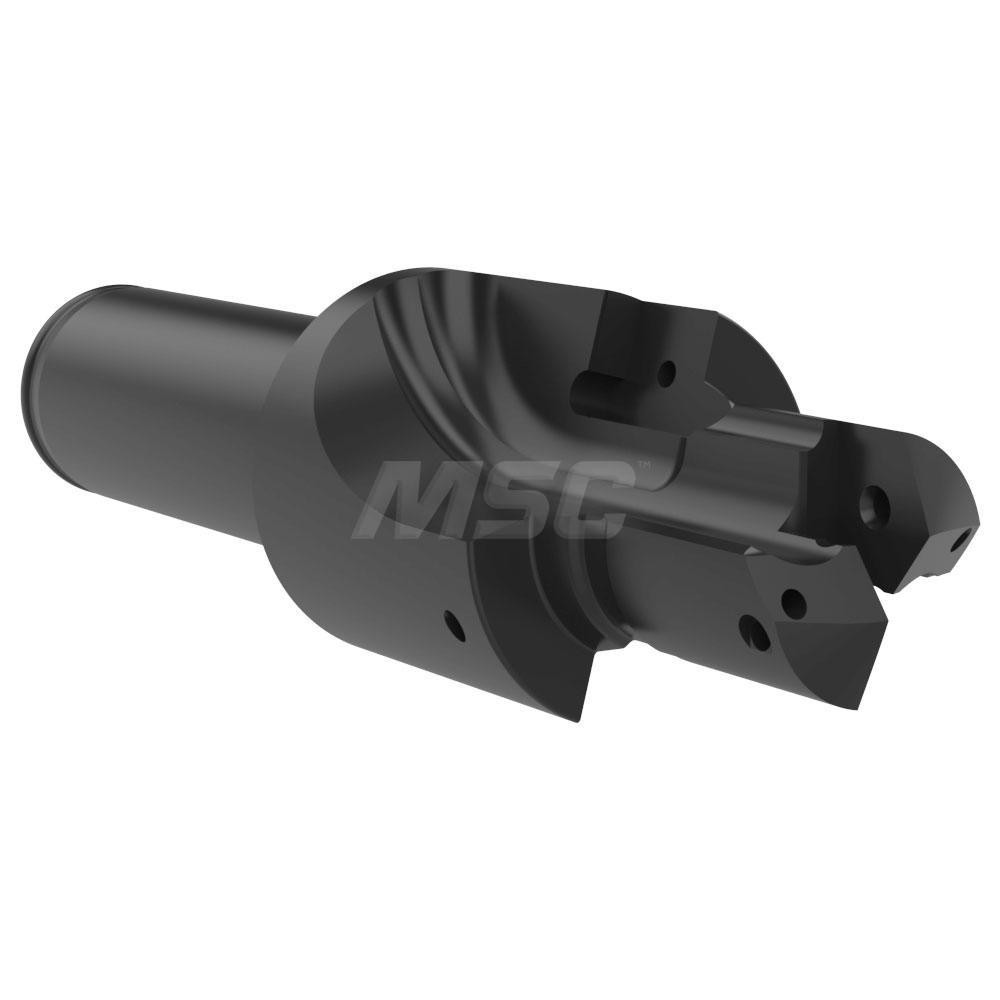

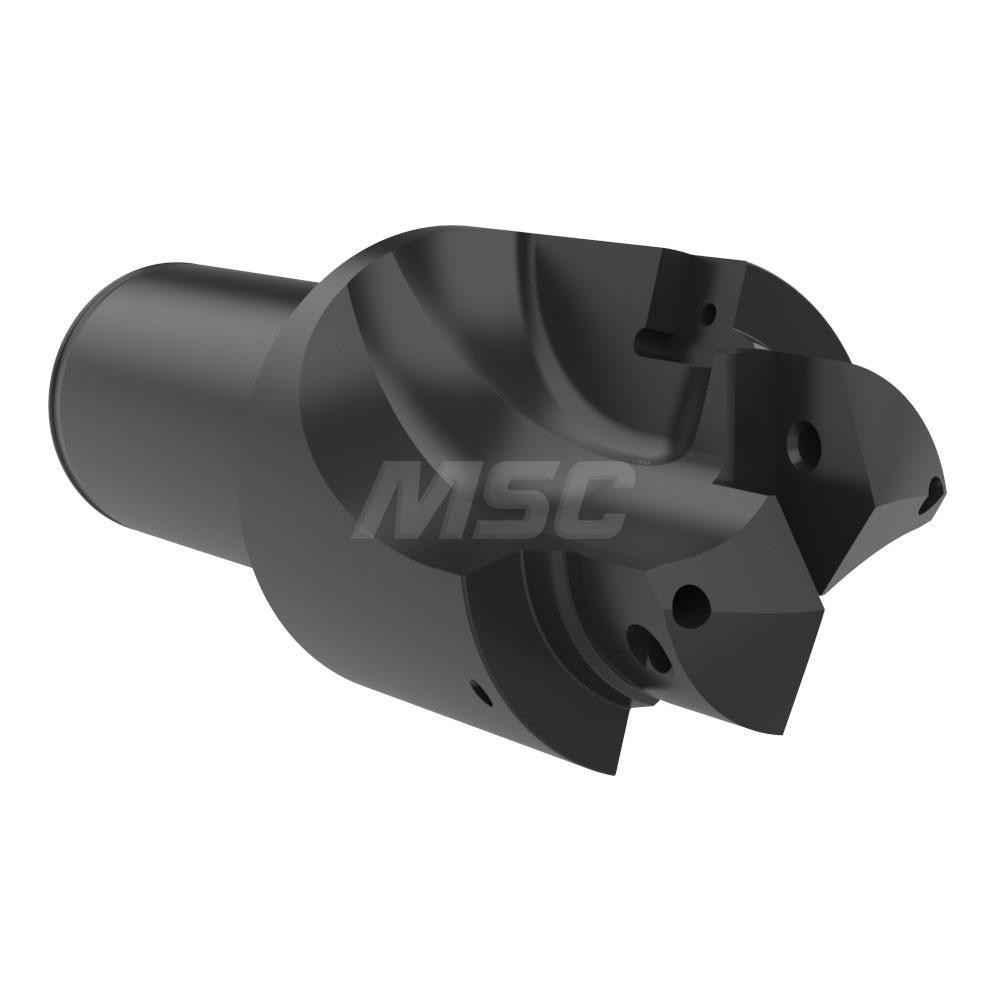

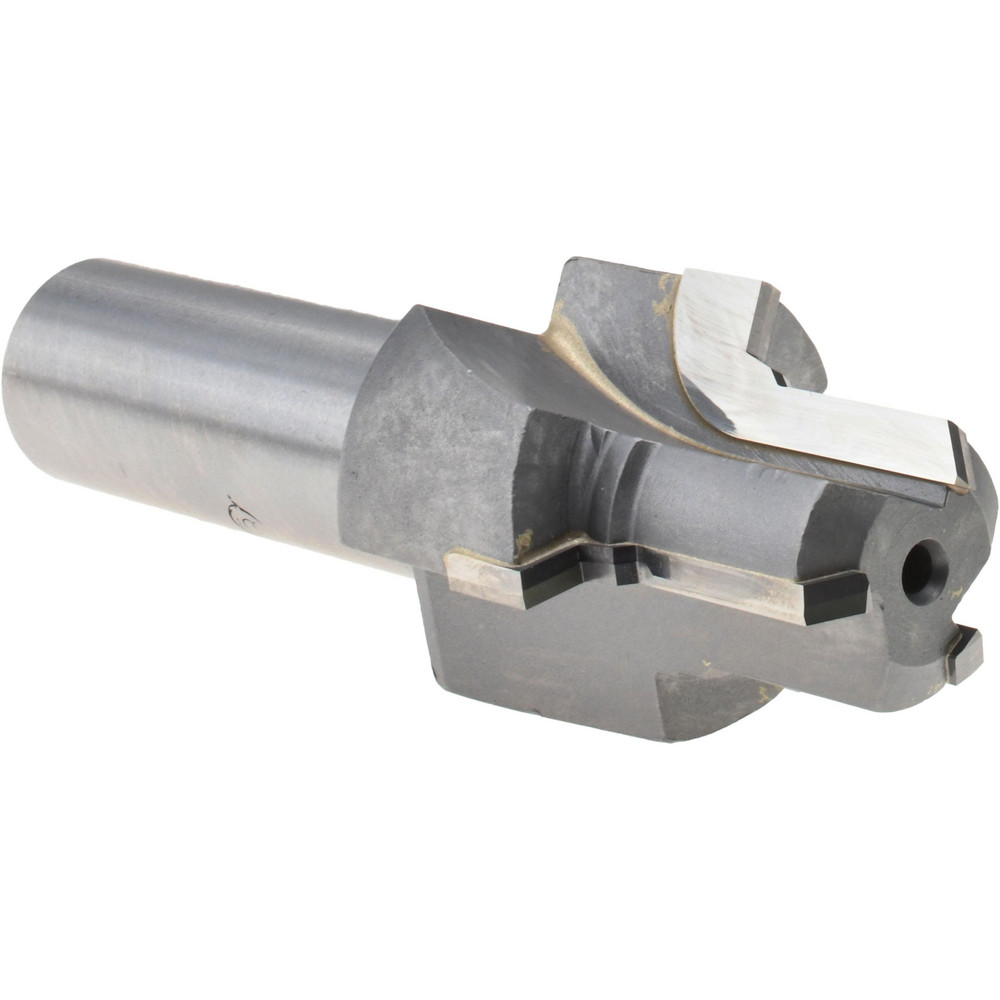

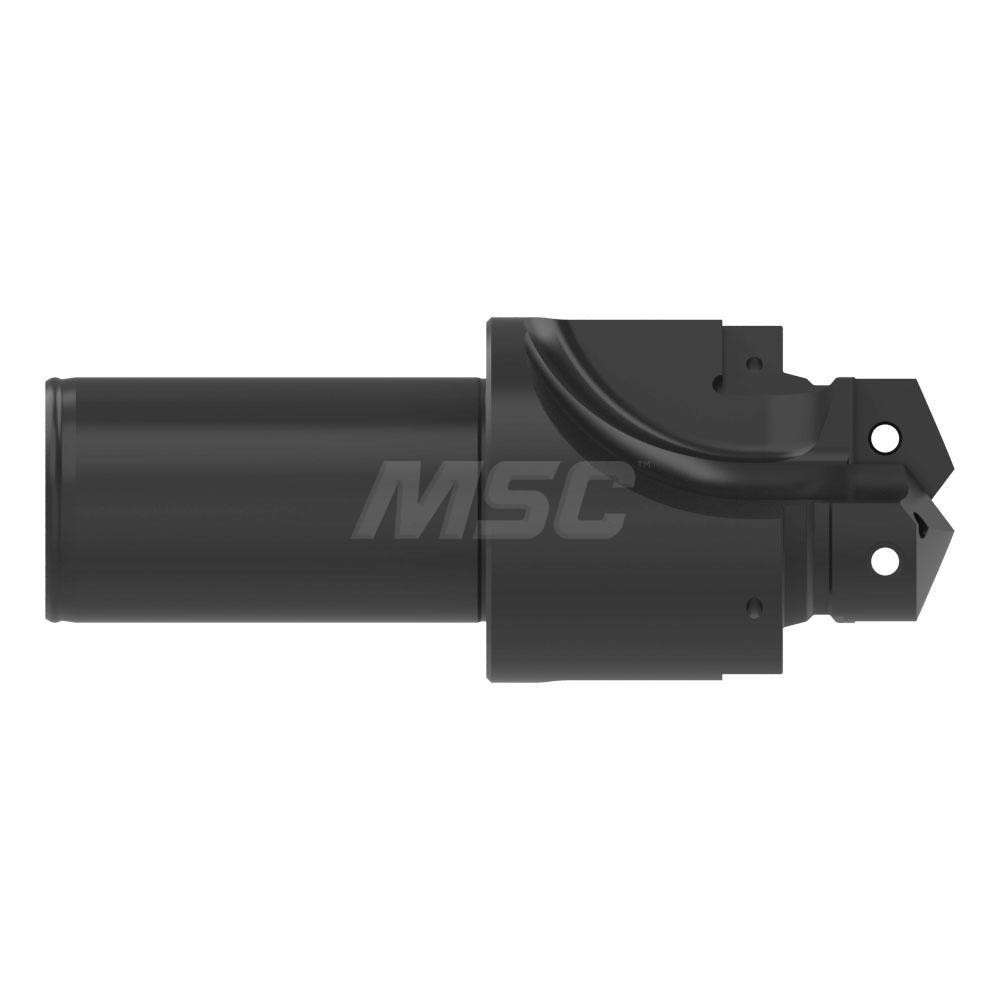

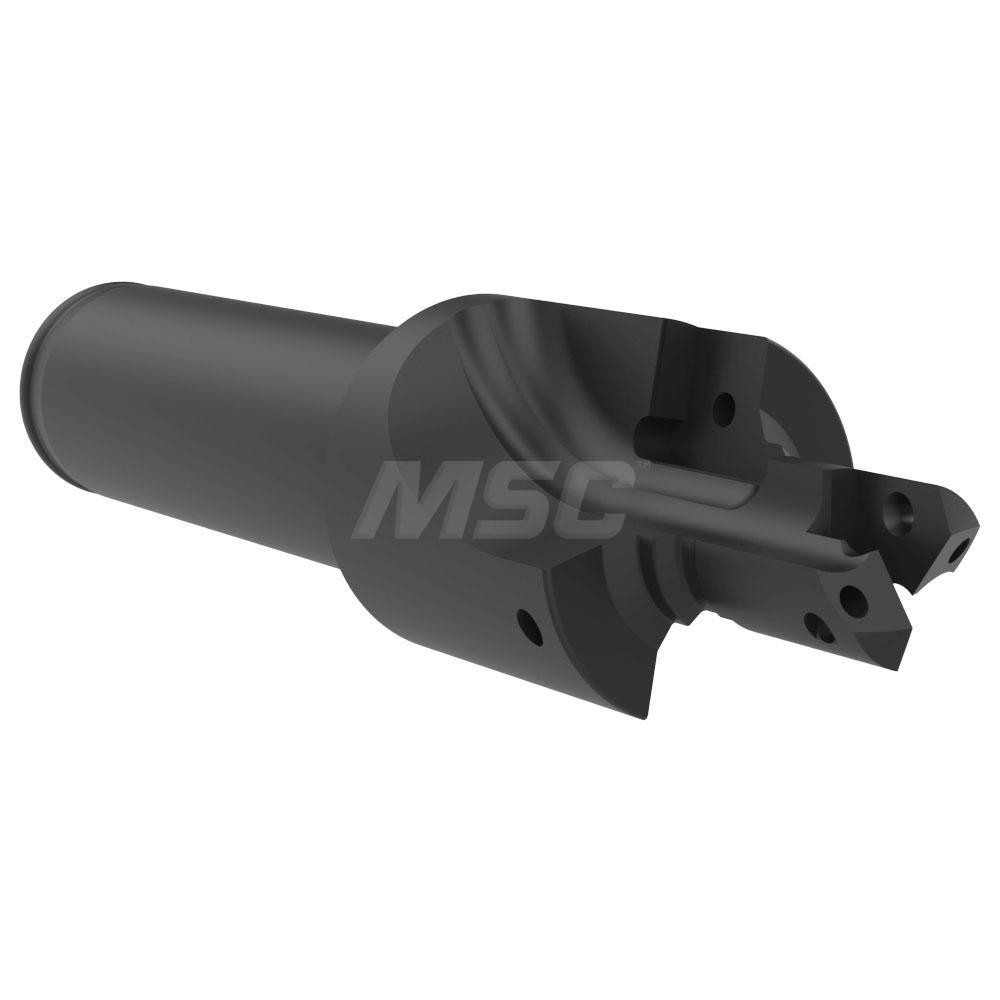

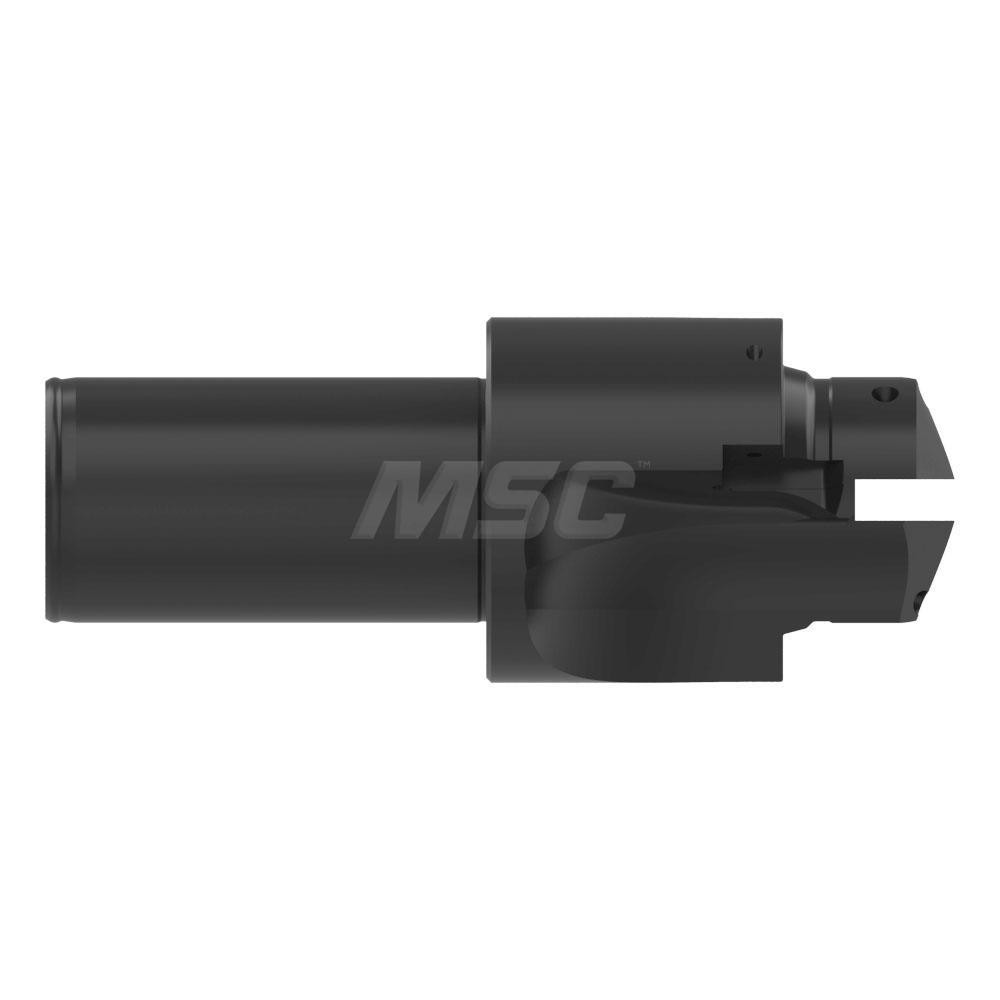

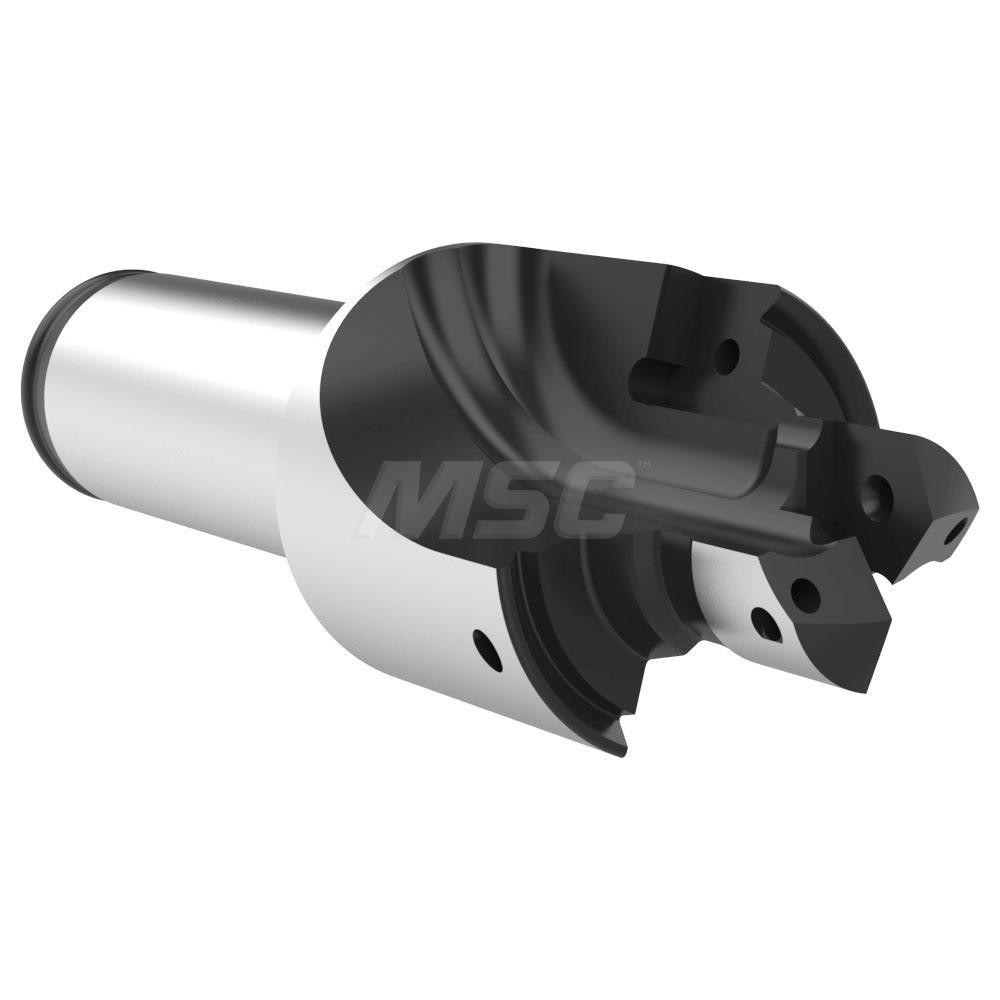

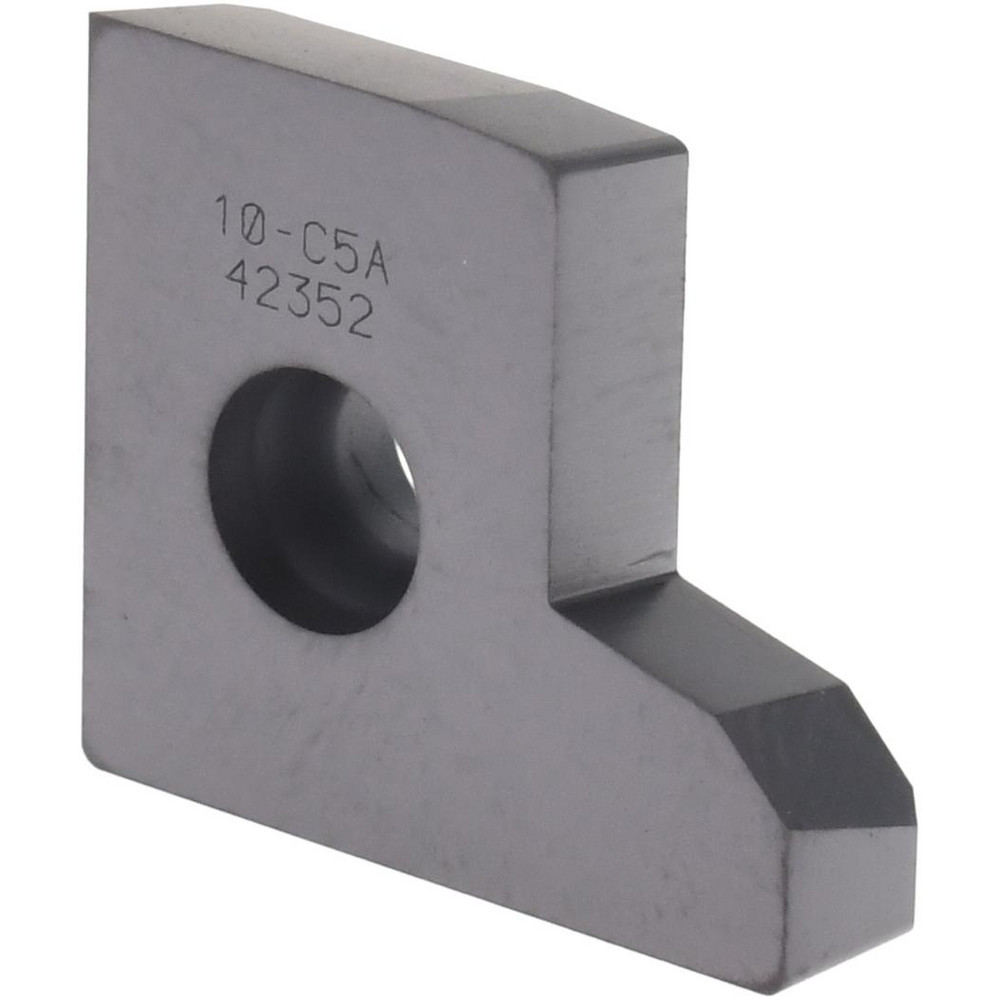

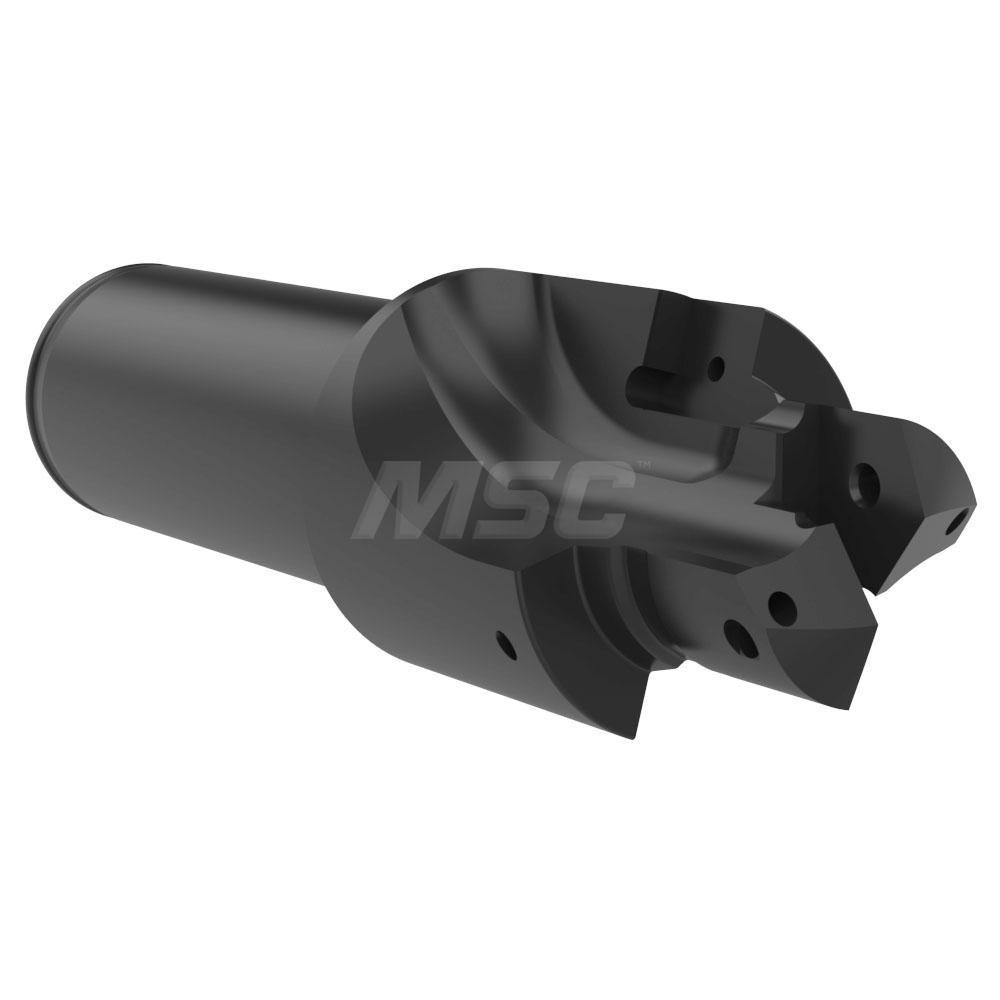

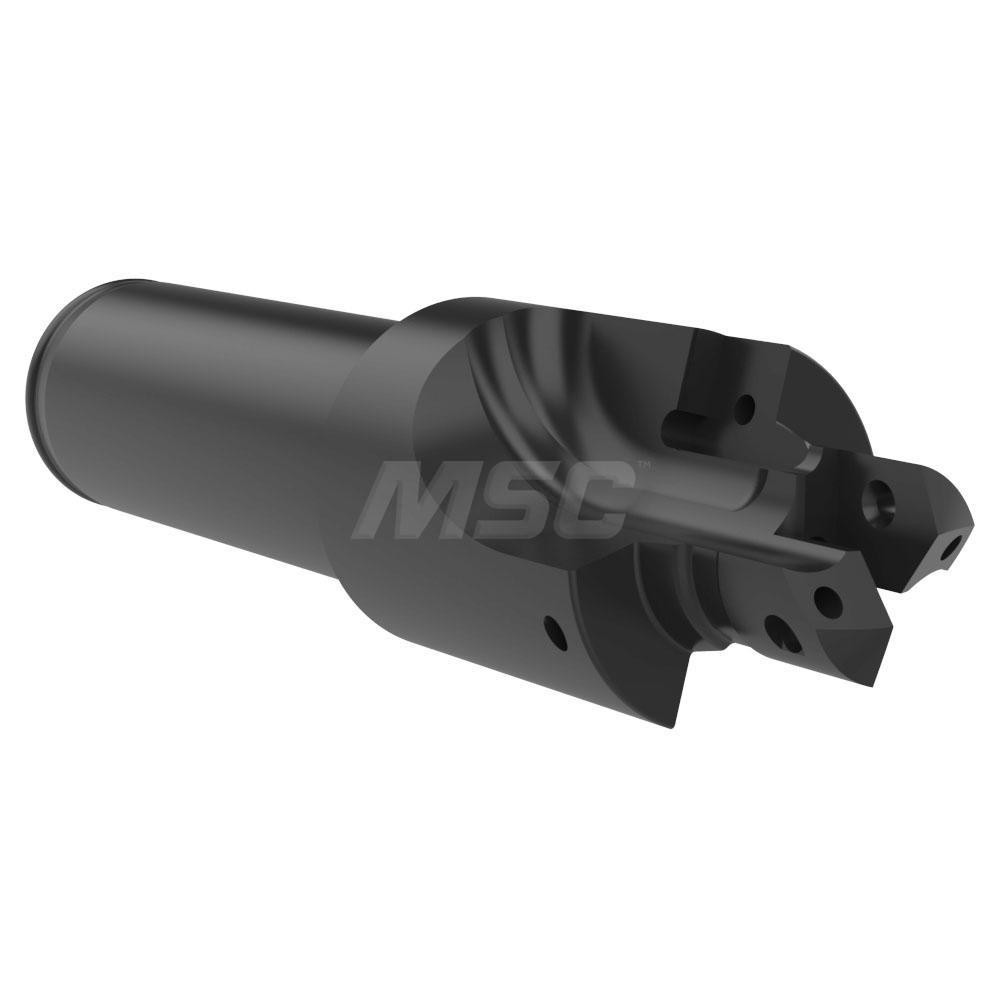

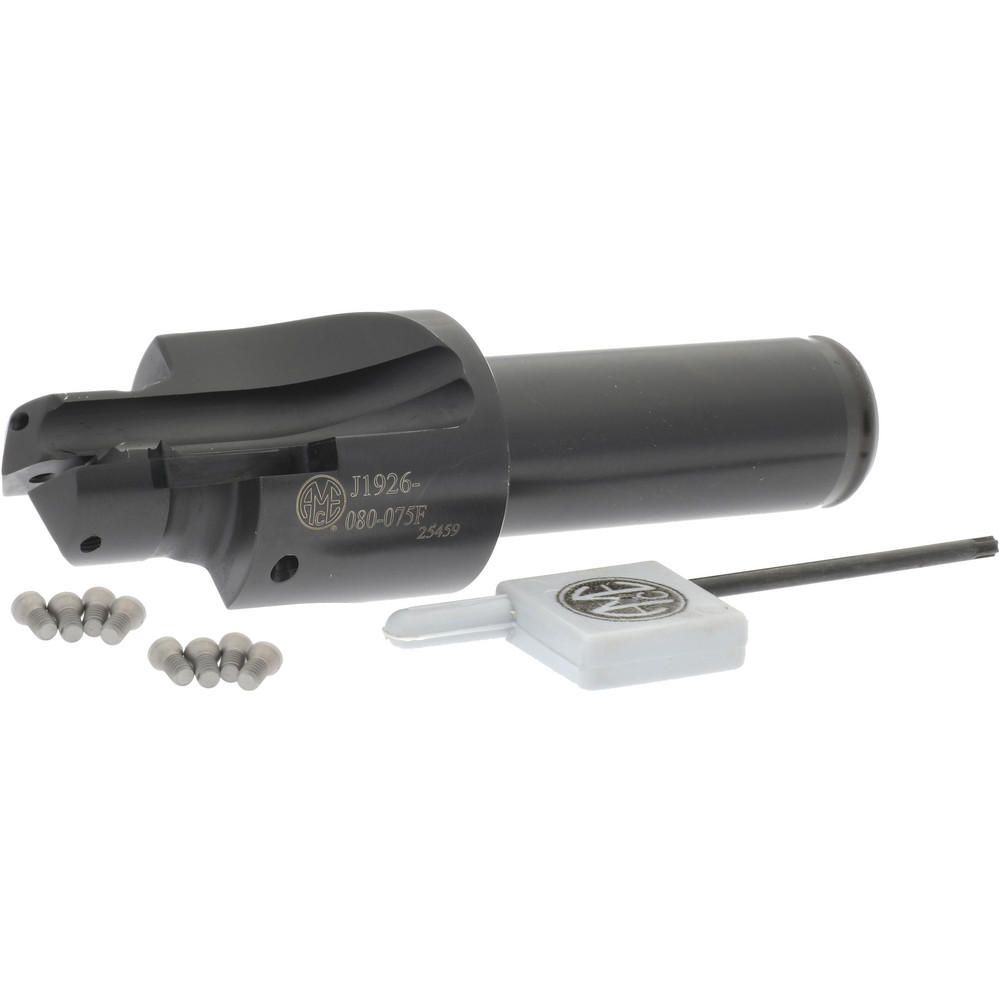

Takes 2 Inserts, J1926-10-C3H, J1926-10-C5A Insert Compatibility, IS0 11926-1, SAE J1926-1/MS-16142
| Port Standard Designation | IS0 11926-1; SAE J1926-1/MS-16142 |
|---|---|

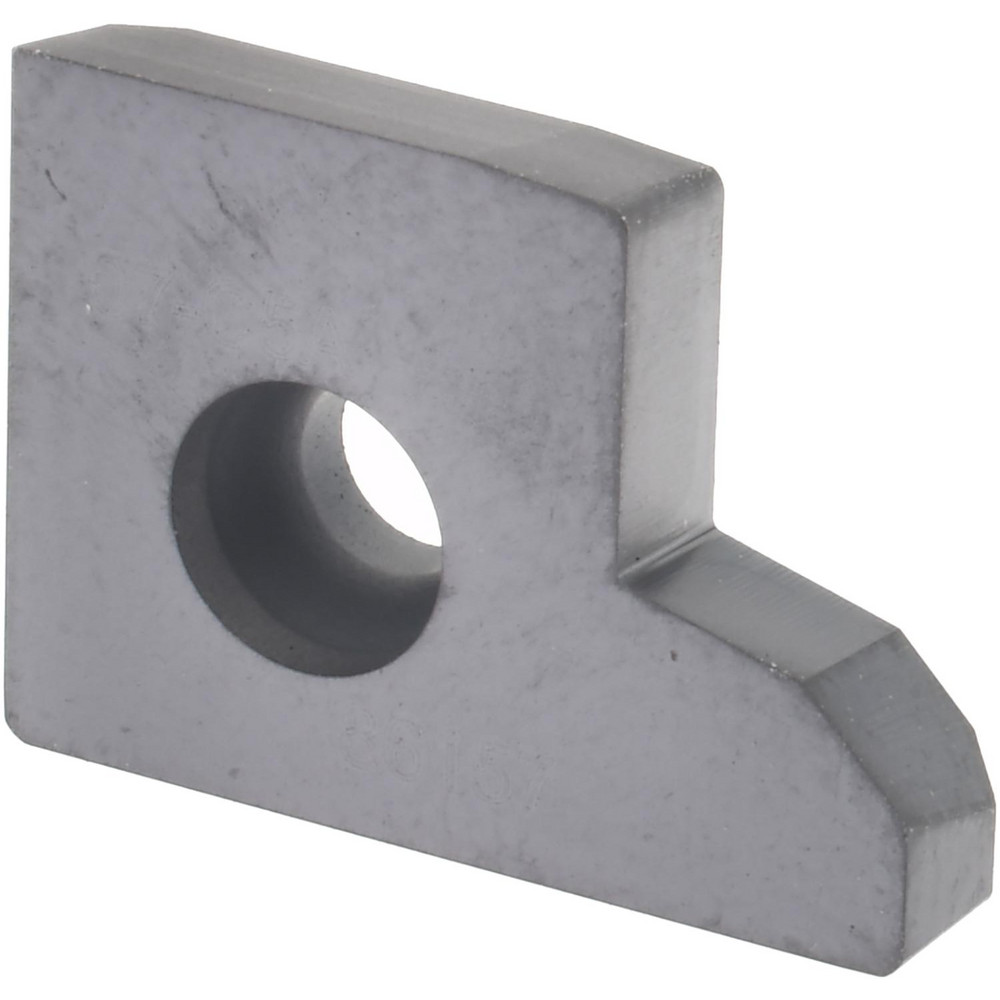

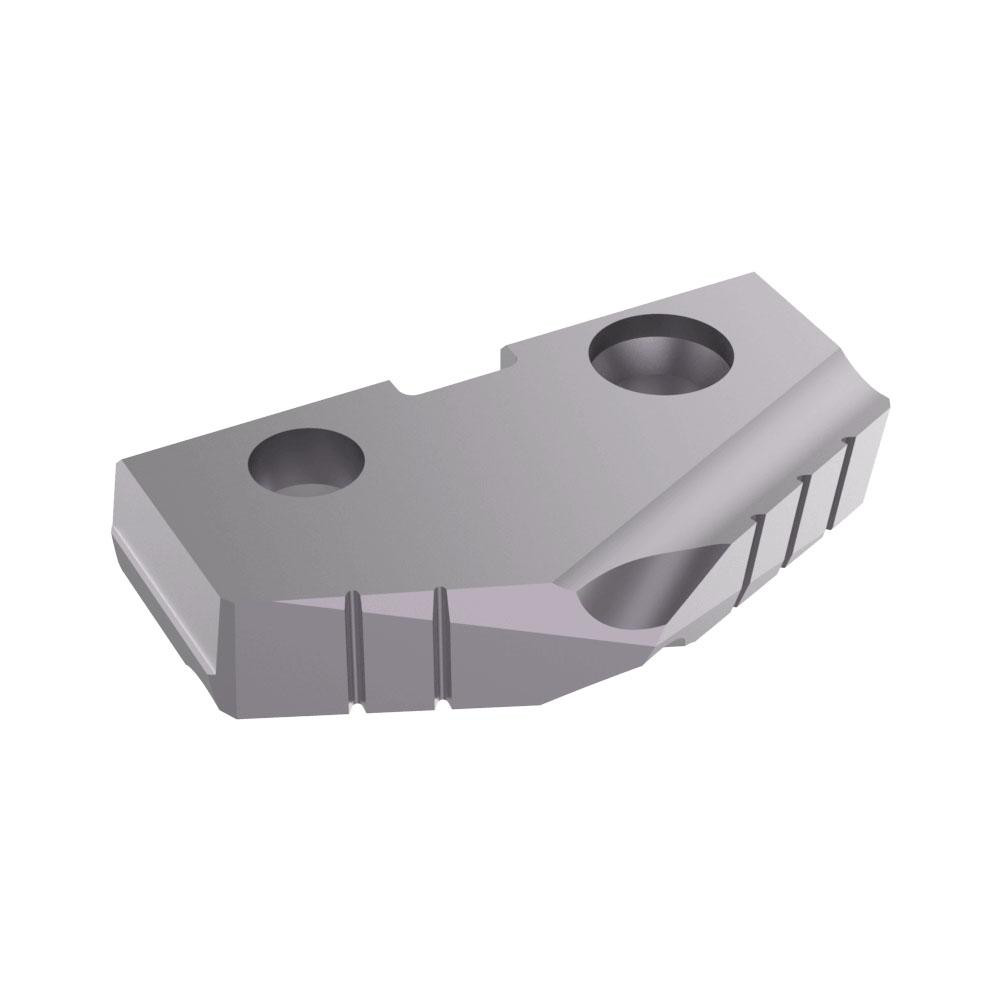

| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | 1-5/8-12 |
| Tube Dash Number | 20 |
| Pilot Diameter (Decimal Inch) | 1.5350 |
| Spotface Diameter (Decimal Inch) | 2.3090 |
| Shank Diameter (Inch) | 1.3125 |
| Compatible Insert Style | J1926 |

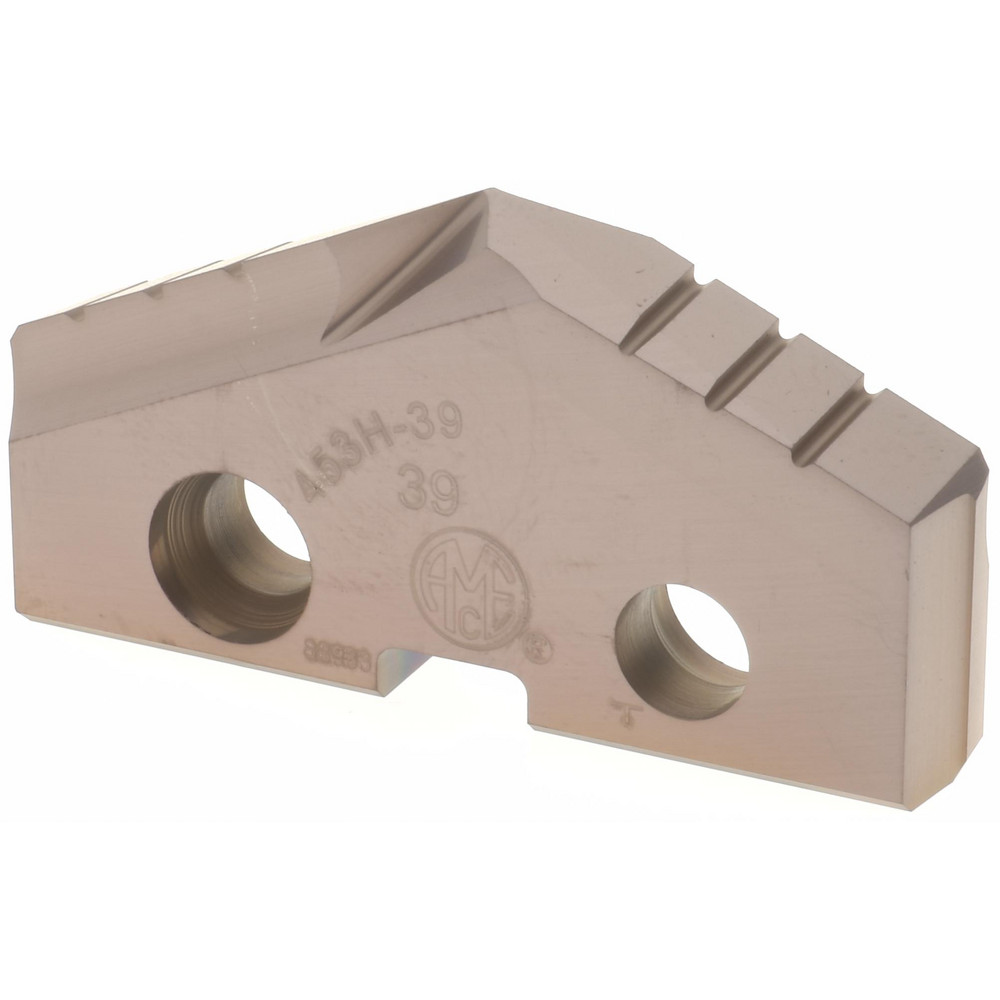

| Compatible Insert Size Code | 453H-39; 1C53A-39 |
| Number of Porting Inserts | 2 |
| Coated | Coated |
| Porting Diameter (Decimal Inch) | 1.7150 |
| Overall Length (Decimal Inch) | 5.7500 |
| Seal Angle Length | 0.318 in |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; H; K; N |
| Through Coolant | No; Yes |
| Porting Angle | 15 |
| Porting Angle Length (Decimal Inch) | 0.1380 |
| Head Length (Decimal Inch) | 3.0620 |
| Shank Length (Decimal Inch) | 2.6880 |
| Series | AccuPort 432 |
| UNSPSC Code | 23241603 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 76038983 |
