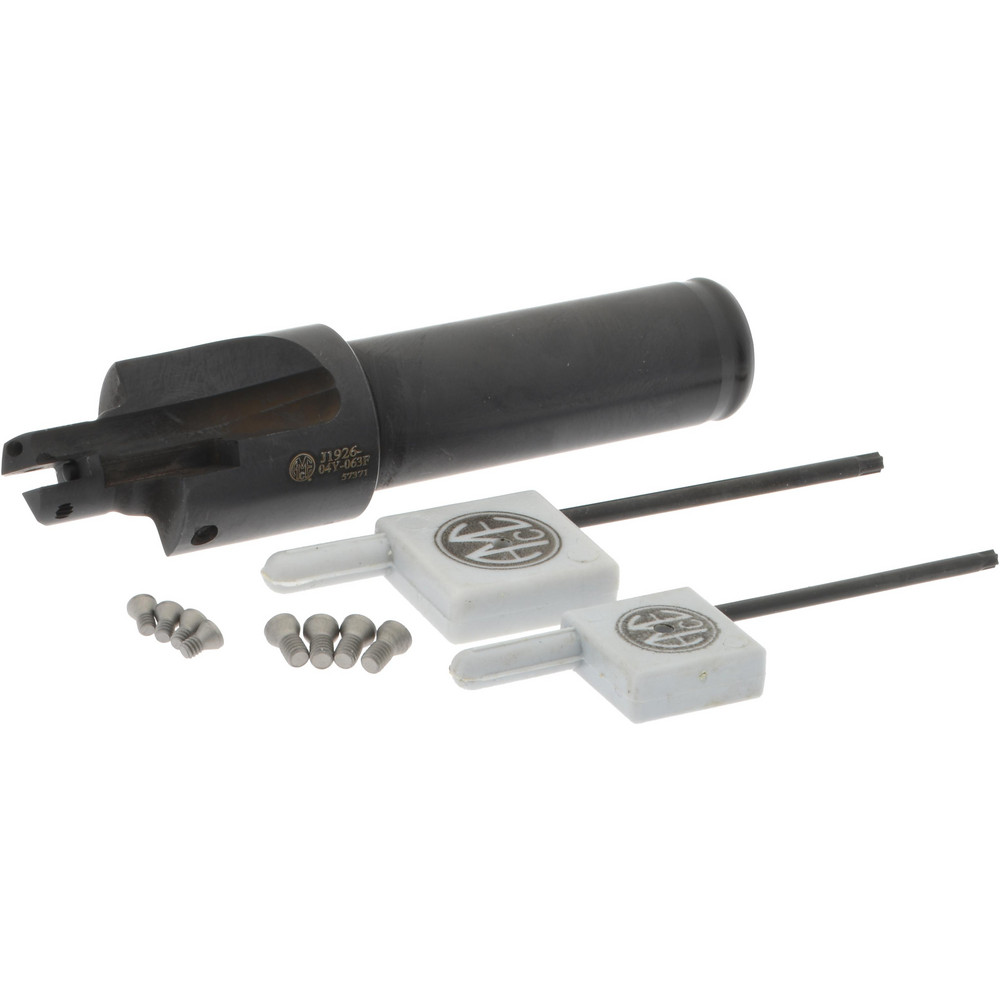

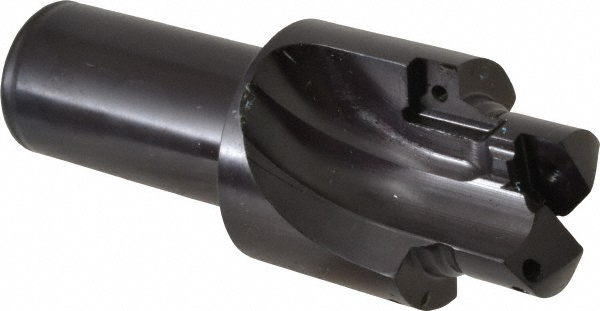

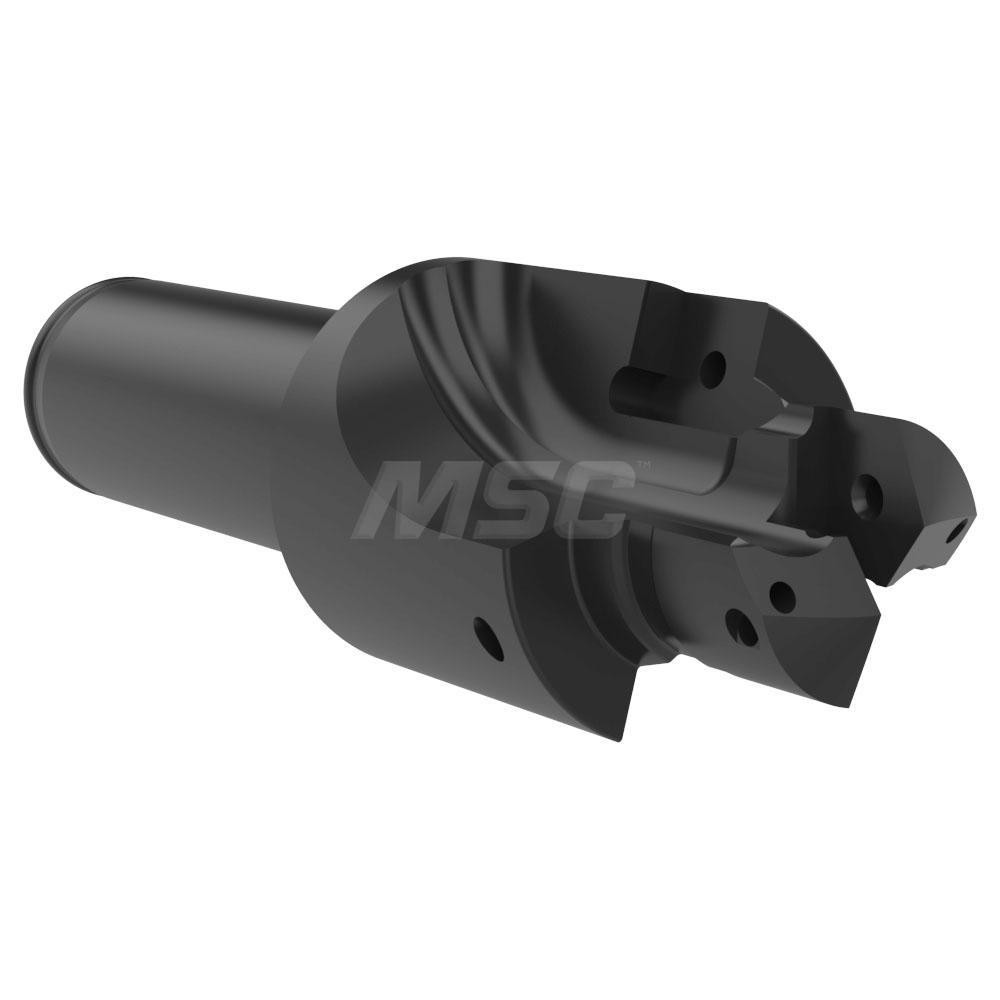

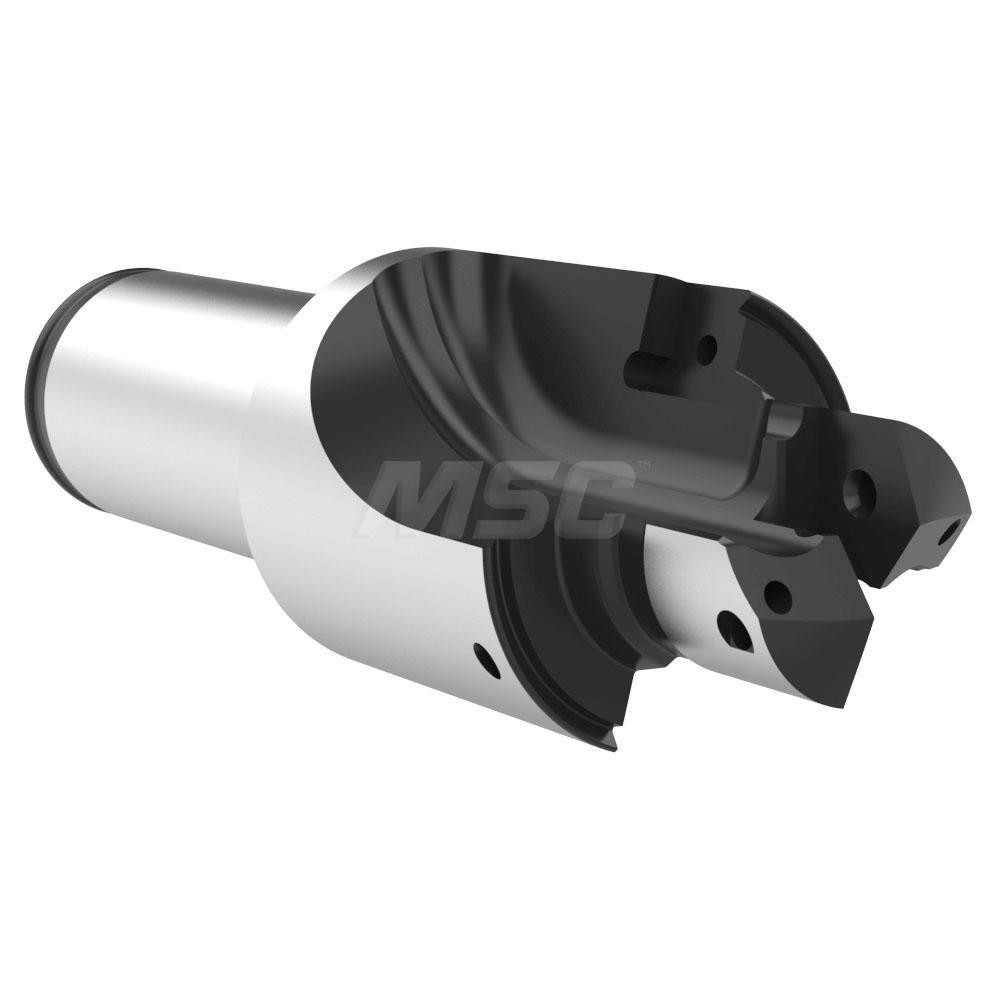

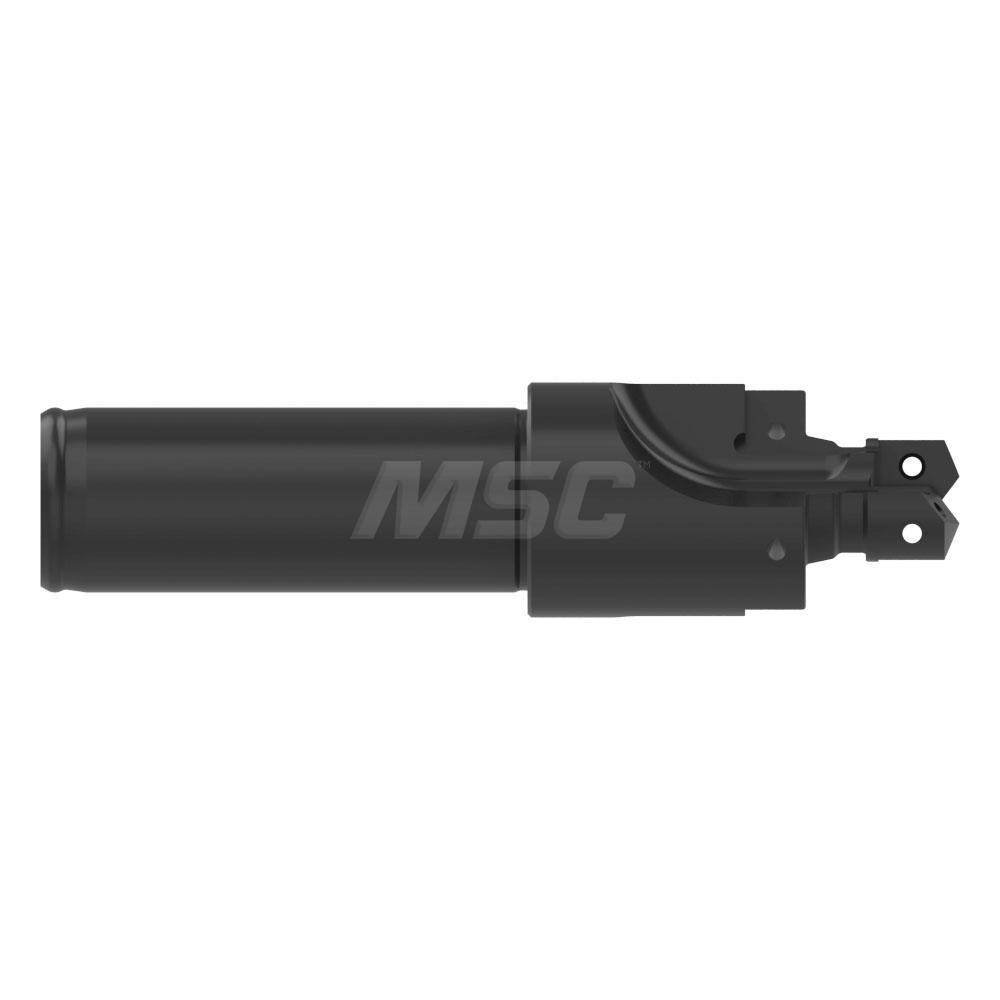

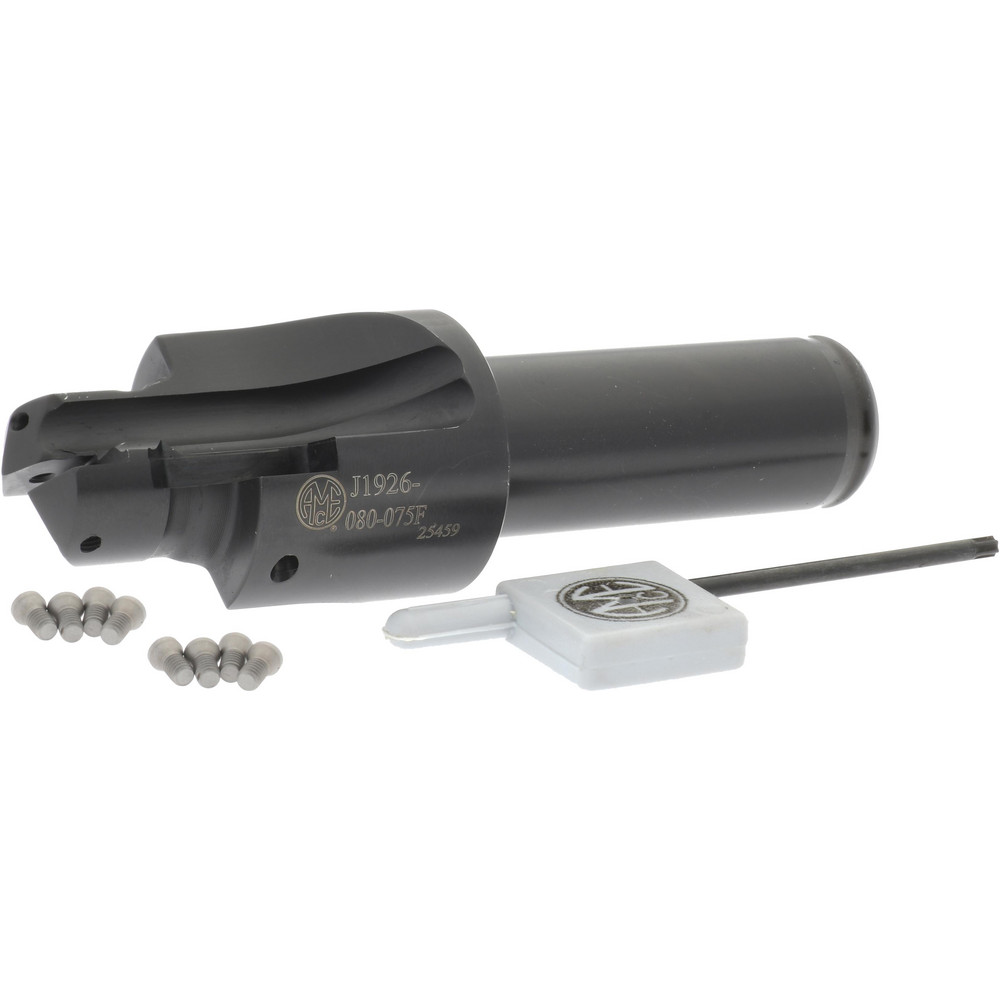

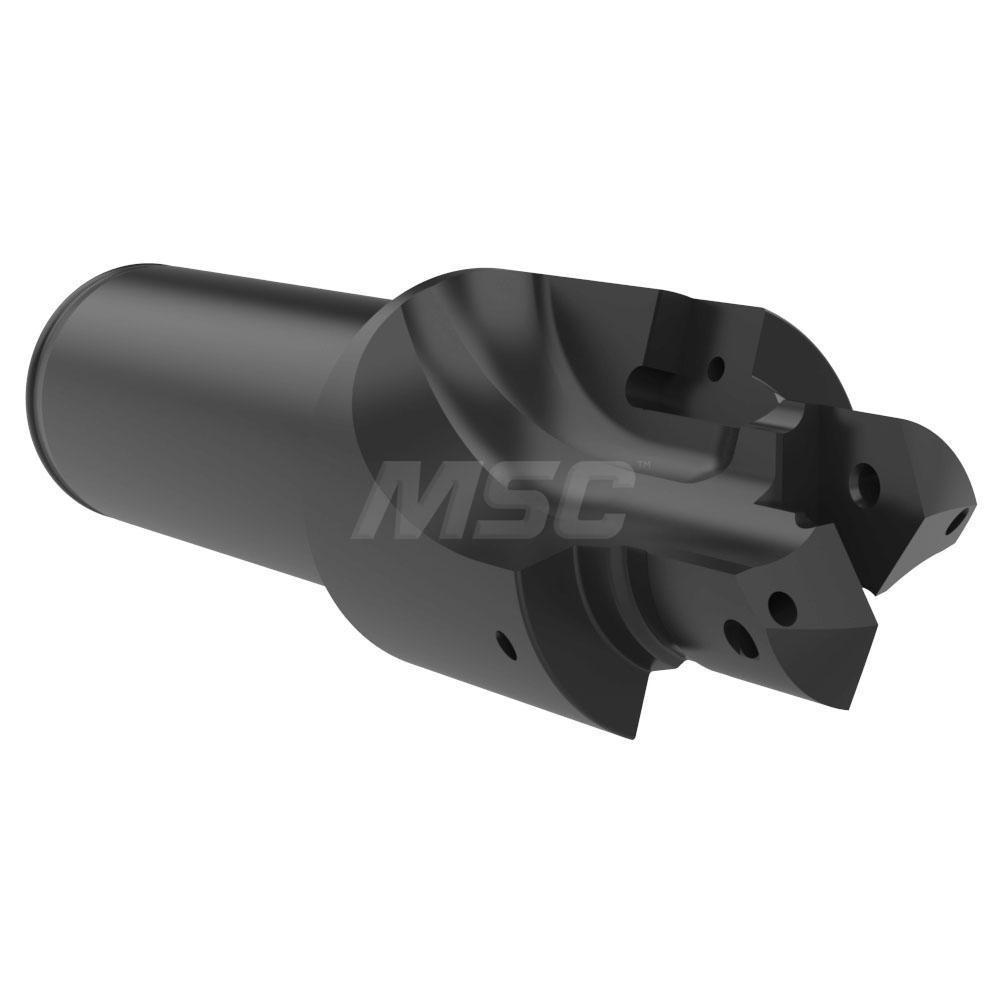

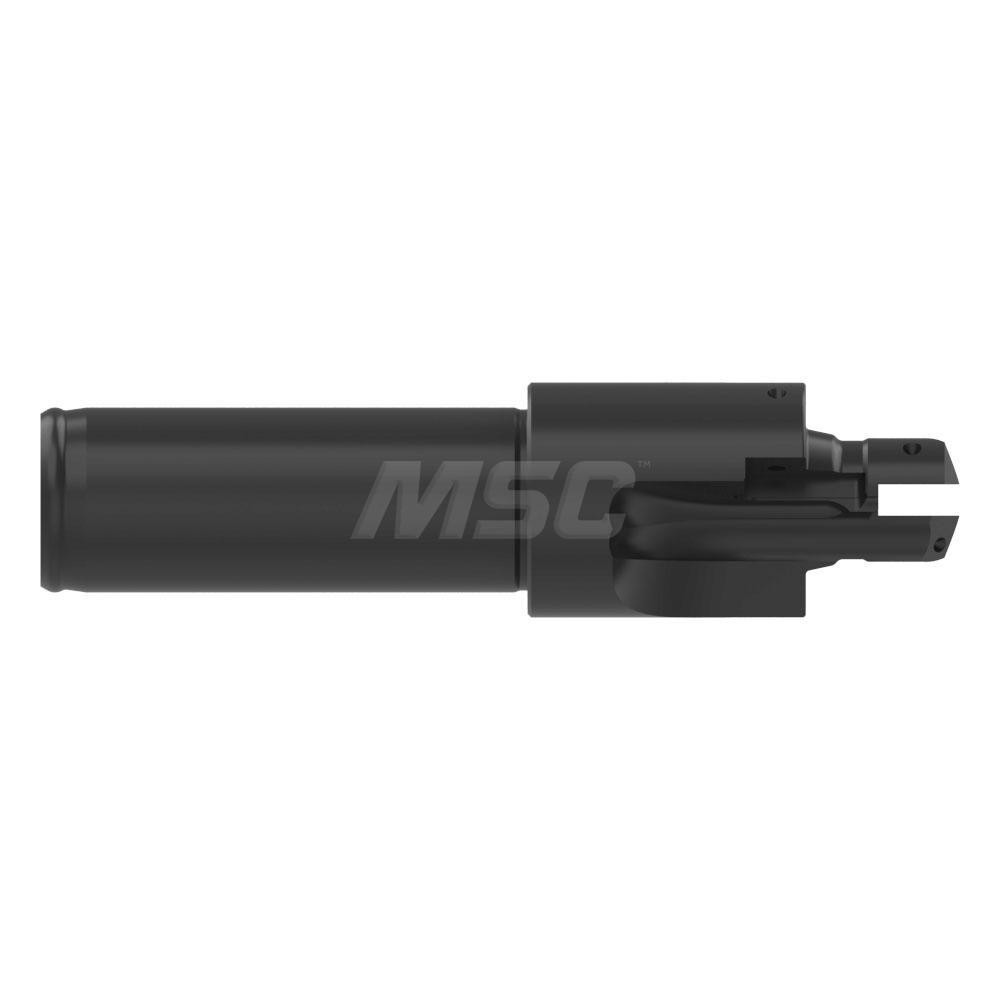

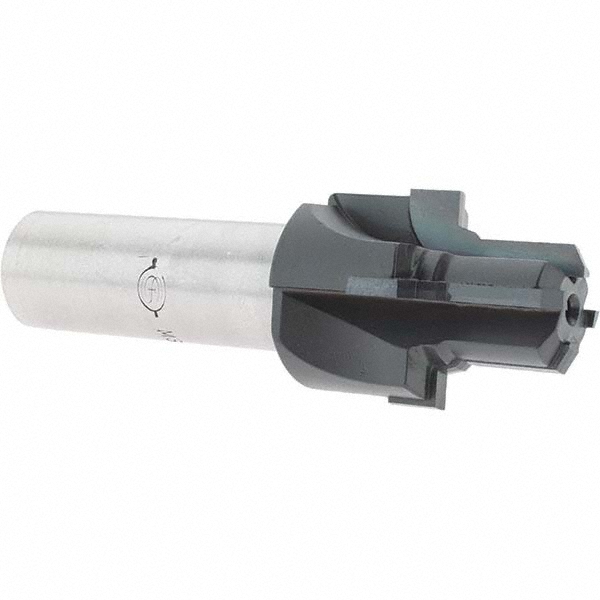

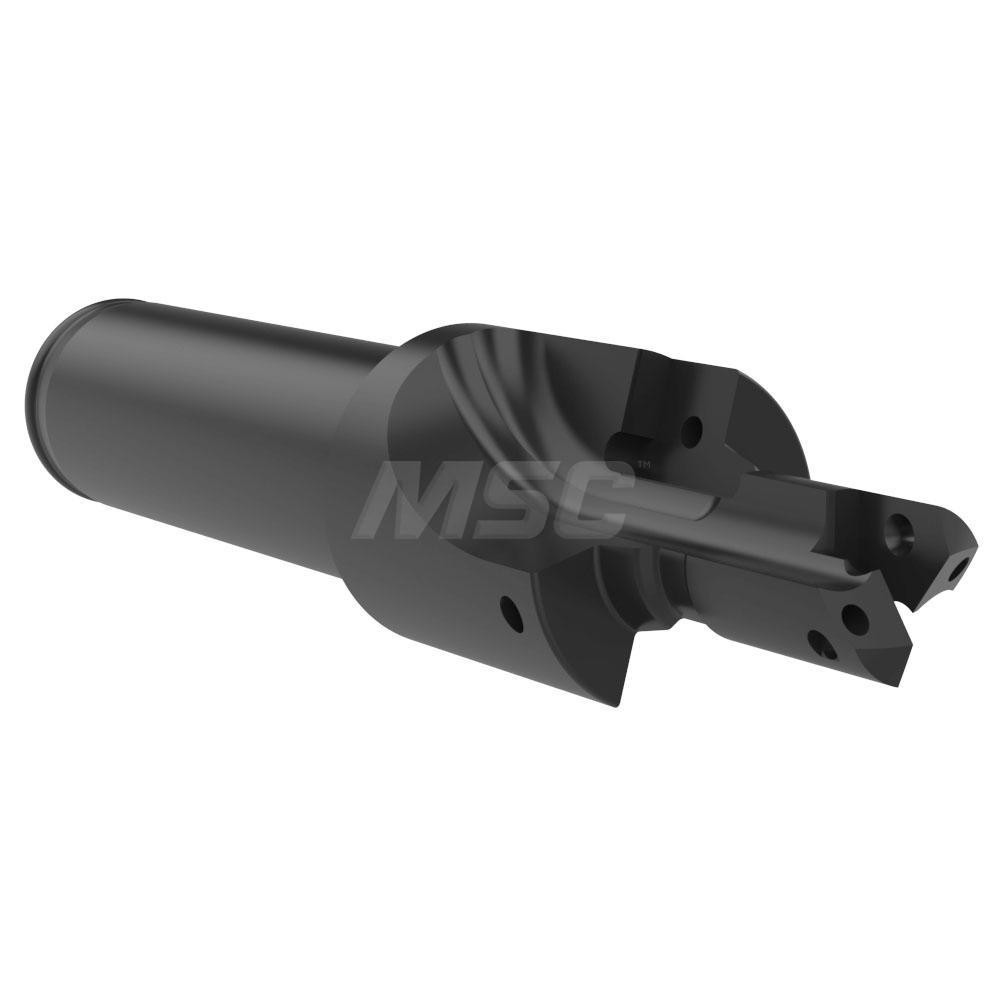

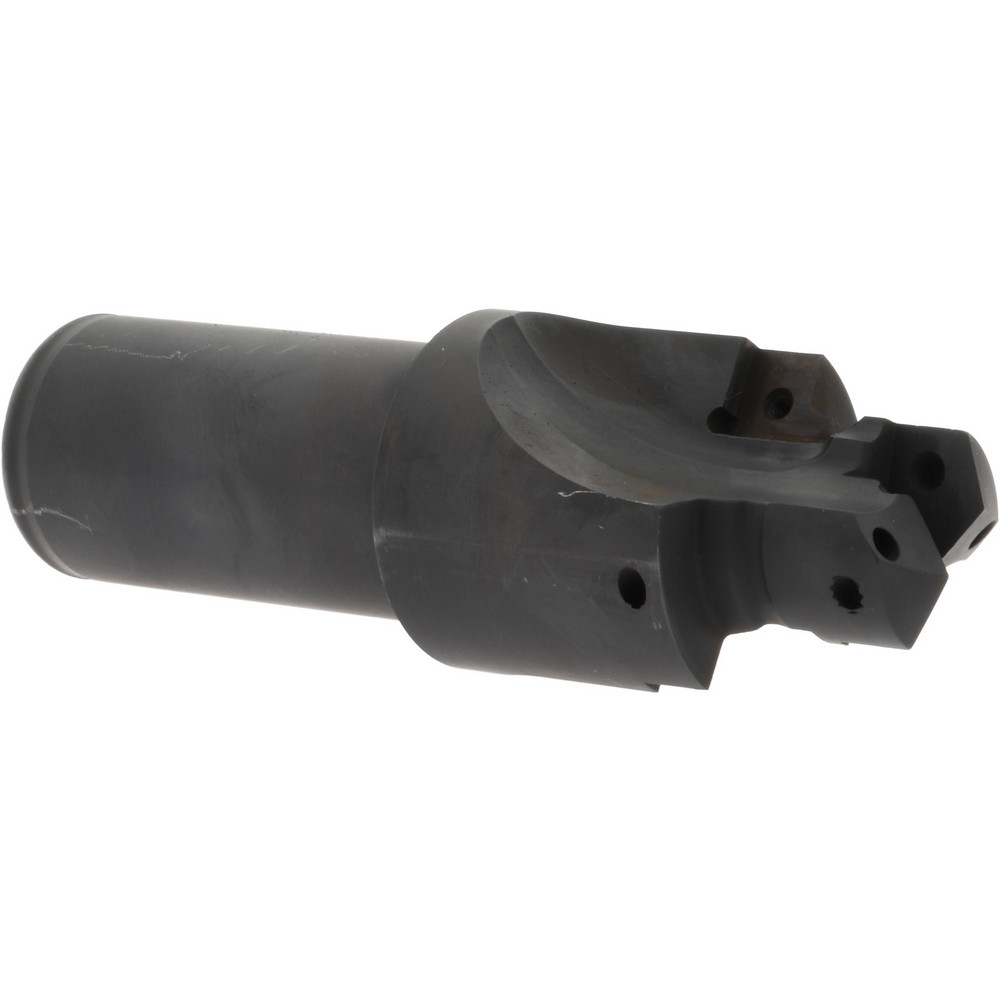

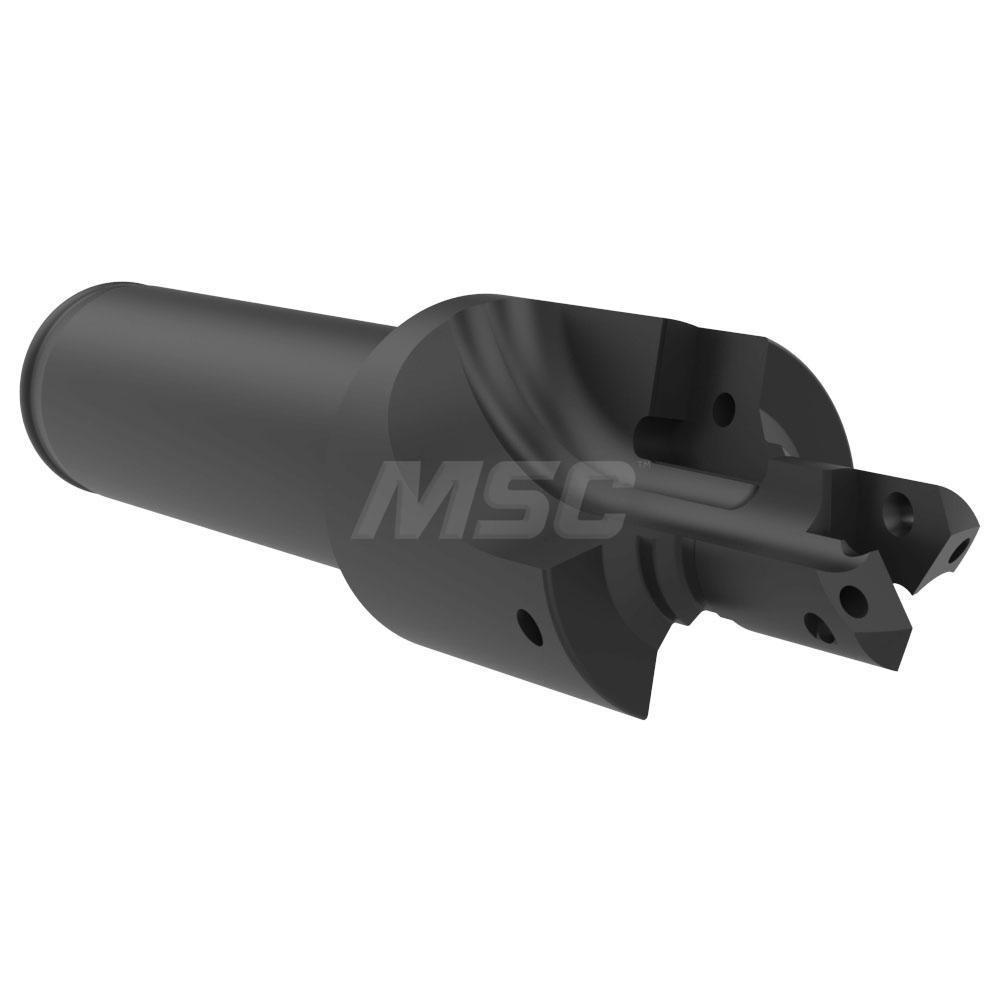

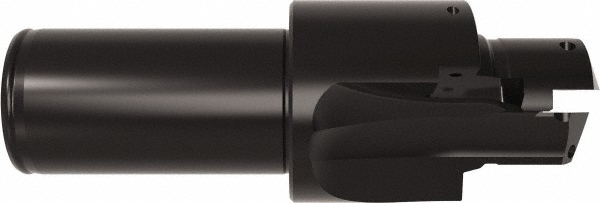

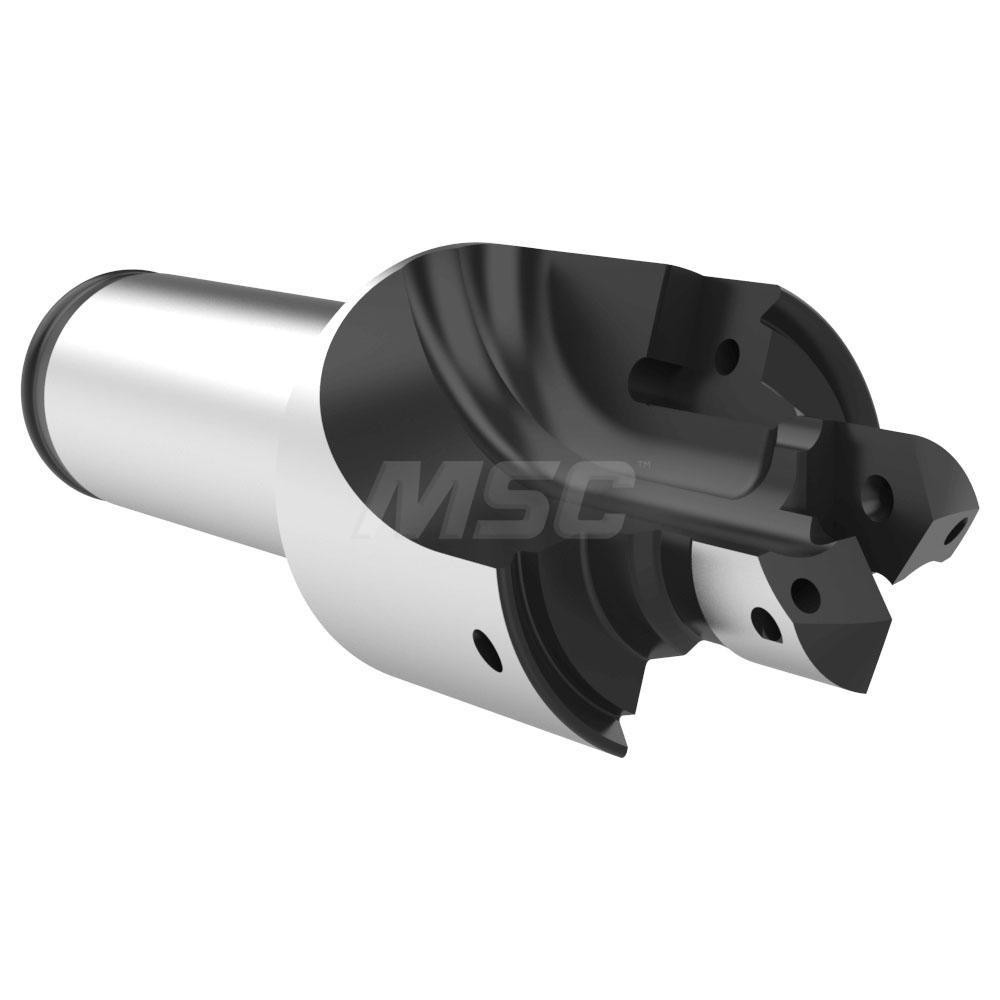

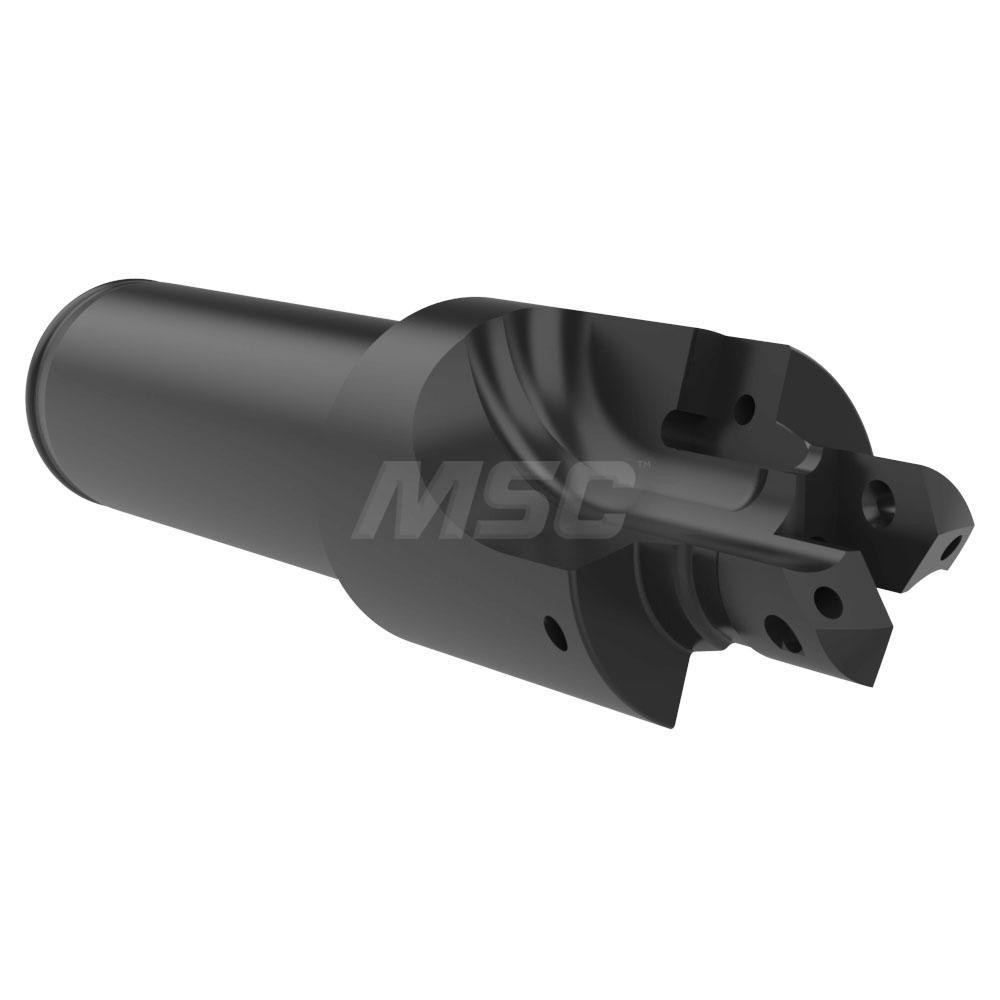

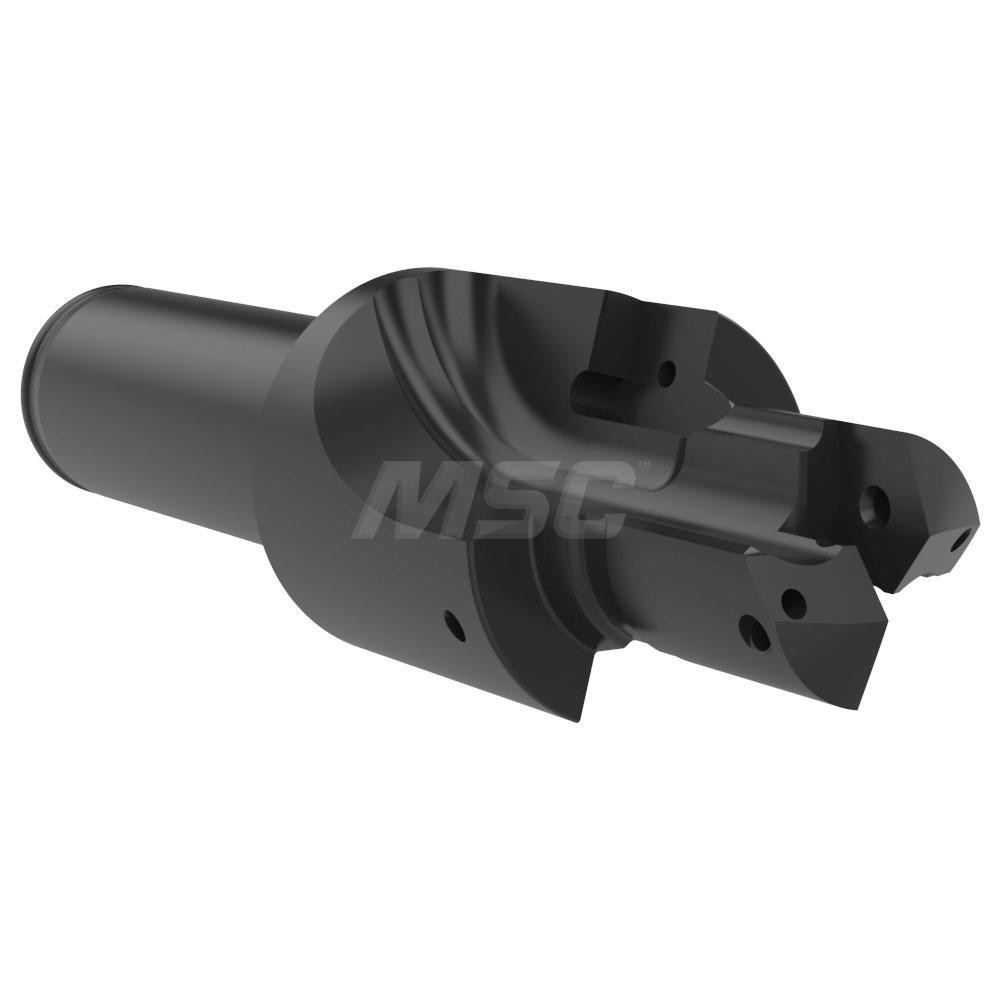

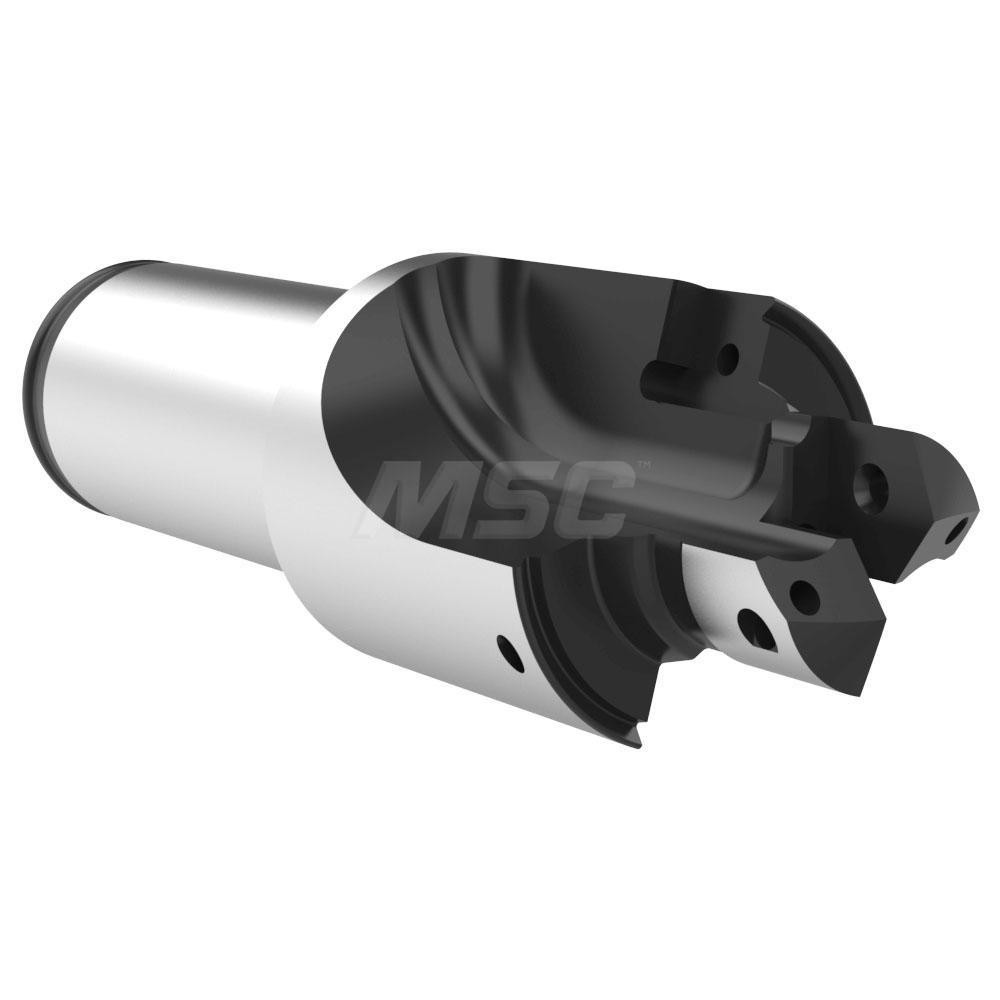

Takes 2 Inserts, ISO 11926-1, MS 16142, SAE J1926-1
| Port Standard Designation | ISO 11926-1; MS 16142; SAE J1926-1 |
|---|---|

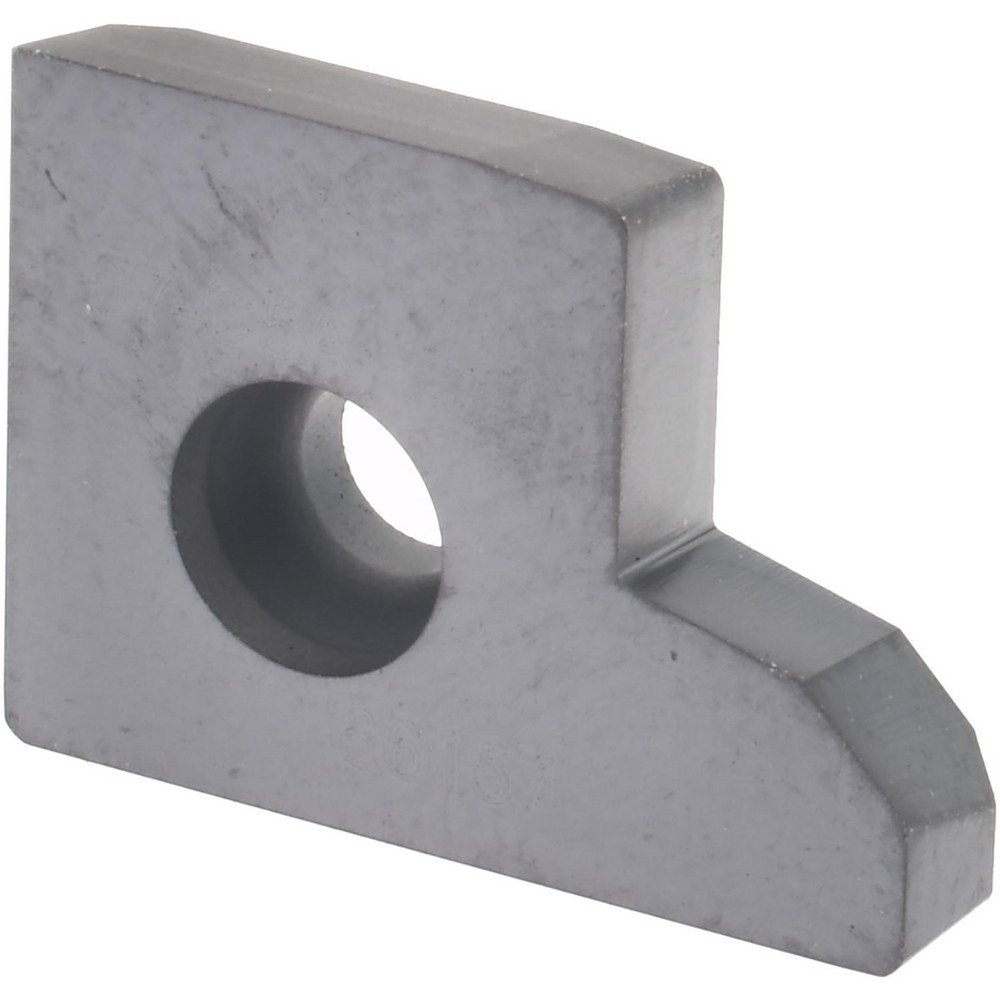

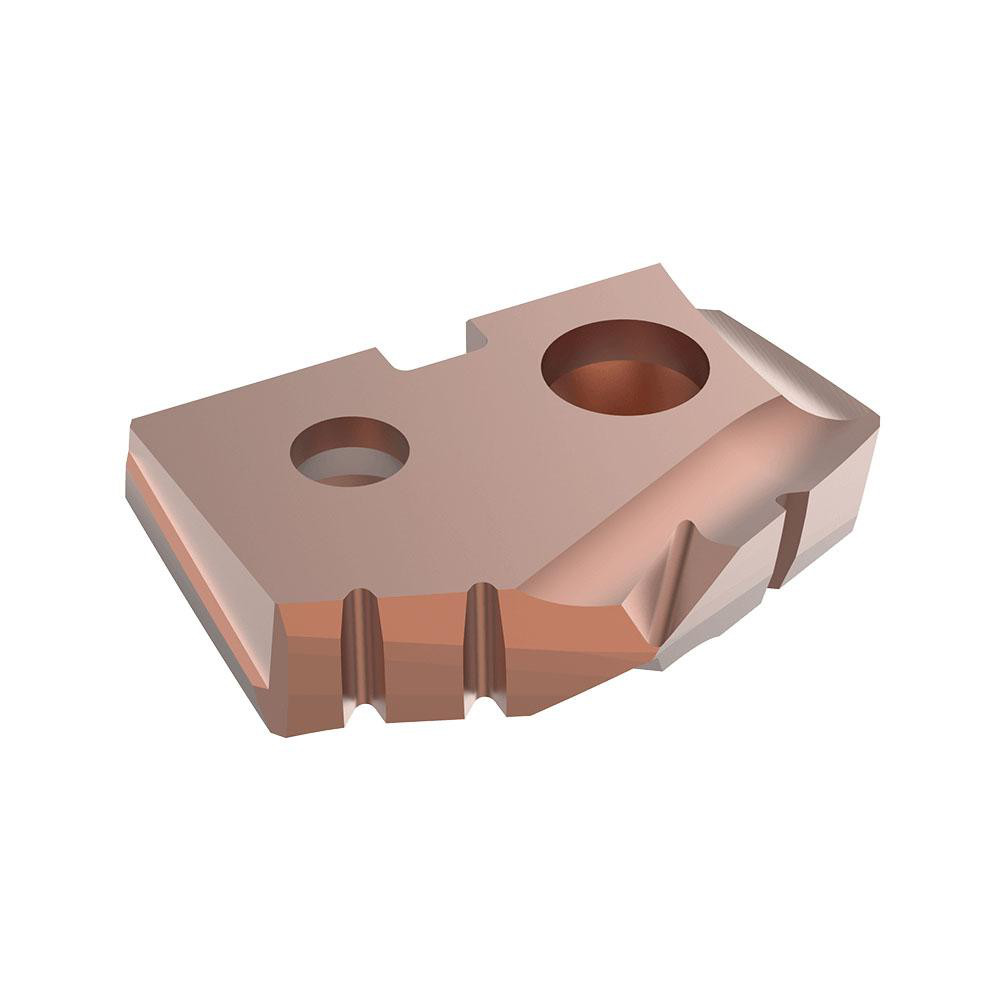

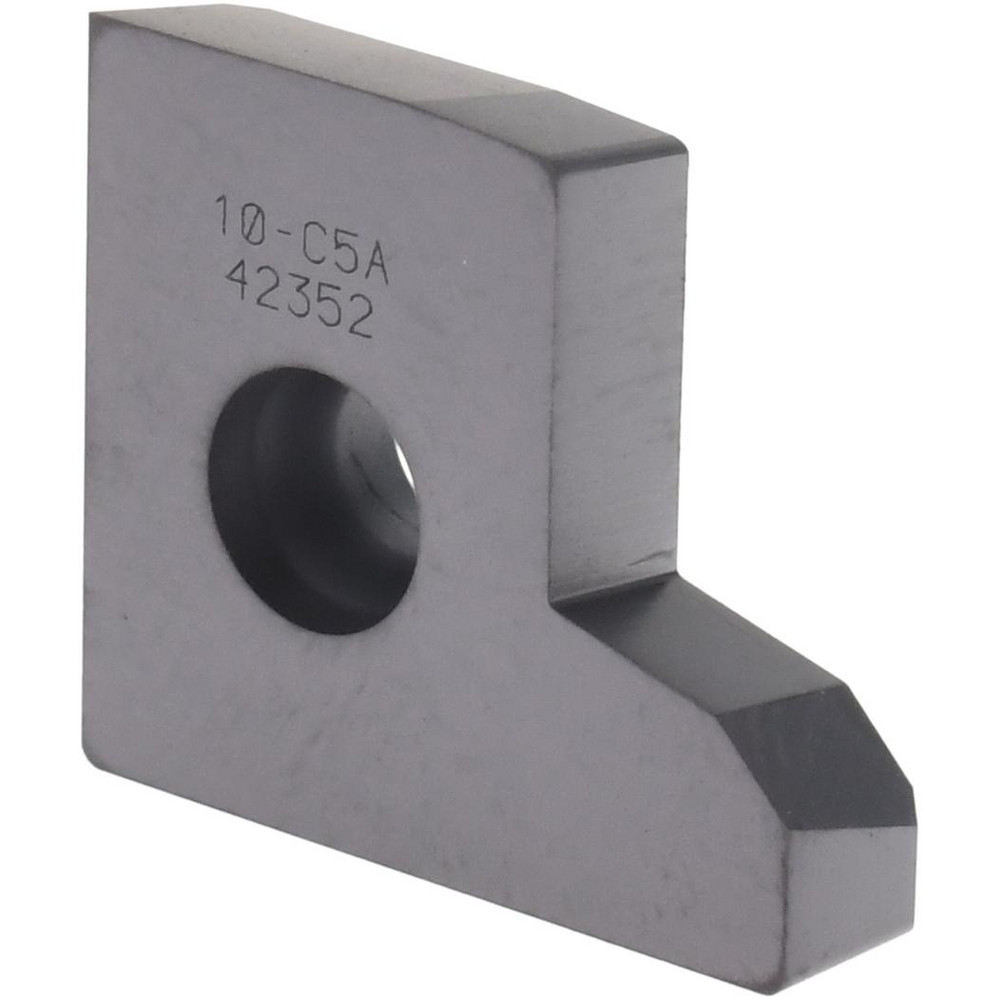

| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | 9/16-18 |
| Tube Dash Number | 6 |
| Pilot Diameter (Decimal Inch) | 0.5120 |
| Spotface Diameter (Decimal Inch) | 0.9690 |
| Shank Diameter (Inch) | 0.7870 |

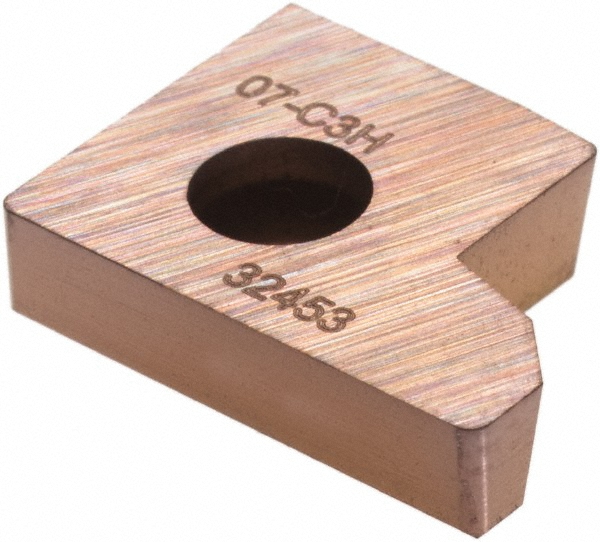

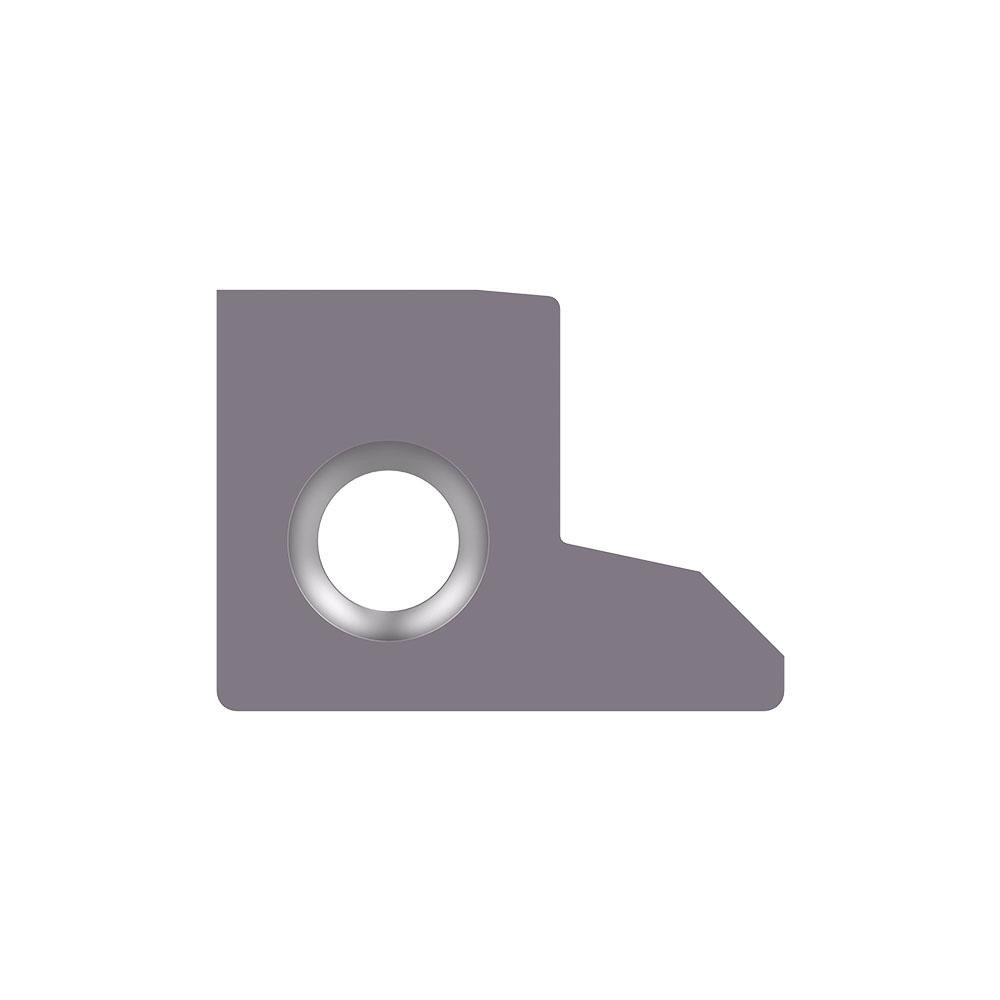

| Compatible Insert Style | J1926 |
| Compatible Insert Size Code | 4C10H-13; 450H-13 |
| Number of Porting Inserts | 2 |
| Coated | Coated |
| Porting Diameter (Decimal Inch) | 0.6180 |
| Overall Length (Decimal Inch) | 3.5080 |
| Seal Angle Length | 0.106 in |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; H; K; N |
| Through Coolant | Yes |
| Porting Angle | 12 |
| Porting Angle Length (Decimal Inch) | 0.1060 |
| Head Length (Decimal Inch) | 1.8570 |
| Shank Length (Decimal Inch) | 1.6500 |
| Series | AccuPort 432 |
| UNSPSC Code | 23241603 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 03472636 |
