Series APX 38
| Drill Depth by Diameter Ratio | 5xD |
|---|---|
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Drill Body Length to Flange (mm) | 284.50 |
| Drill Body Length to Flange (Decimal Inch) | 11.2008 |

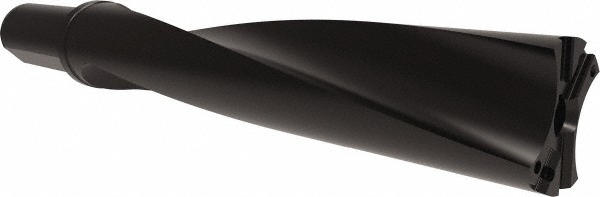

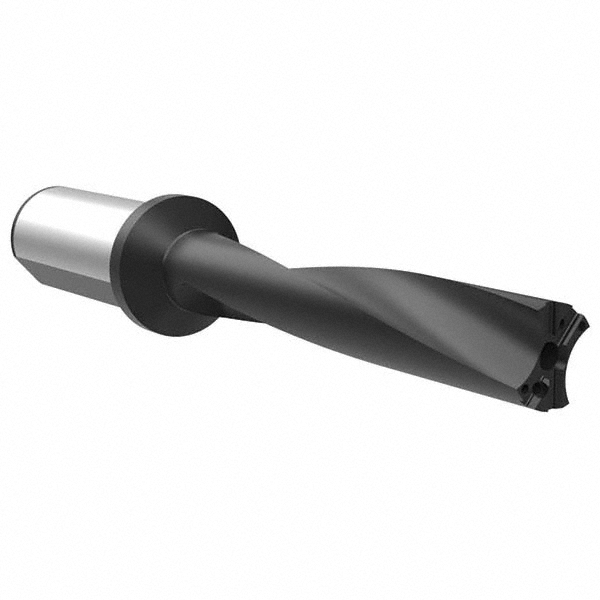

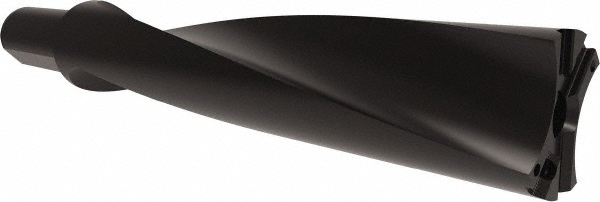

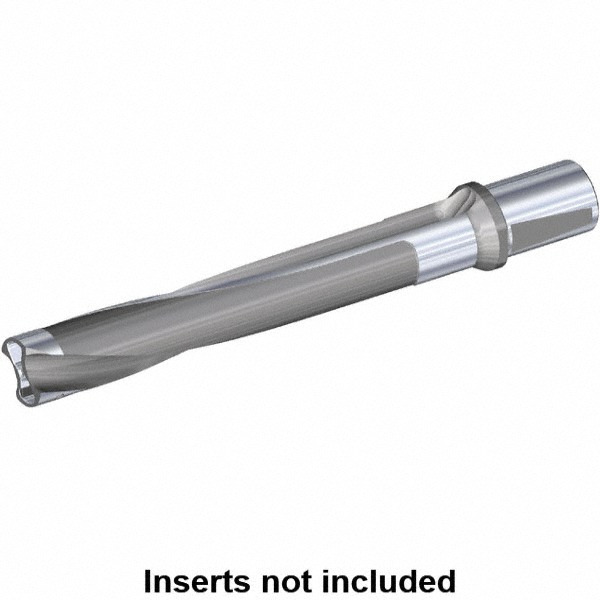

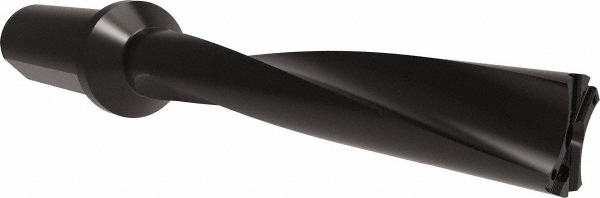

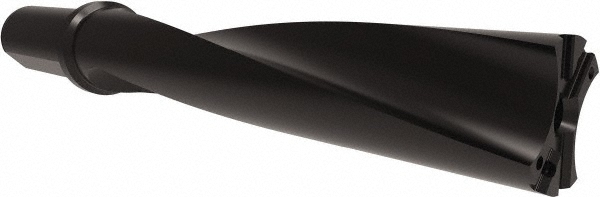

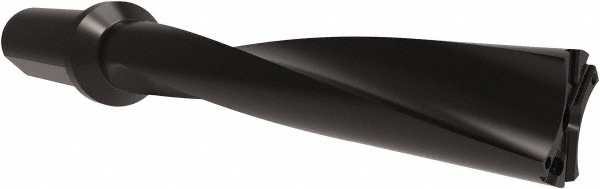

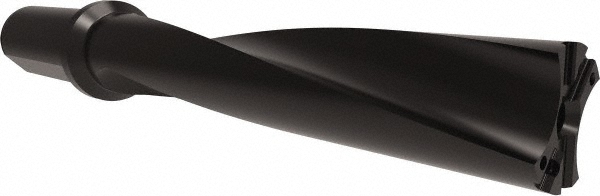

| Toolholder Style | W3805H |
| Overall Length (Decimal Inch) | 14.3504 |
| Overall Length (mm) | 364.50 |
| Through Coolant | Yes |
| Series | APX 38 |
| Shank Length (mm) | 80.00 |
| Shank Length (Decimal Inch) | 3.1496 |
| Gage Length (mm) | 284.50 |
| Gage Length (Decimal Inch) | 11.2008 |
| Coolant Hole Thread Type | BSP |
| Coolant Through | Yes |
| UNSPSC Code | 23153308 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 43941731 |
