Series APX 51
| Drill Depth by Diameter Ratio | 10xD |
|---|---|
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Drill Body Length to Flange (mm) | 624.60 |
| Drill Body Length to Flange (Decimal Inch) | 24.5906 |

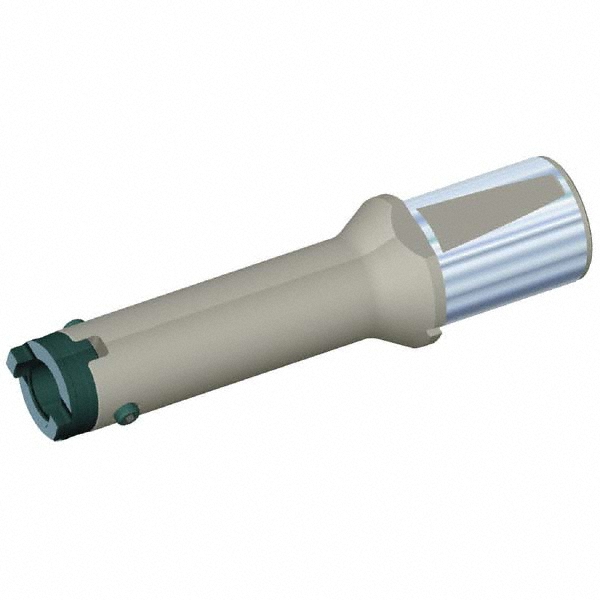

| Toolholder Style | W5110H |
| Overall Length (Decimal Inch) | 27.7402 |
| Overall Length (mm) | 704.60 |
| Through Coolant | Yes |
| Series | APX 51 |
| Shank Length (mm) | 80.00 |
| Shank Length (Decimal Inch) | 3.1496 |
| Gage Length (mm) | 624.60 |
| Gage Length (Decimal Inch) | 24.5906 |
| Coolant Hole Thread Type | BSP |
| Coolant Through | Yes |
| UNSPSC Code | 23153308 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 43942028 |
