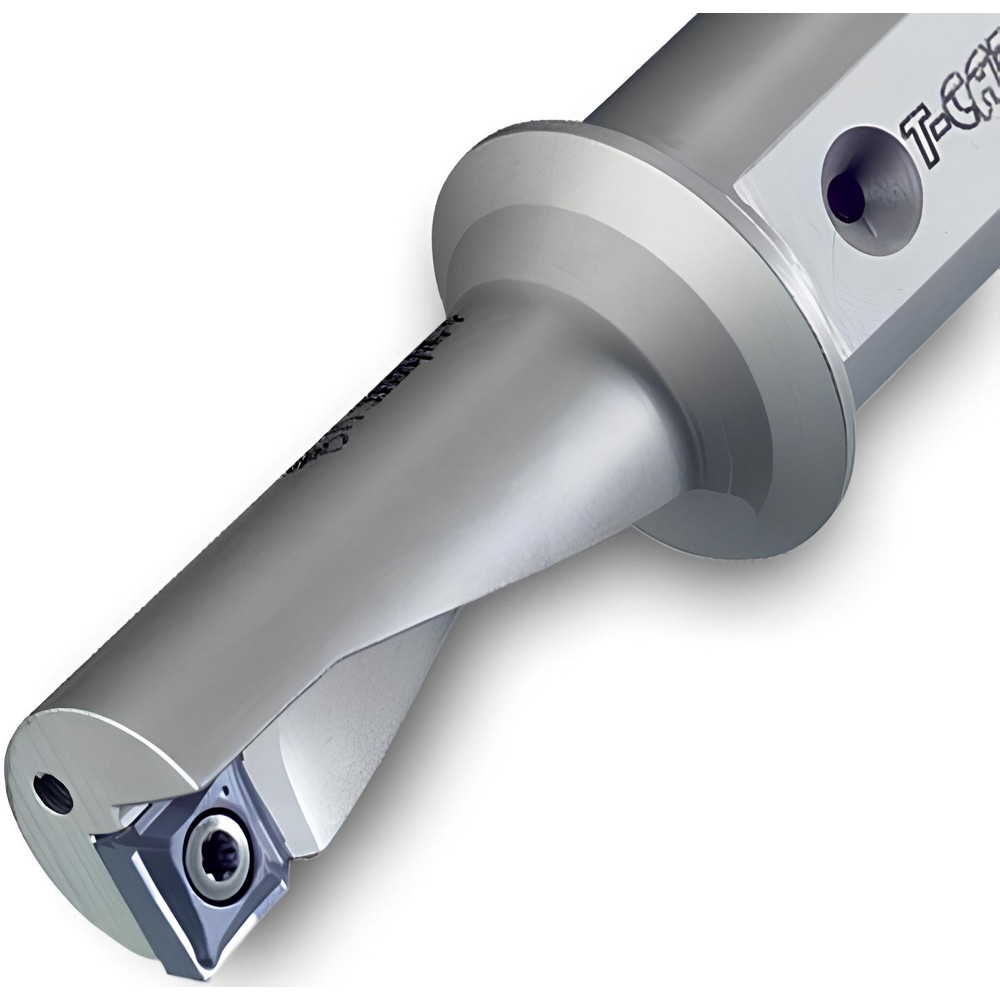

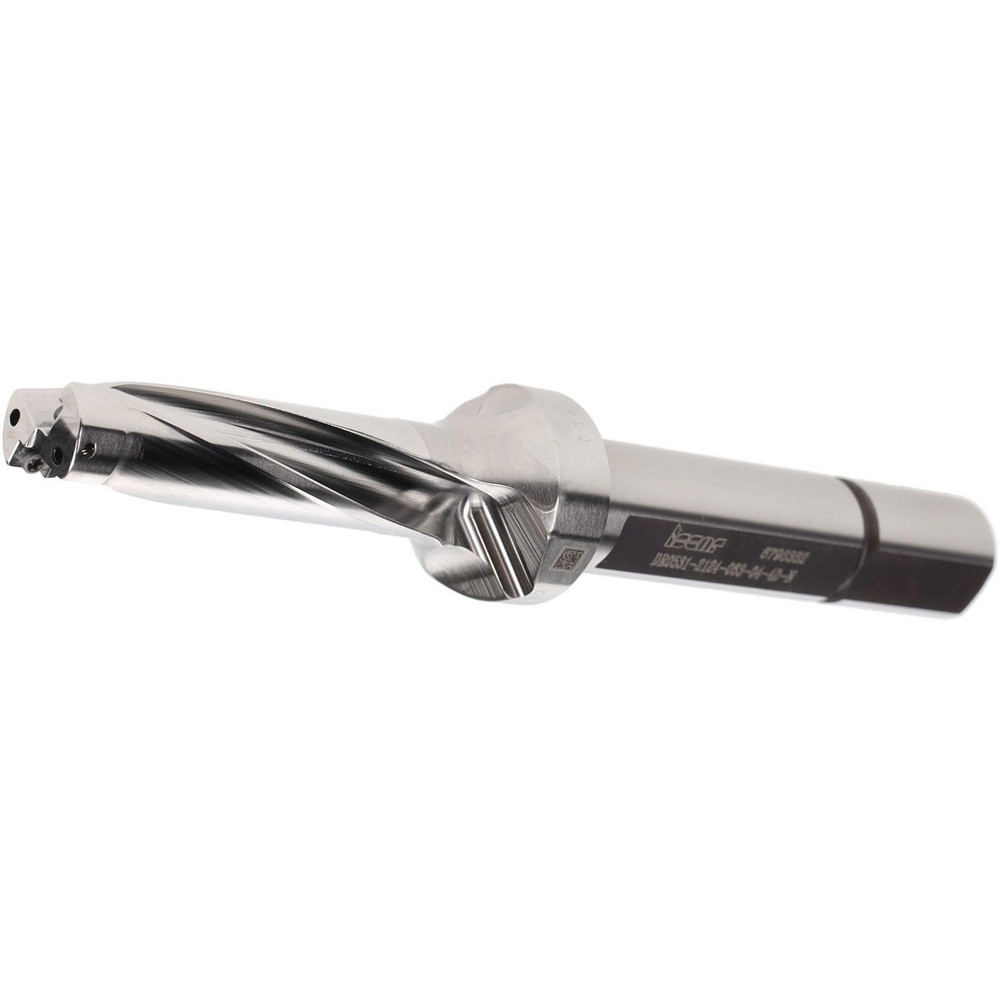

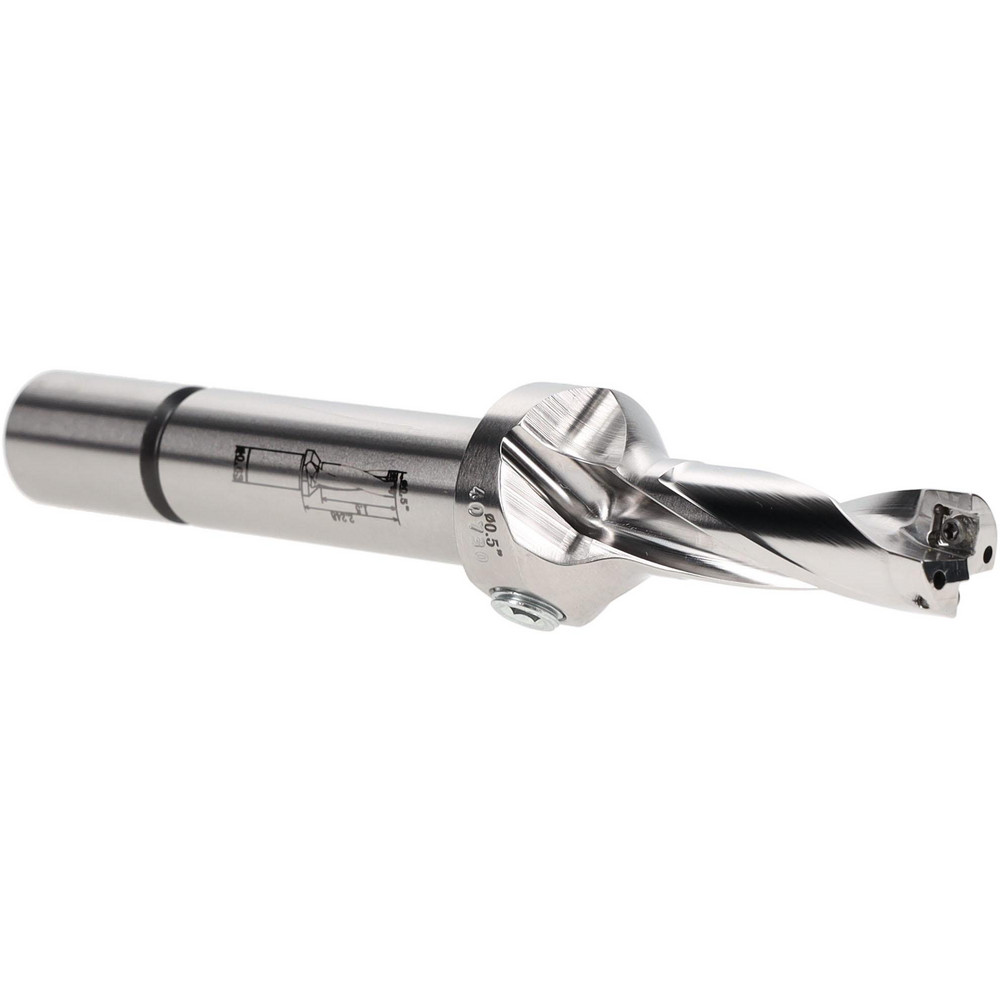

Weldon Flat & Flange Shank, Uses XC.. 0703.. Inserts, Series EC 14
| Compatible Drill Style | EC |
|---|---|
| Maximum Drill Diameter (mm) | 14.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.5510 |
| Maximum Drill Depth (Decimal Inch) | 1.2400 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Tool Material | Steel |
| Compatible Insert Style | XC.. |
| Compatible Insert Size Code | 0703.. |
| Drill Depth by Diameter Ratio | 2.25xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 3.2700 |
| Series | EC 14 |
| Flute Length (Decimal Inch) | 1.2400 |
| Body Length (Decimal Inch) | 1.5200 |
| Shank Length (Decimal Inch) | 1.7500 |
| Coolant Hole Thread Size | "1/8-27 NPT" |
| Tool Application | Drilling; Boring |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2760 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | XC..0703.. |
| Collar Diameter (Decimal Inch) | 0.7870 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |

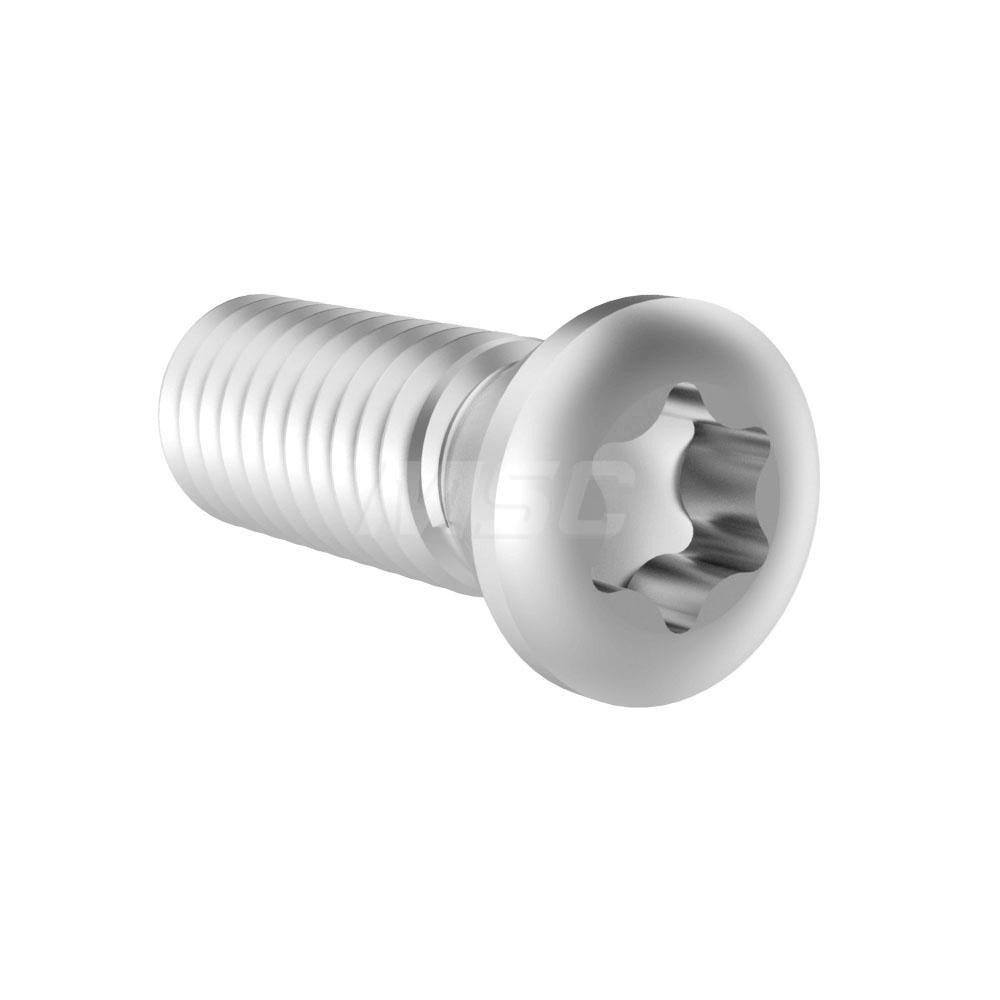

| Insert Lock Screw | 11684216 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 76017961 |
