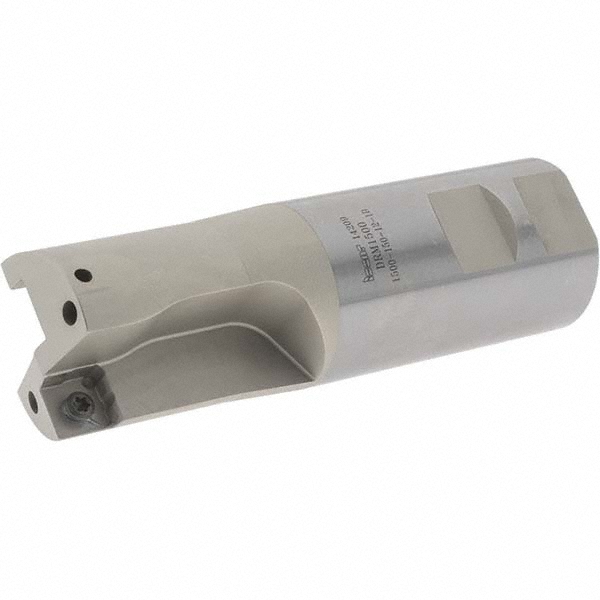

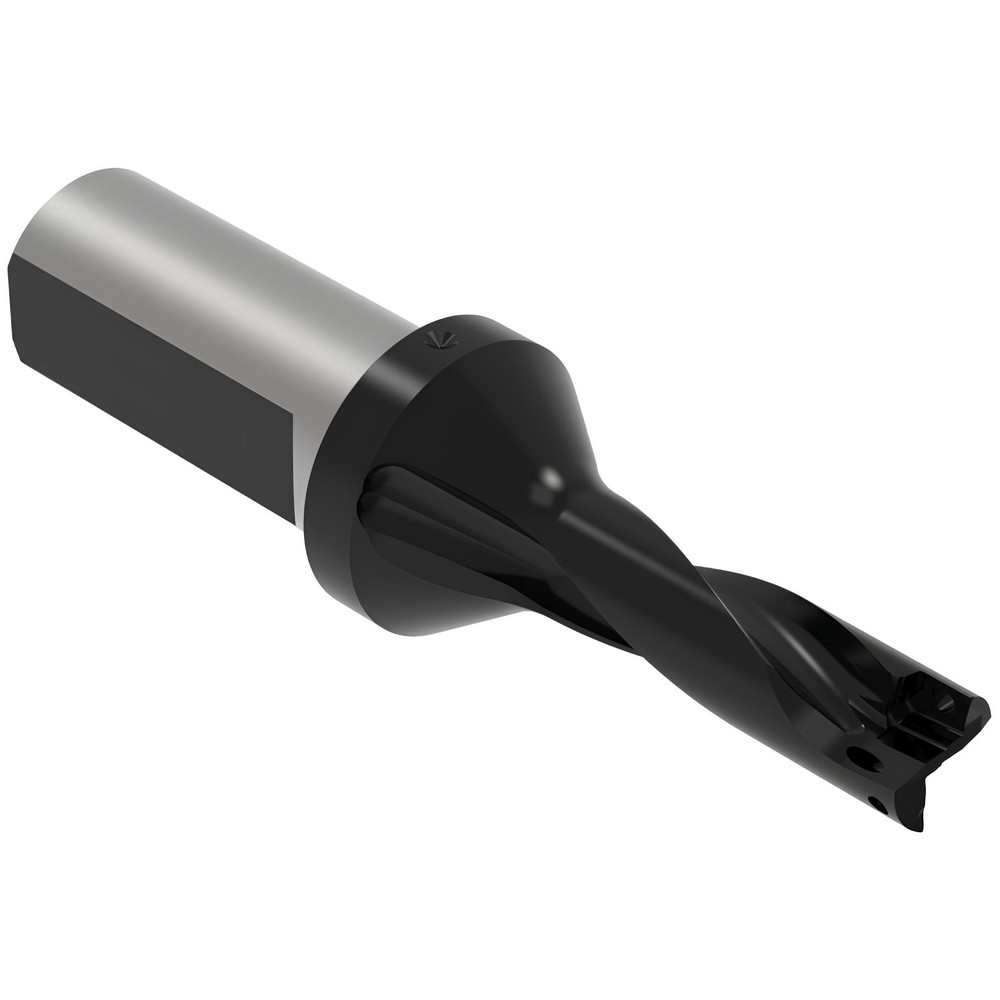

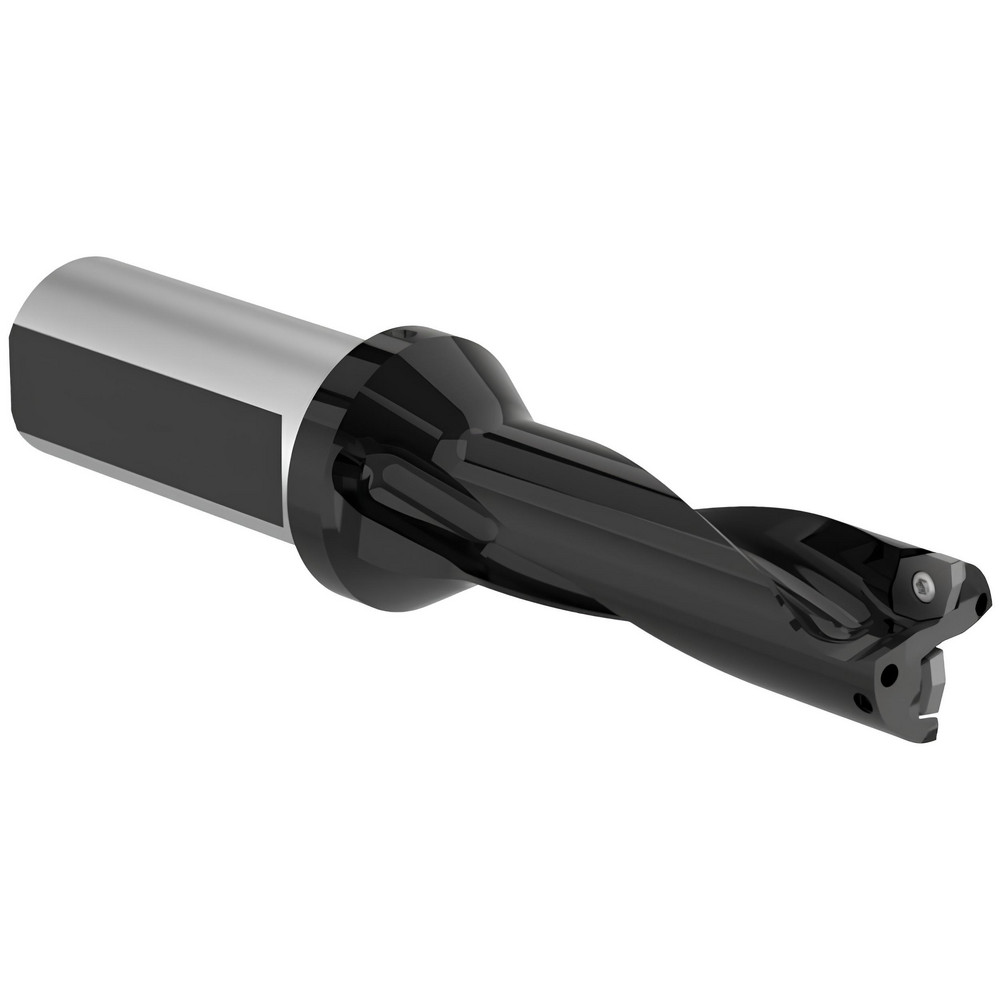

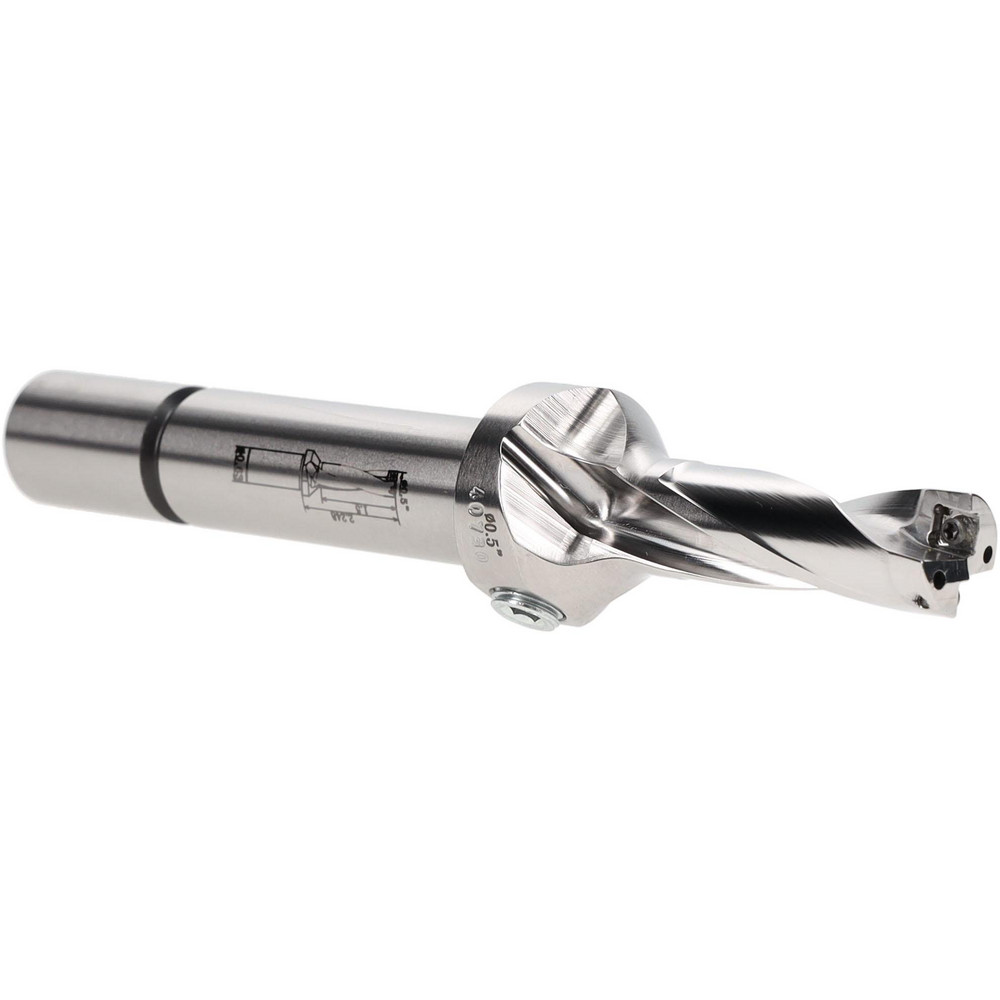

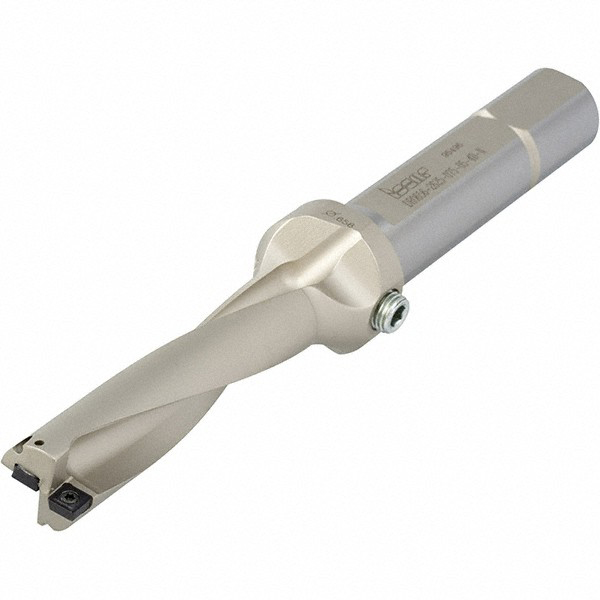

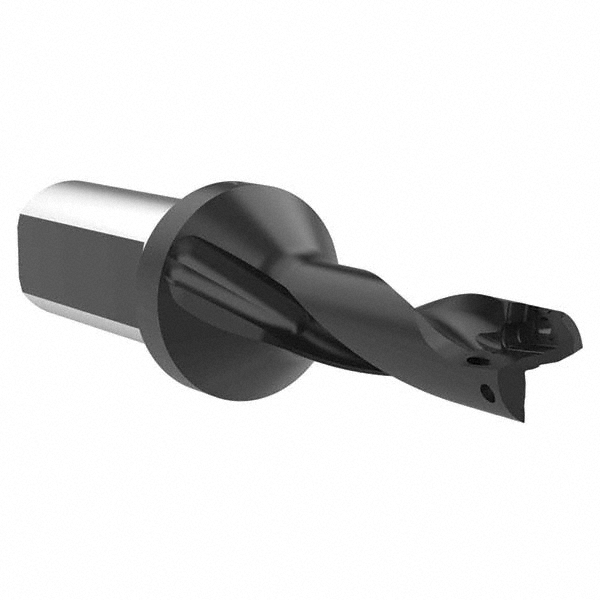

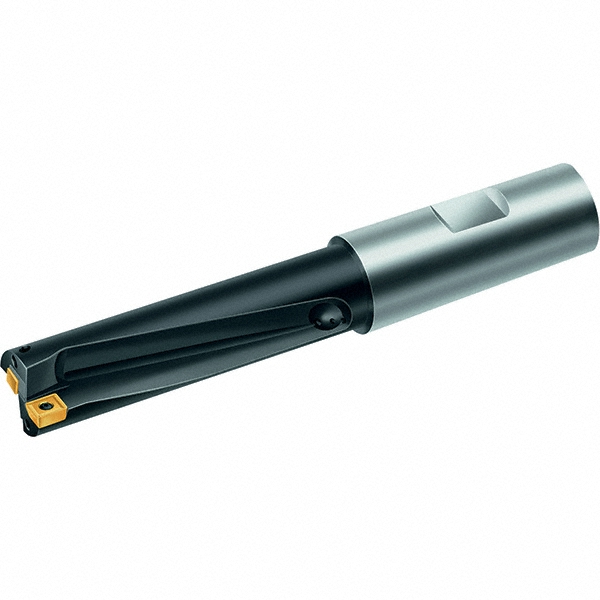

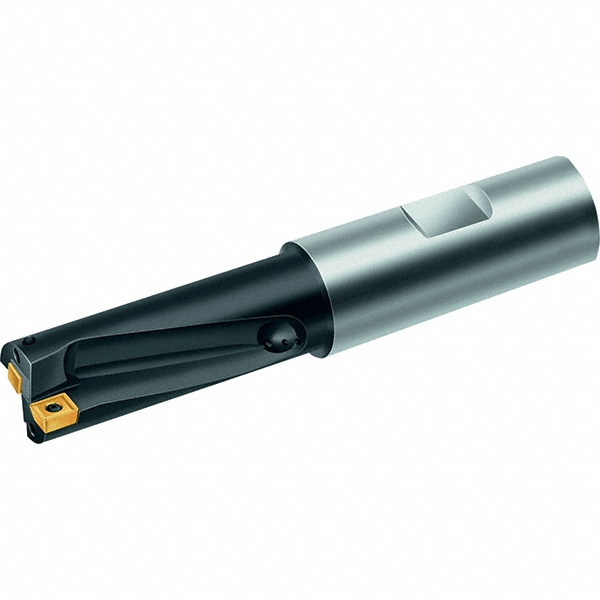

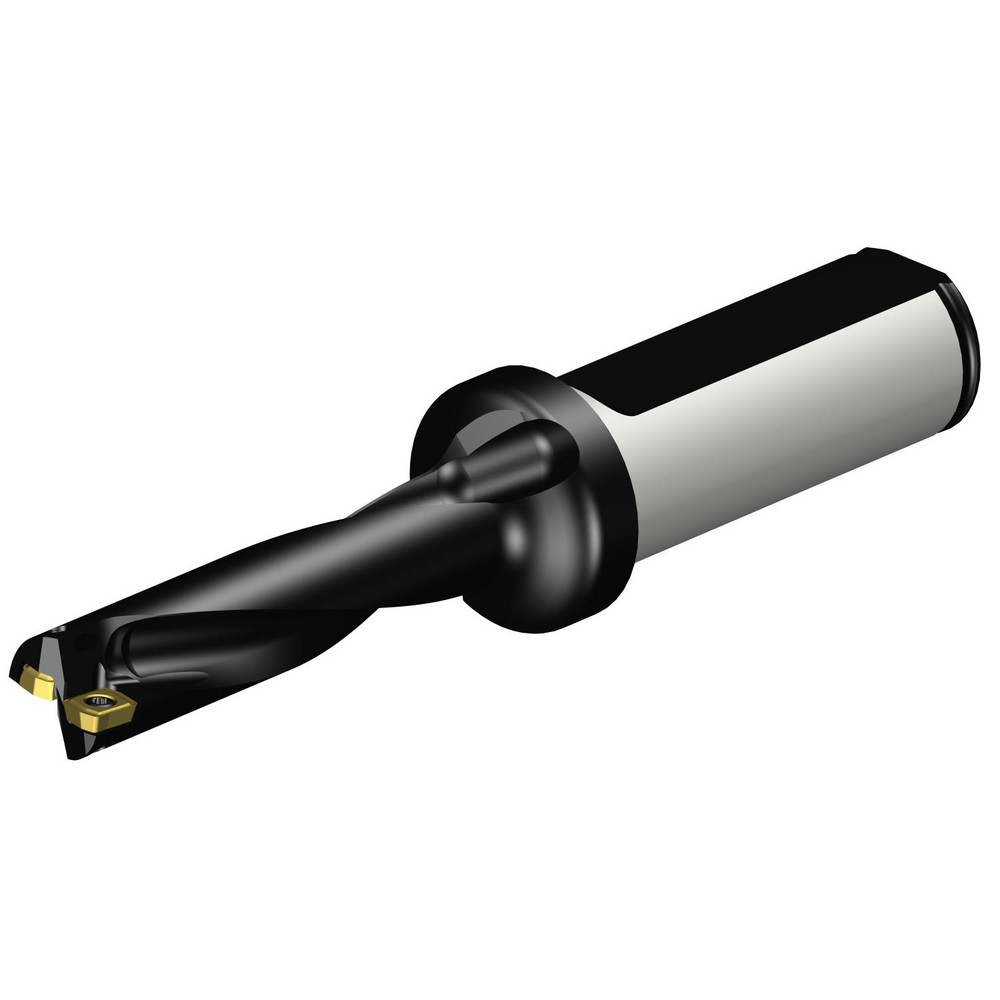

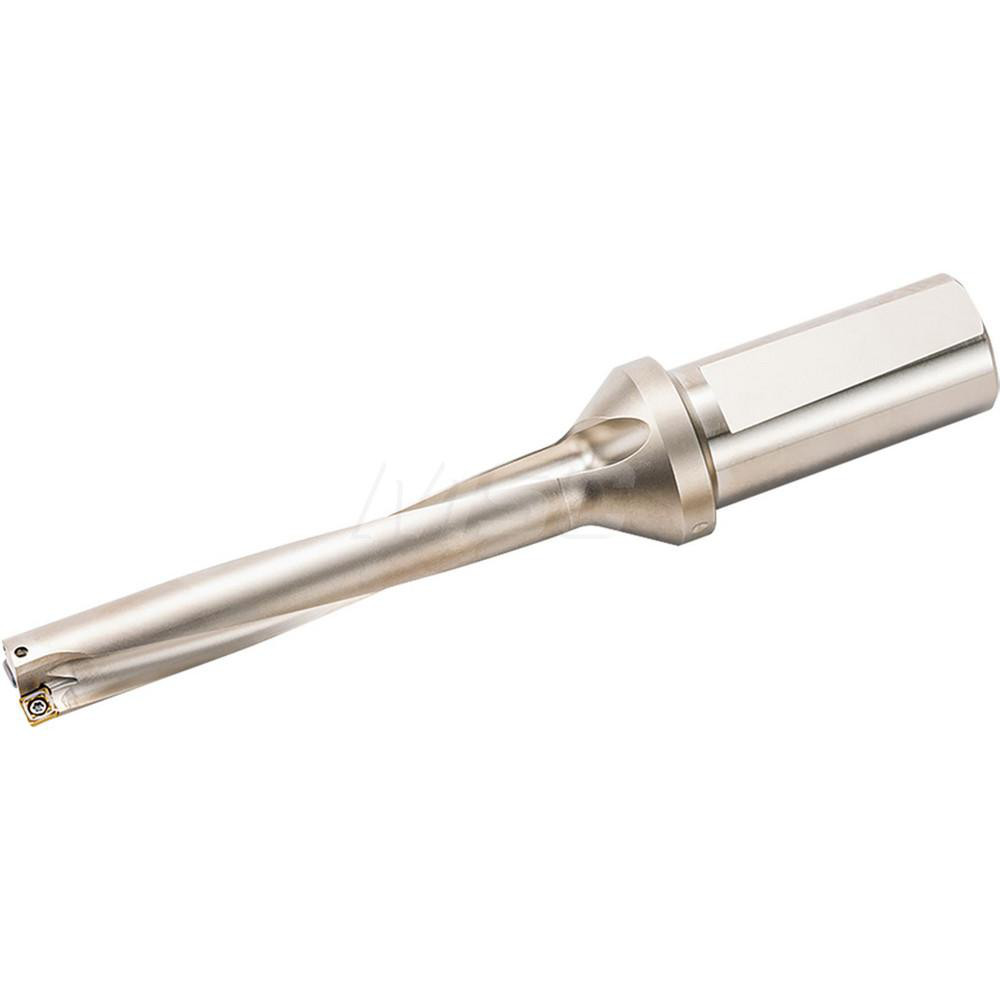

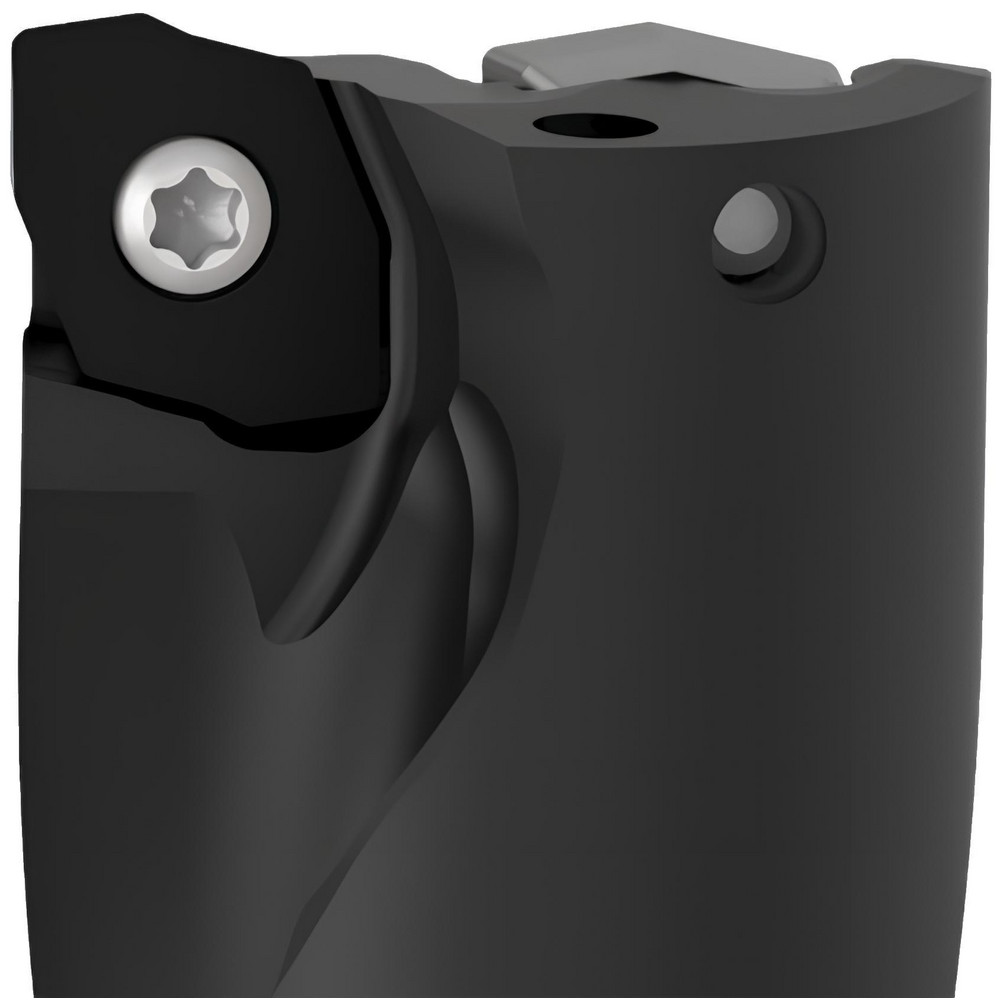

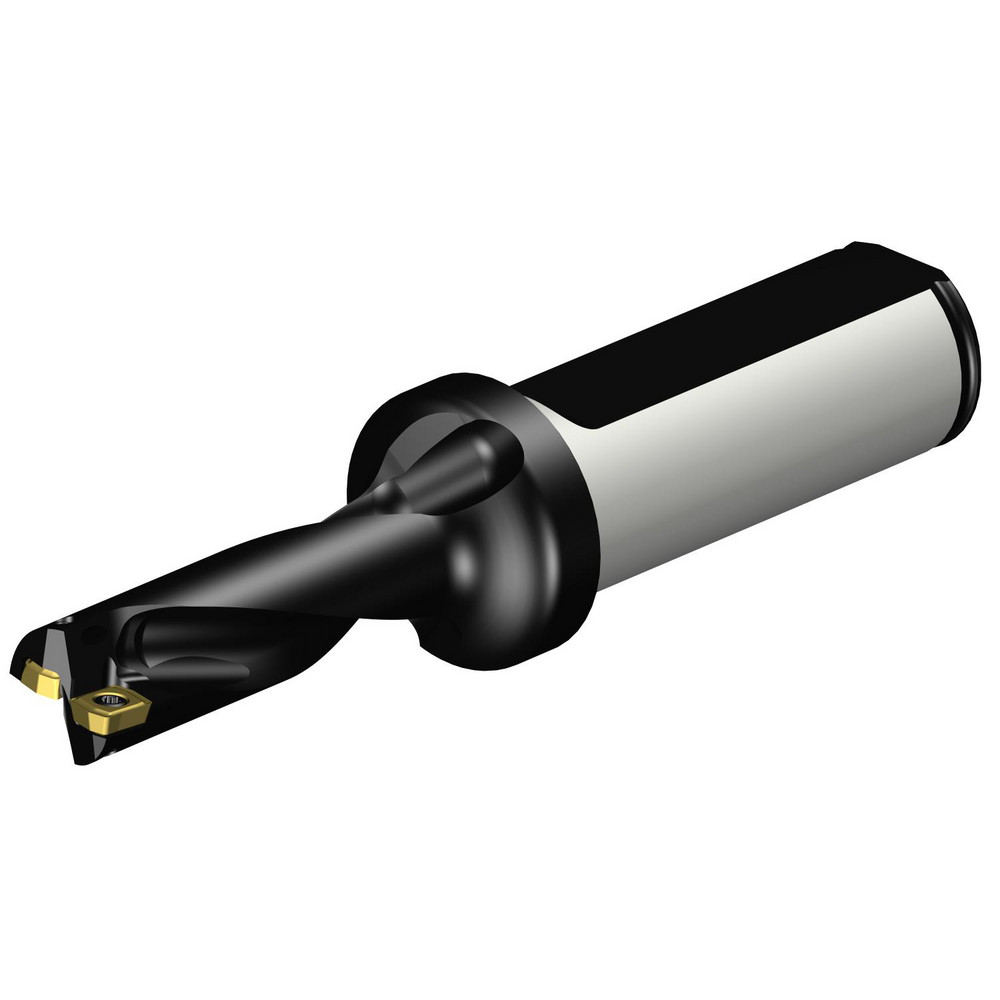

Weldon Flat & Flange Shank, Uses 4T 030203 Inserts, Series 03
| Compatible Drill Style | D303 |
|---|---|
| Maximum Drill Diameter (mm) | 12.70 |
| Maximum Drill Diameter (Inch) | 1/2 |
| Maximum Drill Diameter (Decimal Inch) | 0.5000 |
| Maximum Drill Depth (Inch) | 1-1/2 |
| Maximum Drill Depth (Decimal Inch) | 1.5000 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Tool Material | Steel |
| Compatible Insert Style | 4T |
| Compatible Insert Size Code | 030203 |
| Drill Depth by Diameter Ratio | 3xD |

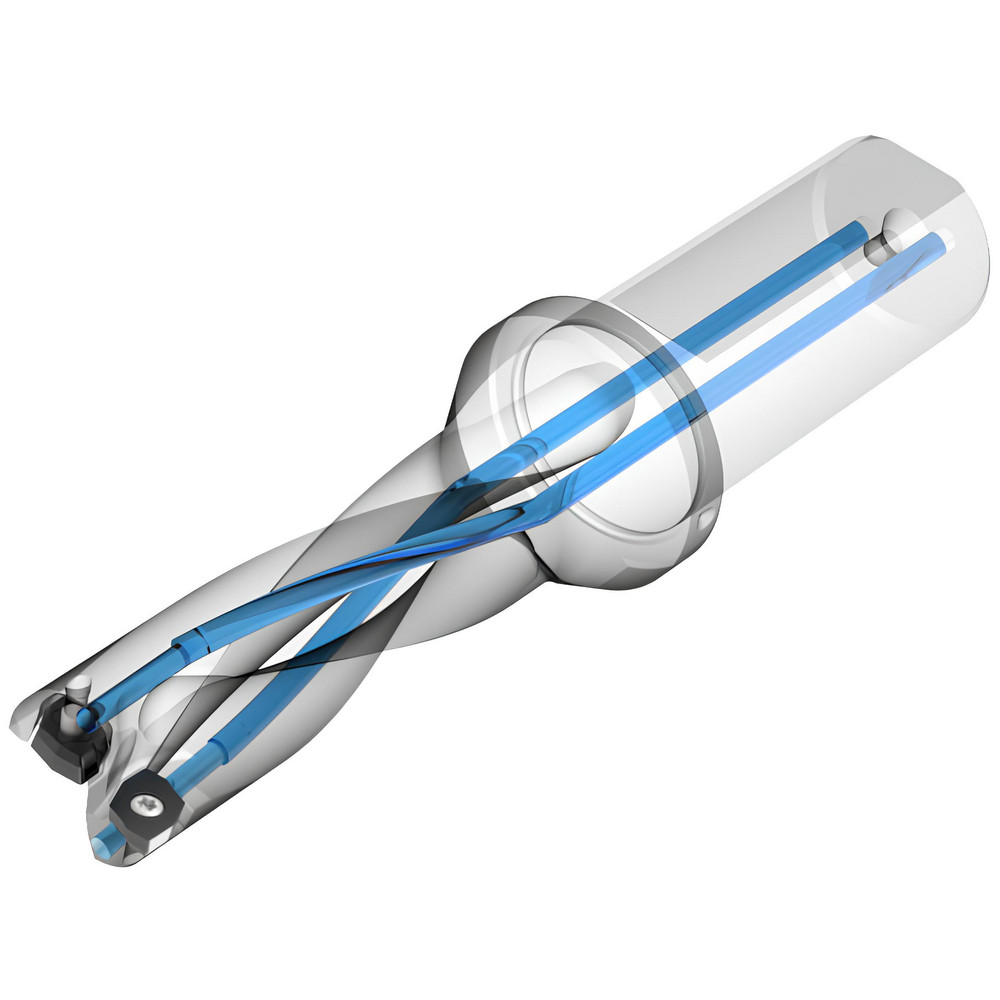

| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 4.0120 |
| Series | 03 |
| Flute Length (Decimal Inch) | 1.5000 |
| Body Length (Decimal Inch) | 2.3190 |
| Shank Length (Decimal Inch) | 1.6930 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 4.80 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | 4T-030203 |
| Collar Diameter (Decimal Inch) | 1.0630 |
| Insert Lock Screw | 7241-T6-1 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 96797592 |
