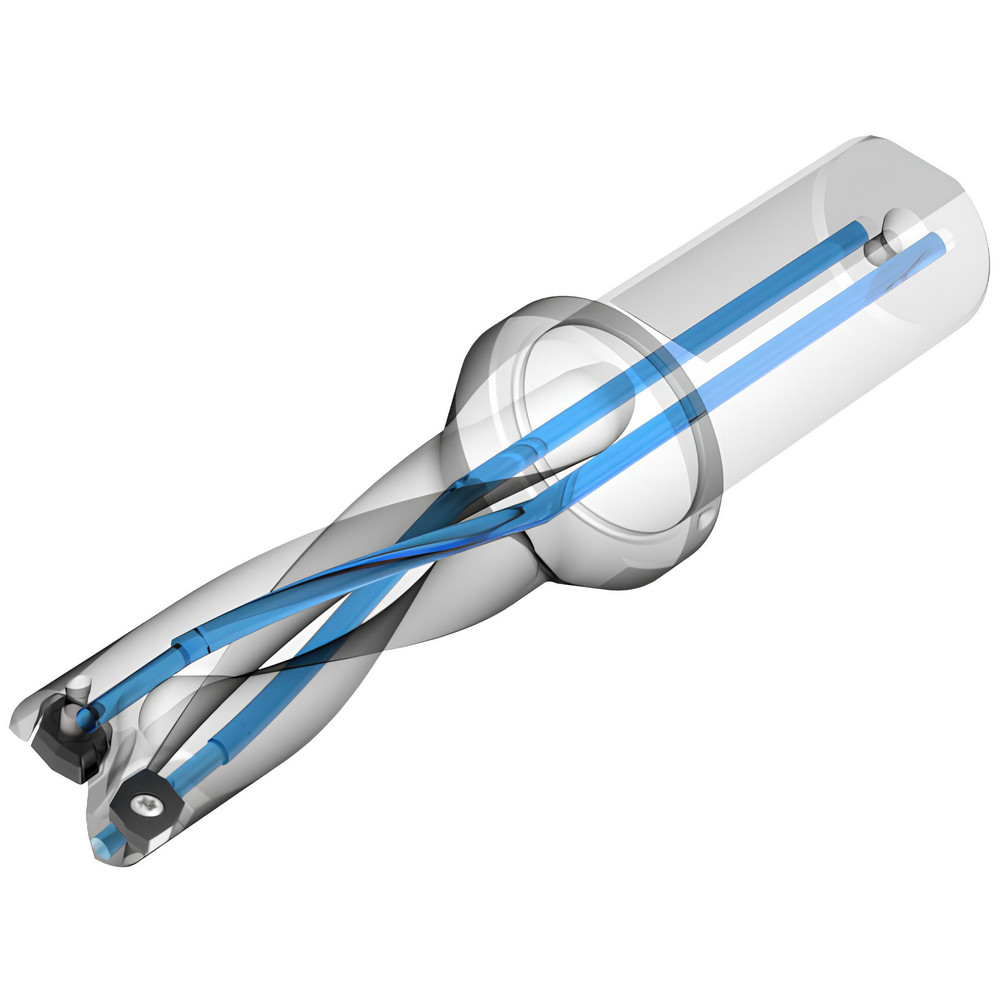

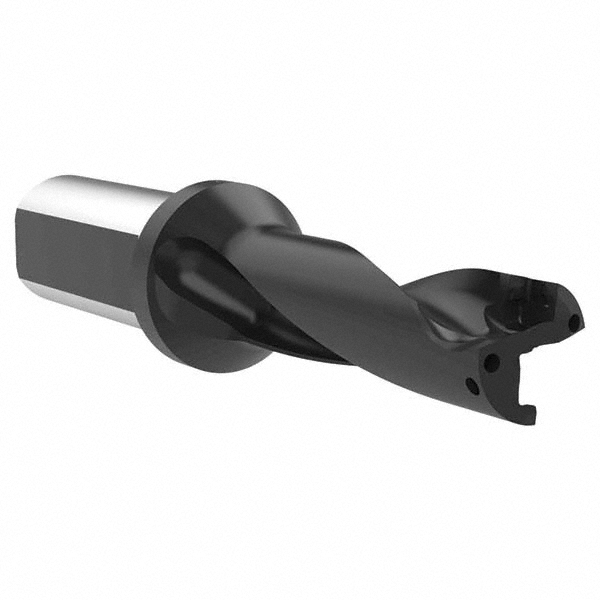

Weldon Flat & Flange Shank, Uses 4T 06T204 Inserts, Series 06
| Compatible Drill Style | D306 |
|---|---|
| Maximum Drill Diameter (mm) | 21.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.8270 |
| Maximum Drill Depth (Decimal Inch) | 2.4800 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Tool Material | Steel |
| Compatible Insert Style | 4T |
| Compatible Insert Size Code | 06T204 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 5.4490 |
| Series | 06 |
| Flute Length (Decimal Inch) | 2.4800 |
| Body Length (Decimal Inch) | 3.3230 |
| Shank Length (Decimal Inch) | 2.1260 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 6.44 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | 4T-06T204 |
| Collar Diameter (Decimal Inch) | 1.2600 |
| Insert Lock Screw | 72251-T7-1 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
