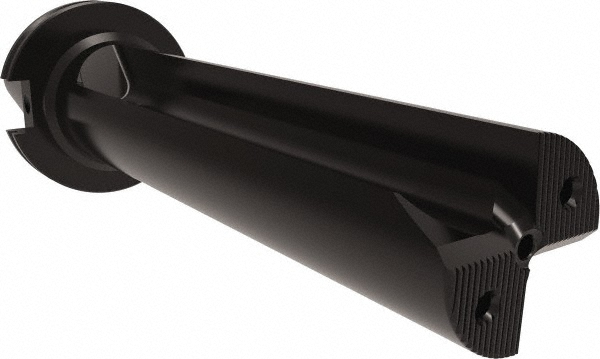

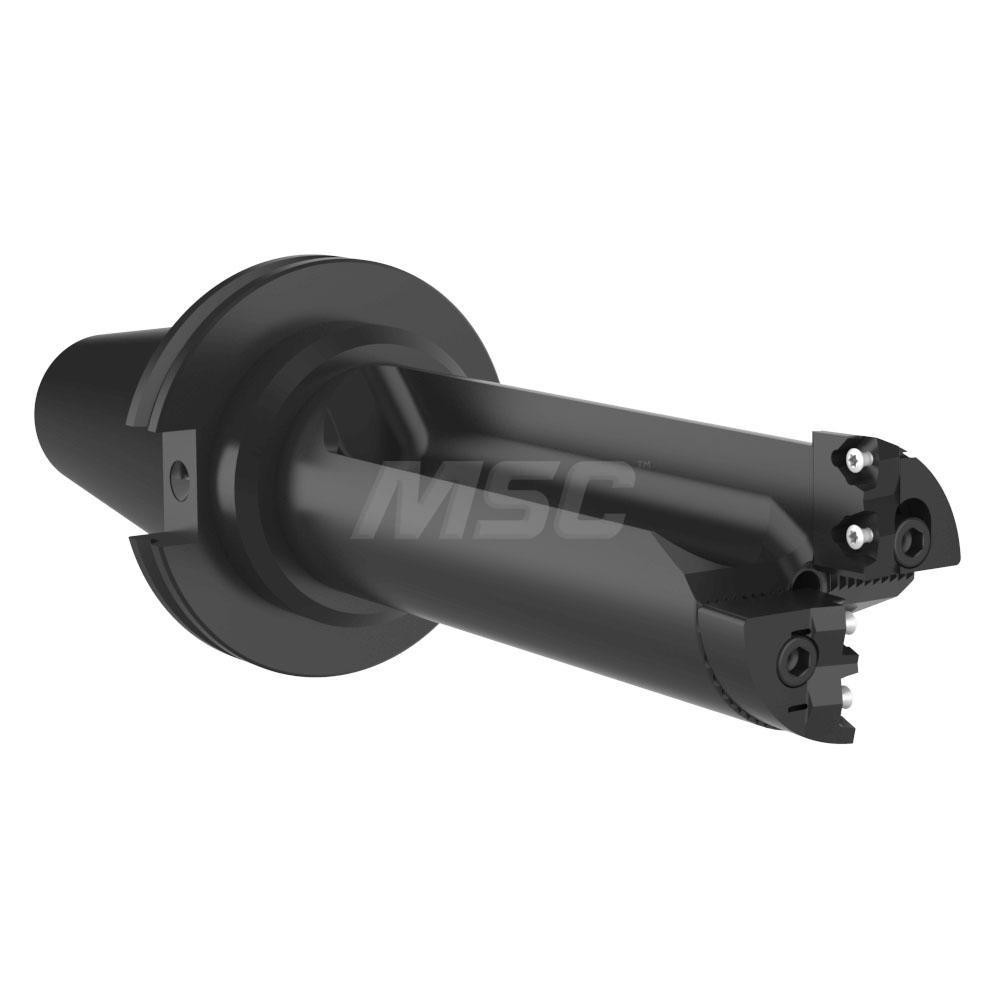

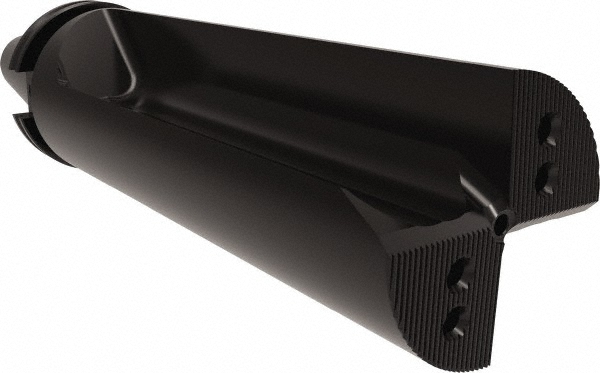

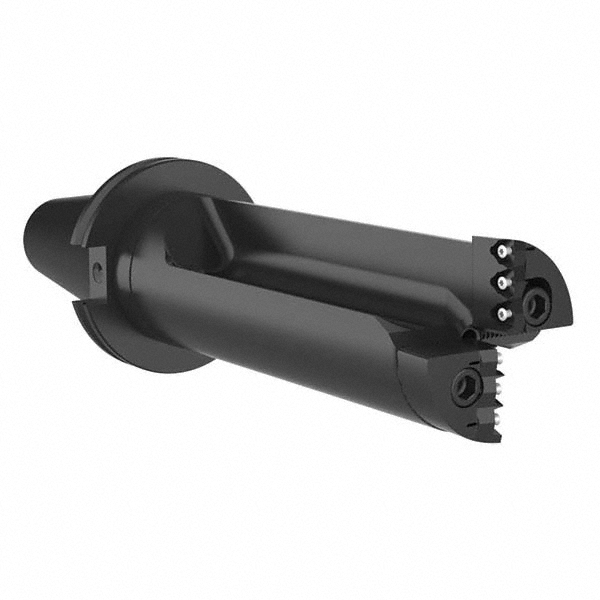

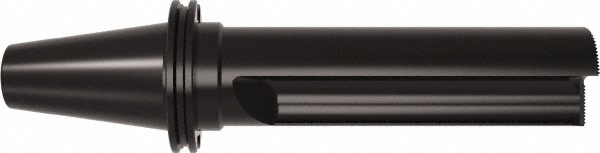

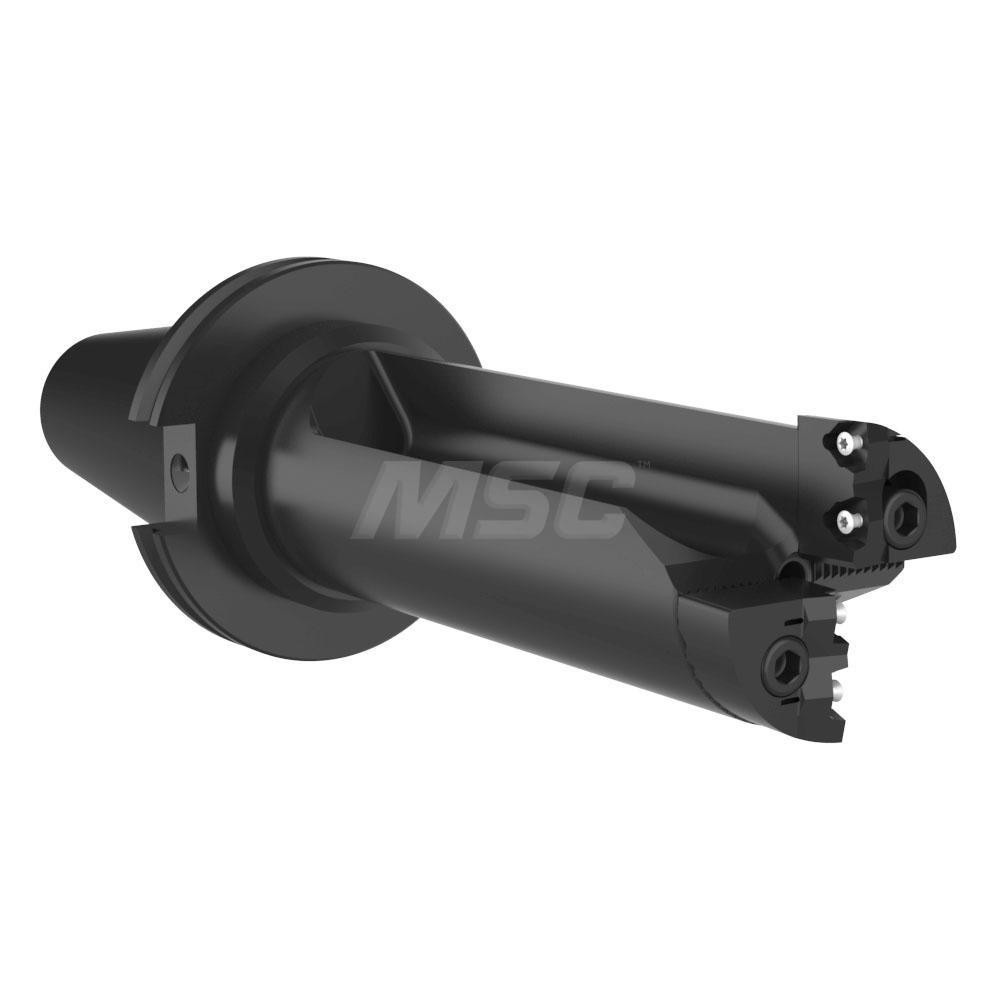

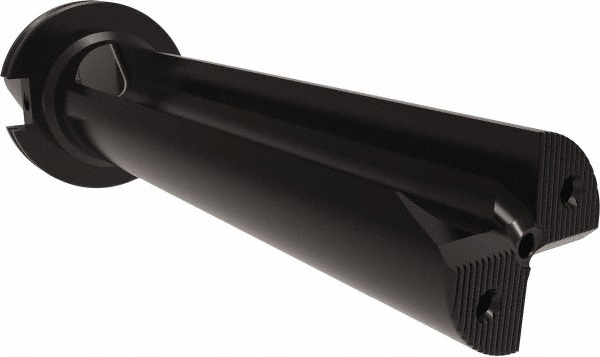

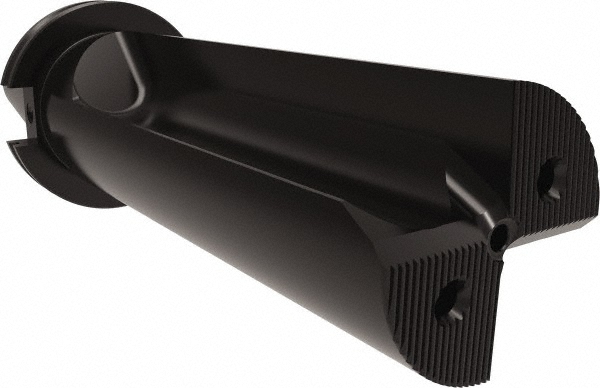

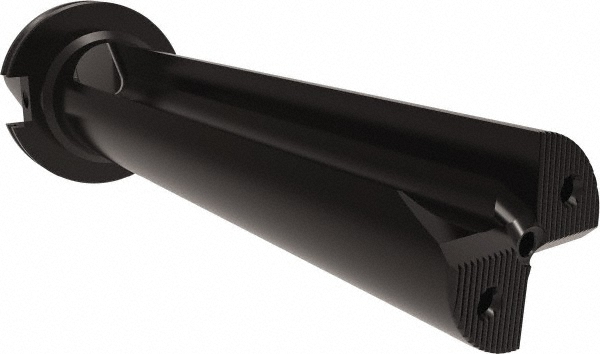

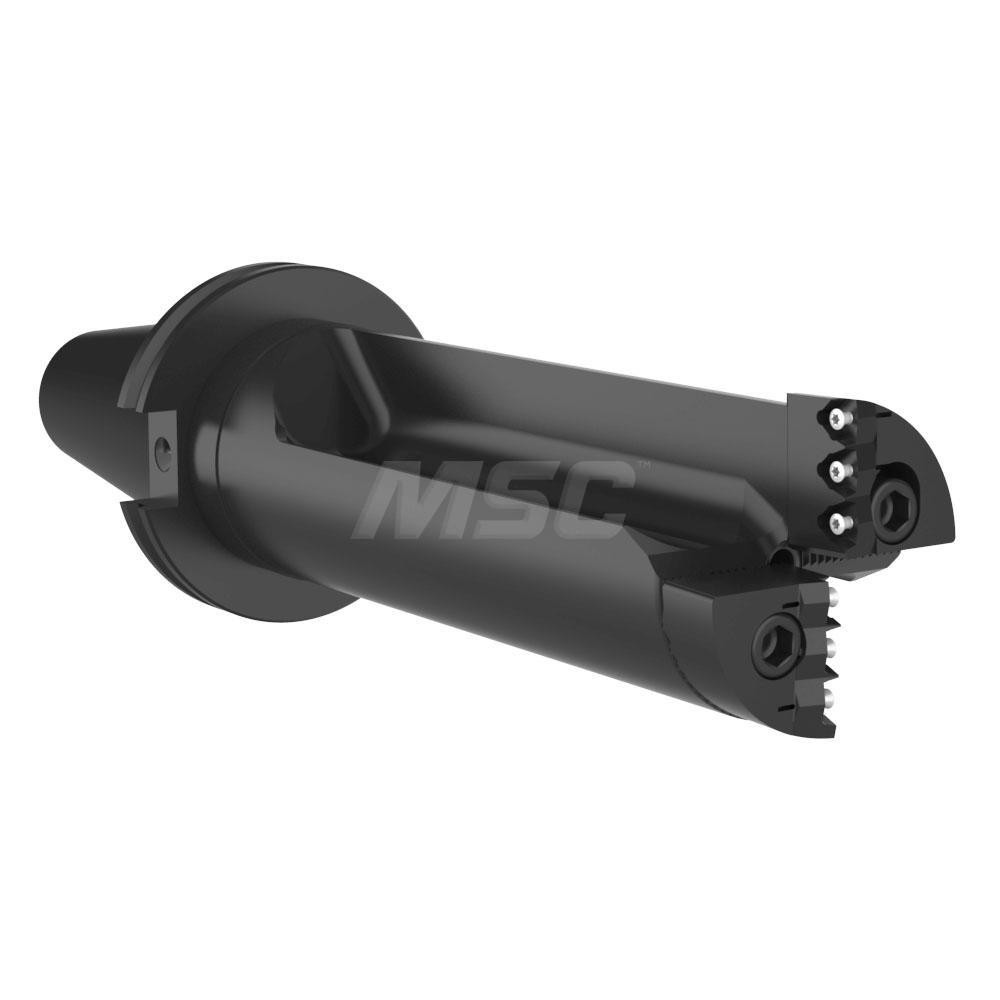

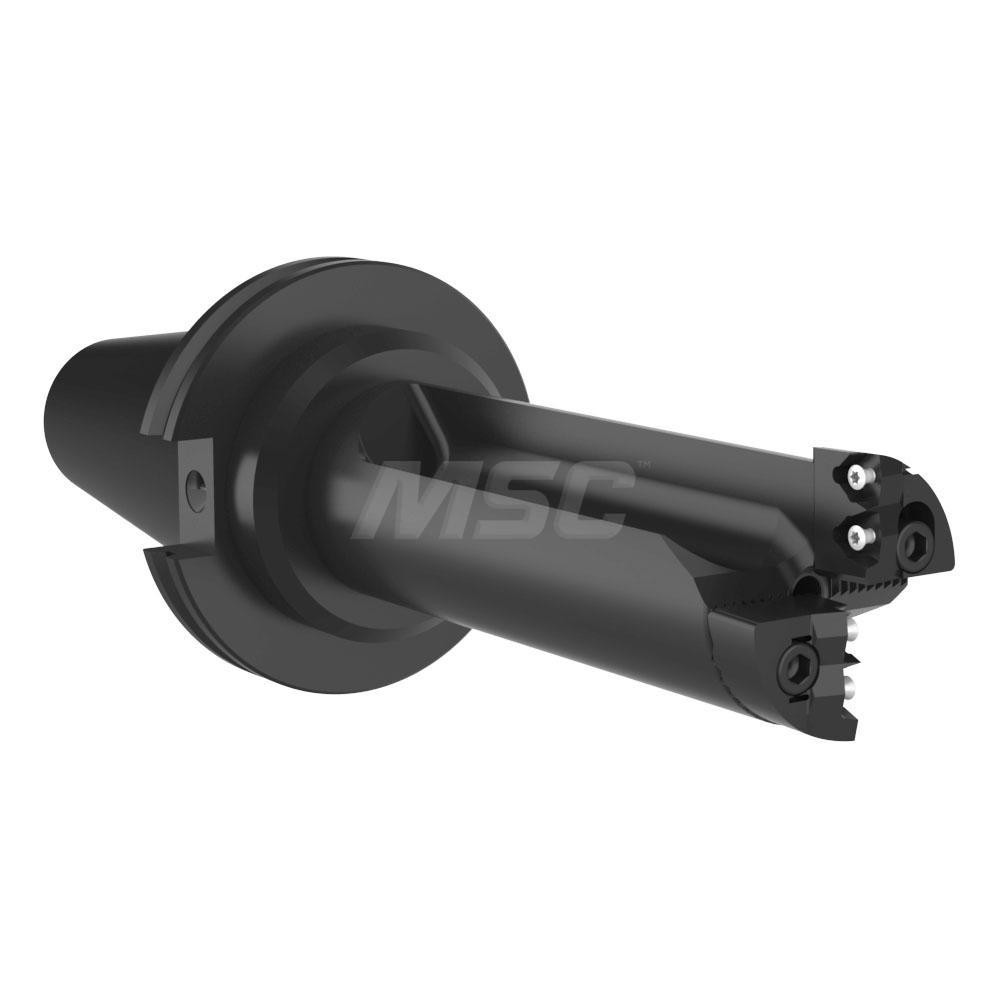

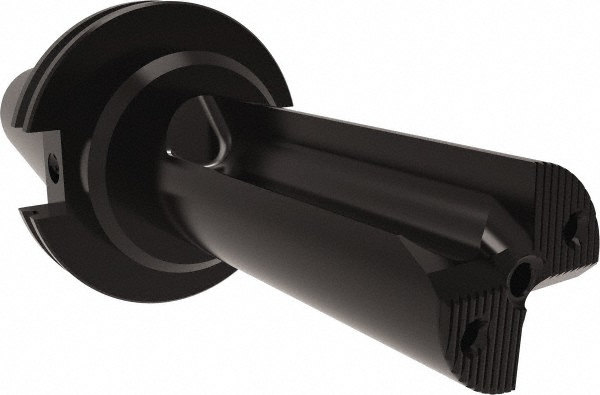

Taper Shank, Uses OP 05T308 Inserts, Series R46
| Compatible Drill Style | R |
|---|---|
| Maximum Drill Diameter (Inch) | 3 |
| Maximum Drill Diameter (Decimal Inch) | 3.0000 |
| Maximum Drill Depth (Inch) | 10-29/64 |
| Maximum Drill Depth (Decimal Inch) | 10.4531 |
| Shank Type | Taper |
| Shank Diameter (Inch) | 2-3/4 |
| Shank Diameter (Decimal Inch) | 2.7500 |
| Number of Drill Inserts | 6 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 10.0000+ |
| Tool Material | Steel |

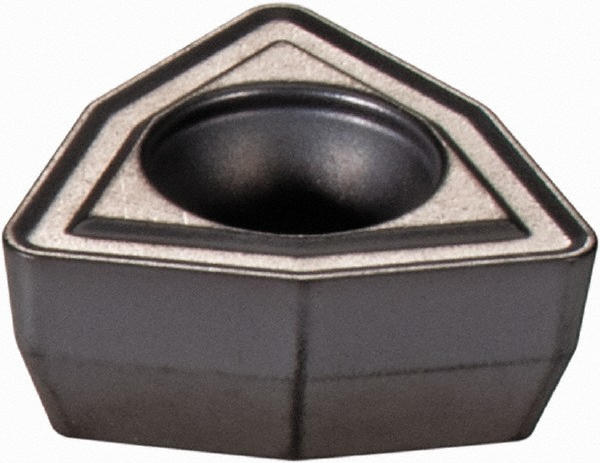

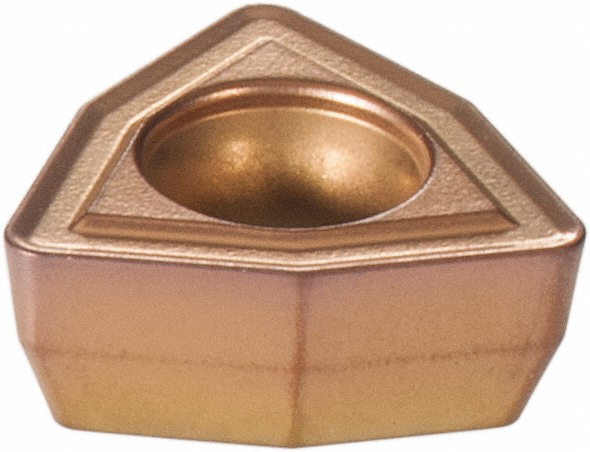

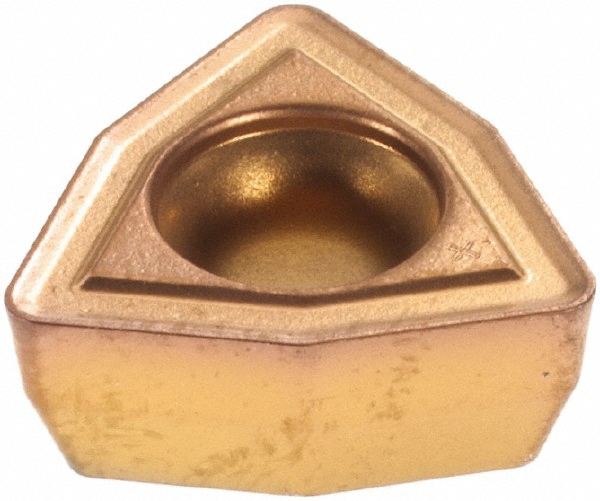

| Compatible Insert Style | OP |
| Compatible Insert Size Code | 05T308 |
| Drill Depth by Diameter Ratio | 3.5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 17.1250 |
| Overall Length (Inch) | 17-1/8 |
| Series | R46 |
| Flute Length (Decimal Inch) | 10.4531 |
| Body Length (Decimal Inch) | 13.1250 |
| Shank Length (Decimal Inch) | 4.0000 |
| Modular Connection Size | CAT50 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3125 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | OP-05T308 |
| Collar Diameter (Decimal Inch) | 3.8750 |

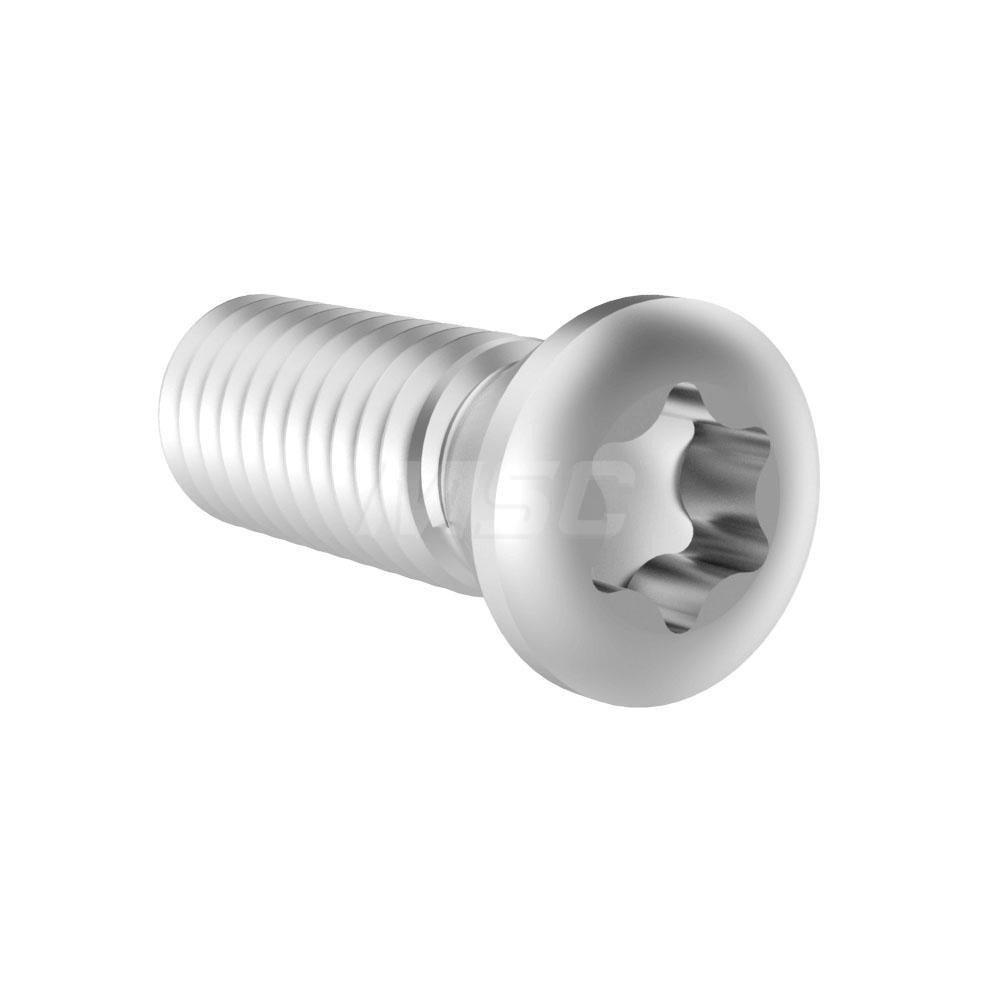

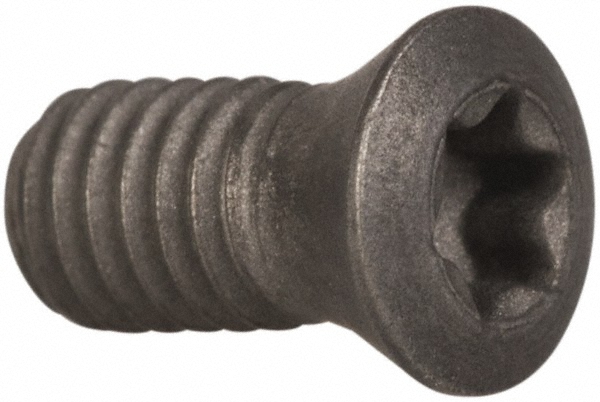

| Insert Lock Screw | IS-10-1 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 36783694 |
