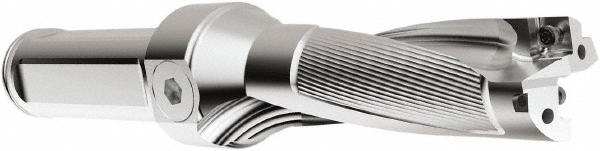

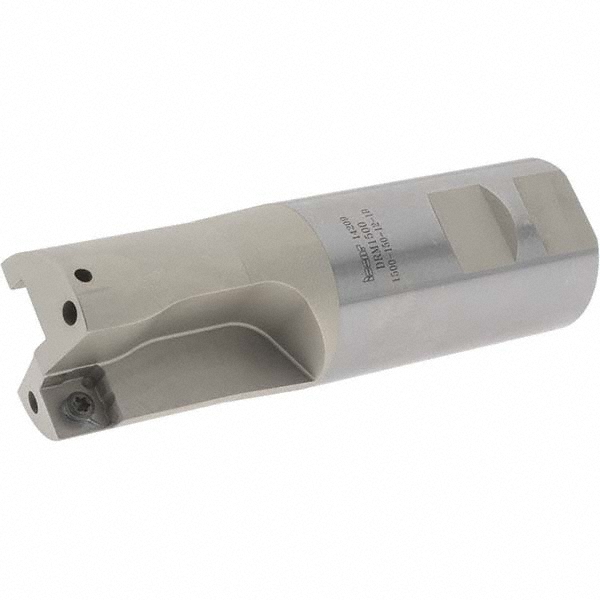

Weldon Flat & Flange Shank, Uses 4T 11T306 Inserts, Series 11
| Compatible Drill Style | D311 |
|---|---|
| Maximum Drill Diameter (mm) | 33.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.2990 |
| Maximum Drill Depth (Decimal Inch) | 3.8980 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Tool Material | Steel |
| Compatible Insert Style | 4T |
| Compatible Insert Size Code | 11T306 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 8.0470 |
| Overall Length (Inch) | 8-3/64 |
| Series | 11 |
| Flute Length (Decimal Inch) | 3.8980 |
| Body Length (Decimal Inch) | 5.3310 |
| Shank Length (Decimal Inch) | 2.7160 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 11.61 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | 4T-11T306 |
| Collar Diameter (Decimal Inch) | 2.1260 |
| Insert Lock Screw | 7488-T15-1 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 99679342 |
