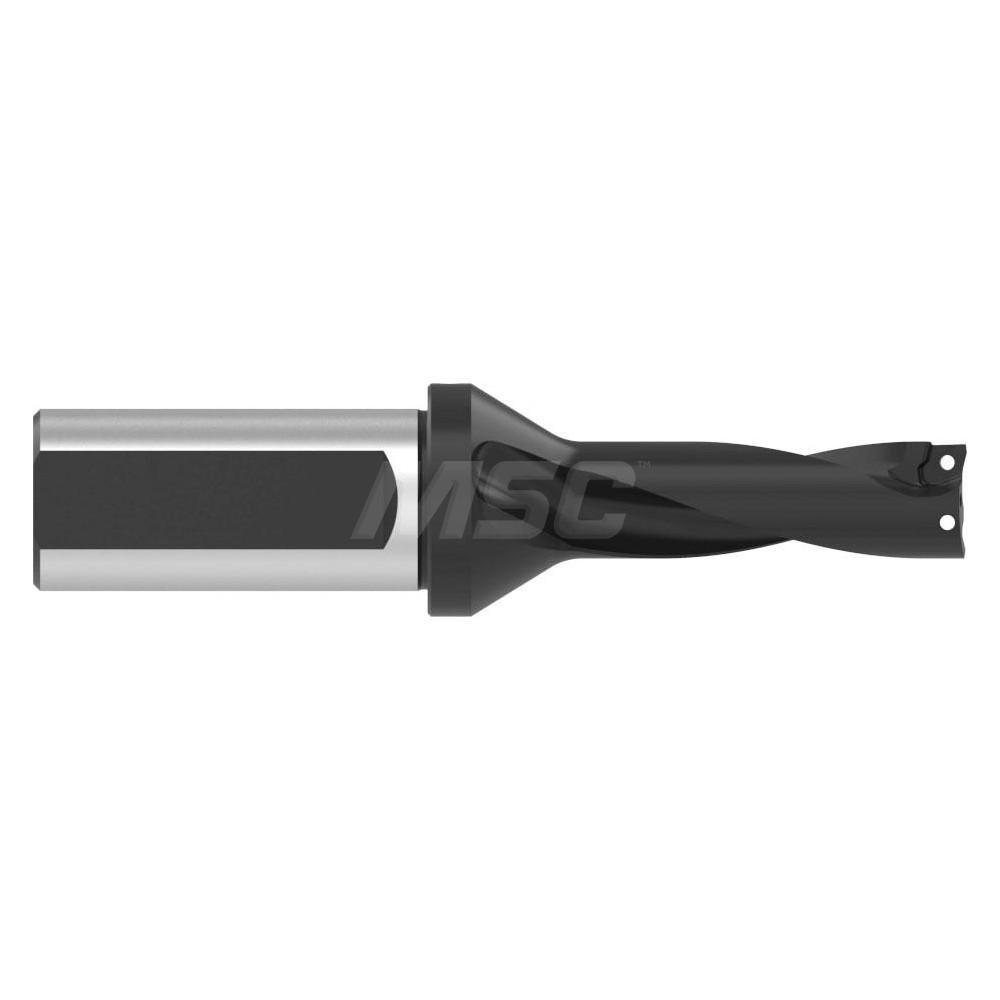

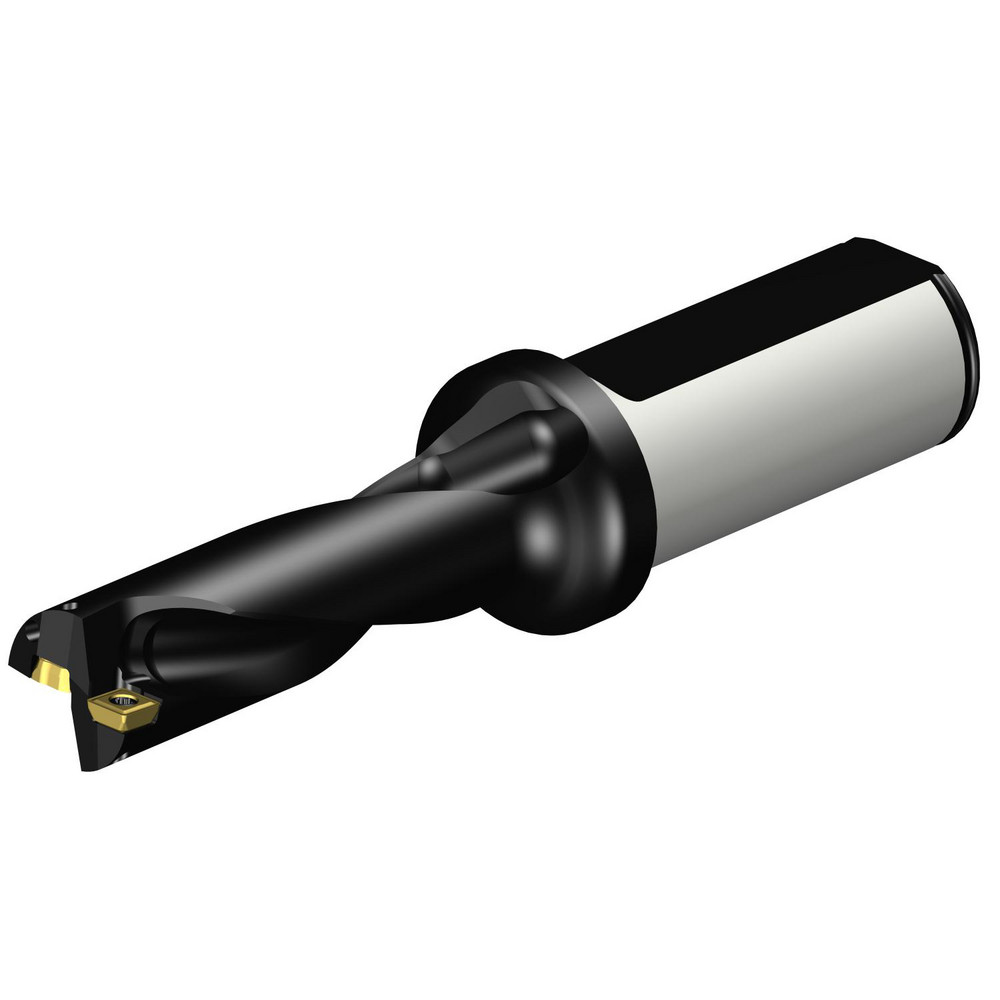

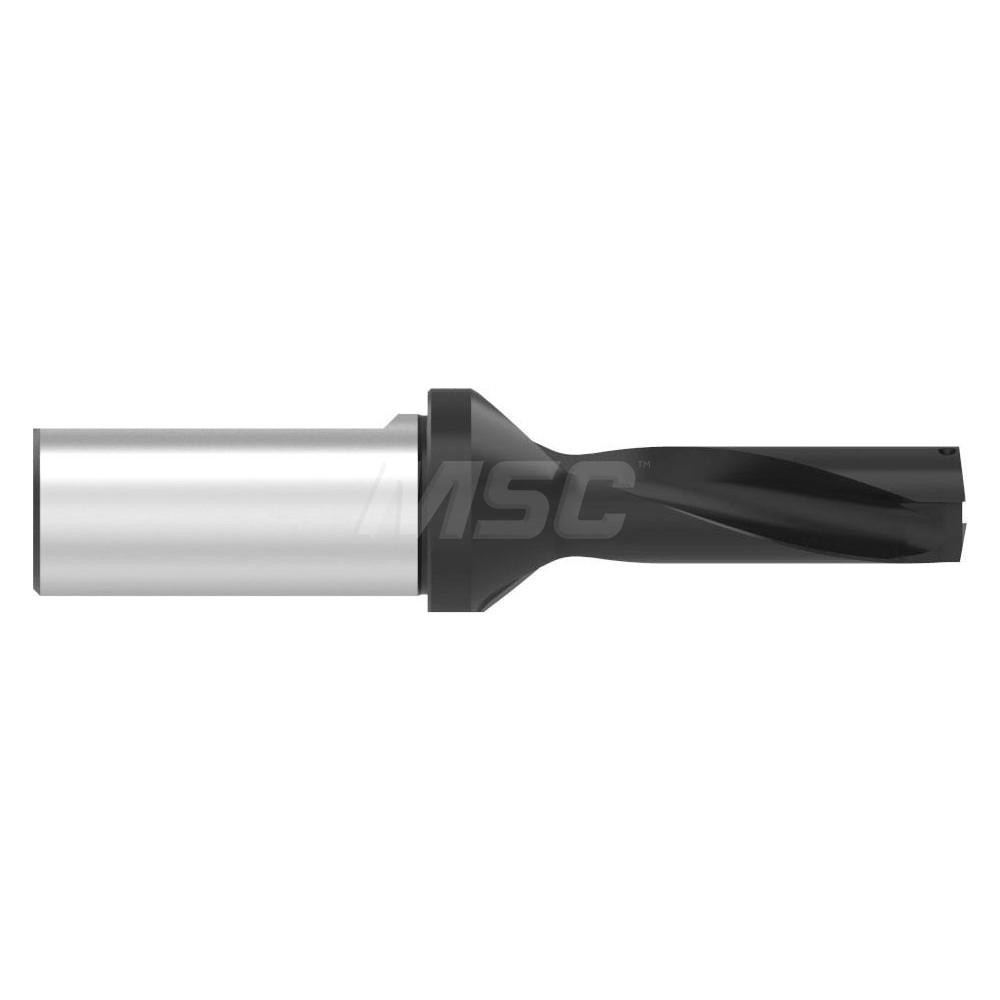

Weldon Flat & Flange Shank, Uses 4T 05T203 Inserts, Series 05
| Compatible Drill Style | D305 |
|---|---|
| Maximum Drill Diameter (Inch) | 21/32 |
| Maximum Drill Diameter (Decimal Inch) | 0.6563 |
| Maximum Drill Depth (Decimal Inch) | 1.9680 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Tool Material | Steel |
| Compatible Insert Style | 4T |
| Compatible Insert Size Code | 05T203 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 5.0000 |
| Series | 05 |
| Flute Length (Decimal Inch) | 1.9680 |
| Body Length (Decimal Inch) | 2.7840 |
| Shank Length (Decimal Inch) | 2.2160 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 5.48 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | 4T-05T203 |
| Collar Diameter (Decimal Inch) | 1.2600 |
| Insert Lock Screw | 7243-T6-1 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 17215963 |
