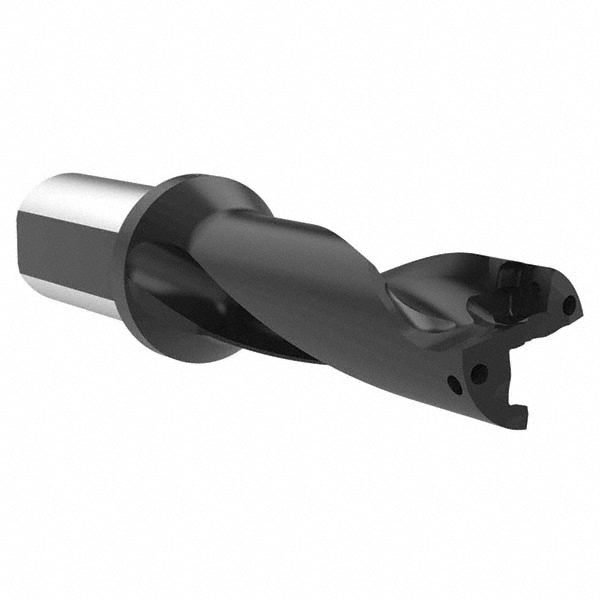

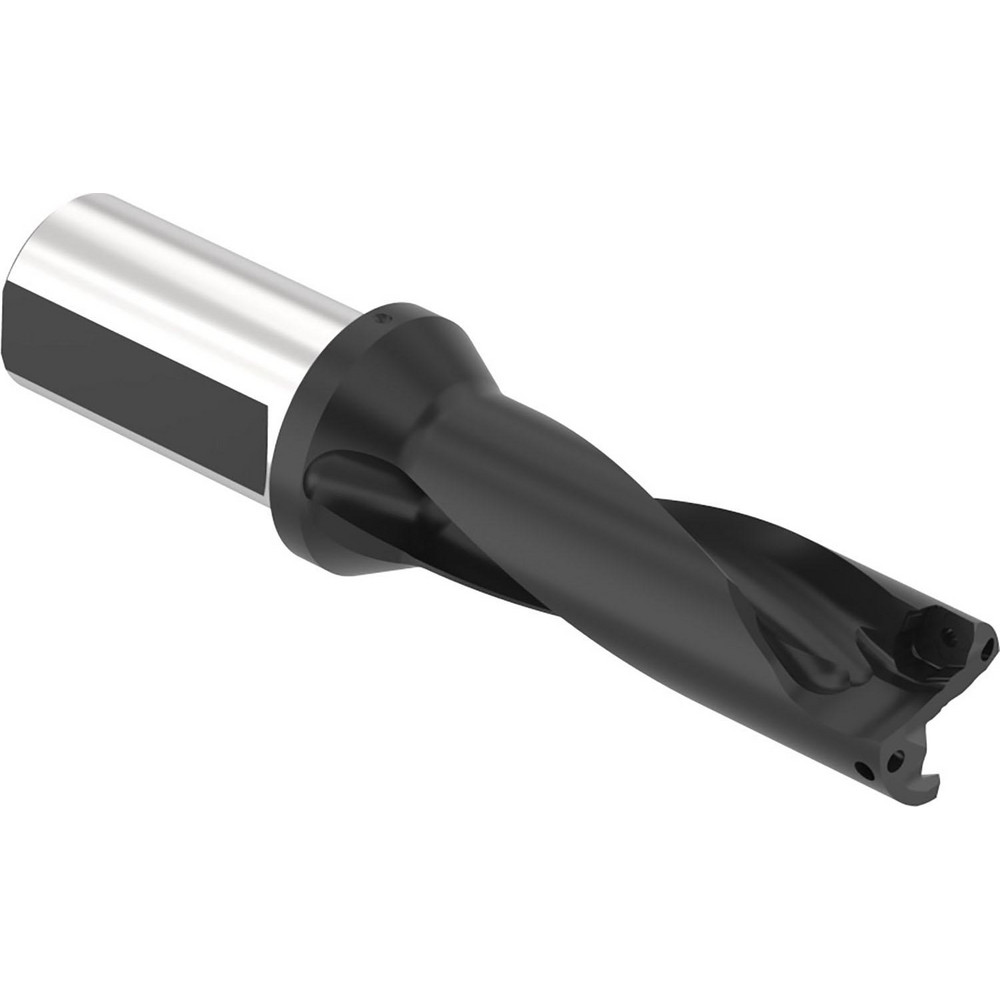

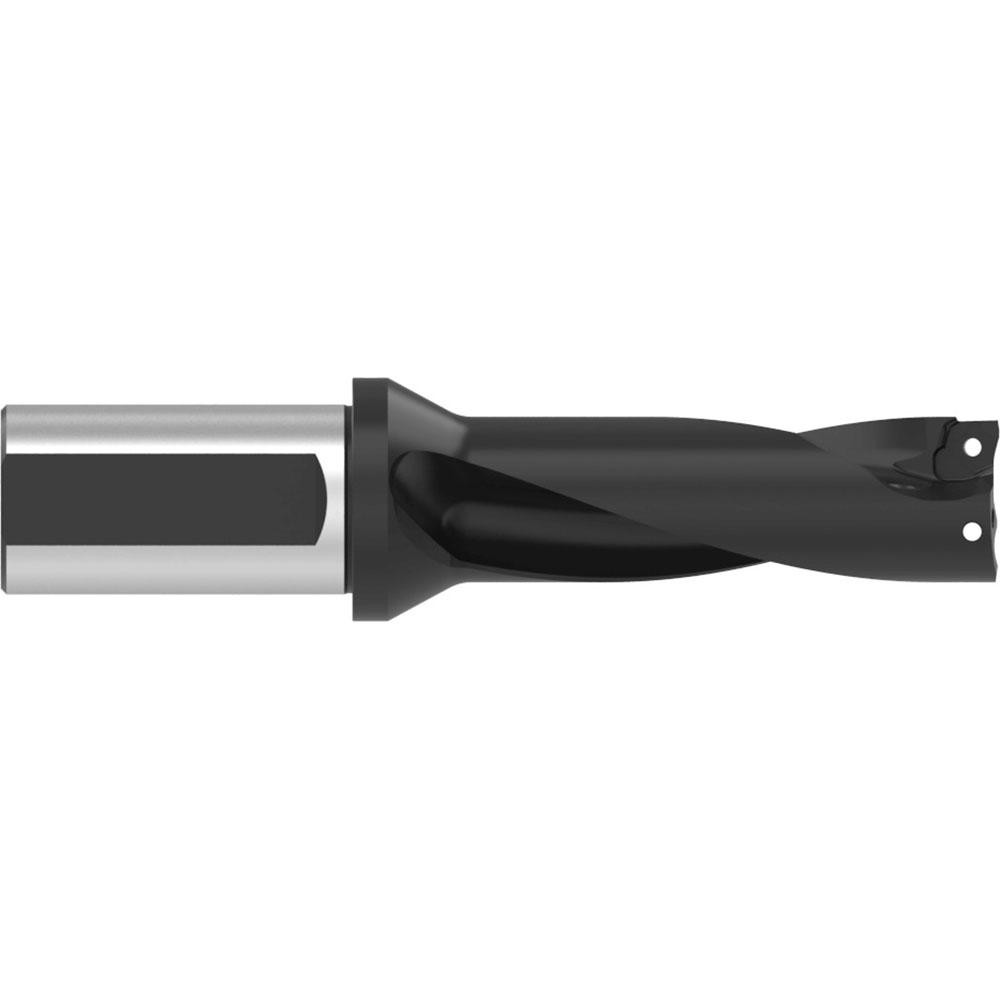

Weldon Flat & Flange Shank, Uses 4T 09T306 Inserts, Series 09
| Compatible Drill Style | D309 |
|---|---|
| Maximum Drill Diameter (mm) | 26.50 |
| Maximum Drill Depth (Decimal Inch) | 3.1300 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Tool Material | Steel |
| Compatible Insert Style | 4T |
| Compatible Insert Size Code | 09T306 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 6.3465 |
| Series | 09 |
| Flute Length (Decimal Inch) | 3.1300 |
| Body Length (Decimal Inch) | 4.0236 |
| Shank Length (Decimal Inch) | 2.3229 |
| Shank Length (mm) | 59.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 9.55 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | 4T-09T306 |
| Collar Diameter (Decimal Inch) | 1.6142 |
| Insert Lock Screw | 738-T10-1 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 99386716 |
