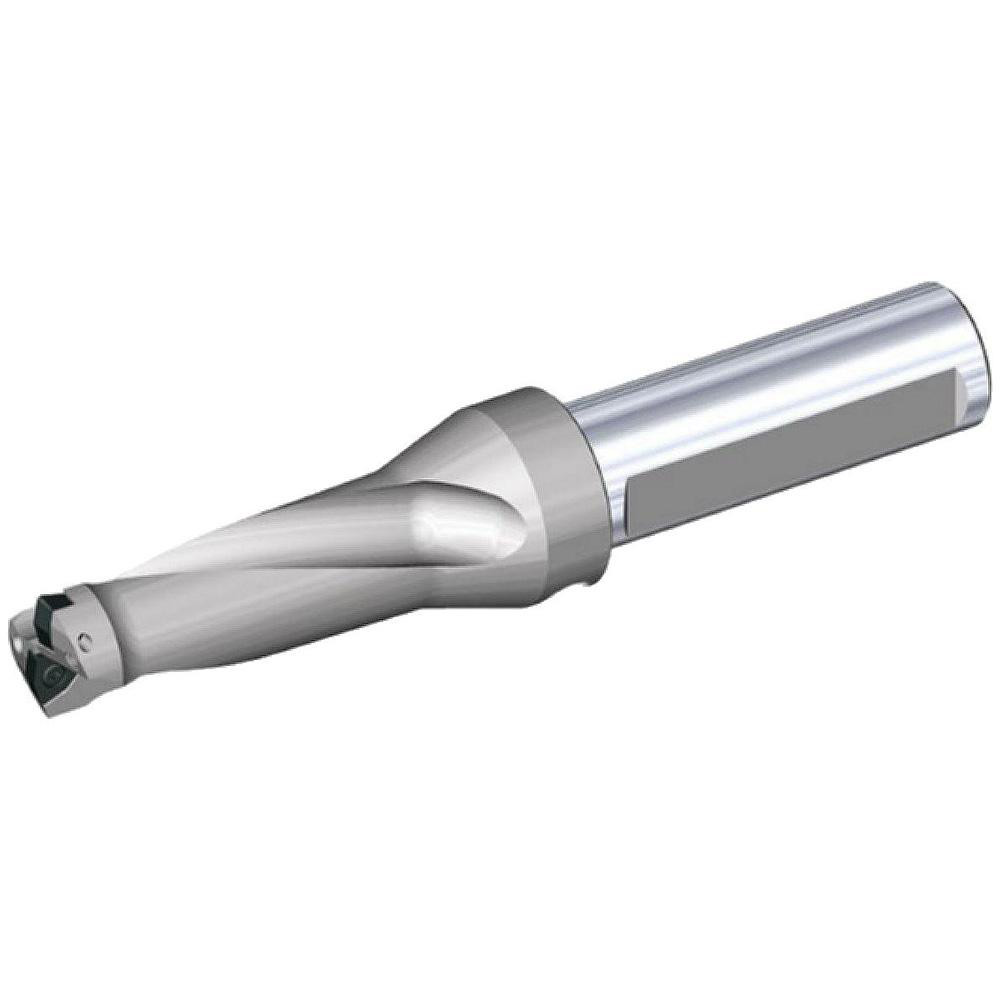

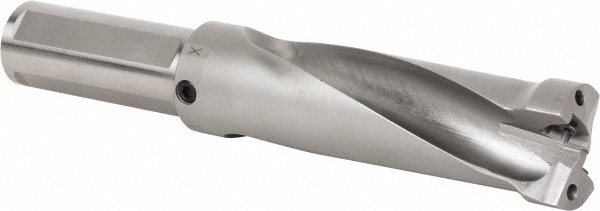

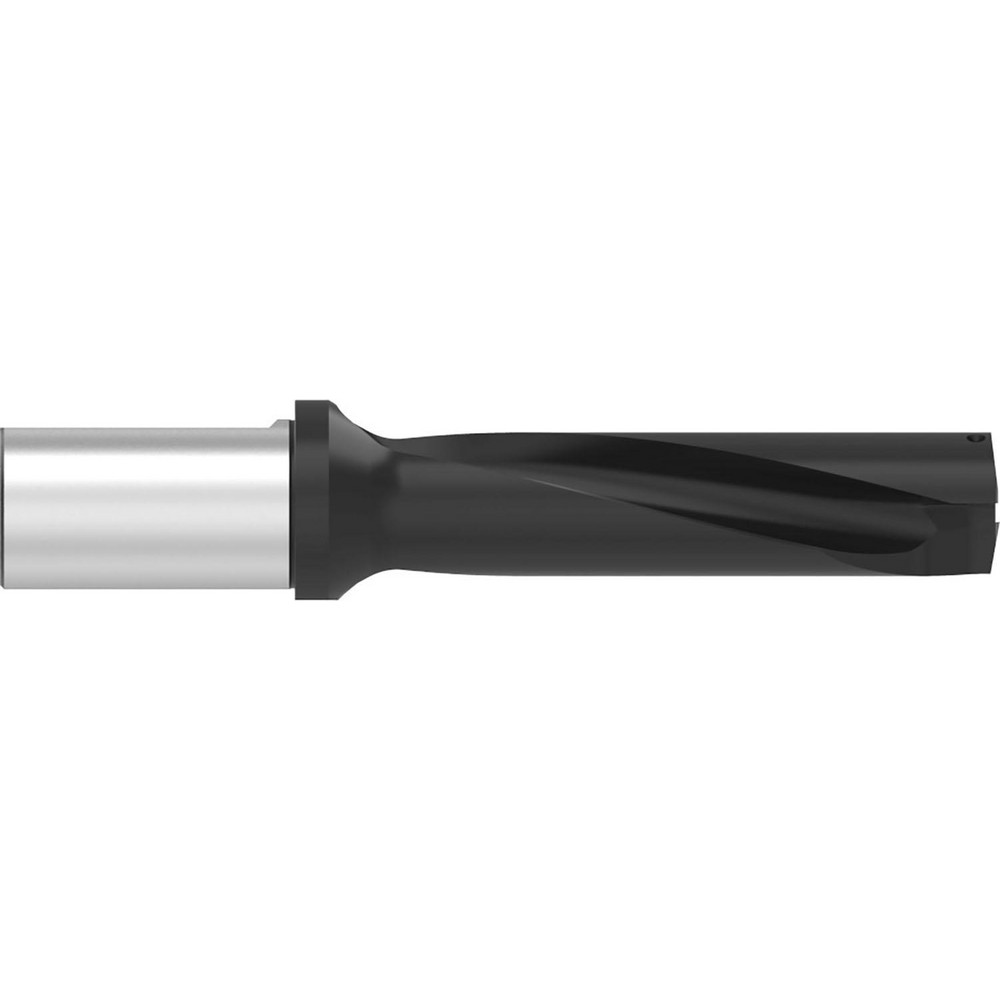

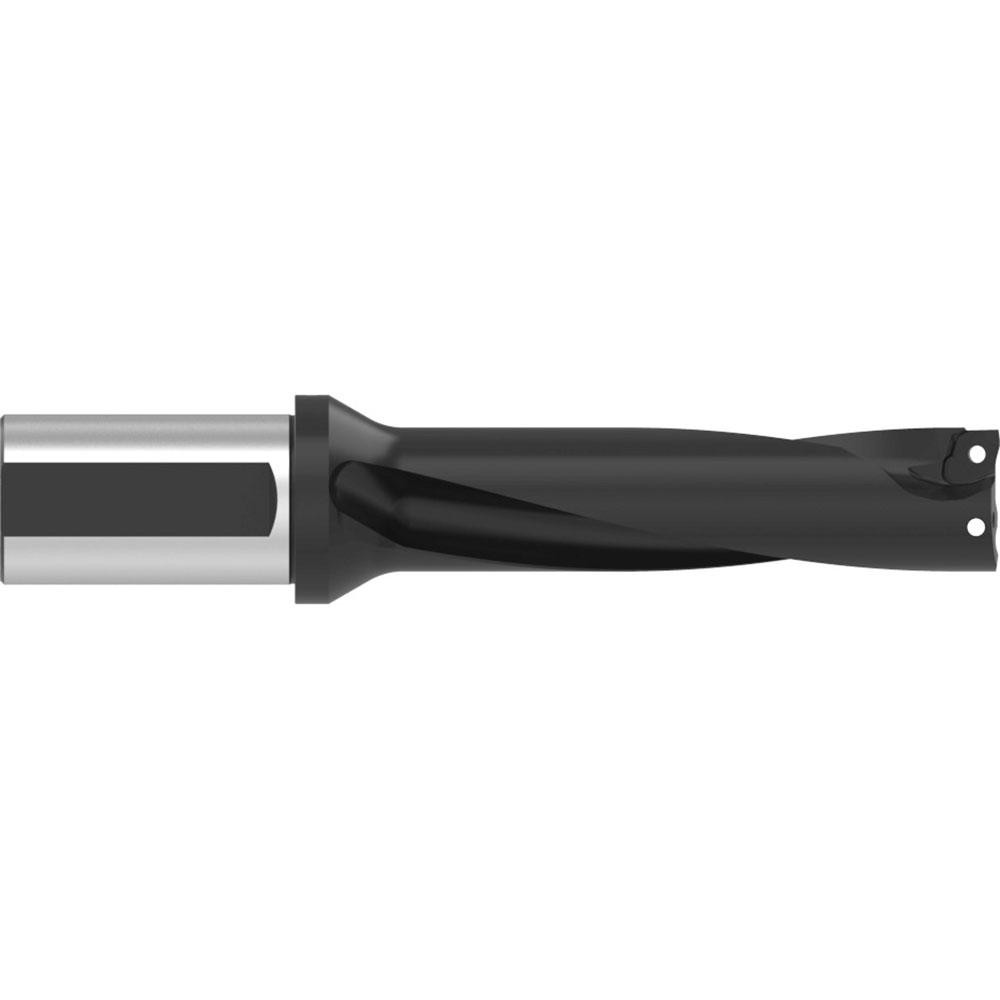

Weldon Flat & Flange Shank, Uses 4T 11T306 Inserts, Series 11
| Compatible Drill Style | D411 |
|---|---|
| Maximum Drill Diameter (mm) | 32.50 |
| Maximum Drill Depth (Decimal Inch) | 5.1181 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | 4T |
| Compatible Insert Size Code | 11T306 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 8.7953 |
| Series | 11 |
| Flute Length (Decimal Inch) | 5.1181 |
| Body Length (Decimal Inch) | 6.0787 |
| Shank Length (Decimal Inch) | 2.7166 |
| Shank Length (mm) | 69.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 11.61 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | 4T-11T306 |
| Collar Diameter (Decimal Inch) | 1.9291 |
| Insert Lock Screw | 7488-T15-1 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 99397085 |
