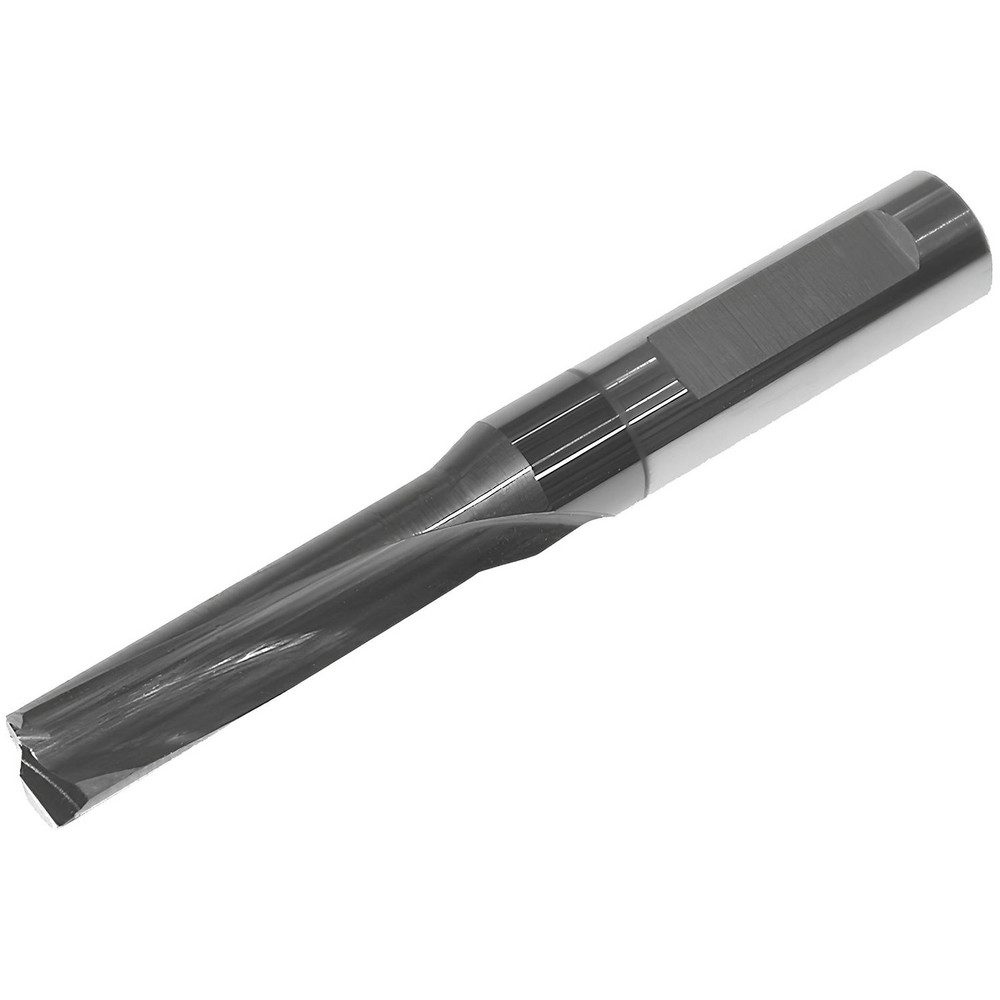

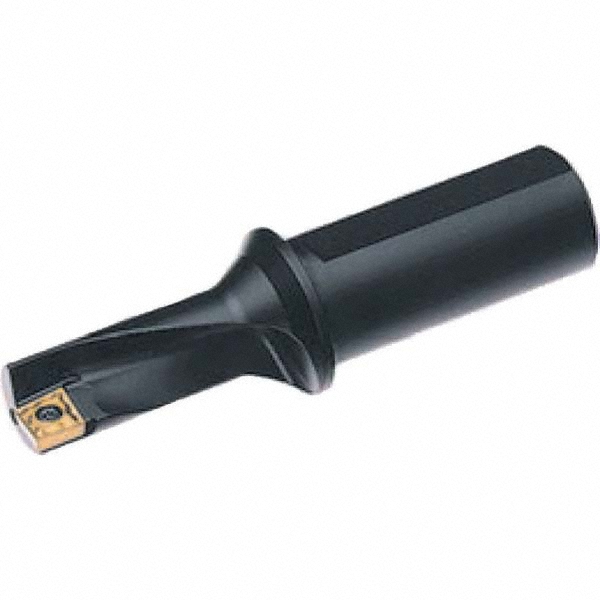

Straight with Flat Shank, Series EC 08
| Compatible Drill Style | EC |
|---|---|
| Maximum Drill Diameter (mm) | 8.00 |
| Maximum Drill Depth (Decimal Inch) | 1.2600 |
| Shank Type | Straight with Flat |
| Shank Diameter (mm) | 8.00 |
| Number of Drill Inserts | 0 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Tool Material | Solid Carbide |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 2.2440 |
| Series | EC 08 |
| Flute Length (Decimal Inch) | 1.2600 |
| Body Length (Decimal Inch) | 1.2600 |
| Shank Length (Decimal Inch) | 0.9840 |
| Tool Application | Drilling; Boring |
| Tool Performance | General Purpose |
| UNSPSC Code | 23291503 |
| Insert Compatibility | Solid Carbide |
| Collar Diameter (mm) | 8.00 |
| Coolant Through | Yes |
| Country of Origin | Austria |
| undefined | undefined |
| MSC Number | MSC# 48224638 |
