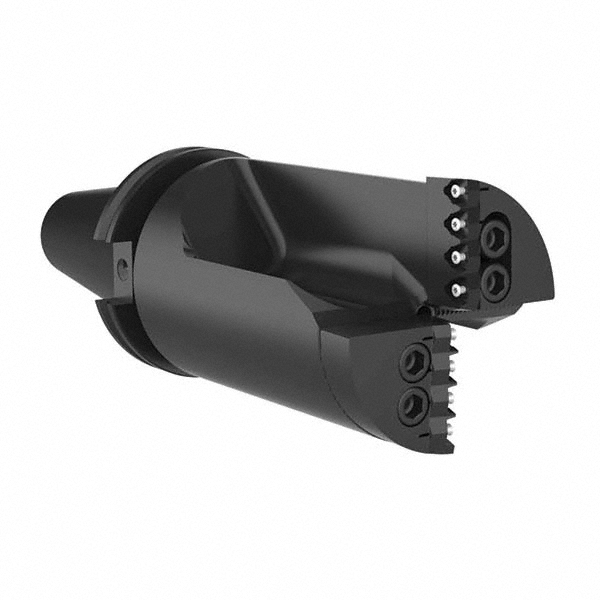

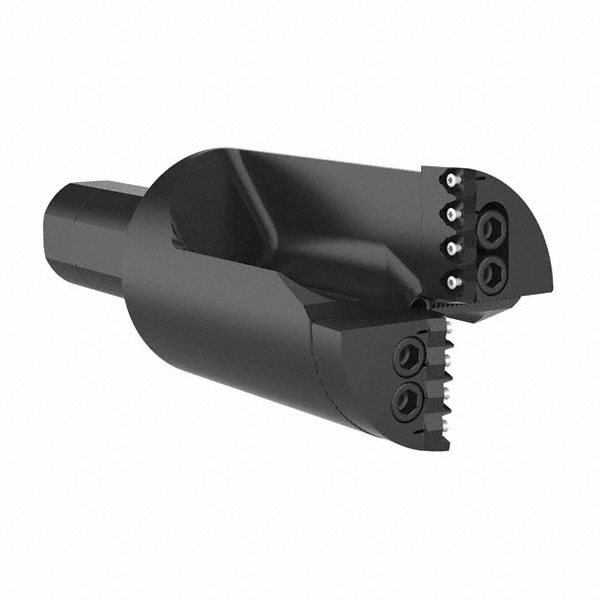

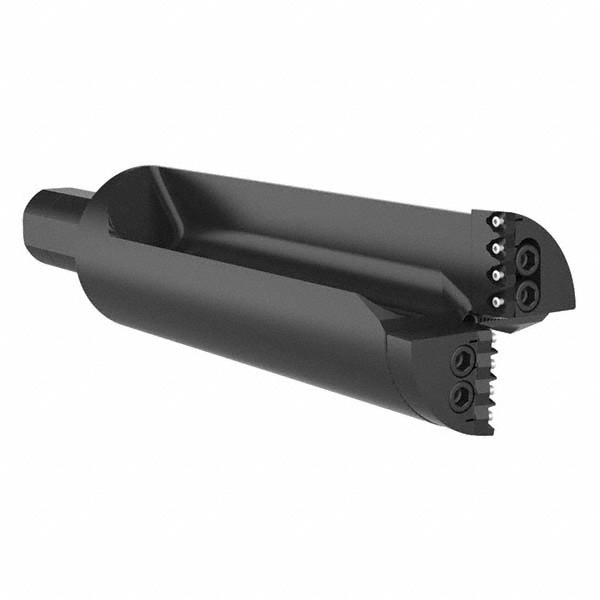

Weldon Flat & Flange Shank, Uses OP 05T308 Inserts, Series R58
| Compatible Drill Style | SP58 |
|---|---|
| Maximum Drill Diameter (mm) | 101.60 |
| Maximum Drill Diameter (Inch) | 4 |
| Maximum Drill Diameter (Decimal Inch) | 4.0000 |
| Maximum Drill Depth (Inch) | 3-15/16 |
| Maximum Drill Depth (Decimal Inch) | 3.9375 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Number of Drill Inserts | 8 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Tool Material | Steel |
| Compatible Insert Style | OP |
| Compatible Insert Size Code | 05T308 |
| Drill Depth by Diameter Ratio | 1xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 10.3125 |
| Overall Length (Inch) | 10-5/16 |
| Series | R58 |
| Flute Length (Decimal Inch) | 3.9375 |
| Body Length (Decimal Inch) | 5.8125 |
| Shank Length (Decimal Inch) | 4.5000 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3125 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | OP-05T308 |
| Collar Diameter (Decimal Inch) | 3.8000 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
| Insert Lock Screw | IS-10-1 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 92525906 |
