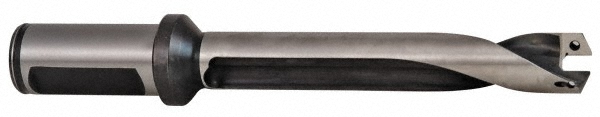

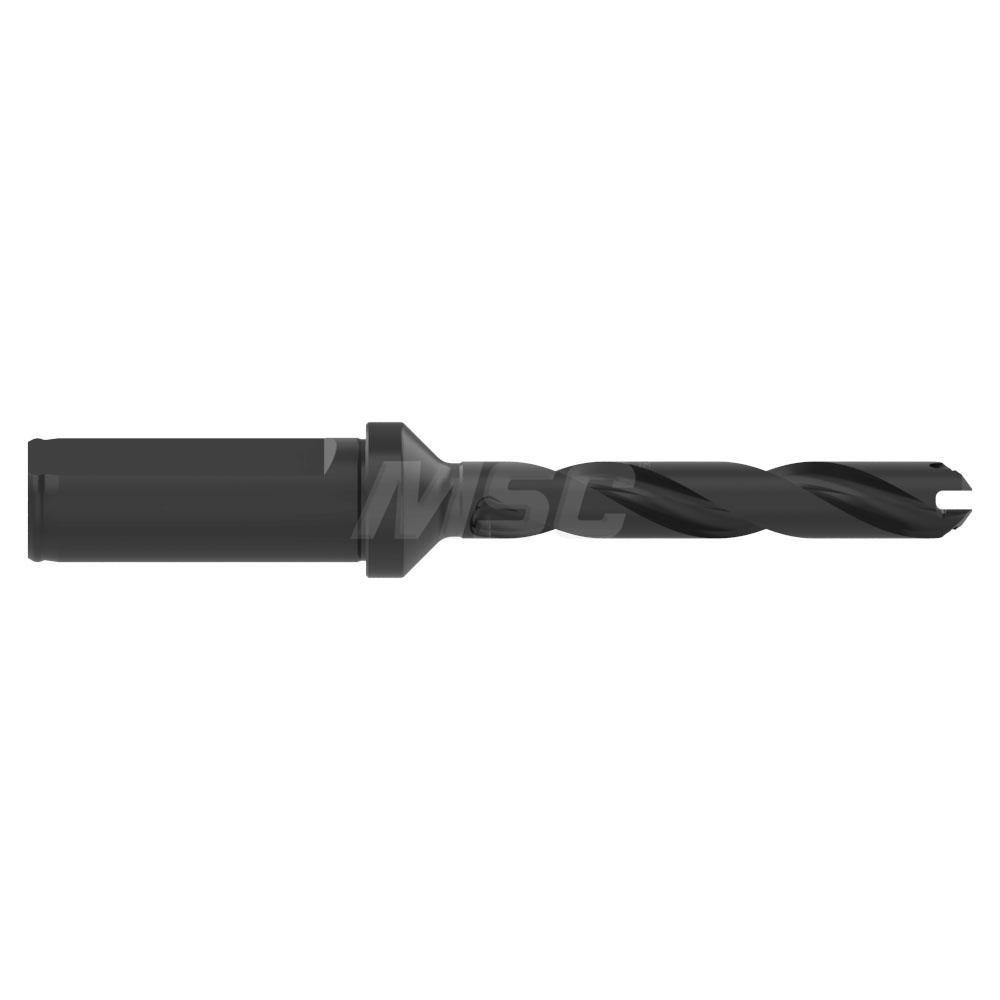

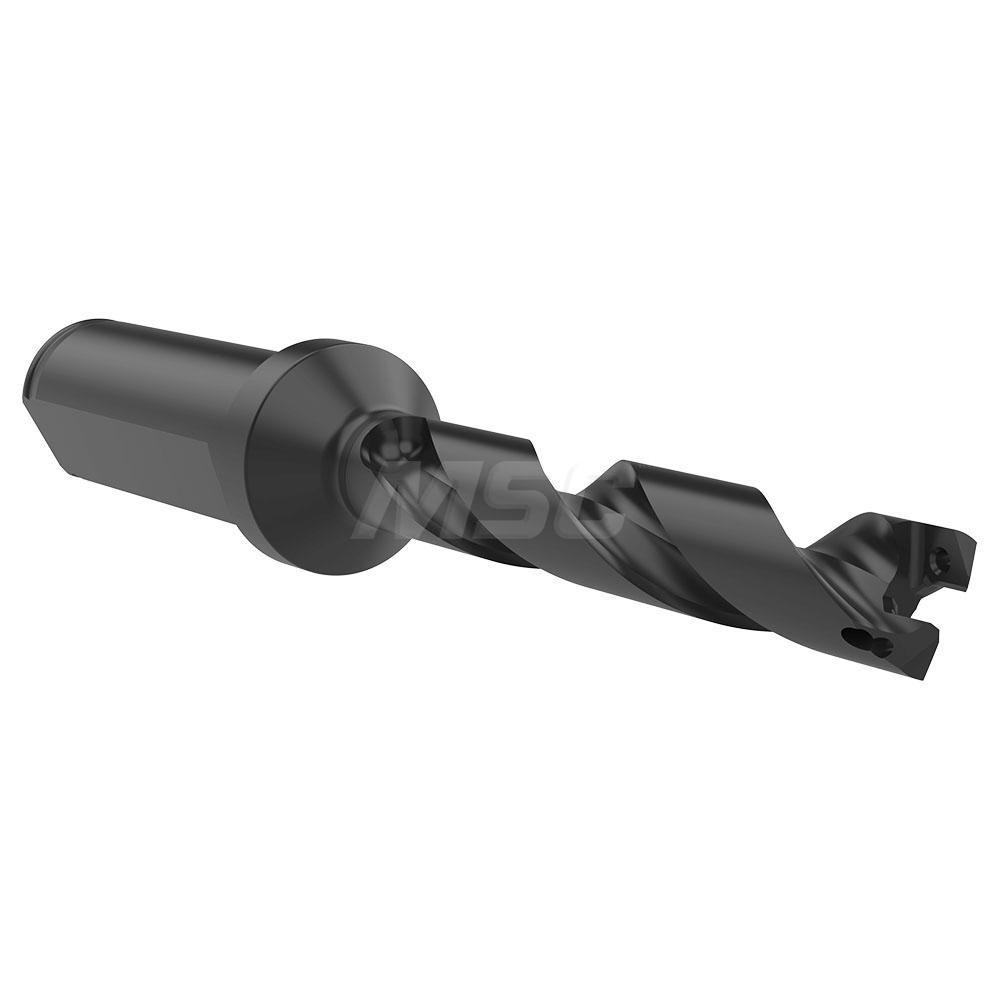

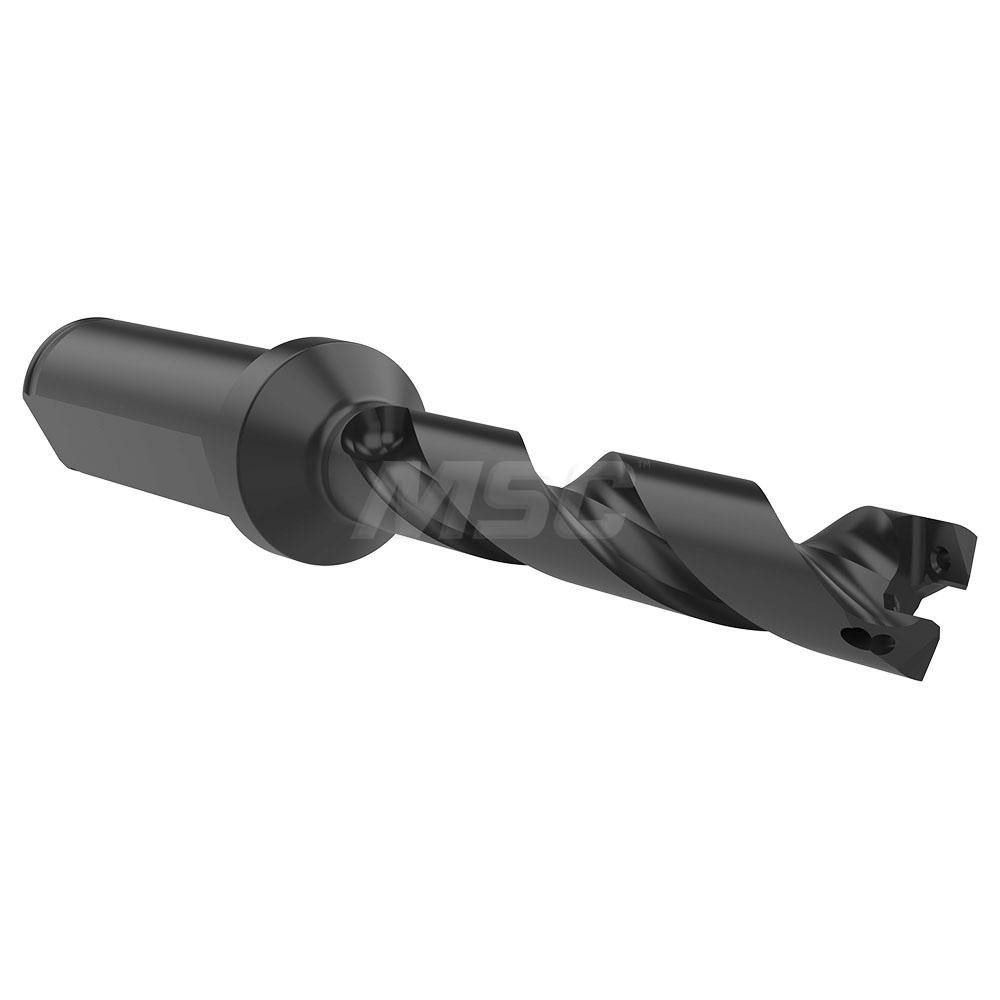

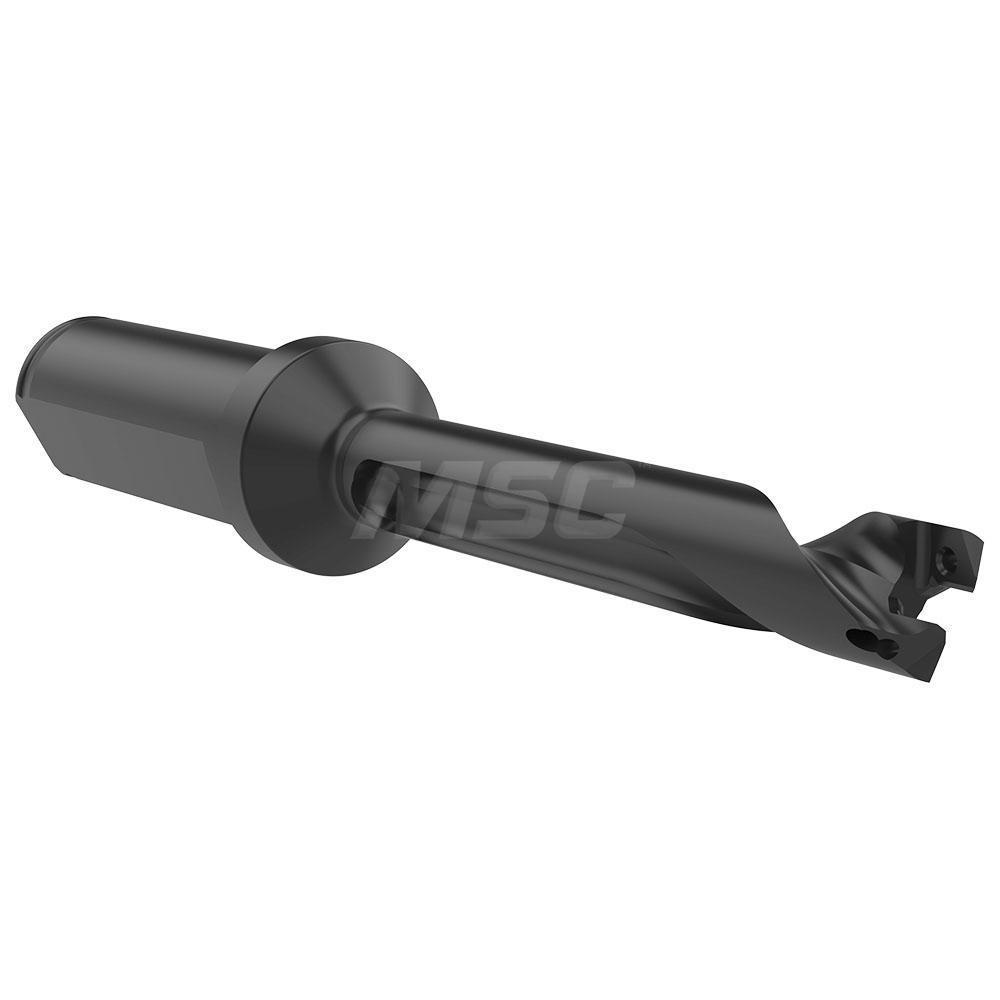

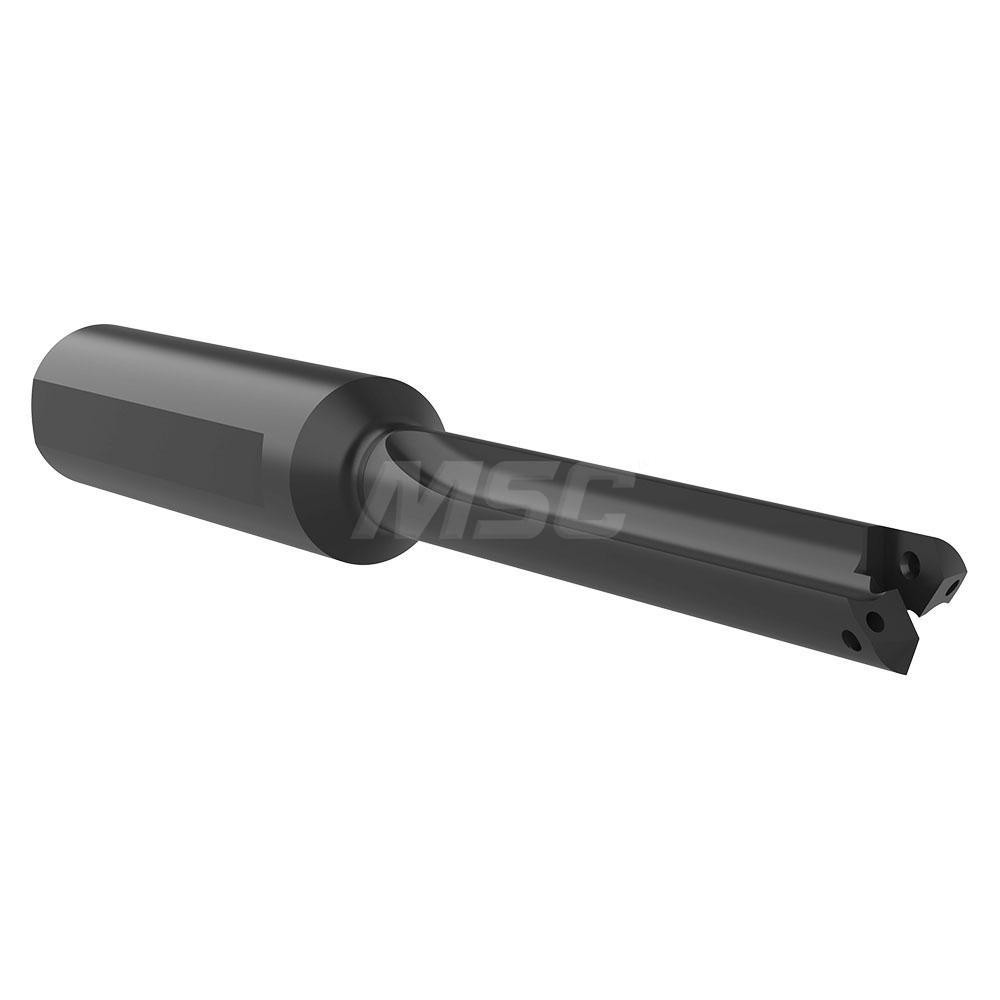

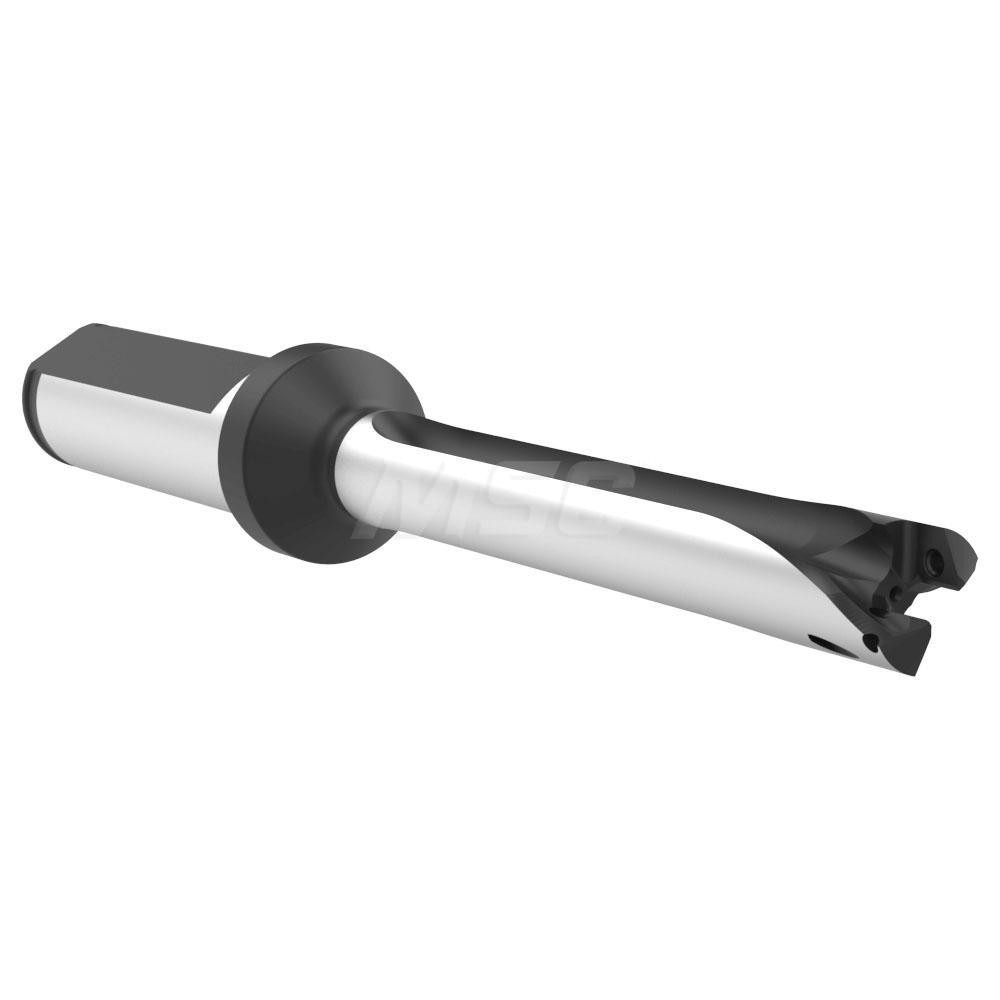

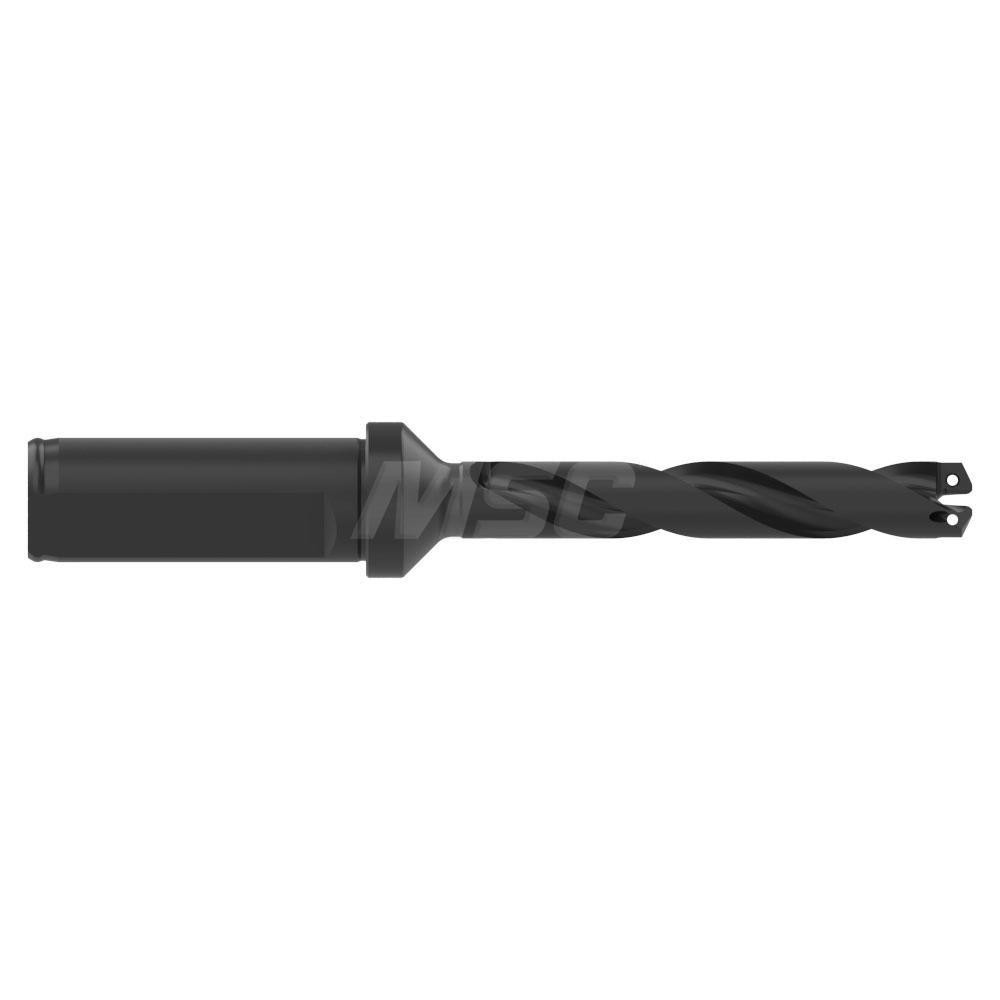

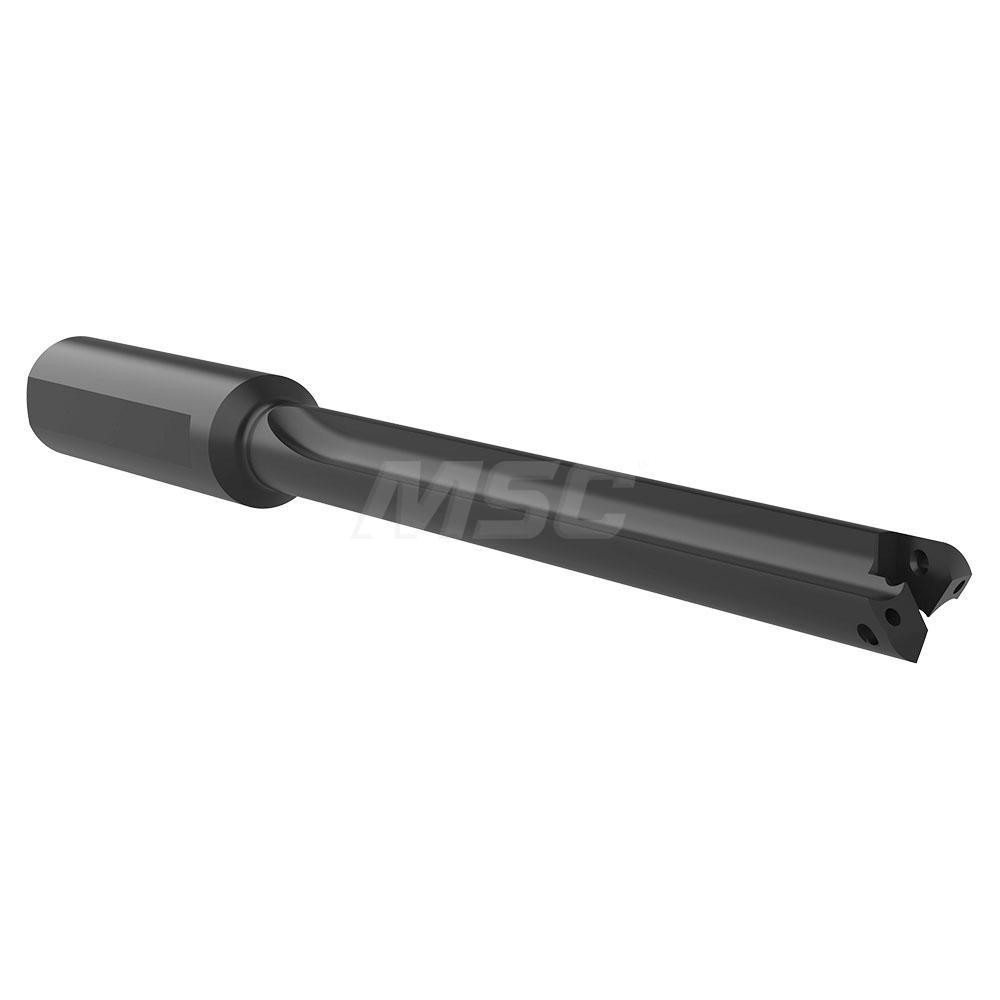

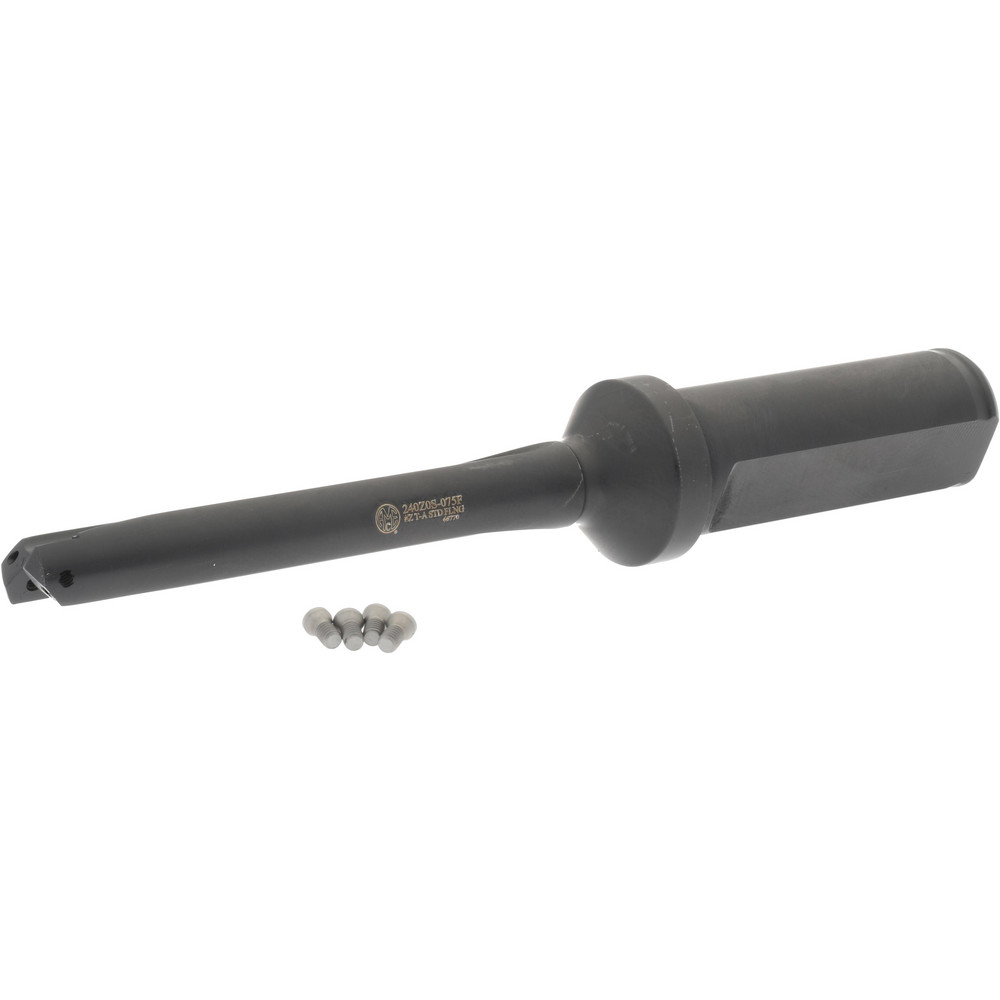

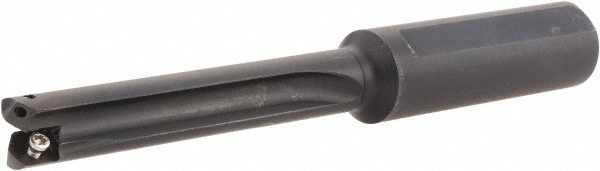

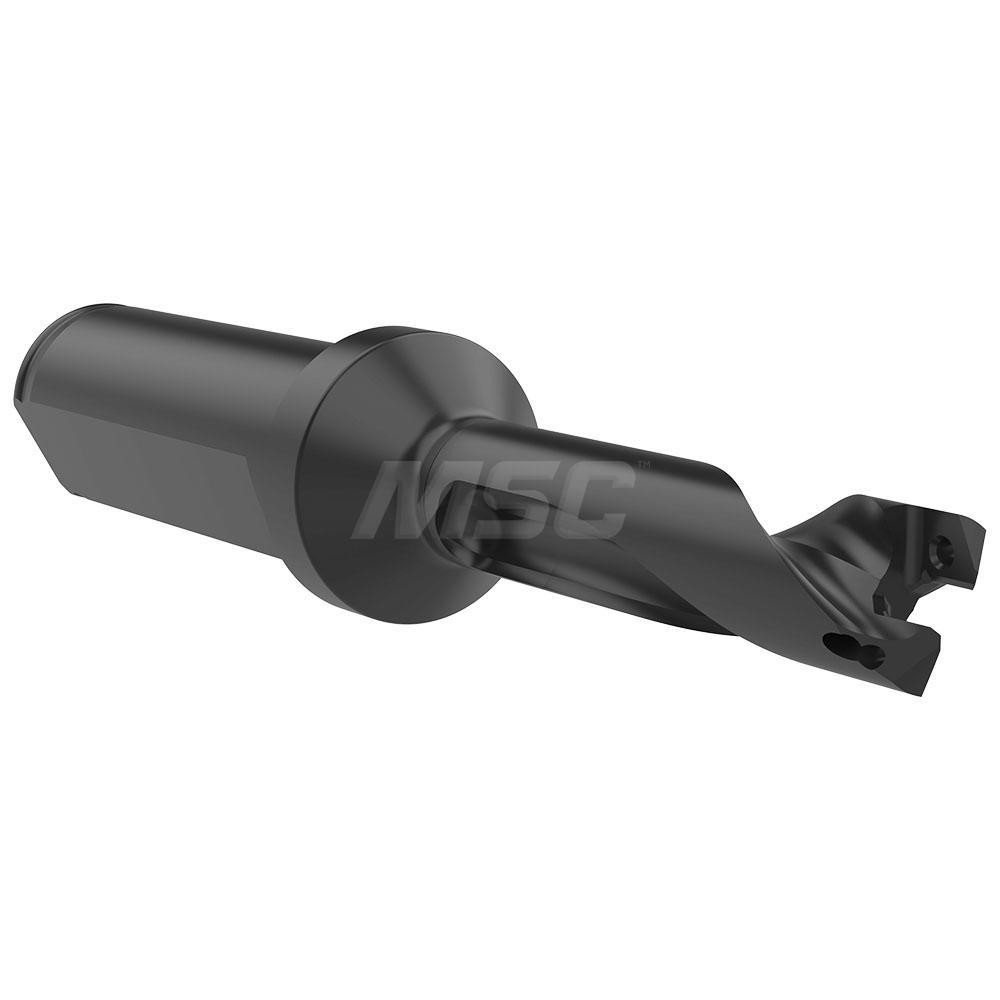

0.7500" Dia Flatted Shank, Coolant Through, Series GEN3SYS 12
| Minimum Drill Diameter (Decimal Inch) | 0.4724 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.5117 |
| Maximum Drill Depth (Inch) | 2-9/16 |
| Maximum Drill Depth (Decimal Inch) | 2.5630 |
| Spade Drill Length | Standard |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Length Type | Standard |
| Drill Depth by Diameter Ratio | 5xD |
| Tool Material | Steel |
| Overall Length (Inch) | 5-43/64 |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | GEN3SYS 12 |
| Flute Type | Helical |
| Flute Length (Inch) | 2-9/16 |
| Body Length (Inch) | 3-21/32 |
| Shank Length (Inch) | 2-1/32 |
| Tool Performance | General Purpose |
| Coolant Hole Thread Size | 1/8 |
| Coolant Hole Thread Type | NPT |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; K; M; N |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 92520782 |
